Key Takeaways & Executive Findings
- •• • At a modulation period of 186 nm, TiAlN/VN multilayers achieved a maximum hardness of 25.46 ± 0.69 GPa and a minimum residual compressive stress of 0.88 GPa, surpassing the rule-of-mixtures hardness of monolithic TiAlN and VN films. This hardness-stress combination is critical for connecting rods subjected to cyclic loading, where stress-induced cracking would otherwise accelerate fatigue failure. • • The multilayer with Λ = 280 nm delivered the highest H/E and H³/E² ratios, correlating with superior fracture toughness and film-substrate adhesion, and maintained a stable friction coefficient of 0.5 with optimal wear resistance. These metrics indicate that a moderate interface density balances hardness and toughness, preventing premature delamination under sliding contact. • • The Λ = 186 nm multilayer exhibited increased self-corrosion potential and reduced corrosion current density compared to the TC4 substrate, owing to a higher interface count and lower porosity that effectively sealed micro-pores and micro-cracks. This barrier effect impedes corrosive media diffusion, directly extending the service life of titanium alloy connecting rods in chloride-rich or acidic environments. • • Decreasing the modulation period while holding total film thickness constant increased the number of interfaces, which absorbed energy from TiAlN layers and relaxed their strain fields, producing lower residual stress. This interface engineering strategy offers a scalable route to tailor residual stress and mechanical properties without altering chemical composition.
China Advanced Materials & Deep-Tech Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
TiAlN/VN multilayer films with modulation periods (Λ) of 186, 280, and other values were deposited on TC4 titanium alloy connecting rods via microwave-enhanced magnetron sputtering to address the inadequate tribological and corrosion performance of monolithic TiAlN and VN coatings. X-ray diffraction confirmed coherent epitaxial growth of a face-centered cubic structure across all multilayers. As Λ decreased from 280 to 186 nm, hardness increased to a maximum of 25.46 ± 0.69 GPa and residual compressive stress decreased to 0.88 GPa, attributed to increased interface density and alternating stress fields that inhibit dislocation motion and relieve internal strain. The multilayer with Λ = 280 nm exhibited the highest H/E and H³/E² ratios, yielding superior fracture toughness, film-substrate adhesion, a stable friction coefficient of 0.5, and optimal wear resistance. Electrochemical testing revealed that the Λ = 186 nm multilayer, with its higher interface count and lower porosity, effectively blocked micro-pores and micro-cracks, increasing the self-corrosion potential and reducing corrosion current density relative to the TC4 substrate. These results demonstrate that TiAlN/VN multilayers provide a dual-function barrier against wear and corrosion, extending the service life of titanium alloy connecting rods in harsh environments and offering a theoretical basis for broadening titanium alloy applications.
1. Introduction
TC4 titanium alloy connecting rods are widely used in automotive and aerospace applications due to their high specific strength and corrosion resistance. However, their poor tribological performance—characterized by low hardness, high friction coefficients, and susceptibility to adhesive wear—and inadequate corrosion resistance in aggressive environments limit their service life. Monolithic hard coatings such as TiAlN and VN have been applied to mitigate these issues, but each suffers from intrinsic drawbacks: TiAlN films develop high residual compressive stresses that promote cracking and spallation, while VN films exhibit lower hardness and inferior wear resistance. These limitations stem from the inability of single-layer architectures to simultaneously optimize hardness, toughness, and stress management.
Multilayer architectures with alternating nanoscale layers offer a solution by introducing interfaces that impede dislocation motion, relax residual stresses, and block corrosive pathways. This study employs microwave-enhanced magnetron sputtering to deposit TiAlN/VN multilayers with controlled modulation periods on TC4 substrates. By systematically varying the modulation period, the research establishes quantitative relationships between interface density, residual stress, hardness, fracture toughness, wear resistance, and corrosion protection. The findings provide a design framework for engineering multilayer coatings that extend the operational lifespan of titanium alloy connecting rods under combined mechanical and electrochemical degradation.
Loading authentic research manuscript (Pages 1–5)...
WU Jie, XU Zhaoying, WANG Jiarong, ZHANG Tengfei, WANG Jinbiao, SU Yongyao (2026). Microstructure and Wear-Corrosion Properties of TiAlN/VN Multilayer Films on Titanium Alloy Connecting Rods. Surface Technology (表面技术). https://doi.org/10.16490/j.cnki.issn.1001-3660.2026.08.004
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntelare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions

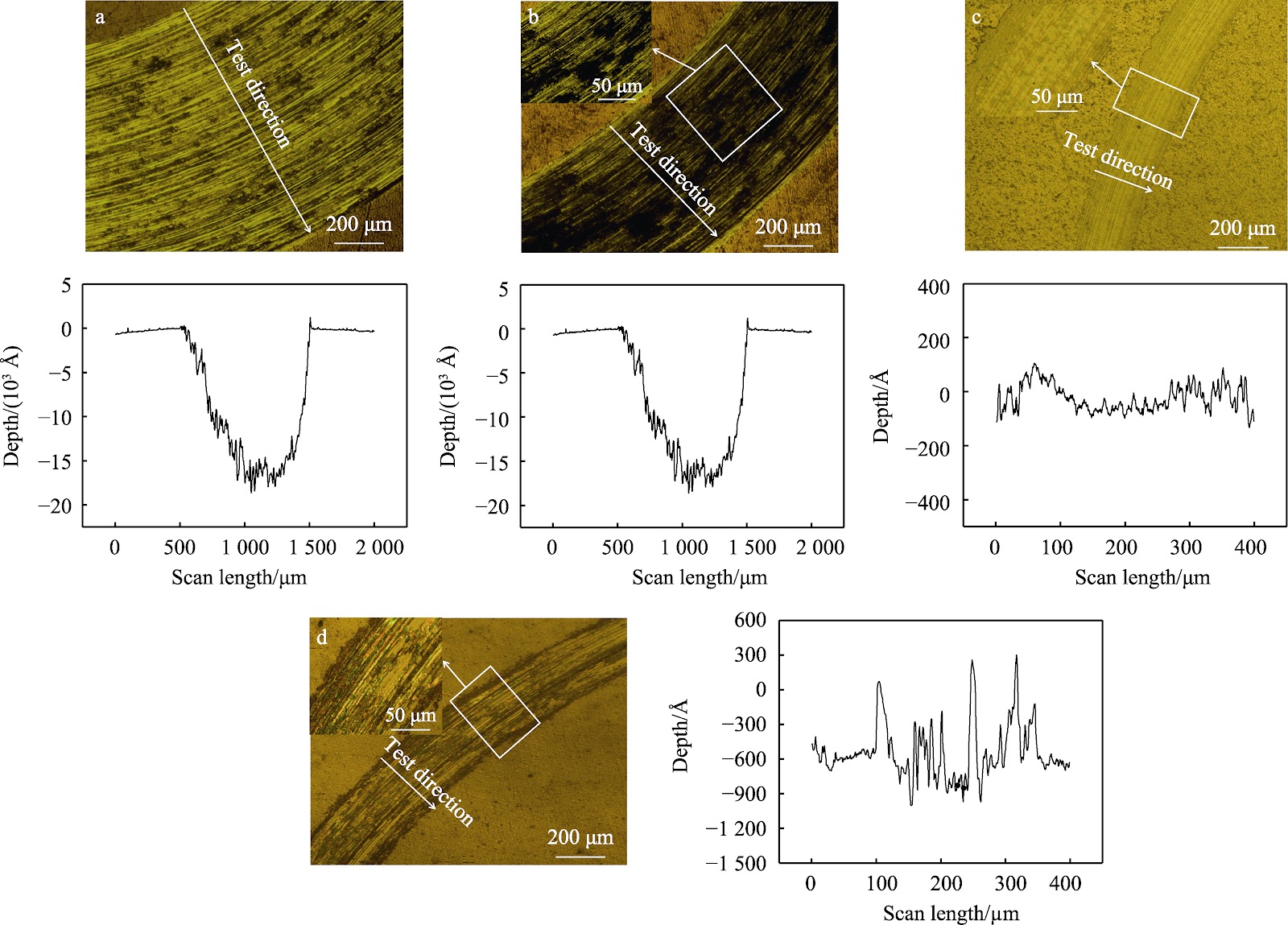

What is the dominant failure mechanism of TiAlN/VN multilayers under sliding wear, and how does modulation period influence it?
The dominant failure mechanism is crack initiation and propagation at interfaces, followed by delamination. At Λ = 280 nm, the multilayer exhibits the highest H/E and H³/E² ratios, which correlate with superior fracture toughness and film-substrate adhesion, resulting in a stable friction coefficient of 0.5 and optimal wear resistance. Reducing Λ to 186 nm increases hardness to 25.46 GPa but lowers toughness, making the film more susceptible to brittle fracture under high contact stresses. Therefore, Λ = 280 nm provides the best balance for wear resistance.
How does the multilayer architecture mitigate residual stress compared to monolithic TiAlN films?
Monolithic TiAlN films typically develop high residual compressive stresses that promote cracking. In TiAlN/VN multilayers, decreasing the modulation period from 280 to 186 nm increases the number of interfaces, which absorb energy from TiAlN layers and relieve their strain fields. This results in a residual stress reduction to 0.88 GPa at Λ = 186 nm, significantly lower than the average value for monolithic TiAlN films. The alternating stress fields at interfaces inhibit dislocation motion and accommodate strain, preventing stress accumulation.
What electrochemical metrics demonstrate the corrosion protection of TiAlN/VN multilayers on TC4, and what is the underlying mechanism?
The Λ = 186 nm multilayer exhibits a higher self-corrosion potential and lower corrosion current density compared to the TC4 substrate. This is attributed to its higher interface count and lower porosity, which effectively seal micro-pores and micro-cracks, blocking the diffusion of corrosive media. The dense, coherent epitaxial structure acts as a physical barrier, reducing the exposed substrate area and suppressing electrochemical reactions. These results indicate a significant corrosion protection effect, extending service life in harsh environments.
Can the TiAlN/VN multilayer deposition process be scaled to industrial production for connecting rods, and what are the cost implications?
The microwave-enhanced magnetron sputtering process used in this study is compatible with industrial-scale batch coating systems. The deposition parameters—modulation period, total thickness, and target power—are controllable and reproducible. While multilayer deposition adds process steps compared to monolithic coatings, the improvement in service life (reduced wear and corrosion) can offset the initial cost by lowering maintenance and replacement frequency. The use of standard TiAl and V targets ensures material availability and cost parity with existing hard coatings.
What are the limitations of the current study regarding long-term durability and thermal stability of TiAlN/VN multilayers?
The study focuses on room-temperature mechanical and electrochemical performance. Long-term durability under cyclic loading and elevated temperatures (e.g., engine operating conditions) was not evaluated. Thermal stability of the multilayer, particularly interdiffusion at interfaces and oxidation resistance above 500°C, remains unquantified. Future work should assess phase stability, hardness retention, and corrosion resistance after thermal exposure to validate suitability for high-temperature connecting rod applications.
