Key Takeaways & Executive Findings
- •• Ta addition up to 2.0 wt.% fully dissolves in the near-β Ti-4Al-6Cr-5Mo-5Nb alloy, refining β grain size from 2.4 mm to 0.4 mm and increasing β phase fraction. • Optimal Ta content of 1.6 wt.% yields peak tensile strength of 735 MPa and fracture toughness of 55 MPa·m1/2, achieving a superior strength-toughness balance. • The study demonstrates a viable alloy design strategy to overcome the inherent strength-toughness trade-off in titanium alloys for aerospace fasteners. • Microstructural evolution, including α-phase coarsening and β-phase stabilization, underpins the enhanced mechanical performance.
Abstract
To meet the aerospace industry’s demand for aircraft featuring high thrust-to-weight ratios and lightweight structures capable of operating in complex service environments, β titanium alloys with high specific strength and good plasticity have become a current research hotspot in the development of domestic fasteners. Based on the calculated Mo equivalent, the alloy composition Ti-4Al-6Cr-5Mo-5Nb is classified as a near-β titanium alloy within the titanium alloy design space. The microstructure is further controlled by adding alloy element Ta with a mass fraction of 0.4wt.%-2.0wt.%. Research results indicate that Ta dissolves completely in the matrix without forming new phases within the investigated range. As the Ta content increases, the proportion of the β phase increases significantly, the β grain diameter decreases markedly from 2.4 mm to 0.4 mm, and the α phase gradually coarsens. When adding 1.6wt.% Ta, the tensile strength and fracture toughness of the alloy reach the peak values of 735 MPa and 55 MPa·m1/2, respectively.
1. Introduction
High-performance near-β titanium alloys are critical structural materials in advanced aerospace and marine applications, driven by their exceptional strength-to-weight ratio [1-3]. The development of next-generation components requires an exceptional synergy of mechanical properties, particularly high levels of both strength and fracture toughness [4]. A fundamental challenge impeding this goal is the inherent strength-toughness trade-off, where conventional strengthening pathways often detrimentally affect fracture resistance [5-7]. Therefore, innovative alloy design strategies are essential to overcome this antagonistic relationship [8, 9].
Alloying with β-stabilizing elements is a proven approach to tailor the microstructure and mechanical properties of titanium alloys [10, 11]. Among these, tantalum (Ta) is a particularly compelling candidate [12]. As an isomorphous β-stabilizer, Ta effectively enhances the matrix strength via solid-solution strengthening [13, 14]. Crucially, its atomic radius is proximate to that of Ti, which minimizes lattice distortion and is thus beneficial for retaining toughness and ductility during strengthening [15-18]. This assertion is supported by first-principles calculations, which indicate a strong interatomic bonding between Ta and Ti [19], suggesting a significant potential for improving mechanical performance [20].
Our preliminary investigations identified the Ti-4Al-6Cr-5Mo-5Nb alloy as a promising castable system, however, it exhibits a suboptimal strength-toughness balance that fails to meet the stringent performance targets. To address this limitation, the present study systematically investigates the influence of micro-alloying with Ta on this base alloy. The primary objective is to achieve a concurrent enhancement in strength and toughness by strategically tailoring the microstructure, specifically through the refinement and morphological control of the α-phase precipitates. This work elucidates the governing mechanisms by examining the evolution of phase constitution, microstructural features, and the resultant mechanical properties in the newly developed Ti-4Al-6Cr-5Mo-5Nb-xTa alloys.
Loading authentic research manuscript (Pages 1–5)...
Jia-qi Hao, Hong-ze Fang, Xing-fang Xue, Ji-chang Yu, Bo-bo Li, Bao-hui Zhu, Rui-run Chen (2026). Microstructure and mechanical properties evolution of near-β alloy Ti-4Al-6Cr-5Mo-5Nb-xTa. China Foundry. https://doi.org/10.1007/s41230-026-5263-6
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the optimal Ta content in Ti-4Al-6Cr-5Mo-5Nb-xTa alloys for best mechanical properties?
The optimal Ta content is 1.6 wt.%, which yields the highest tensile strength of 735 MPa and fracture toughness of 55 MPa·m1/2.
How does Ta addition affect the microstructure of the near-β titanium alloy?

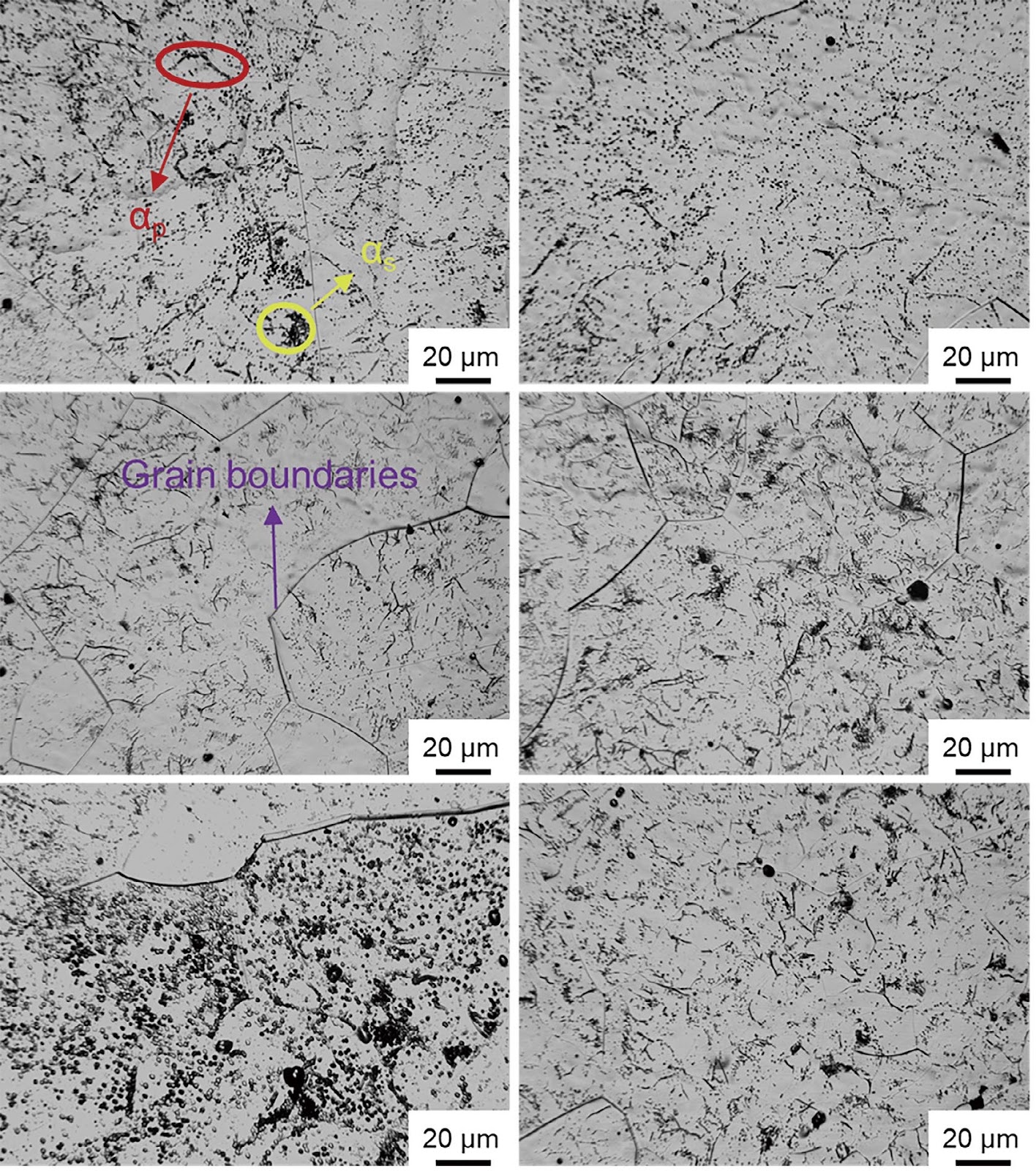

Ta addition increases the β phase proportion, refines β grain size from 2.4 mm to 0.4 mm, and causes gradual coarsening of the α phase.
Why is Ta chosen as an alloying element for titanium alloys?
Ta is an isomorphous β-stabilizer that enhances strength via solid-solution strengthening while minimizing lattice distortion due to its atomic radius being close to Ti, thus preserving toughness and ductility.
What is the significance of this research for aerospace applications?
This research provides a strategy to overcome the strength-toughness trade-off in titanium alloys, enabling the development of high-performance fasteners for aircraft with high thrust-to-weight ratios and lightweight structures.
Does Ta form new phases in the alloy within the studied range?
No, Ta dissolves completely in the matrix without forming new phases within the investigated range of 0.4 wt.% to 2.0 wt.%.
