Key Takeaways & Executive Findings
- •• First demonstration of surface-patterned 2D Dion-Jacobson perovskite microplates for enhanced light absorption. • BPB-based photodetectors achieve high on/off ratio (~5000), responsivity (2.24 A/W), and detectivity (~10^13 Jones) in UV region. • Successful application in weak-light communication, imaging, and polarized light detection. • Surface light management strategy provides a new avenue for improving optoelectronic device performance.
Abstract

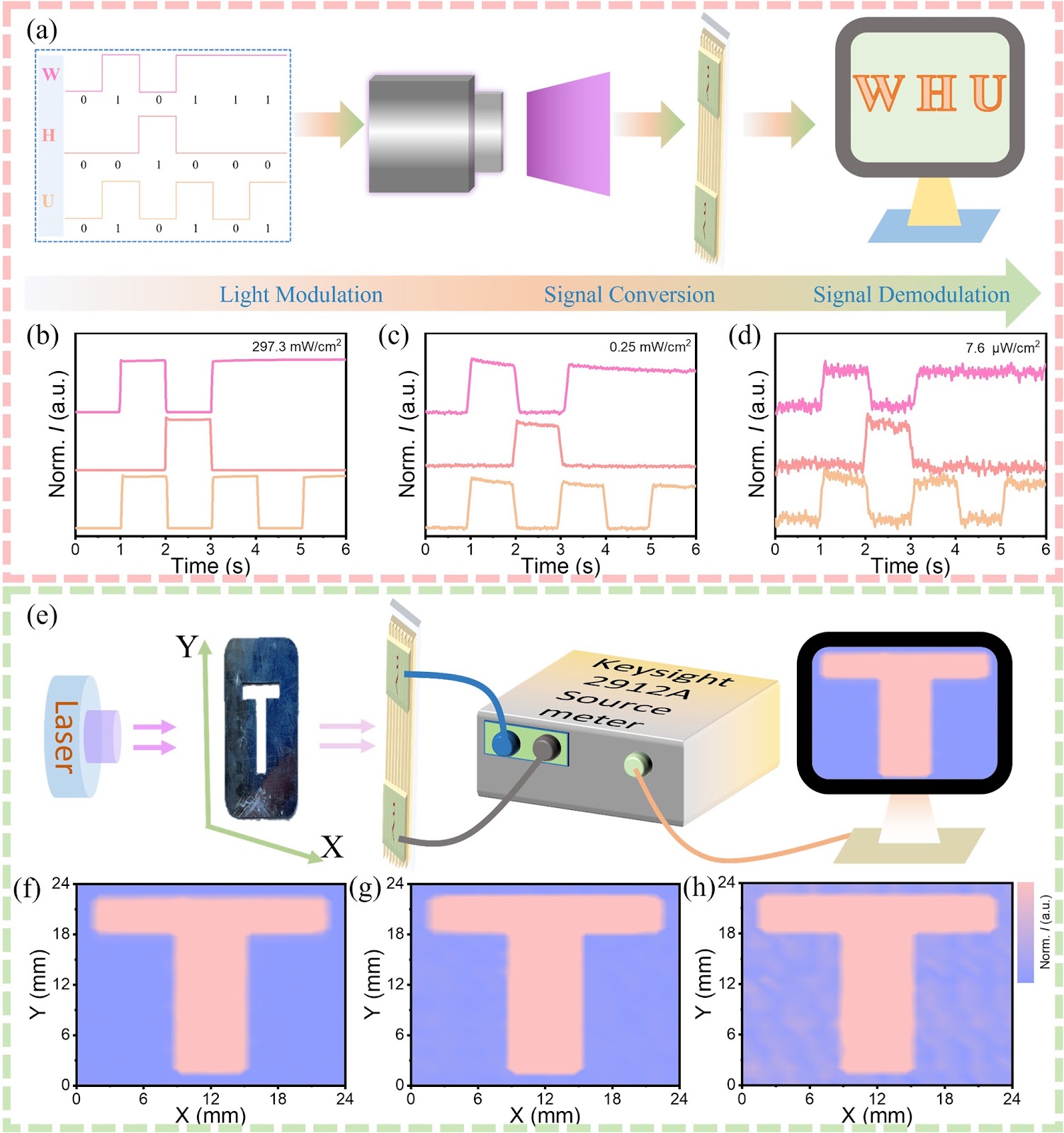

Two-dimensional Dion-Jacobson (DJ) perovskite has garnered significant attention due to its superior responsivity and operation stability. However, efforts are predominantly focused on discovering new organic spacer to synthesize novel perovskites, while material-form-associated light management, which is crucial for enhancing the photodetector’s efficiency, is largely overlooked. Herein, we introduced surface light management strategy into DJ-type perovskite system by synthesizing surface-patterned BDAPbBr4 (BPB, BDA = NH3(CH2)4NH3) microplates (MPs) using template-assisted space-confined method, which was further elucidated by theoretical optical simulation. By leveraging surface-patterned MPs to enhance light absorption, the BPB-based photodetectors (PDs) achieved remarkable photoresponse in ultraviolet region, marked by a high on/off ratio (~ 5000), superior responsivity (2.24 A W−1), along with large detectivity (~ 1013 Jones) and low detection limit (68.7 nW cm−2). Additionally, the PDs showcased superior light communication and imaging capabilities even under weak-light illumination. Notably, the anisotropic nature of the surface-patterned MPs conferred excellent polarization sensitivity to the PD. These results represented the first demonstration of BPB perovskite in weak-light communication and imaging, as well as in polarized light detection. Our findings offer valuable insights into enhancing photodetector performance and optoelectronic applications through surface light management strategies.
1. Introduction
Nowadays, metal halide perovskites have emerged as key candidates for the development of high-performance optoelectronic devices due to their exceptional properties, such as high defect tolerance, large optical absorption coefficient, and high carrier mobility-lifetime product [1–5]. These characteristics make perovskites ideal for a wide range of applications, including solar cells, light-emitting diodes (LEDs), lasers, and photodetectors (PDs) [6–10]. To optimize the performance of perovskite optoelectronic devices, strategies such as interface engineering, compositional engineering, additive engineering, surface passivation, and device architecture optimization [5, 11–14] have been reported.
Besides these strategies, significant opportunities to improve efficiency and maximize photon extraction lie in effective light management. Effective light management in perovskite devices involves enhancing light absorption and minimizing reflection losses to ensure maximum conversion of incident light into electrical signals. Strategies such as incorporating nanostructures, using textured surfaces, and integrating photonic crystals have been employed to manipulate the optical path within the device, thereby increasing the interaction between light and the perovskite material [15–17]. For light management in solar cells, resonant structures offer a wave-optics approach to exceed the limitations of light, which have been successfully incorporated in silicon and III-V materials for efficient thin solar cells [18, 19]. Recently, Feng et al. experimentally demonstrated a resonant perovskite solar cell through multiple guide-mode resonances by momentum matching of waveguided modes and free-space light. By utilizing this light management strategy, they achieved an 18-nm band edge extension and 1.5 mA cm−2 improvement of the current [20]. Tailoring extrinsic optical properties through scattering structures, micro/nanostructured light outcouples, refractive index matching, optical microcavity effects, and surface plasmon structures is particularly beneficial for perovskite LEDs. These strategies can be adjusted to maximize light extraction and enhance diode efficiency. A common strategy for extracting trapped photons in planar LEDs involves introducing light scattering or outcouple structures [21]. Zhang et al. featured hexagonal arrays of nano-domes serving as both the barrier layer and light outcouple, and a titanium dioxide nanowire array embedded in the anodic alumina membranes (AAM), functioning as opti
Loading authentic research manuscript (Pages 1–5)...
Kailian Dong, Tao Jiang, Guoyi Chen, Hongsen Cui, Shuxin Wang, Shun Zhou, Chen Wang, Yi Yang, Fang Yao, Chen Tao, Weijun Ke, Guojia Fang (2025). Light Management in 2D Perovskite Toward High-Performance Optoelectronic Applications. Nano-Micro Letters. https://doi.org/10.1007/s40820-024-01643-7
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the main contribution of this paper?
The paper introduces a surface light management strategy into 2D Dion-Jacobson perovskite by synthesizing surface-patterned BDAPbBr4 microplates, achieving high-performance UV photodetectors with enhanced light absorption and polarization sensitivity.
What are the key performance metrics of the BPB-based photodetectors?
The photodetectors exhibit a high on/off ratio of ~5000, responsivity of 2.24 A/W, detectivity of ~10^13 Jones, and a low detection limit of 68.7 nW/cm² in the UV region.
What applications are demonstrated for the BPB perovskite?
The BPB perovskite is demonstrated for weak-light communication, imaging, and polarized light detection, marking the first such demonstrations for this material.
How was the surface-patterned microplate synthesized?
The surface-patterned BDAPbBr4 microplates were synthesized using a template-assisted space-confined method, which was further validated by theoretical optical simulation.
What is the significance of the anisotropic nature of the microplates?
The anisotropic nature of the surface-patterned microplates confers excellent polarization sensitivity to the photodetector, enabling polarization-sensitive detection.
