Key Takeaways & Executive Findings
- •• 3D X-ray microscopy reveals that increasing slag basicity from 0.52 to 1.03 and temperature from 1423 K to 1573 K reduces viscosity and accelerates bubble floating rates. • Longer holding times (10 to 30 s) increase bubble floating distance and decrease the volume fraction and average equivalent sphere diameter of bubbles solidified in mold flux. • Higher basicity, temperature, and holding time enhance the removal rate of bubbles, particularly for larger bubbles, improving mold flux performance. • The findings provide critical insights for optimizing low basicity mold flux formulations for high-Mn high-Al steel continuous casting, potentially reducing defects and improving process stability.
Abstract

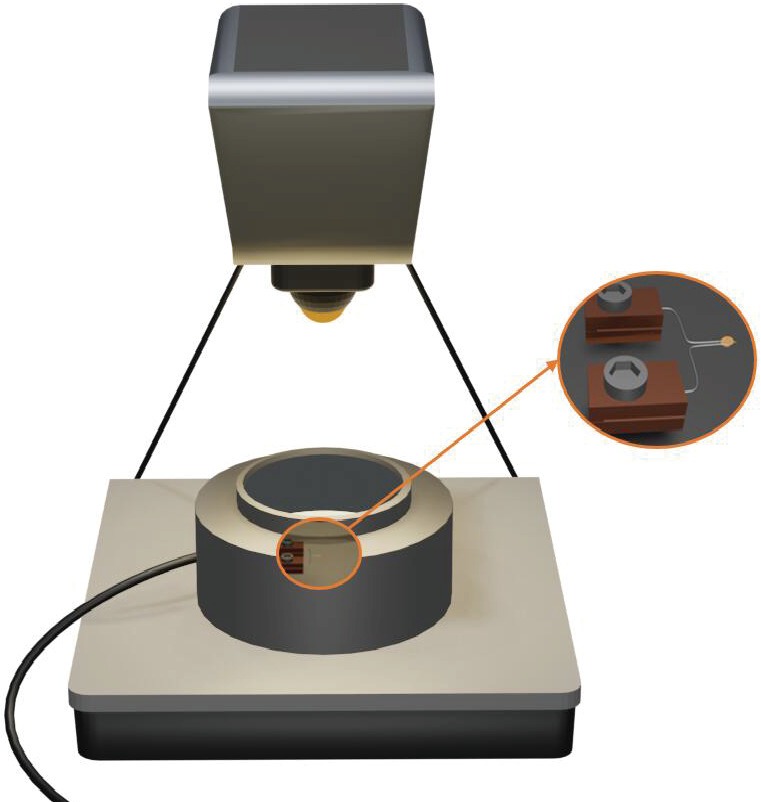

During the continuous casting process of high-Mn high-Al steels, various types of gases such as Ar need to escape through the top of the mold. In which, the behavior of bubbles traversing the liquid slag serves as a restrictive link, closely associated with viscosity and the thickness of liquid slag. In contrast to two-dimensional surface observation, three-dimensional (3D) analysis method can offer a more intuitive, accurate, and comprehensive information. Therefore, this study employs a 3D X-ray microscope (3D-XRM) to obtained spatial distribution and 3D morphological characteristics of residual bubbles in mold flux under different basicity of liquid slag, different temperatures, and different holding times. The results indicate that as basicity of slag increases from 0.52 to 1.03, temperature increases from 1423 to 1573 K, the viscosity of slag decreases, the floating rate of bubbles increases. In addition, when holding time increases from 10 to 30 s, the bubbles floating distance increases, and the volume fraction and average equivalent sphere diameter of the bubbles solidified in the mold flux gradually decreases. In one word, increasing the basicity, temperature, and holding time leading to an increase in the removal rate of bubbles especially for the large. These findings of bubbles escape behavior provide valuable insights into optimizing low basicity mold flux for high-Mn high-Al steels.
1. Introduction
Mold flux plays key roles during the continuous casting process, such as isolating air, absorbing inclusions, lubricating strand, and controlling heat transfer between the mold and steel shell. During the continuous casting of high-Mn high-Al steels, [Al] and [Mn] in the steel are easy to react with SiO2 in the slag [1–2], causing changes in composition of slag, inducing the deterioration performance of the mold flux, which will affect the lubrication and heat transfer ability between the slab and the mold flux [3]. In severe cases, the breakout accident may occur. Therefore, peoples focus their main mind on reducing these reactions [4–5].
However, the behavior of bubbles escaping from the mold flux is also worthy of attention. During the continuous casting of high-Mn high-Al steels, various gases are blown in or produced. For example, the argon are blown into the mold through the nozzle, which can prevent the nozzle from blocking, homogenize the composition of molten steel, protect the casting, and promote the floating of inclusions [6]; the volume fraction of air in the hollow ball slag is more than 60%; CO and CO2 are generated during the combustion of graphite and carbon black in the carbon-rich layer [7]; SO2 and CO2 are generated because of decomposition of sulfate and carbonate [8–9]. These gases need to escape through the slag, always with a small part captured in the slag and entering into the slag channel. If the gases are too much, the mold flux will be overturned, and then [Al] in molten steel will react with the oxygen in the air to form Al2O3, which may also change the composition of slag [10]. Besides, the bubbles in the slag film will change the thermal conductivity of slag, act as the core of heterogeneous nucleation during the solidification of liquid slag and promote crystallization, and then affect the radiation heat transfer and conduction heat transfer [11–12].
The structure of mold flux is divided into powder layer, sintering layer, and liquid slag layer. Lots of connected holes in the powder layer and sintering layer, therefore, the resistance of gases passing through connected holes is negligible. Although the thickness of the liquid slag layer is thin, usually 7–15 mm, the resistance of gases passing through liquid slag is the limiting stage of gases escape, and excessive resistance will lead to slag turning and level fluctuation [13–14]. The bubbles contact each other and grow up during rising upward in the liquid layer, but the sizes of which usually small when solidified in the liquid firm. Generally, it is necessary to observe by optical microscope or electron microscope. However, whether optical microscope or electron microscope, only obtains the two-dimensional (2D) images of bubbles on the surface of the sample and takes a lot of time to obtain the statistical data of a large number of bubbles, and the three-dimensional (3D) distribution of bubbles cannot be observed [15–16]. Therefore, an intuitive, accurate, comprehensive, and efficient experimental method is needed to study the escape behavior of bubbles in mold flux.
Loading authentic research manuscript (Pages 1–5)...
Qiang Liu, Xiang Li, Shen Du, Ming Gao, Yanbin Yin, Jiongming Zhang (2025). Investigation of bubbles escape behavior from low basicity mold flux for high-Mn high-Al steels using 3D X-ray microscope. Int. Journal of Minerals, Metallurgy and Materials (矿物冶金与材料学报). https://doi.org/10.1007/s12613-024-2896-6
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the main objective of this study?
The study aims to investigate the escape behavior of bubbles from low basicity mold flux used in high-Mn high-Al steel continuous casting, using 3D X-ray microscopy to analyze the spatial distribution and morphology of residual bubbles under varying slag basicity, temperature, and holding time.
How does slag basicity affect bubble escape?
Increasing slag basicity from 0.52 to 1.03 decreases slag viscosity, which accelerates the floating rate of bubbles, thereby enhancing their removal from the mold flux.
What is the role of temperature in bubble behavior?
Raising the temperature from 1423 K to 1573 K reduces slag viscosity, leading to faster bubble floating and improved bubble removal efficiency.
How does holding time influence bubble removal?
Extending holding time from 10 to 30 seconds increases the distance bubbles float and decreases the volume fraction and average equivalent sphere diameter of bubbles solidified in the mold flux, indicating better bubble removal.
Why is 3D X-ray microscopy used in this study?
3D X-ray microscopy provides an intuitive, accurate, and comprehensive method to observe the three-dimensional distribution and morphology of bubbles, overcoming the limitations of traditional 2D surface observation techniques.
Related Technical Papers & Translations
Direct Repair of the Crystal Structure and Coating Surface of Spent LiFePO4 Materials Enables Superfast Li-Ion Migration
The rapid accumulation of spent LiFePO4 (LFP) cathodes from retired lithium-ion batteries necessitates the development of effective and environmental-friendly recycling strategies. In this context, direct regeneration has emerged as a promising approach for reclaiming LFP cathode materials, offering a streamlined pathway to restore their electrochemical functionality. We report an integrated regeneration protocol that simultaneously repairs the degraded crystal structure and reconstructs the damaged carbon coating in spent LFP. The regenerated cathode material had superfast lithium-ion diffusion kinetics and a stable cathode–electrolyte interface, giving a remarkable rate capability with specific capacities of 122 mAh g−1 at 5C and 106 mAh g−1 at 10C (1C = 170 mA g−1). It also maintained capacities of 110.7 mAh g−1 (5C) and 84.1 mAh g−1 (10C) after 400 cycles. It could be used in harsh environments and could be stably cycled at subzero temperatures (−10 and −20 °C) and in solid-state electrolyte batteries. Life cycle assessment combined with economic evaluation using the EverBatt model reveals that this direct regeneration approach has high economic and environmental benefits.
Oxide Semiconductor for Advanced Memory Architectures: Atomic Layer Deposition, Key Requirement and Challenges
Oxide semiconductors (OSs), introduced by the Hosono group in the early 2000s, have evolved from display backplane materials to promising candidates for advanced memory and logic devices. The exceptionally low leakage current of OSs and compatibility with three-dimensional (3D) architectures have recently sparked renewed interest in their use in semiconductor applications. This review begins by exploring the unique material properties of OSs, which fundamentally originate from their distinct electronic band structure. Subsequently, we focus on atomic layer deposition (ALD), a core technique for growing excellent OS films, covering both basic and advanced processes compatible with 3D scaling. The basic surface reaction mechanisms—adsorption and reaction—and their roles in film growth are introduced. Furthermore, material design strategies, such as cation selection, crystallinity control, anion doping, and heterostructure engineering, are discussed. We also highlight challenges in memory applications, including contact resistance, hydrogen instability, and lack of p-type materials, and discuss the feasibility of ALD-grown OSs as potential solutions. Lastly, we provide an outlook on the role of ALD-grown OSs in memory technologies. This review bridges material fundamentals and device-level requirements, offering a comprehensive perspective on the potential of ALD-driven OSs for next-generation semiconductor memory devices.
Laser powder bed fusion of biodegradable Zn-4Cu alloy: Processing, microstructure and properties
Zn's natural degradability and biocompatibility make it a promising candidate for implants, however, its mechanical properties remain insufficient for bone applications. In this study, the performance of Zn was enhanced by developing Zn-Cu alloys via laser powder bed fusion (LPBF). Optimal LPBF parameters for forming stable tracks were achieved by adjusting laser power and scanning speed. Under optimized conditions of 100 W and 100 mm/s, high-density (99.58%) Zn-Cu alloys with improved hardness (68.2HV) and yield strength (160 MPa) were achieved. These improvements are attributed to solid solution strengthening, segregation strengthening, and grain refinement. The Zn-Cu alloys also demonstrated favorable degradation behavior, with a rate of 0.16 mm/year. This degradation is primarily driven by micro-galvanic corrosion between the CuZn5 phase and Zn matrix, along with refined grains and increased grain boundary density. This work demonstrates a viable strategy for fabricating Zn-based implants with enhanced structural integrity and mechanical performance via LPBF.
