Key Takeaways & Executive Findings
- •• The proposed MMC-PSO framework automatically generates efficient cooling channel layouts for aluminum alloy die-casting dies, improving thermal uniformity. • The optimized cooling system reduces temperature standard deviation by 30 seconds compared to conventional and no-cooling benchmarks, without compromising average temperature. • The framework includes systematic initialization, temperature-based sorting, overlap removal, and interconnection to ensure manufacturability. • The method addresses challenges in large thin-walled aluminum alloy castings, potentially reducing defects like shrinkage porosity and deformation.
Abstract
With the growing demand for lightweight and high-performance components in automotive and aerospace industries, aluminum alloy die-castings are evolving toward larger dimensions and thinner walls, posing significant challenges to thermal management during solidification. Traditional cooling channel designs often fail to ensure uniform temperature distribution, leading to defects such as shrinkage porosity and deformation. This study proposes an automated design framework integrating the moving morphable components (MMC) topology optimization method with particle swarm optimization (PSO) to generate efficient and manufacturable cooling channel layouts for A380 aluminum alloys. Firstly, a systematic initialization strategy was developed with component dimensions of 4-10 mm in width and 15-40 mm in length, along with discrete orientation angles. The optimization process effectively guided components toward high-temperature regions identified through numerical simulation, followed by post-processing operations including temperature-based sorting, overlap removal, and component interconnection. The final design with 20 retained components was selected. Then, castings with a conventional cooling system and without any cooling system were employed as benchmark cases for comparison with the current optimized design. Compared with the conventional and no-cooling cases, the current cooling system exhibits a consistently lower temperature standard deviation after 30 s, maintains superior thermal uniformity throughout solidification, and achieves this improvement without comprising the average temperature.
1. Introduction
With the continuous advancement of lightweight and complex structural components in the fields of new energy vehicles, aerospace, and high-end equipment manufacturing, the casting and forming of lightweight metallic materials are encountering increasingly stringent technical challenges. Among these materials, aluminum alloys, characterized by low density, high specific strength, and excellent corrosion resistance, have been extensively employed in aerospace applications (e.g., aircraft fuselages, engine components, satellite structures) as well as in automotive manufacturing (e.g., body-in-white, engine, and chassis systems) [1-2].
Driven by the growing demand for lightweight design and enhanced performance, aluminum alloy castings are evolving toward larger dimensions, higher structural complexity, and thinner wall thicknesses. For instance, integrated die-cast aluminum components, which feature large size and intricate geometries, require highly precise control of material microstructure and impose stringent demands on casting processes [3-4]. Consequently, the fabrication of such large and complex thin-walled aluminum alloy components necessitates advanced die cooling system designs and meticulous optimization of process parameters to ensure structural integrity and casting quality [5-6].
During the aluminum alloy die casting process, thermal imbalance frequently occurs during the filling and solidification stages. The cooling system, consisting of channels embedded within the mold, circulates a cooling medium to reduce the temperature of specific regions, thereby controlling the temperature field during the solidification process of the casting. A properly designed cooling system ensures uniform contraction of the casting during solidification, effectively preventing defects such as shrinkage cavities, hot cracks, and cold shuts. Therefore, the design of the cooling system has a direct and significant impact on both the quality and productivity of castings. A well-optimized cooling system design can accelerate the solidification rate of the casting, thus shortening the production cycle. Furthermore, by optimizing the layout and flow path of the cooling channels, the cooling efficiency can be enhanced, the cooling time reduced, and the overall production efficiency improved.
Loading authentic research manuscript (Pages 1–5)...
Le-chuan Li, Ya-jun Yin, Xu Shen, Wen Li, Xiao-yuan Ji, Chao-jian Liang, Wei Wei, Jian-xin Zhou (2026). Intelligent design of cooling systems for aluminum alloy die-casting dies: A framework integrating topology optimization and particle swarm optimization. China Foundry. https://doi.org/10.1007/s41230-026-5274-3
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the main contribution of this paper?
The paper proposes an automated design framework that integrates moving morphable components (MMC) topology optimization with particle swarm optimization (PSO) to generate efficient and manufacturable cooling channel layouts for aluminum alloy die-casting dies, improving thermal uniformity and reducing defects.
How does the proposed cooling system compare to conventional designs?

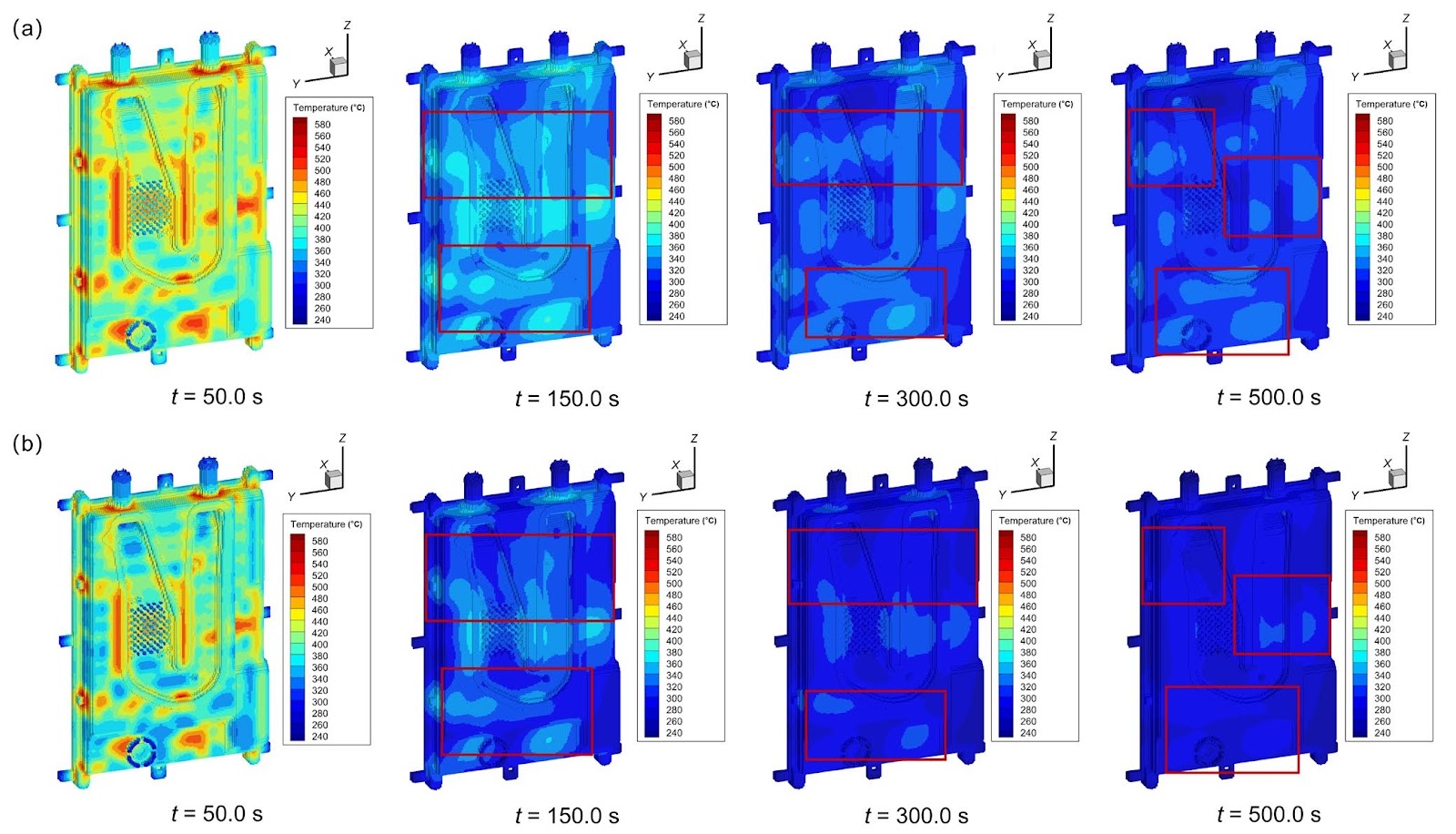

Compared to conventional and no-cooling systems, the optimized cooling system achieves a consistently lower temperature standard deviation after 30 seconds, maintains superior thermal uniformity throughout solidification, and does not compromise the average temperature.
What are the key steps in the optimization framework?
The framework includes a systematic initialization strategy with component dimensions and orientation angles, optimization guiding components toward high-temperature regions, and post-processing operations such as temperature-based sorting, overlap removal, and component interconnection.
What materials and applications are targeted?
The study focuses on A380 aluminum alloys, which are commonly used in automotive and aerospace industries for lightweight and high-performance components, such as body-in-white, engine components, and aircraft structures.
What are the potential benefits of the proposed method?
The method can accelerate solidification, shorten production cycles, enhance cooling efficiency, and reduce defects like shrinkage porosity and deformation, thereby improving casting quality and productivity.
