Key Takeaways & Executive Findings
- •• Finer magnetite particles generally reduce faster and more completely, but gangue composition can override this size effect. • MgO gangue forms magnesio-wustite solid solutions that create dense microstructures, hindering hydrogen diffusion and limiting reduction. • CaO gangue promotes calcium ferrite formation, leading to porous microstructures and enhanced reducibility. • Gangue composition is a dominant factor in reduction kinetics, phase formation, and product morphology, crucial for optimizing hydrogen-based ironmaking.
Abstract

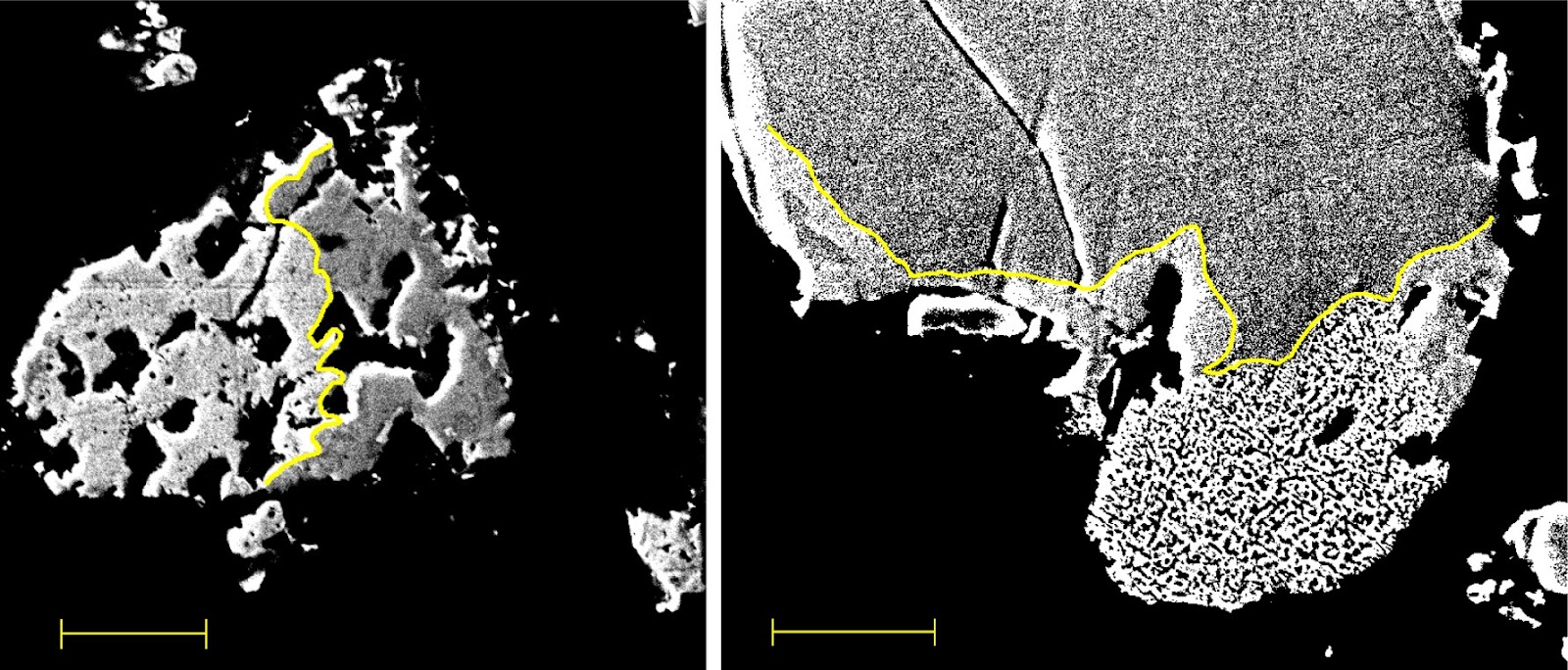

The steel industry’s transition to hydrogen-based ironmaking necessitates a deeper understanding of magnetite ore reduction, a crucial yet underexplored pathway for decarbonization. This study systematically investigates the combined effects of particle size and gangue composition on hydrogen-based reduction behavior of four industrial magnetite ore concentrates with varying CaO and MgO contents. Thermogravimetric analysis at 973 K, interrupted reduction experiments, and post-reduction characterization steps are used to evaluate reduction extent and phase transformations across different particle size fractions and bulk ores. The finer fractions generally exhibit faster and more complete reduction. However, this trend is overridden by gangue effects in certain ores. Magnetite ores with MgO as gangue tend to form magnesio-wustite solid solution (Mg,Fe)O during reduction, resulting in dense microstructures that impede hydrogen diffusion and limit reduction progress. In contrast, magnetite ores with CaO as gangue facilitate the formation of intermediate calcium ferrites, which promote porous morphology and enhanced reducibility. Notably, even the finer particles of ore containing MgO show a lower reduction degree than the coarser particles of the ore containing CaO as gangue. This highlights the dominant role of gangue composition in governing reduction kinetics, intermediate phase formation and final product morphology. These findings contribute to the growing knowledge necessary to enable fossil-free ironmaking by emphasizing the importance of considering both granulometric characteristics and heterogeneity when evaluating magnetite ores for hydrogen-based reduction.
1. Introduction
The global steel industry faces the dual challenge of meeting rising steel demand while significantly cutting greenhouse gas emissions. Accounting for approximately 7%–9% of global CO2 emissions [1–2], the steel industry relies heavily on the carbon-intensive blast furnace (BF) route for ironmaking, which contributed to 71% of global steel production in 2023 [3]. The industry is actively exploring alternative, low-carbon ironmaking technologies to mitigate these environmental impacts while sustaining economic viability and production levels. Hydrogen-based iron ore reduction has emerged as a promising approach, replacing carbon-based fossil fuels with hydrogen (H2) gas to lower emissions.
This transition is being driven by ambitious carbon neutrality goals, successful early-stage pilot projects, and small-scale implementations [4–5]. Landmark efforts like HYBRIT’s (Hydrogen Breakthrough Ironmaking Technology) production of the world’s first hydrogen-reduced sponge iron in 2021 [6], Stegra’s planned construction of a 5Mt/year green steel facility by 2030 [7], SALCOS’s (Salzgitter Low CO2 Steelmaking) initiatives to cut emissions by 95% by the end of 2033 [8], and Midrex’s development of MIDREX H2 process for using 100% hydrogen as a reductant [9] reflect growing momentum. ArcelorMittal is also advancing multiple hydrogen-based projects across Europe [10]. These initiatives reflect a global push to develop scalable and sustainable technologies for iron and steelmaking.
Loading authentic research manuscript (Pages 1–5)...
Pritesh Garg, Hesham Ahmed, Charlotte Andersson, Jan-Olov Wikström, TK Sandeep Kumar, Daniel Marjavaara, Susanne Rostmark (2025). Influence of particle size and inherent gangue on hydrogen-based reduction of magnetite iron ores. Int. Journal of Minerals, Metallurgy and Materials (矿物冶金与材料学报). https://doi.org/10.1007/s12613-025-3232-5
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the main objective of this study?
The study systematically investigates the combined effects of particle size and gangue composition on the hydrogen-based reduction behavior of magnetite iron ores, aiming to understand how these factors influence reduction kinetics and final product morphology.
How does gangue composition affect the reduction of magnetite?
MgO gangue forms magnesio-wustite solid solutions that create dense microstructures, hindering hydrogen diffusion and limiting reduction. In contrast, CaO gangue promotes the formation of calcium ferrites, leading to porous microstructures and enhanced reducibility.
What experimental methods were used in this research?
The study employed thermogravimetric analysis at 973 K, interrupted reduction experiments, and post-reduction characterization to evaluate reduction extent and phase transformations across different particle size fractions and bulk ores.
Why is hydrogen-based reduction of magnetite important?
Hydrogen-based reduction of magnetite is a promising pathway for decarbonizing the steel industry, as it replaces carbon-intensive processes with hydrogen, significantly reducing CO2 emissions.
What are the key findings regarding particle size?
Finer fractions generally exhibit faster and more complete reduction, but this trend can be overridden by gangue effects. For instance, finer particles of MgO-containing ore show lower reduction degree than coarser particles of CaO-containing ore.
Related Technical Papers & Translations
Direct Repair of the Crystal Structure and Coating Surface of Spent LiFePO4 Materials Enables Superfast Li-Ion Migration
The rapid accumulation of spent LiFePO4 (LFP) cathodes from retired lithium-ion batteries necessitates the development of effective and environmental-friendly recycling strategies. In this context, direct regeneration has emerged as a promising approach for reclaiming LFP cathode materials, offering a streamlined pathway to restore their electrochemical functionality. We report an integrated regeneration protocol that simultaneously repairs the degraded crystal structure and reconstructs the damaged carbon coating in spent LFP. The regenerated cathode material had superfast lithium-ion diffusion kinetics and a stable cathode–electrolyte interface, giving a remarkable rate capability with specific capacities of 122 mAh g−1 at 5C and 106 mAh g−1 at 10C (1C = 170 mA g−1). It also maintained capacities of 110.7 mAh g−1 (5C) and 84.1 mAh g−1 (10C) after 400 cycles. It could be used in harsh environments and could be stably cycled at subzero temperatures (−10 and −20 °C) and in solid-state electrolyte batteries. Life cycle assessment combined with economic evaluation using the EverBatt model reveals that this direct regeneration approach has high economic and environmental benefits.
Oxide Semiconductor for Advanced Memory Architectures: Atomic Layer Deposition, Key Requirement and Challenges
Oxide semiconductors (OSs), introduced by the Hosono group in the early 2000s, have evolved from display backplane materials to promising candidates for advanced memory and logic devices. The exceptionally low leakage current of OSs and compatibility with three-dimensional (3D) architectures have recently sparked renewed interest in their use in semiconductor applications. This review begins by exploring the unique material properties of OSs, which fundamentally originate from their distinct electronic band structure. Subsequently, we focus on atomic layer deposition (ALD), a core technique for growing excellent OS films, covering both basic and advanced processes compatible with 3D scaling. The basic surface reaction mechanisms—adsorption and reaction—and their roles in film growth are introduced. Furthermore, material design strategies, such as cation selection, crystallinity control, anion doping, and heterostructure engineering, are discussed. We also highlight challenges in memory applications, including contact resistance, hydrogen instability, and lack of p-type materials, and discuss the feasibility of ALD-grown OSs as potential solutions. Lastly, we provide an outlook on the role of ALD-grown OSs in memory technologies. This review bridges material fundamentals and device-level requirements, offering a comprehensive perspective on the potential of ALD-driven OSs for next-generation semiconductor memory devices.
Laser powder bed fusion of biodegradable Zn-4Cu alloy: Processing, microstructure and properties
Zn's natural degradability and biocompatibility make it a promising candidate for implants, however, its mechanical properties remain insufficient for bone applications. In this study, the performance of Zn was enhanced by developing Zn-Cu alloys via laser powder bed fusion (LPBF). Optimal LPBF parameters for forming stable tracks were achieved by adjusting laser power and scanning speed. Under optimized conditions of 100 W and 100 mm/s, high-density (99.58%) Zn-Cu alloys with improved hardness (68.2HV) and yield strength (160 MPa) were achieved. These improvements are attributed to solid solution strengthening, segregation strengthening, and grain refinement. The Zn-Cu alloys also demonstrated favorable degradation behavior, with a rate of 0.16 mm/year. This degradation is primarily driven by micro-galvanic corrosion between the CuZn5 phase and Zn matrix, along with refined grains and increased grain boundary density. This work demonstrates a viable strategy for fabricating Zn-based implants with enhanced structural integrity and mechanical performance via LPBF.
