Key Takeaways & Executive Findings
- •• Increasing graphite nodule count refines nodule size and improves nodularity, enhancing mechanical properties. • G-400 (415±10 mm-2) achieves optimal tensile strength (897 MPa) and elongation (9.8%), with 5.3% and 44.1% improvements over G-200. • At high load (25 N), G-400 shows superior wear resistance, reducing worn volume by 42% compared to G-200. • Wear mechanisms identified include microcutting-dominated abrasive wear, adhesive wear, and fatigue wear.
Abstract

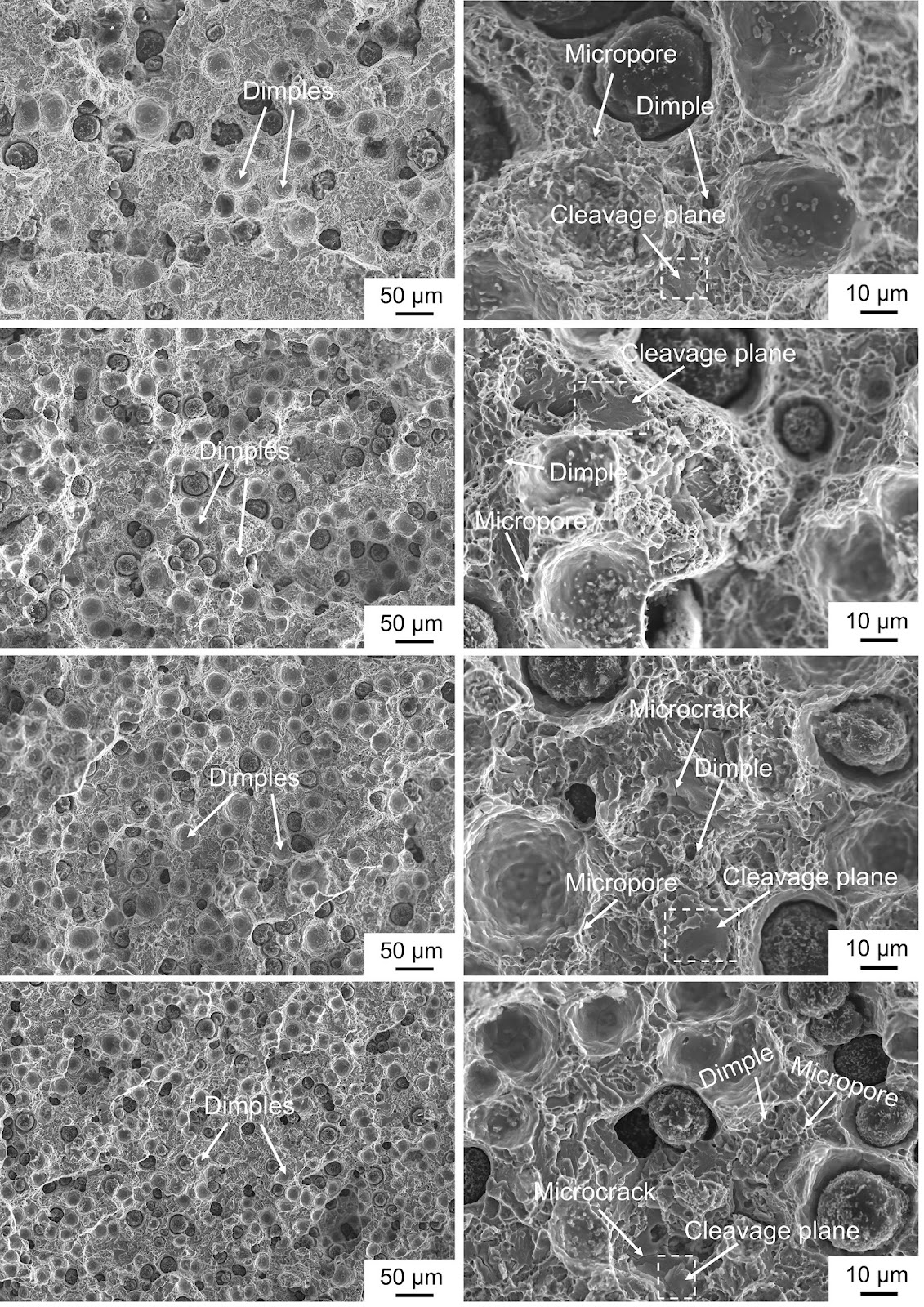

This study systematically investigated the effects of graphite nodule parameters, including count, average diameter, and nodularity, on microstructure and mechanical properties of austempered ductile irons (ADIs). The ADI specimens with graphite nodule counts of 212±11 mm-2, 308±9 mm-2, 415±10 mm-2, and 589±13 mm-2 were designated as G-200, G-300, G-400, and G-600, respectively. Results indicate a progressive refinement of graphite with an increase in nodule counts. Specifically, the average nodule diameter decreases from 33.3±1.3 μm for G-200 to 17.0±0.7 μm for G-600. The nodularity of all samples is above 90%. Furthermore, the nodularity exhibits a corresponding increasing trend with the rise of graphite nodule count in ADIs. Additionally, the volume fraction of the austenite phase in ADIs decreases with an increase in graphite nodule count. The graphite nodule count changes the tensile strength and elongation of ADIs. The specimen G-400 exhibits the ultimate tensile strength of 897±11 MPa and an elongation of 9.8%±0.6%, representing 5.3% and 44.1% improvements respectively compared to G-200. To explore the wear resistance of ADIs with different graphite nodule counts, dry sliding friction and wear test of different samples was carried out at room temperature. At a high load of 25 N, G-400 exhibits superior wear resistance, achieving a 42% reduction in worn volume compared to G-200. Worn micromorphology identifies three primary wear mechanisms: microcutting-dominated abrasive wear, adhesive wear, and fatigue wear.
1. Introduction
Material wear often leads to wear-related failures, which in turn reduce production efficiency, accelerate equipment deterioration, and compromise product quality. In extreme scenarios, such failures may escalate into equipment malfunctions, production line halts, and even catastrophic safety accidents. Notably, industrially advanced nations experience approximately 30% energy loss attributable to material wear, while China experiences an energy loss of 28% due to component wear, corresponding to an annual economic loss approximating CNY 40 billion [1].
Due to its excellent mechanical and friction performance, the low-cost austempered ductile irons (ADIs) have been an indispensable engineering material in mining, automobile, machinery industries, as well as the renewable energy and new technology industries [2-4]. The outstanding performance of ADIs can be owed to their ausferrite structure and the nodular graphite. Under the harsh conditions characterized by frequent and severe wear, conventional ADIs demonstrate insufficient wear resistance for practical applications. Current research priorities focus on enhancing both the mechanical properties and wear resistance of ADIs to accommodate such wear-intensive environments. Notably, the ADIs with an optimized graphite nodule parameter exhibit enhanced friction-reducing capabilities.
Spheroidal graphite nucleates independently during solidification, with nodular graphite growth occurring in two stages: liquid-phase direct growth (before austenite shell formation) and solid-state diffusion growth (carbon diffusion through the austenite shell to the graphite surface) [5-7]. The formation of nodular graphite has significant influence on both the microstructure and performance of ADIs. It can prevent the precipitation of hazardous carbides that degrade the mechanical properties of ADIs [8]. While, it also influences the ferrite-to-austenite proportion, thereby affecting the mechanical properties [9]. Both the count and morphology of nodular graphite can affect the mechanical and friction properties of the ADIs [10]. Graphite with a higher degree of spheroidization mitigates the stress concentration and crack initiation in the matrix. Adding alloying elements is one of the main methods to control the count and morphology of the nodular graphite in ADIs [11-13]. However, the addition of alloying elements increases the manufacturing cost of ADIs. Moreover, controlling the addition amount of these alloying elements is difficult, which poses disadvantageous for the efficient, continuous production of the ADIs. The previous study found that the characteristics of graphite in ADIs are determined by the solidification process [14]. It has been clarified that the cooling rate is one of the key factors influencing the formation of nodular graphite. A rapid cooling rate during solidification promotes the formation of a great number of smaller graphite nodules [15-17]. By regulating the cooling rates during the solidification process, ADI specimens with varying nodule counts along the height direction were successfully manufactured. It is of paramount importance to investigate how parameters such as graphite nodule count, average diameter, and nodularity impact the microstructure, mechanical properties, and friction behavior of ADI. This research not only addresses this gap but also provides insights for optimizing ADI performance in wear-intensive applications.
Loading authentic research manuscript (Pages 1–5)...
Xue-bo Zhao, Shu-ya Diao, Yan-song Nan, Jin-hai Liu, Jing-kun Li (2025). Influence of nodular graphite on microstructure, mechanical properties, and wear behavior of austempered ductile iron. China Foundry. https://doi.org/10.1007/s41230-025-5034-9
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the effect of graphite nodule count on the mechanical properties of austempered ductile iron?
Increasing graphite nodule count refines the graphite nodules and improves nodularity, which enhances tensile strength and elongation. The optimal count (G-400) yields a tensile strength of 897 MPa and elongation of 9.8%, representing improvements of 5.3% and 44.1% over the lowest count (G-200).
How does graphite nodule count influence the wear resistance of ADI?
At a high load of 25 N, the G-400 specimen (with 415±10 mm-2 nodule count) exhibits superior wear resistance, achieving a 42% reduction in worn volume compared to G-200. This is attributed to the refined graphite and improved mechanical properties.
What are the primary wear mechanisms observed in austempered ductile iron?
The worn micromorphology identifies three primary wear mechanisms: microcutting-dominated abrasive wear, adhesive wear, and fatigue wear.
How does the graphite nodule count affect the austenite phase volume fraction?
The volume fraction of the austenite phase in ADIs decreases with an increase in graphite nodule count, which influences the mechanical properties.
What is the significance of nodularity in ADI performance?
Nodularity above 90% is achieved in all samples, and it increases with graphite nodule count. Higher nodularity mitigates stress concentration and crack initiation, thereby improving mechanical and wear properties.
Related Technical Papers & Translations
Pull-out capacity and energy absorption of cable bolts under impact loading
This study investigates the performance of high-strength cable bolts under impact loading conditions representative of rock bursts in underground environments. Although widely used, the dynamic behaviour of these cable bolts has received limited experimental attention, and their effectiveness in seismically active zones remains a subject of ongoing debate. To address this gap, a reverse pull-out test machine integrated with a drop hammer rig was employed. Tests were conducted on 70-t SUMO bulbed and non-bulbed cable bolts with encapsulation lengths of 300 and 450 mm, subjected to an impact energy of 14.52 kJ. Results indicate that non-bulbed cables, despite showing lower initial peak loads (average 218 vs. 328 kN for bulbed cables at 300 mm encapsulation), demonstrated superior energy absorption (average 11.26 vs. 8.75 kJ) and displacement capacity (average 48.40 vs. 36.25 mm). Increasing the encapsulation length for bulbed cables led to a reduction in initial peak load but improved displacement and energy absorption. The dominant failure mechanism was debonding at the cable-grout interface, characterised by frictional sliding and cable rotation. These findings provide new insights into the energy dissipation mechanisms of cables and support the development of more resilient ground support systems for dynamically active conditions.
Effect of eutectic content on microstructure and mechanical properties of Al-Zn-Mg-Cu alloys
The 7xxx series aluminum alloys have emerged as a particularly promising class of lightweight structural materials. However, the inherent strength of these materials is primarily influenced by the content and type of alloying elements added during the manufacturing process, as well as casting defects. The present study investigated the effects of eutectics formed by solute atoms (Zn, Mg, and Cu), with equal mass ratios (Zn/Mg=2, Mg/Cu=3) but varying overall contents, on the liquid film thickness, crack propagation depth, and the mechanical properties of the Al-Zn-Mg-Cu alloy after heat treatment. The results from gravity casting indicate that the intergranular liquid film thickness increases with the increase of eutectic content. A thick intergranular liquid film in the casting can accommodate greater strain during grain contraction, thereby preventing liquid film rupture and subsequent hot tearing. Concurrently, during the solution treatment at 475 °C, the residual eutectic fraction in the Al-7Zn-3.5Mg-1.18Cu alloy diminishes from 9.1% at 10 h to 0.35% at 40 h. At 165 °C, the Al-6Zn-3.0Mg-1.0Cu alloy exhibits the optimal mechanical properties, with a peak aging tensile strength of 510 MPa and an elongation of 6.4%. The incorporation of lower concentrations of solute atoms (Zn, Mg, and Cu) serves to reduce the barrier to dislocation precipitation, thereby enhancing alloy plasticity. However, when the proportion of alloying elements exceeds the solubility limit of the α-Al matrix at specific heat treatment temperatures, coarse residual phases remain intergranular, thereby significantly impairing the mechanical properties of the alloy. This study provides a reference for the optimal addition level of the main strengthening elements in Al‑Zn‑Mg‑Cu alloys.
Achieving optimal strength-conductivity balance in cast Al-2.3Fe-Mg-Si alloys via Mg/Si ratio regulation
The Al-2.3Fe eutectic alloy is regarded as a promising substitute for Cu conductors in automotive motors owing to its excellent castability and low resistivity. However, its application is restricted by the mutually exclusive relationship between electrical conductivity and mechanical strength. The microstructure and mechanical properties of Al-2.3Fe alloy were modified through Mg/Si alloying combined with T6 heat treatment in this work, leading to the development of a high-performance cast Al-2.3Fe-Mg-Si alloy. In the Al-2.3Fe-0.40Mg-0.72Si (Mg/Si=0.56) alloy subjected to T6 treatment, an electrical conductivity of (52.5±0.6)% IACS is achieved, while the ultimate tensile strength is significantly enhanced to 309.5±5.6 MPa. The addition of Mg and Si brings about marked changes in the solidification process of the Al-2.3Fe alloy, resulting in considerable variations in both the morphology of the second phase and its phase constitution. The aging behavior of the alloy is governed by second phase and solid solubility. Through optimization of the Mg/Si ratio, the aging response can be effectively enhanced. At the ratio of Mg/Si=0.56, a balance is achieved between solid solubility and precipitation, while simultaneously minimizing the detrimental impact on electrical conductivity and reaching the best mechanical properties and electrical conductivity in peak-aged Al-2.3Fe-xMg-ySi alloy. This work providing valuable insights for developing advanced conductor materials.
