Key Takeaways & Executive Findings
- •• In-situ synchrotron X-ray imaging reveals three distinct bubble growth modes in LPBF of oxide ceramics: uplift growth, gas channel attachment, and bubble coalescence. • Bursting of large bubbles induces melt flow oscillations, leading to local instability of the melt pool and potential pore formation. • Understanding bubble dynamics provides critical insights for optimizing LPBF parameters to eliminate porosity and enhance mechanical properties of oxide ceramics. • The study directly links bubble behavior to melt pool instability, offering a pathway to reduce defects in additively manufactured ceramics.
Abstract

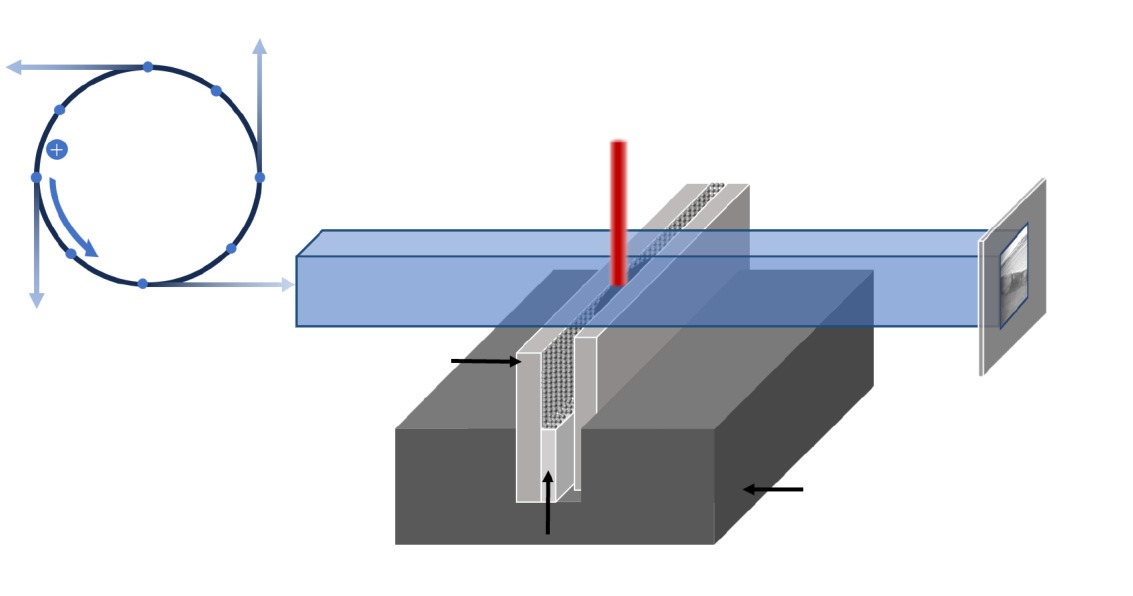

Laser powder bed fusion (LPBF) is used to fabricate complex-shaped, dense, and high-performance oxide ceramics. During LPBF, bubbles form and evolve in the melt pool and ultimately remain in the printed ceramics as pores, which significantly degrade the mechanical properties. Therefore, it is essential to understand the bubble behaviors during LPBF. Herein, we conducted an in-situ investigation of the bubble dynamics in the melt pool of homogeneously mixed Al2O3–Y2O3 powders using synchrotron high-speed X-ray imaging. The formation, growth, motion, and evolution of bubbles, as well as the relationship between the instability of melt flow and bubble rupture during LPBF, were elucidated. The findings reveal that bubbles from the interstices within the powder bed grow following three distinct modes, i.e., uplift growth, gas channel attachment, and bubble coalescence. Furthermore, melt flow oscillations caused by the bursting of large bubbles can lead to local instability of the melt pool. Results from this study enhance the understanding of bubble dynamics during LPBF and may provide valuable insights for pore elimination in LPBF-processed oxide ceramics.
1. Introduction
Oxide eutectic ceramics demonstrate high hardness, superior temperature resistance and intrinsic resistance to oxidative corrosion, and have been widely used as loaded components in extreme environments [1–2]. However, the inherent brittleness and low plastic deformability have constrained their use as complex structural components through traditional subtractive manufacturing, i.e., cutting, turning, or drilling [3]. Currently, indirect additive manufacturing (IAM), including stereo lithography appearance (SLA), digital light processing (DLP), and binder jetting (BJ), enables the fabrication of complex ceramic components through post-processing (debinding and sintering) [4–5]. Unfortunately, the required post-processing poses challenges in overcoming the limitations associated with the poor connecting, delamination and deformation of the ceramic components. Additionally, the volatilization of organic resins introduces porosity, which is typically more pronounced in parts with low density produced via IAM [6].
Compared to IAM, direct additive manufacturing (DAM) targets the fabrication and improves the production of high-density oxide ceramics with reduced porosity and enhanced properties, which can be achieved through laser powder bed fusion (LPBF) technology [7–8]. A high-density Al2O3 toughened ZrO2 part with high bending strength in the case of refined and homogenous microstructure has been successfully prepared by Verga et al. [9] via LPBF technology. Therefore, LPBF technology has been considered as an effective method to prepare high-performance oxide eutectic ceramics. The LPBF process of powders mainly includes powder spreading, laser melting and solidification. During laser melting, the interaction between laser and powder always promotes the formation of porosity, which is related to the combined effect of recoil pressure and melt flow, leading to the instability and collapse of the melt pool and the bubbles captured in the solidification front. Therefore, optimizing the process parameters of LPBF to eliminate the formation of porosity, and uncovering the relationship between melt pool and porosity elimination are of significance to improve the quality of components with high density.
Loading authentic research manuscript (Pages 1–5)...
Zhun Su, Wenquan Lu, Zongye Ding, Liang Zhao, Fan Yang, Jianguo Li, Qiaodan Hu (2025). In-situ observation on bubble evolution during laser powder bed fusion of oxide ceramic. Int. Journal of Minerals, Metallurgy and Materials (矿物冶金与材料学报). https://doi.org/10.1007/s12613-025-3170-2
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What are the three distinct bubble growth modes observed during LPBF of oxide ceramics?
The three distinct bubble growth modes are uplift growth, gas channel attachment, and bubble coalescence, as revealed by in-situ synchrotron X-ray imaging.
How does bubble bursting affect the melt pool during LPBF?
Bursting of large bubbles induces melt flow oscillations, which can lead to local instability of the melt pool, potentially affecting the final porosity and mechanical properties of the printed ceramic.
Why is it important to understand bubble dynamics in LPBF?
Understanding bubble dynamics is crucial for optimizing LPBF process parameters to eliminate porosity, thereby improving the density and mechanical performance of oxide ceramic components.
What technique was used for in-situ observation of bubble evolution?
The study utilized synchrotron high-speed X-ray imaging to observe bubble formation, growth, motion, and evolution in the melt pool during LPBF.
What material system was investigated in this study?
The study investigated homogeneously mixed Al2O3–Y2O3 powders, which are relevant for oxide eutectic ceramics.
Related Technical Papers & Translations
Direct Repair of the Crystal Structure and Coating Surface of Spent LiFePO4 Materials Enables Superfast Li-Ion Migration
The rapid accumulation of spent LiFePO4 (LFP) cathodes from retired lithium-ion batteries necessitates the development of effective and environmental-friendly recycling strategies. In this context, direct regeneration has emerged as a promising approach for reclaiming LFP cathode materials, offering a streamlined pathway to restore their electrochemical functionality. We report an integrated regeneration protocol that simultaneously repairs the degraded crystal structure and reconstructs the damaged carbon coating in spent LFP. The regenerated cathode material had superfast lithium-ion diffusion kinetics and a stable cathode–electrolyte interface, giving a remarkable rate capability with specific capacities of 122 mAh g−1 at 5C and 106 mAh g−1 at 10C (1C = 170 mA g−1). It also maintained capacities of 110.7 mAh g−1 (5C) and 84.1 mAh g−1 (10C) after 400 cycles. It could be used in harsh environments and could be stably cycled at subzero temperatures (−10 and −20 °C) and in solid-state electrolyte batteries. Life cycle assessment combined with economic evaluation using the EverBatt model reveals that this direct regeneration approach has high economic and environmental benefits.
Oxide Semiconductor for Advanced Memory Architectures: Atomic Layer Deposition, Key Requirement and Challenges
Oxide semiconductors (OSs), introduced by the Hosono group in the early 2000s, have evolved from display backplane materials to promising candidates for advanced memory and logic devices. The exceptionally low leakage current of OSs and compatibility with three-dimensional (3D) architectures have recently sparked renewed interest in their use in semiconductor applications. This review begins by exploring the unique material properties of OSs, which fundamentally originate from their distinct electronic band structure. Subsequently, we focus on atomic layer deposition (ALD), a core technique for growing excellent OS films, covering both basic and advanced processes compatible with 3D scaling. The basic surface reaction mechanisms—adsorption and reaction—and their roles in film growth are introduced. Furthermore, material design strategies, such as cation selection, crystallinity control, anion doping, and heterostructure engineering, are discussed. We also highlight challenges in memory applications, including contact resistance, hydrogen instability, and lack of p-type materials, and discuss the feasibility of ALD-grown OSs as potential solutions. Lastly, we provide an outlook on the role of ALD-grown OSs in memory technologies. This review bridges material fundamentals and device-level requirements, offering a comprehensive perspective on the potential of ALD-driven OSs for next-generation semiconductor memory devices.
Laser powder bed fusion of biodegradable Zn-4Cu alloy: Processing, microstructure and properties
Zn's natural degradability and biocompatibility make it a promising candidate for implants, however, its mechanical properties remain insufficient for bone applications. In this study, the performance of Zn was enhanced by developing Zn-Cu alloys via laser powder bed fusion (LPBF). Optimal LPBF parameters for forming stable tracks were achieved by adjusting laser power and scanning speed. Under optimized conditions of 100 W and 100 mm/s, high-density (99.58%) Zn-Cu alloys with improved hardness (68.2HV) and yield strength (160 MPa) were achieved. These improvements are attributed to solid solution strengthening, segregation strengthening, and grain refinement. The Zn-Cu alloys also demonstrated favorable degradation behavior, with a rate of 0.16 mm/year. This degradation is primarily driven by micro-galvanic corrosion between the CuZn5 phase and Zn matrix, along with refined grains and increased grain boundary density. This work demonstrates a viable strategy for fabricating Zn-based implants with enhanced structural integrity and mechanical performance via LPBF.
