Key Takeaways & Executive Findings
- •• A low-temperature stirring method achieves 77.75% desorption of NaOL from scheelite surfaces, enabling efficient collector recovery and reuse. • Reusing desorbed collectors with only 30% additional NaOL maintains ~95% scheelite recovery in single-mineral flotation, demonstrating cost-effectiveness. • For real scheelite ore, 75% of normal ZL collector dosage suffices to produce a qualified rough concentrate, highlighting industrial applicability. • AFM and molecular dynamics simulations reveal that low temperature weakens collector adsorption, facilitating desorption and supporting the proposed green method.
Abstract
Flotation is the most common method to recover valuable minerals by selective adsorption of collectors on target mineral surfaces. However, in subsequent hydrometallurgy of mineral flotation concentrates, the adsorbed collectors must be desorbed since it can adversely affect the efficiency of metallurgical process and produce wastewater. ZL, as a fatty acid mixture, is a typical industrially used collector for scheelite flotation in China. Sodium oleate (NaOL) has similar fatty acid group as ZL. In this study, the desorption behavior of NaOL/ZL from scheelite surface by a physical method of stirring at a low temperature was investigated. NaOL desorption tests of single mineral showed that a desorption rate of 77.75% for NaOL from scheelite surface into pulp was achieved in a stirring speed of 2500 r/min at 5°C in a neutral environment. Under the above desorption condition, in the pulp containing desorbed collector by adding extra 30% normal NaOL dosage, the scheelite recovery reached about 95% in the single mineral flotation test. Desorption and reuse of ZL collector for the flotation of real scheelite ore showed only a 75% normal dosage of ZL could produce a qualified rough concentrate. The atomic force microscope (AFM) tests showed that after desorption treatment of low temperature and strong stirring, the dense strip-like structure of NaOL on the scheelite surface was destroyed to be speck-like. Molecular dynamics simulations (MDS) demonstrated that the adsorption energy between NaOL and scheelite surface was more negative at 25°C (−13.39 kcal/mol) than at 5°C (−11.50 kcal/mol) in a neutral pH, indicating that a low temperature was beneficial for the desorption of collector from mineral surface. Due to its simplicity and economy, the method we proposed of desorption of collector from mineral surface and its reuse for flotation has a great potential for industrial application.
1. Introduction
Flotation is an efficient approach to separating target minerals and gangue in mineral processing field [1–4]. In the flotation process, the target minerals are hydrophobically floated to form concentrates by changing the physical and chemical properties of the mineral surfaces due to the adsorption of the collectors [5–6]. However, the collectors on the concentrate surfaces can reduce efficiency of concentration and filtration of the concentrates [7]. Besides in the hydrometallurgy, the collectors will poison the ion exchange resin and imperfect quality of final products [8]. Therefore, it is significative for us to develop an efficient way of desorbing collectors on the concentrate and reusing them in the flotation process, which can help to reduce the collector dosage in flotation and the adverse effects in hydrometallurgy.
There are several physical and chemical methods used to desorb collectors from flotation concentrates. The chemical desorption methods, including competitive adsorption and oxidation treatments, are effective in removing reagents chemically adsorbed on mineral surfaces [9–13]. For example, the xanthates adsorbed on the surface of chalcopyrite concentrates can be desorbed in strongly acidic solutions, because they can be decomposed to alcohols and carbon disulfide in strongly acidic environment [14–15]. However, after chemical treatment, the structures of most desorbed collectors are damaged, and cannot be reused in flotation again [16–17]. The physical desorption methods, including activated carbon adsorption, ultrasonic, and stirring [17–19], are efficient at removing reagents unsteadily adsorbed on mineral surfaces. For example, mechanical agitation with a high speed can be used to make the reagents weakly adsorbed on the concentrate surfaces dislodged via rotational high shear forces [20–21]. In addition, our previous work showed that the desorption method of ultrasonic can desorb the most of lead ion (Pb2+) and benzohydroxamic acid (BHA) from mineral surfaces.
Loading authentic research manuscript (Pages 1–5)...
Liming Tao, Wangni Wu, Zihan Zhao, Ruihua Fan, Jianjun Wang, Zhiyong Gao (2025). Highly efficient desorption and reuse of fatty acid collectors adsorbed on mineral surface: A case study of scheelite. Int. Journal of Minerals, Metallurgy and Materials (矿物冶金与材料学报). https://doi.org/10.1007/s12613-024-3059-5
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the main objective of this study?
The study aims to develop an efficient and economical method for desorbing fatty acid collectors (NaOL/ZL) from scheelite surfaces and reusing them in flotation, thereby reducing collector consumption and mitigating adverse effects in hydrometallurgy.
How was the desorption of collectors achieved?
Desorption was achieved by a physical method involving stirring at a low temperature (5°C) and high speed (2500 r/min) in a neutral environment, which effectively removed the collectors from the mineral surface without damaging their structure.
What were the key results regarding desorption efficiency?
The method achieved a desorption rate of 77.75% for NaOL from scheelite surfaces. When the desorbed collector was reused with an additional 30% of the normal NaOL dosage, scheelite recovery reached about 95% in single-mineral flotation tests.
How does low temperature facilitate desorption?

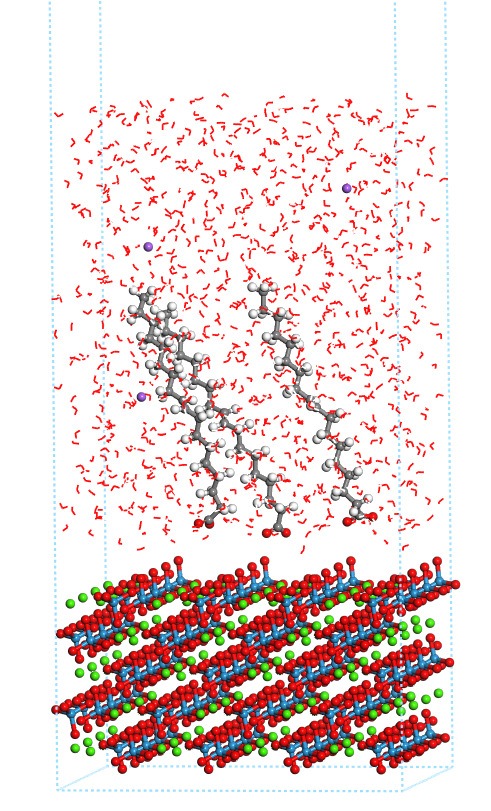

Molecular dynamics simulations showed that the adsorption energy between NaOL and scheelite is less negative at 5°C (−11.50 kcal/mol) than at 25°C (−13.39 kcal/mol), indicating weaker adsorption at lower temperatures, which facilitates desorption.
What is the industrial significance of this method?
The method is simple, economical, and environmentally friendly, as it allows the reuse of collectors, reducing chemical consumption and wastewater generation. It has great potential for industrial application in mineral processing.
Related Technical Papers & Translations
Direct Repair of the Crystal Structure and Coating Surface of Spent LiFePO4 Materials Enables Superfast Li-Ion Migration
The rapid accumulation of spent LiFePO4 (LFP) cathodes from retired lithium-ion batteries necessitates the development of effective and environmental-friendly recycling strategies. In this context, direct regeneration has emerged as a promising approach for reclaiming LFP cathode materials, offering a streamlined pathway to restore their electrochemical functionality. We report an integrated regeneration protocol that simultaneously repairs the degraded crystal structure and reconstructs the damaged carbon coating in spent LFP. The regenerated cathode material had superfast lithium-ion diffusion kinetics and a stable cathode–electrolyte interface, giving a remarkable rate capability with specific capacities of 122 mAh g−1 at 5C and 106 mAh g−1 at 10C (1C = 170 mA g−1). It also maintained capacities of 110.7 mAh g−1 (5C) and 84.1 mAh g−1 (10C) after 400 cycles. It could be used in harsh environments and could be stably cycled at subzero temperatures (−10 and −20 °C) and in solid-state electrolyte batteries. Life cycle assessment combined with economic evaluation using the EverBatt model reveals that this direct regeneration approach has high economic and environmental benefits.
Oxide Semiconductor for Advanced Memory Architectures: Atomic Layer Deposition, Key Requirement and Challenges
Oxide semiconductors (OSs), introduced by the Hosono group in the early 2000s, have evolved from display backplane materials to promising candidates for advanced memory and logic devices. The exceptionally low leakage current of OSs and compatibility with three-dimensional (3D) architectures have recently sparked renewed interest in their use in semiconductor applications. This review begins by exploring the unique material properties of OSs, which fundamentally originate from their distinct electronic band structure. Subsequently, we focus on atomic layer deposition (ALD), a core technique for growing excellent OS films, covering both basic and advanced processes compatible with 3D scaling. The basic surface reaction mechanisms—adsorption and reaction—and their roles in film growth are introduced. Furthermore, material design strategies, such as cation selection, crystallinity control, anion doping, and heterostructure engineering, are discussed. We also highlight challenges in memory applications, including contact resistance, hydrogen instability, and lack of p-type materials, and discuss the feasibility of ALD-grown OSs as potential solutions. Lastly, we provide an outlook on the role of ALD-grown OSs in memory technologies. This review bridges material fundamentals and device-level requirements, offering a comprehensive perspective on the potential of ALD-driven OSs for next-generation semiconductor memory devices.
Laser powder bed fusion of biodegradable Zn-4Cu alloy: Processing, microstructure and properties
Zn's natural degradability and biocompatibility make it a promising candidate for implants, however, its mechanical properties remain insufficient for bone applications. In this study, the performance of Zn was enhanced by developing Zn-Cu alloys via laser powder bed fusion (LPBF). Optimal LPBF parameters for forming stable tracks were achieved by adjusting laser power and scanning speed. Under optimized conditions of 100 W and 100 mm/s, high-density (99.58%) Zn-Cu alloys with improved hardness (68.2HV) and yield strength (160 MPa) were achieved. These improvements are attributed to solid solution strengthening, segregation strengthening, and grain refinement. The Zn-Cu alloys also demonstrated favorable degradation behavior, with a rate of 0.16 mm/year. This degradation is primarily driven by micro-galvanic corrosion between the CuZn5 phase and Zn matrix, along with refined grains and increased grain boundary density. This work demonstrates a viable strategy for fabricating Zn-based implants with enhanced structural integrity and mechanical performance via LPBF.
