Key Takeaways & Executive Findings
- •• Thermal exposure at 1100°C paradoxically improves the high-cycle fatigue life of PtAl-coated single-crystal superalloys at 900°C. • The improvement is attributed to a shift in crack initiation from surface microcracks to internal micropores. • Formation of a protective Al2O3 layer within microcracks and γ′ rafting near the interdiffusion zone hinder surface crack growth. • Findings provide critical insights for refining HCF life prediction models for coated superalloys in turbine blade applications.
Abstract

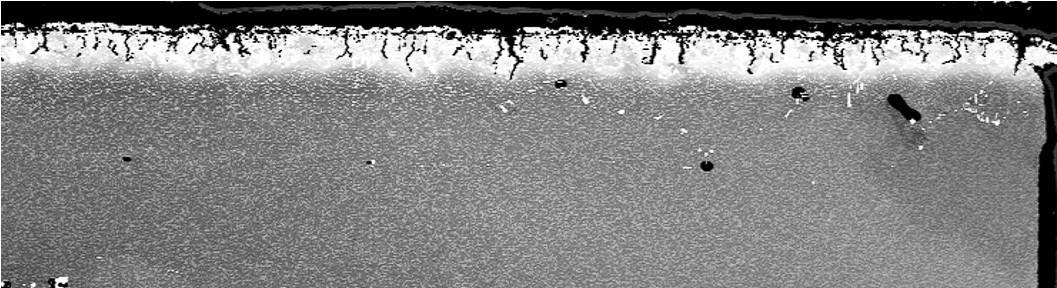

The as-deposited coating–substrate microstructure has been identified to substantially influence the high-cycle fatigue (HCF) behavior of Ni-based single-crystal (SX) superalloys at 900°C, but the impact of degraded microstructure on the HCF behavior remains unclear. In this work, a PtAl-coated third-generation SX superalloy with sheet specimen was thermal-exposed at 1100°C with different durations and then subjected to HCF tests at 900°C. The influence of microstructural degradation on the HCF life and crack initiation were clarified by analyzing the development of microcracks and coating–substrate microstructure. Notably, the HCF life of the thermal-exposed coated alloy increased abnormally, which was attributed to the transformation of the fatigue crack initiation site from surface microcracks to internal micropores compared to the as-deposited coated alloy. Although the nucleation and growth of surface microcracks occurred along the grain boundaries in the coating and the interdiffusion zone (IDZ) for both the as-deposited and the thermal-exposed coated alloys, remarkable differences of the microcrack growth into the substrate adjacent to the IDZ were observed, changing the crack initiation site. Specifically, the surface microcracks grew into the substrate through the cracking of the non-protective oxide layers in the as-deposited coated alloy. In comparison, the hinderance of the surface microcracks growth was found in the thermal-exposed coated alloy, due to the formation of a protective Al2O3 layer within the microcrack and the γ′ rafting in the substrate close to the IDZ. This study will aid in improving the HCF life prediction model for the coated SX superalloys.
1. Introduction
Platinum–aluminide (PtAl) bond coat has been frequently employed on the single-crystal (SX) turbine blades based on its superior oxidation and corrosion resistance [1]. PtAl-coated components operate at elevated temperatures, and obvious interdiffusion occurs between the coating and the substrate owing to the chemical concentration gradients, leading to significant microstructural degradation within the coating, the interdiffusion zone (IDZ), and the substrate near the IDZ [2]. Many previous studies have found that high-temperature mechanical properties were deteriorated significantly for the coated alloys after thermal exposure [2–4]. Consequently, it becomes crucial to reveal the influence of coating–substrate microstructural degradation on the high-temperature mechanical properties of the SX superalloys.
High-cycle fatigue (HCF) failure is the predominant failure mode for turbine blades [5]. Particular attention has been paid to investigate the influence of the as-deposited coating on the HCF behavior of Ni-based SX superalloys [6–7]. The fatal fatigue cracks preferentially nucleated at the coating surface in the as-deposited coated SX superalloy, which was closely related to the coating–substrate microstructure and oxidation [8–9]. Wang et al. [8] found that the as-deposited PtAl coating of β phase with diffusion barrier decreased the HCF life for the SX superalloy, while the as-deposited PtAl coating of γ′ phase improved the HCF life. The topological close-packed (TCP) phases in the diffusion barrier region and the IDZ deteriorated the HCF property of the PtAl (β phase) coated alloy. Moreover, PtAl coating of β phase suffers from an abrupt brittle-to-ductile transition at a critical temperature, ranging from 650 to 800°C [10]. However, recent studies [11–12] have found that the role of the as-deposited PtAl coating of β phase on the HCF property changed from negative to positive as the experimental temperature decreased from 900 to 700°C, due to the different oxidation behavior at the tip of microcrack under different temperatures. In a word, it indicates that the coating–substrate microstructure influences the HCF behavior of the as-deposited coated alloy significantly.
Loading authentic research manuscript (Pages 1–5)...
Dong Sun, Siliang He, Longfei Li, Song Lu, Weiwei Zheng, Jonathan Cormier, Qiang Feng (2025). High-cycle fatigue life improvement of a PtAl-coated third-generation Ni-based single-crystal superalloy after thermal exposure. Int. Journal of Minerals, Metallurgy and Materials (矿物冶金与材料学报). https://doi.org/10.1007/s12613-025-3157-z
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the main finding of this study?
The study reveals that thermal exposure at 1100°C paradoxically improves the high-cycle fatigue life of a PtAl-coated single-crystal superalloy at 900°C, due to a shift in crack initiation from surface microcracks to internal micropores.
Why does thermal exposure improve HCF life?
Thermal exposure leads to the formation of a protective Al2O3 layer within surface microcracks and γ′ rafting near the interdiffusion zone, which hinders the growth of surface microcracks, thereby shifting crack initiation to internal micropores and increasing fatigue life.
What is the significance of this research for turbine blade applications?
The findings provide critical insights into the role of microstructural degradation on fatigue behavior, which can improve the accuracy of HCF life prediction models for coated superalloys used in turbine blades.
What are the key microstructural features affecting crack initiation?
Key features include the coating–substrate microstructure, the interdiffusion zone, the formation of oxide layers within microcracks, and γ′ rafting in the substrate near the IDZ.
How does this study contribute to the field of superalloys?
It clarifies the influence of thermal exposure on the HCF behavior of coated single-crystal superalloys, offering a mechanistic understanding that can guide coating design and life prediction methodologies.
Related Technical Papers & Translations
Direct Repair of the Crystal Structure and Coating Surface of Spent LiFePO4 Materials Enables Superfast Li-Ion Migration
The rapid accumulation of spent LiFePO4 (LFP) cathodes from retired lithium-ion batteries necessitates the development of effective and environmental-friendly recycling strategies. In this context, direct regeneration has emerged as a promising approach for reclaiming LFP cathode materials, offering a streamlined pathway to restore their electrochemical functionality. We report an integrated regeneration protocol that simultaneously repairs the degraded crystal structure and reconstructs the damaged carbon coating in spent LFP. The regenerated cathode material had superfast lithium-ion diffusion kinetics and a stable cathode–electrolyte interface, giving a remarkable rate capability with specific capacities of 122 mAh g−1 at 5C and 106 mAh g−1 at 10C (1C = 170 mA g−1). It also maintained capacities of 110.7 mAh g−1 (5C) and 84.1 mAh g−1 (10C) after 400 cycles. It could be used in harsh environments and could be stably cycled at subzero temperatures (−10 and −20 °C) and in solid-state electrolyte batteries. Life cycle assessment combined with economic evaluation using the EverBatt model reveals that this direct regeneration approach has high economic and environmental benefits.
Oxide Semiconductor for Advanced Memory Architectures: Atomic Layer Deposition, Key Requirement and Challenges
Oxide semiconductors (OSs), introduced by the Hosono group in the early 2000s, have evolved from display backplane materials to promising candidates for advanced memory and logic devices. The exceptionally low leakage current of OSs and compatibility with three-dimensional (3D) architectures have recently sparked renewed interest in their use in semiconductor applications. This review begins by exploring the unique material properties of OSs, which fundamentally originate from their distinct electronic band structure. Subsequently, we focus on atomic layer deposition (ALD), a core technique for growing excellent OS films, covering both basic and advanced processes compatible with 3D scaling. The basic surface reaction mechanisms—adsorption and reaction—and their roles in film growth are introduced. Furthermore, material design strategies, such as cation selection, crystallinity control, anion doping, and heterostructure engineering, are discussed. We also highlight challenges in memory applications, including contact resistance, hydrogen instability, and lack of p-type materials, and discuss the feasibility of ALD-grown OSs as potential solutions. Lastly, we provide an outlook on the role of ALD-grown OSs in memory technologies. This review bridges material fundamentals and device-level requirements, offering a comprehensive perspective on the potential of ALD-driven OSs for next-generation semiconductor memory devices.
Laser powder bed fusion of biodegradable Zn-4Cu alloy: Processing, microstructure and properties
Zn's natural degradability and biocompatibility make it a promising candidate for implants, however, its mechanical properties remain insufficient for bone applications. In this study, the performance of Zn was enhanced by developing Zn-Cu alloys via laser powder bed fusion (LPBF). Optimal LPBF parameters for forming stable tracks were achieved by adjusting laser power and scanning speed. Under optimized conditions of 100 W and 100 mm/s, high-density (99.58%) Zn-Cu alloys with improved hardness (68.2HV) and yield strength (160 MPa) were achieved. These improvements are attributed to solid solution strengthening, segregation strengthening, and grain refinement. The Zn-Cu alloys also demonstrated favorable degradation behavior, with a rate of 0.16 mm/year. This degradation is primarily driven by micro-galvanic corrosion between the CuZn5 phase and Zn matrix, along with refined grains and increased grain boundary density. This work demonstrates a viable strategy for fabricating Zn-based implants with enhanced structural integrity and mechanical performance via LPBF.
