Key Takeaways & Executive Findings
- •• Laser cladding of Ti50Nb15V15Zr5Cr5Al10 high-entropy alloy on Ti6Al4V produces a single body-centered cubic phase coating with significantly enhanced hardness compared to the substrate. • The HEA coating fabricated at 2200 W exhibits the best wear and corrosion resistance, with wear volumes only 24.7%–45.5% of the substrate and corrosion rate reduced by an order of magnitude. • Adhesive wear dominates the friction mechanism, with high-temperature oxide formation contributing to the tribological behavior. • The presence of Cr and Al promotes the formation of a dense passive film, which is key to the improved corrosion resistance of the coatings.
Abstract
This work investigated tribological behavior and corrosion resistance of laser cladding (LC) Ti50Nb15V15Zr5Cr5Al10 high-entropy alloy (HEA) coatings on Ti6Al4V substrates. Microstructural characterization illustrated that there was only body centered cubic phase in the HEA coating. Besides, the coatings of different laser power all exhibited obviously higher hardness than the substrate. It is illustrated that the microstructure of the HEA coatings is composed of body centered cubic phase, and the temperature gradient contributes to the distribution difference between the equiaxed and columnar grains. Meanwhile, the relationships between the tribological behavior, corrosion resistance and alloying elements have been illustrated. The HEA coating with 2200 W holds the best wear and corrosion resistance. During the friction process, there are many oxides formed at high temperatures, and adhesive wear contributes most to the wear mechanism of the coatings. The wear volumes of the HEA coatings are only 24.7% to 45.5% of that of the Ti6Al4V substrate. Due to the alloying elements like Cr and Al, there is dense passive film formed during the corrosion process, thereby leading to better corrosion resistance of the coatings. The corrosion rates of the HEA coatings with 2200 W and Ti6Al4V substrate are 5.34×10−3 mm/a and 2.69×10−2 mm/a, respectively.
1. Introduction
Ti6Al4V titanium alloy, characterized by its lightweight, non-magnetic properties, high specific strength, fatigue resistance, and excellent corrosion resistance in seawater, has become a critical material for components in deep-sea drilling such as drill pipes and drill bits [1]. Despite the outstanding corrosion resistance of titanium alloy drilling components, prolonged operation of deep-sea drilling equipment in extreme environments with combined effects of high temperature and pressure, wear, and erosion leads to severe surface damage due to the synergistic action of wear and erosion [2]. Consequently, there is an urgent need to apply suitable surface protection coating materials to enhance the wear and erosion resistance of Ti6Al4V titanium alloy components.
Currently, approximately 5% of the global titanium supply is consumed by the offshore industry. While titanium has been employed in offshore operations for about 20 years, significant advancements have occurred over the past decade, particularly in oil and gas exploration. Due to its excellent resistance to seawater corrosion, titanium is extensively used in offshore platforms and subsea applications.
Currently, surface protective coating materials for titanium alloys have emerged as one of the focal points of research in the field of new materials [3]. Laser cladding is an advanced surface modification technology that utilizes a high-energy laser beam to melt and solidify overlay materials on the substrate surface, forming a protective coating [4]. Its rapid solidification rate enables the atta...
Loading authentic research manuscript (Pages 1–5)...
QIU Hao, ZHU Jiang-qi, GUO Yi-fan, DONG Zhen, WU Li-hua, YUE You-shu, QIU Yao, YAN Xing-chen (2025). Friction and corrosion behavior of laser cladding Ti50Nb15V15Zr5Cr5Al10 high-entropy alloy. Journal of Central South University. https://doi.org/10.1007/s11771-025-6120-2
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the main objective of this study?
The study investigates the tribological behavior and corrosion resistance of laser cladding Ti50Nb15V15Zr5Cr5Al10 high-entropy alloy coatings on Ti6Al4V substrates, aiming to enhance surface protection for deep-sea drilling components.
What are the key findings regarding the microstructure of the HEA coating?
The HEA coating consists solely of a body-centered cubic (BCC) phase, with a distribution of equiaxed and columnar grains influenced by temperature gradients during solidification.
How does the HEA coating compare to the Ti6Al4V substrate in terms of wear and corrosion resistance?
The HEA coating, especially at 2200 W, exhibits significantly better wear resistance (wear volumes only 24.7%–45.5% of the substrate) and corrosion resistance (corrosion rate 5.34×10−3 mm/a vs. 2.69×10−2 mm/a for the substrate).
What is the dominant wear mechanism for the HEA coatings?

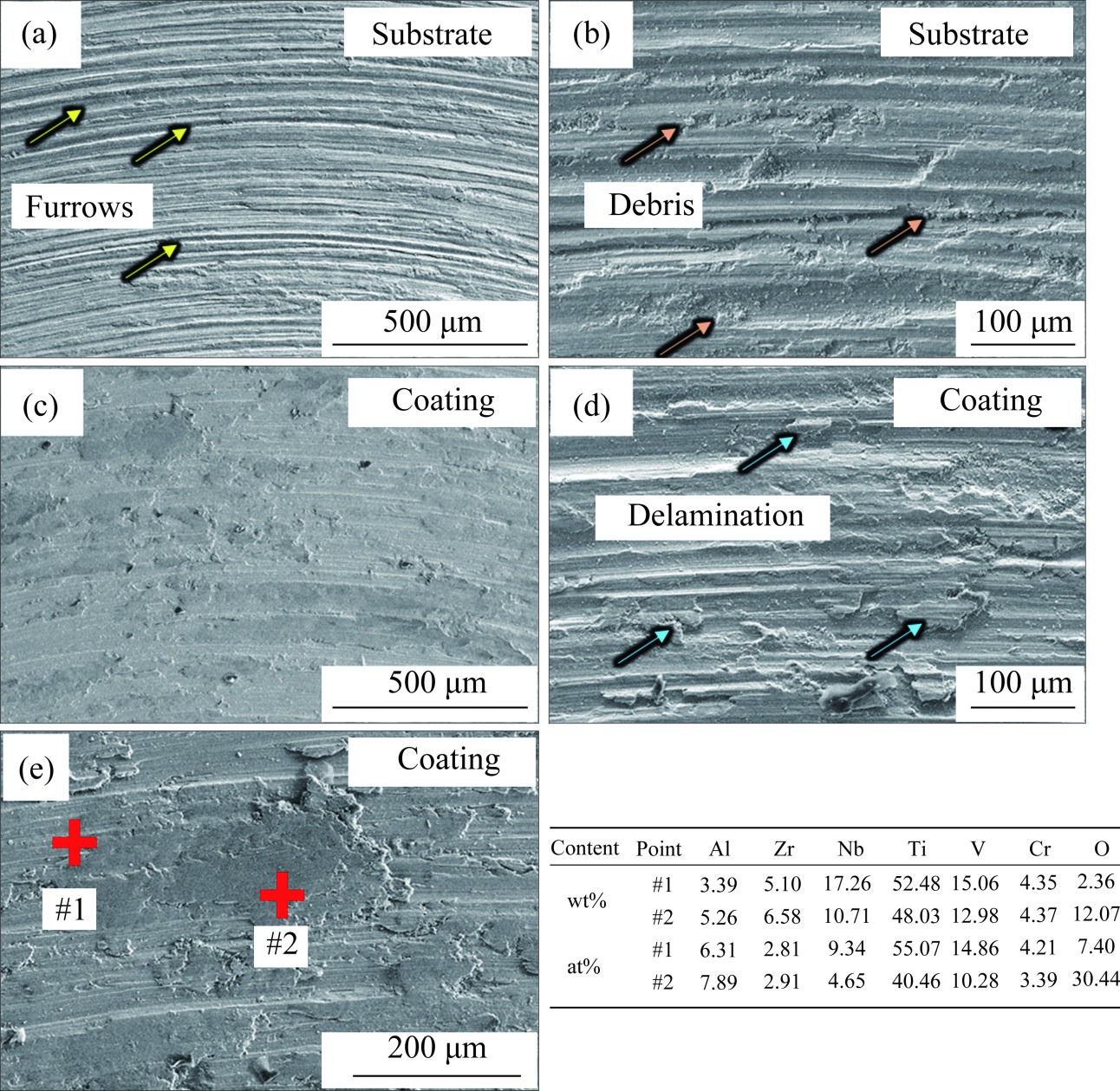

Adhesive wear is the dominant wear mechanism, with high-temperature oxide formation playing a significant role during friction.
Why do the HEA coatings exhibit better corrosion resistance?
The presence of alloying elements like Cr and Al promotes the formation of a dense passive film on the coating surface, which enhances corrosion resistance.
Related Technical Papers & Translations
Direct Repair of the Crystal Structure and Coating Surface of Spent LiFePO4 Materials Enables Superfast Li-Ion Migration
The rapid accumulation of spent LiFePO4 (LFP) cathodes from retired lithium-ion batteries necessitates the development of effective and environmental-friendly recycling strategies. In this context, direct regeneration has emerged as a promising approach for reclaiming LFP cathode materials, offering a streamlined pathway to restore their electrochemical functionality. We report an integrated regeneration protocol that simultaneously repairs the degraded crystal structure and reconstructs the damaged carbon coating in spent LFP. The regenerated cathode material had superfast lithium-ion diffusion kinetics and a stable cathode–electrolyte interface, giving a remarkable rate capability with specific capacities of 122 mAh g−1 at 5C and 106 mAh g−1 at 10C (1C = 170 mA g−1). It also maintained capacities of 110.7 mAh g−1 (5C) and 84.1 mAh g−1 (10C) after 400 cycles. It could be used in harsh environments and could be stably cycled at subzero temperatures (−10 and −20 °C) and in solid-state electrolyte batteries. Life cycle assessment combined with economic evaluation using the EverBatt model reveals that this direct regeneration approach has high economic and environmental benefits.
Oxide Semiconductor for Advanced Memory Architectures: Atomic Layer Deposition, Key Requirement and Challenges
Oxide semiconductors (OSs), introduced by the Hosono group in the early 2000s, have evolved from display backplane materials to promising candidates for advanced memory and logic devices. The exceptionally low leakage current of OSs and compatibility with three-dimensional (3D) architectures have recently sparked renewed interest in their use in semiconductor applications. This review begins by exploring the unique material properties of OSs, which fundamentally originate from their distinct electronic band structure. Subsequently, we focus on atomic layer deposition (ALD), a core technique for growing excellent OS films, covering both basic and advanced processes compatible with 3D scaling. The basic surface reaction mechanisms—adsorption and reaction—and their roles in film growth are introduced. Furthermore, material design strategies, such as cation selection, crystallinity control, anion doping, and heterostructure engineering, are discussed. We also highlight challenges in memory applications, including contact resistance, hydrogen instability, and lack of p-type materials, and discuss the feasibility of ALD-grown OSs as potential solutions. Lastly, we provide an outlook on the role of ALD-grown OSs in memory technologies. This review bridges material fundamentals and device-level requirements, offering a comprehensive perspective on the potential of ALD-driven OSs for next-generation semiconductor memory devices.
Laser powder bed fusion of biodegradable Zn-4Cu alloy: Processing, microstructure and properties
Zn's natural degradability and biocompatibility make it a promising candidate for implants, however, its mechanical properties remain insufficient for bone applications. In this study, the performance of Zn was enhanced by developing Zn-Cu alloys via laser powder bed fusion (LPBF). Optimal LPBF parameters for forming stable tracks were achieved by adjusting laser power and scanning speed. Under optimized conditions of 100 W and 100 mm/s, high-density (99.58%) Zn-Cu alloys with improved hardness (68.2HV) and yield strength (160 MPa) were achieved. These improvements are attributed to solid solution strengthening, segregation strengthening, and grain refinement. The Zn-Cu alloys also demonstrated favorable degradation behavior, with a rate of 0.16 mm/year. This degradation is primarily driven by micro-galvanic corrosion between the CuZn5 phase and Zn matrix, along with refined grains and increased grain boundary density. This work demonstrates a viable strategy for fabricating Zn-based implants with enhanced structural integrity and mechanical performance via LPBF.
