Key Takeaways & Executive Findings
- •• First demonstration of a gradient distributed oxygen vacancies (GOV) strategy to promote hole transport within FeOOH. • Clearly monitoring and verifying the progressive upward shift of the valence band within the shallow surface of FeOOH-GOV for enhancing holes transport capability. • Setting new photoelectrochemical activity and stability benchmarks of FeOOH based-BiVO4 photoanodes. • Achieving a photocurrent density of 5.37 mA cm−2 and operational stability up to 160 h at 1.23 VRHE.
Abstract

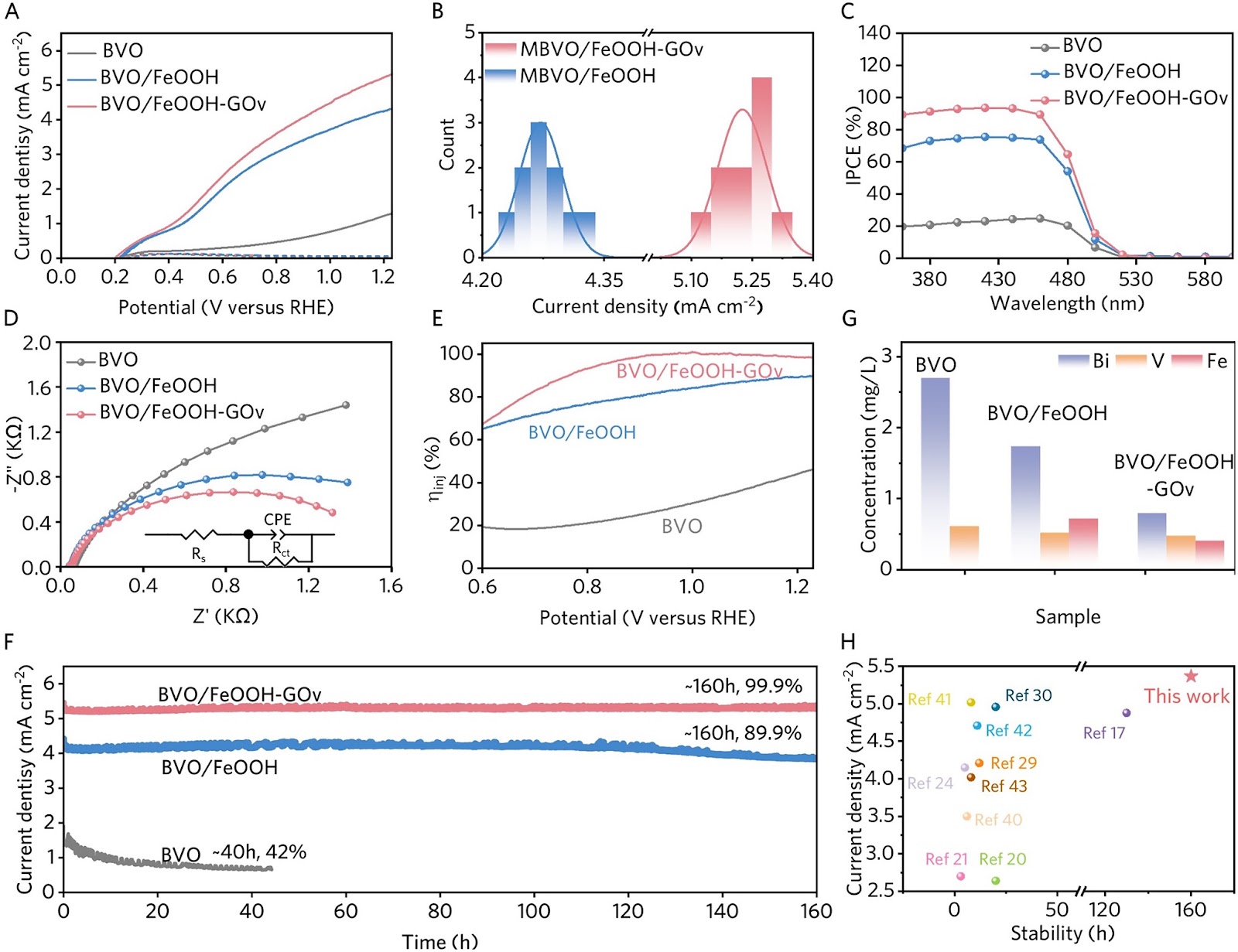

Highly active and stable FeOOH cocatalysts are essential for achieving optimal performance of BiVO4 (BVO) photoanodes. Despite offering remarkable structural stability, widely used thick FeOOH cocatalysts often suffer from insufficient hole transport capability, which hinders the overall activity. The present study demonstrates that a simple photoetching strategy is able to introduce gradient distributed oxygen vacancies (GOV) in the thick FeOOH layer and significantly enhances the photogenerated holes transport dynamics. The incorporation of GOV within FeOOH not only realizes the “relay transport” of photogenerated hole through the progressive upward shift of the valence band in the spatial distribution, but also provides abundant oxidation active sites by efficient hole trapping. These improvements effectively improve the oxygen evolution reaction (OER) activities and mitigate photocorrosion by the instantaneous hole extraction. Consequently, the FeOOH-GOV layer enables the BVO/FeOOH-GOV photoanode to achieve an impressive photocurrent density of 5.37 mA cm−2 and a robust operational stability up to 160 h at 1.23 VRHE, setting new benchmarks for current density and stability in FeOOH-based BVO photoanodes. This work provides an effective avenue to optimize OER cocatalysts for constructing highly efficient and stable photoelectrochemical water splitting devices.
1. Introduction
H2 production via photoelectrochemical (PEC) water splitting has been regarded as a promising approach for converting solar energy into sustainable clean fuel [1, 2]. The design of the suitable semiconductor photoanodes with efficient charge carrier transport and high surface oxidation reactivity is essential for practical PEC device [3, 4]. The bismuth vanadate (BiVO4, BVO) is notable among photoanode materials due to its narrow band gap (2.4 eV), suitable band edge positions, and high chemical stability. However, its solar energy conversion potential remains limited by severe carrier recombination, sluggish water oxidation kinetics, and susceptibility to photocorrosion [3, 5, 6]. Therefore, various modification strategies have been explored to overcome these challenges, including hetero-construction [7–10], nanostructuring [11], nanocrystal embedding [12], and defects engineering [13–16]. However, these methods have not yet fully resolved the sluggish water oxidation kinetics on the BVO surface, which is critical for achieving high solar conversion efficiency.
Coupling BVO with ultrathin iron oxyhydroxide (FeOOH) is a widely adopted strategy to enhance the PEC activity of BVO photoanodes [17–20]. As an oxygen evolution catalyst (OEC), FeOOH effectively extracts the photogenerated holes from the BVO surface, accelerating water oxidation with a reduced overpotential [18–21]. With the intensive efforts devoted to engineer FeOOH OEC in BVO photoanodes, such as crystalline phase control [19, 20], defects modulating [19, 22, 23], and heterogeneous atom doping [24, 25], the photocurrent density has reached a notable benchmark value as high as 5.2 mA cm−2 at 1.23 VRHE [19], while this high PEC activity of BVO photoanodes coupled with ultrathin FeOOH is unfortunately obtained at the expense of stability. This limited stability is primarily attributed to the generally employed ultrathin FeOOH layer that is intrinsically favors for holes transport but with the awkward feature of structural instability at high anodic potential (Fig. S1A). Therefore, creating efficient and stable BVO photoanodes requires precise control over the coupled OEC thickness for a better balance of the oxygen evolution reaction (OER) activity and durability [26, 27]. A recent study revealed that increasing OEC layer thickness to over 10 nm result
Loading authentic research manuscript (Pages 1–5)...
Shiyuan Wang, Mengjia Jiao, Qian Ye, Jie Jian, Fan Li, Guirong Su, Lu Zhang, Ziying Zhang, Zelin Ma, Jiulong Wang, Yazhou Shuang, Fang Wang, Yalong Song, Lichao Jia, Hongqiang Wang (2026). FeOOH Cocatalysts with Gradient Oxygen Vacancy Distribution Enabling Efficient and Stable BiVO4 Photoanodes. Nano-Micro Letters. https://doi.org/10.1007/s40820-025-01987-8
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the main innovation of this study?
The study introduces a gradient distributed oxygen vacancies (GOV) strategy in thick FeOOH cocatalysts via a simple photoetching method, which significantly enhances hole transport and stability of BiVO4 photoanodes.
How does the gradient oxygen vacancy distribution improve performance?
The GOV creates a progressive upward shift of the valence band, enabling 'relay transport' of photogenerated holes and providing abundant oxidation active sites, thus improving OER activity and mitigating photocorrosion.
What are the key performance benchmarks achieved?
The BVO/FeOOH-GOV photoanode achieves a photocurrent density of 5.37 mA cm−2 and operational stability up to 160 hours at 1.23 VRHE, setting new records for FeOOH-based BiVO4 photoanodes.
Why is the stability of FeOOH cocatalysts important?
Stability is crucial for practical PEC water splitting. Thick FeOOH layers offer structural stability but suffer from poor hole transport; the GOV strategy balances both, enabling long-term operation without significant performance loss.
What is the significance of this work for solar fuel production?
This work provides an effective avenue to optimize OER cocatalysts, which is essential for constructing highly efficient and stable photoelectrochemical water splitting devices, advancing solar-to-hydrogen conversion.
Related Technical Papers & Translations
Direct Repair of the Crystal Structure and Coating Surface of Spent LiFePO4 Materials Enables Superfast Li-Ion Migration
The rapid accumulation of spent LiFePO4 (LFP) cathodes from retired lithium-ion batteries necessitates the development of effective and environmental-friendly recycling strategies. In this context, direct regeneration has emerged as a promising approach for reclaiming LFP cathode materials, offering a streamlined pathway to restore their electrochemical functionality. We report an integrated regeneration protocol that simultaneously repairs the degraded crystal structure and reconstructs the damaged carbon coating in spent LFP. The regenerated cathode material had superfast lithium-ion diffusion kinetics and a stable cathode–electrolyte interface, giving a remarkable rate capability with specific capacities of 122 mAh g−1 at 5C and 106 mAh g−1 at 10C (1C = 170 mA g−1). It also maintained capacities of 110.7 mAh g−1 (5C) and 84.1 mAh g−1 (10C) after 400 cycles. It could be used in harsh environments and could be stably cycled at subzero temperatures (−10 and −20 °C) and in solid-state electrolyte batteries. Life cycle assessment combined with economic evaluation using the EverBatt model reveals that this direct regeneration approach has high economic and environmental benefits.
Oxide Semiconductor for Advanced Memory Architectures: Atomic Layer Deposition, Key Requirement and Challenges
Oxide semiconductors (OSs), introduced by the Hosono group in the early 2000s, have evolved from display backplane materials to promising candidates for advanced memory and logic devices. The exceptionally low leakage current of OSs and compatibility with three-dimensional (3D) architectures have recently sparked renewed interest in their use in semiconductor applications. This review begins by exploring the unique material properties of OSs, which fundamentally originate from their distinct electronic band structure. Subsequently, we focus on atomic layer deposition (ALD), a core technique for growing excellent OS films, covering both basic and advanced processes compatible with 3D scaling. The basic surface reaction mechanisms—adsorption and reaction—and their roles in film growth are introduced. Furthermore, material design strategies, such as cation selection, crystallinity control, anion doping, and heterostructure engineering, are discussed. We also highlight challenges in memory applications, including contact resistance, hydrogen instability, and lack of p-type materials, and discuss the feasibility of ALD-grown OSs as potential solutions. Lastly, we provide an outlook on the role of ALD-grown OSs in memory technologies. This review bridges material fundamentals and device-level requirements, offering a comprehensive perspective on the potential of ALD-driven OSs for next-generation semiconductor memory devices.
Laser powder bed fusion of biodegradable Zn-4Cu alloy: Processing, microstructure and properties
Zn's natural degradability and biocompatibility make it a promising candidate for implants, however, its mechanical properties remain insufficient for bone applications. In this study, the performance of Zn was enhanced by developing Zn-Cu alloys via laser powder bed fusion (LPBF). Optimal LPBF parameters for forming stable tracks were achieved by adjusting laser power and scanning speed. Under optimized conditions of 100 W and 100 mm/s, high-density (99.58%) Zn-Cu alloys with improved hardness (68.2HV) and yield strength (160 MPa) were achieved. These improvements are attributed to solid solution strengthening, segregation strengthening, and grain refinement. The Zn-Cu alloys also demonstrated favorable degradation behavior, with a rate of 0.16 mm/year. This degradation is primarily driven by micro-galvanic corrosion between the CuZn5 phase and Zn matrix, along with refined grains and increased grain boundary density. This work demonstrates a viable strategy for fabricating Zn-based implants with enhanced structural integrity and mechanical performance via LPBF.
