Key Takeaways & Executive Findings
- •• The primary strength loss occurs between 600-800 °C due to intense resin decomposition. • Above 900 °C, structural reorganization of the carbon skeleton partially recovers strength. • Resin content, base sand type, and particle size significantly influence high-temperature compressive strength. • Findings provide critical data for optimizing sand casting processes to reduce defects like hot tearing and veining.
Abstract

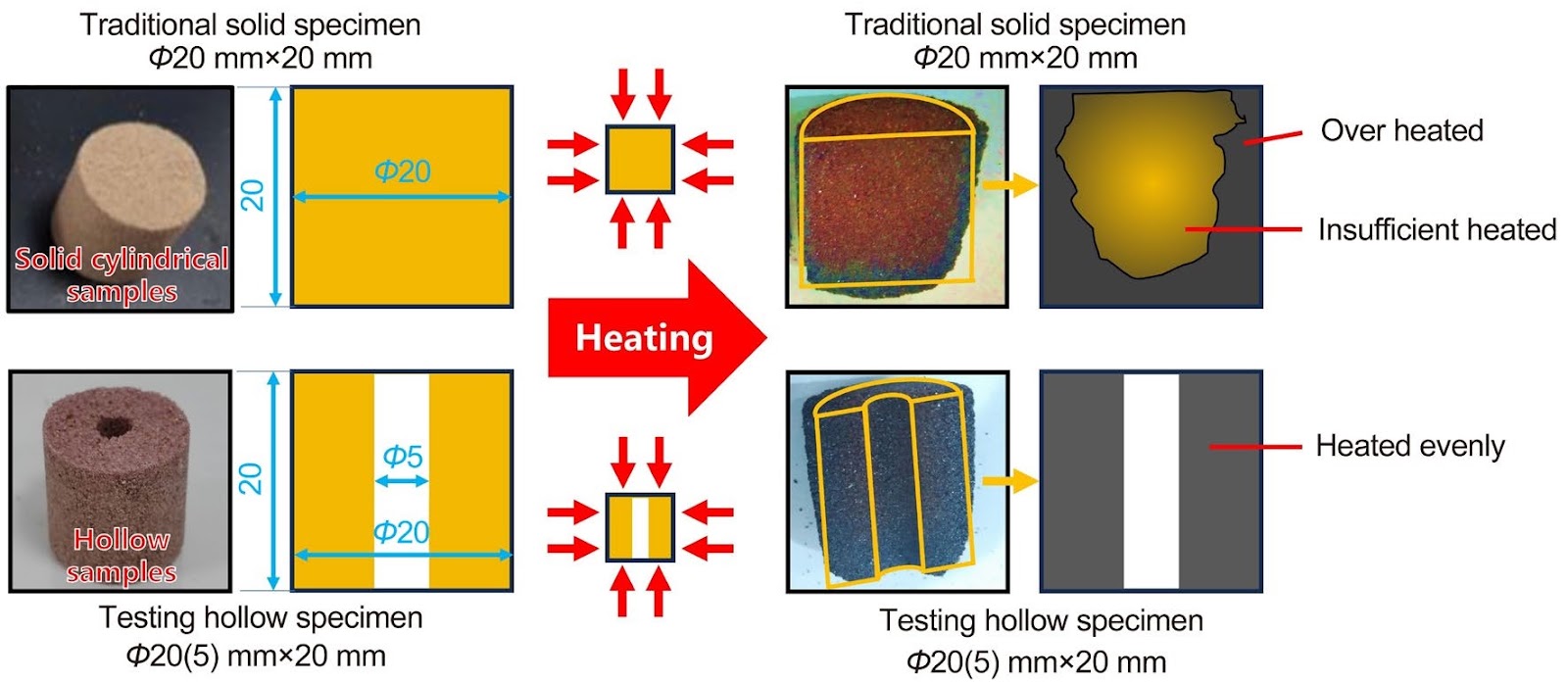

During the casting process, no-bake resin-bonded sand molds and cores rapidly heat up upon contact with high-temperature molten metal, causing dramatic changes in the resin binder system and a significant deterioration in mechanical properties, which subsequently leads to casting defects. To reveal the mechanism behind the evolution of high-temperature performance, the effects of resin content, base sand type, and particle size on the compressive strength of alkaline phenolic no-bake resin-bonded sand at temperatures ranging from 600 °C to 1,000 °C were investigated. The results show that the temperature range of 600-800 °C represents the primary stage of strength loss, corresponding to intense resin decomposition. Meanwhile, structural reorganization of the carbon skeleton above 900 °C can lead to a partial recovery of strength. This study provides key data and theoretical support for understanding the high-temperature mechanical behavior of resin-bonded sand and its relationship with casting defects.
1. Introduction
Sand casting is one of the key forming processes for producing large-scale metal components with complex geometries, reliable quality, and cost-effectiveness [1-6]. Among various sand casting processes, no-bake resin-bonded sand technology has held a dominant position in molding and core making over the past decades [7, 8] due to its advantages such as high molding efficiency and good dimensional stability [9-11]. The fundamental principle of this process involves the uniform mixing of base sand, resin, and a curing agent. In this mixture, the resin undergoes a curing agent-catalyzed cross-linking reaction, coating the sand particles and forming robust resin bridges. This network of bonded sand particles constructs molds or cores with sufficient mechanical strength for foundry applications.
During pouring, the resin-bonded molds (and cores) come into direct contact with high-temperature molten metal. The resin binder system undergoes a series of complex physicochemical changes under high temperatures (typically exceeding 1,200 °C [12, 13]) and in an oxygen-deficient environment [14-16], leading to significant alterations in mechanical properties. When molten metal first contacts the sand mold, an ideal thermal contact exists between them. At this moment, the sensible heat of the liquid metal is rapidly released into the surface layer of the sand mold. During this stage, the interfacial heat transfer coefficient reaches its historical peak. Studies indicate that for preheated sand molds or those with specific coatings, the initial heat transfer coefficient can reach several thousand W·m-2·K-1, owing to the maximized direct contact area at solid-solid or liquid-solid interfaces. Such instantaneous high-intensity heat flux causes the temperature of the sand mold’s surface layer to rise to approximately 1,000 °C within a fraction of a second [17, 18]. This may subsequently induce casting defects such as hot tearing and veining, which are closely related to the high-temperature strength of the molds [19]. Therefore, a systematic evaluation of the mechanical behavior of no-bake resin-bonded sand under high-temperature conditions is of considerable engineering significance. It not only facilitates an in-depth understanding of its service performance but also provides a scientific basis for the rational selection of base sand type, particle size distribution, and resin content in actual production.
Loading authentic research manuscript (Pages 1–5)...
Xin Peng, Yu-yang Qi, Peng Yu, Peng Wan, Zhen-wei Liu, Wen Li, Xu Shen, Xiao-yuan Ji, Ya-jun Yin, Yuan-cai Li, Jian-xin Zhou (2026). Factors influencing high-temperature compressive strength of alkaline phenolic resin-bonded sand. China Foundry. https://doi.org/10.1007/s41230-026-5243-x
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the primary temperature range for strength loss in alkaline phenolic resin-bonded sand?
The primary stage of strength loss occurs between 600 °C and 800 °C, corresponding to intense resin decomposition.
How does temperature above 900 °C affect the strength of resin-bonded sand?
Above 900 °C, structural reorganization of the carbon skeleton can lead to a partial recovery of strength.
What factors were investigated in this study?
The study investigated the effects of resin content, base sand type, and particle size on the compressive strength of alkaline phenolic no-bake resin-bonded sand at temperatures from 600 °C to 1,000 °C.
Why is high-temperature strength testing important for sand casting?
High-temperature strength testing is crucial because it reflects the actual mechanical behavior of resin-bonded sand during pouring, helping to prevent casting defects such as hot tearing and veining.
What is the significance of this research for foundry practice?
The research provides key data and theoretical support for understanding high-temperature mechanical behavior, aiding in the rational selection of base sand type, particle size distribution, and resin content in production.
Related Technical Papers & Translations
Pull-out capacity and energy absorption of cable bolts under impact loading
This study investigates the performance of high-strength cable bolts under impact loading conditions representative of rock bursts in underground environments. Although widely used, the dynamic behaviour of these cable bolts has received limited experimental attention, and their effectiveness in seismically active zones remains a subject of ongoing debate. To address this gap, a reverse pull-out test machine integrated with a drop hammer rig was employed. Tests were conducted on 70-t SUMO bulbed and non-bulbed cable bolts with encapsulation lengths of 300 and 450 mm, subjected to an impact energy of 14.52 kJ. Results indicate that non-bulbed cables, despite showing lower initial peak loads (average 218 vs. 328 kN for bulbed cables at 300 mm encapsulation), demonstrated superior energy absorption (average 11.26 vs. 8.75 kJ) and displacement capacity (average 48.40 vs. 36.25 mm). Increasing the encapsulation length for bulbed cables led to a reduction in initial peak load but improved displacement and energy absorption. The dominant failure mechanism was debonding at the cable-grout interface, characterised by frictional sliding and cable rotation. These findings provide new insights into the energy dissipation mechanisms of cables and support the development of more resilient ground support systems for dynamically active conditions.
Effect of eutectic content on microstructure and mechanical properties of Al-Zn-Mg-Cu alloys
The 7xxx series aluminum alloys have emerged as a particularly promising class of lightweight structural materials. However, the inherent strength of these materials is primarily influenced by the content and type of alloying elements added during the manufacturing process, as well as casting defects. The present study investigated the effects of eutectics formed by solute atoms (Zn, Mg, and Cu), with equal mass ratios (Zn/Mg=2, Mg/Cu=3) but varying overall contents, on the liquid film thickness, crack propagation depth, and the mechanical properties of the Al-Zn-Mg-Cu alloy after heat treatment. The results from gravity casting indicate that the intergranular liquid film thickness increases with the increase of eutectic content. A thick intergranular liquid film in the casting can accommodate greater strain during grain contraction, thereby preventing liquid film rupture and subsequent hot tearing. Concurrently, during the solution treatment at 475 °C, the residual eutectic fraction in the Al-7Zn-3.5Mg-1.18Cu alloy diminishes from 9.1% at 10 h to 0.35% at 40 h. At 165 °C, the Al-6Zn-3.0Mg-1.0Cu alloy exhibits the optimal mechanical properties, with a peak aging tensile strength of 510 MPa and an elongation of 6.4%. The incorporation of lower concentrations of solute atoms (Zn, Mg, and Cu) serves to reduce the barrier to dislocation precipitation, thereby enhancing alloy plasticity. However, when the proportion of alloying elements exceeds the solubility limit of the α-Al matrix at specific heat treatment temperatures, coarse residual phases remain intergranular, thereby significantly impairing the mechanical properties of the alloy. This study provides a reference for the optimal addition level of the main strengthening elements in Al‑Zn‑Mg‑Cu alloys.
Achieving optimal strength-conductivity balance in cast Al-2.3Fe-Mg-Si alloys via Mg/Si ratio regulation
The Al-2.3Fe eutectic alloy is regarded as a promising substitute for Cu conductors in automotive motors owing to its excellent castability and low resistivity. However, its application is restricted by the mutually exclusive relationship between electrical conductivity and mechanical strength. The microstructure and mechanical properties of Al-2.3Fe alloy were modified through Mg/Si alloying combined with T6 heat treatment in this work, leading to the development of a high-performance cast Al-2.3Fe-Mg-Si alloy. In the Al-2.3Fe-0.40Mg-0.72Si (Mg/Si=0.56) alloy subjected to T6 treatment, an electrical conductivity of (52.5±0.6)% IACS is achieved, while the ultimate tensile strength is significantly enhanced to 309.5±5.6 MPa. The addition of Mg and Si brings about marked changes in the solidification process of the Al-2.3Fe alloy, resulting in considerable variations in both the morphology of the second phase and its phase constitution. The aging behavior of the alloy is governed by second phase and solid solubility. Through optimization of the Mg/Si ratio, the aging response can be effectively enhanced. At the ratio of Mg/Si=0.56, a balance is achieved between solid solubility and precipitation, while simultaneously minimizing the detrimental impact on electrical conductivity and reaching the best mechanical properties and electrical conductivity in peak-aged Al-2.3Fe-xMg-ySi alloy. This work providing valuable insights for developing advanced conductor materials.
