Key Takeaways & Executive Findings
- •• Twin-roll strip casting successfully produces 2.4 mm thick Cu-12Fe alloy strips with a uniform Fe phase distribution and a 'sandwich structure'. • Direct cold rolling and aging (Process I) achieves 69.5% IACS electrical conductivity and 513 MPa tensile strength, balancing conductivity and strength. • Two-step processing (Process II) further improves tensile strength to 533 MPa while maintaining 66.3% IACS conductivity and enhanced magnetic properties. • The study demonstrates an efficient, low-cost route for producing high-performance Cu-Fe thin strips for electromagnetic shielding applications.
Abstract

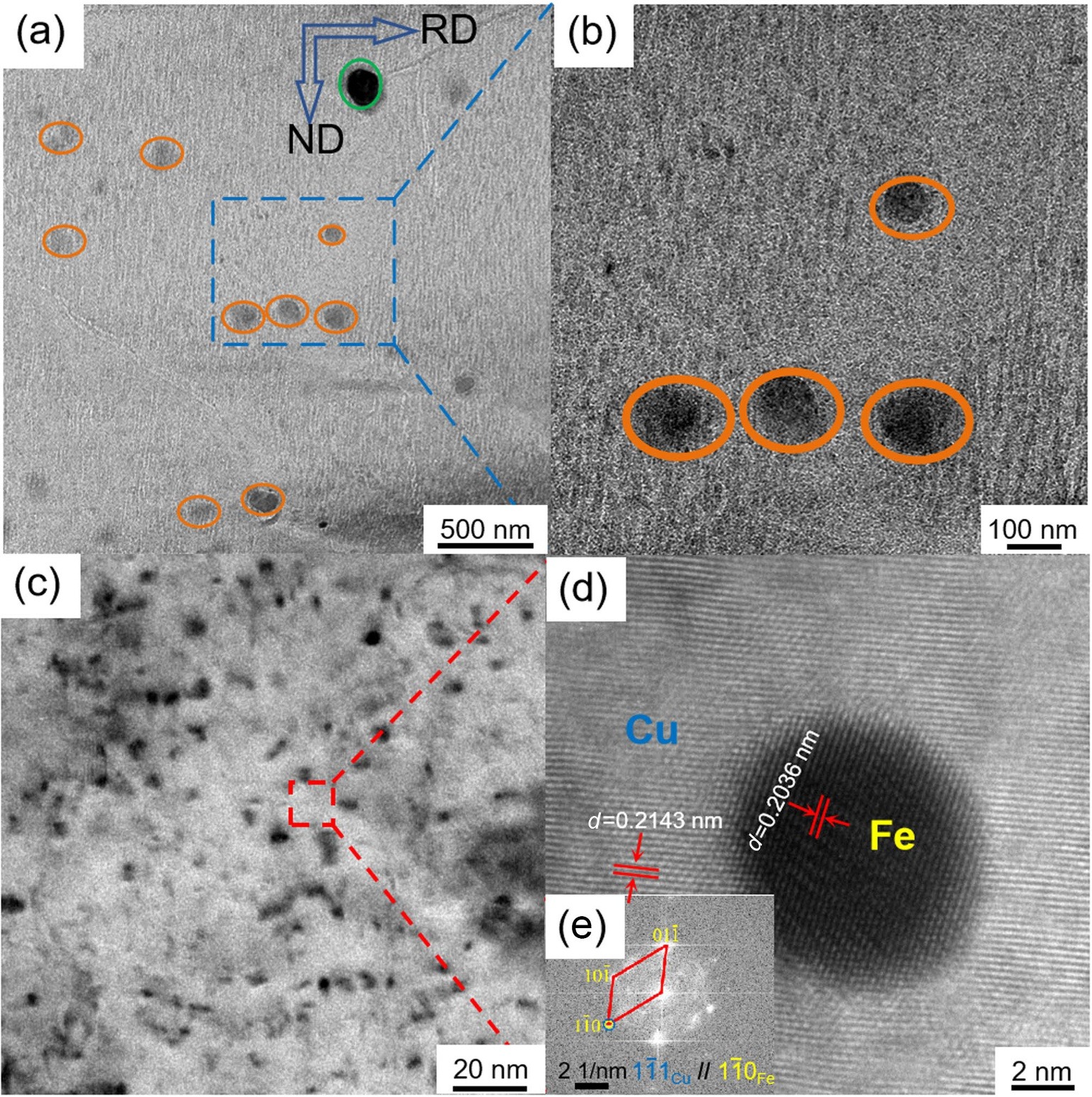

The Cu-12Fe alloy has attracted significant attention due to its excellent electrical conductivity and electromagnetic shielding capability, high strength, cost-effectiveness, and recyclability. In the present work, the Cu-12Fe alloy strip with the thickness of 2.4 mm was successfully produced by twin-roll strip casting. The microstructure and properties of the Cu-12Fe alloy were tailored by cold rolling and aging treatment. The tensile strength of the as-cast strip is approximately 328 MPa and its elongation is 25%. The Fe phase randomly dispersed in the matrix, and the average size of Fe-rich phase is 2 μm. Besides, enrichment of Fe phase is observed in the central layer of the strip, results in the formation of the “sandwich structure”. Moreover, the as-cast strip of Cu-12Fe was directly cold-rolled from 2.4 to 0.12 mm. The directly cold-rolled sample after aging at 450 °C for 16 h (Process I) shows excellent electrical conductivity of 69.5% IACS, the tensile strength and elongation are 513 MPa and 3.8%, the saturation magnetic flux density is 20.1 emu·g-1, and the coercive force is 25.2 Oe. In Process II, the as-cast strip firstly cold-rolled to 1.2 mm, then aged at 500 °C for 1.5 h, followed by cold rolling to 0.12 mm, finally aged at 450 °C for 16 h. The sample after Process II shows the electrical conductivity of 66.3% IACS, the tensile strength of 533 MPa, an elongation of 3.5%, saturation magnetic flux density of 21.4 emu·g-1, and the coercive force of 22.3 Oe.
1. Introduction
Cu-Fe alloys have attracted great attention due to their easy processability, low cost, excellent conductivity, and recyclability [1-2]. These alloys are widely applied in various industrial fields, such as aerospace, automotive connectors, mobile terminals, and medical devices like CT and MRI scanners, where they serve as essential shielding materials [3-5]. By precisely adjusting the fraction, size, and distribution of the α-Fe phase, Cu-Fe alloys can be granted exceptional mechanical properties, conductivity, and electromagnetic characteristics. The well-controlled Cu-Fe alloys exhibit superior electromagnetic wave shielding performance. Current advancements are focused on achieving a high content of uniformly distributed α-Fe phase to enhance the electrical and electromagnetic properties of Cu-Fe alloys. Further research and development efforts are crucial for refining the alloy microstructure to fulfill specific performance demands across a wide range of high-tech industries.
The Cu-Fe alloy system undergoes a transition to a metastable immiscible system when the concentration of dissolved Fe atoms in Cu exceeds 5%. In this condition, below the liquidus line, the alloy displays typical characteristics of a metastable immiscible system [6-7]. During solidification, a visible liquid phase separation and segregation occur that pose challenges in obtaining non-eutectic Fe phase particles with sizes less than or equal to 10 μm in the solidified structure. The limited solubility of Fe in Cu further complicates efforts to increase the proportion of a nanoscale Fe phase using conventional solidification processes and heat treatments. Alternative forming processes, such as mechanical alloying, micro/small melt pool construction (e.g., vacuum consumption and 3D printing), and microgravity solidification, have been explored. However, these methods often come with high costs and deliver low efficiency, and are unsuitable in the case of thin strip materials [8]. There is an urgent necessity to develop more efficient and economical methods for producing Cu-Fe alloys with enhanced properties, particularly with respect to thin strip applications.
Several methods are currently employed to address the challenges associated with the Cu-Fe alloy system. The control of solidification behavior involves increasing the solidification cooling rate and adjusting the starting temperature in order to manage the separation process of metastable liquid phase. This approach aims to achieve the control over phase distribution during solidification. Microalloying and unconventional preparation methods involve modifying the morphology and proportion of primary Fe-rich phases, providing alternative approaches to influence the microstructure of alloys. The control of Fe atom solubility in the matrix represents an additional strategy. The solidification of Cu-Fe alloys results in a dual-phase microstructure, where the Fe phase is primarily distributed in the Cu matrix [9]. The amount of Fe-rich phases generated during solidification and the solute Fe atoms present in the matrix play a significant role in determining the ultimate mechanical and electromagnetic properties. Achieving a uniform distribution of Fe phases across micrometer to nanometer scales is crucial for optimizing performance.
Loading authentic research manuscript (Pages 1–5)...
Tian-mo Wu, Yuan-xiang Zhang, Shuai-jie Guo, Nuo-jin Wang, Jian Kang, Guo Yuan (2026). Evolution of microstructure and properties of Cu-12Fe alloys prepared by twin-roll strip casting. China Foundry. https://doi.org/10.1007/s41230-025-4045-x
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the significance of twin-roll strip casting for Cu-Fe alloys?
Twin-roll strip casting offers an efficient and economical method to produce thin Cu-Fe alloy strips with refined microstructures, overcoming limitations of conventional solidification and alternative processes like mechanical alloying or 3D printing.
How does the 'sandwich structure' affect the properties of Cu-12Fe alloy?
The 'sandwich structure' refers to Fe phase enrichment in the central layer of the strip, which influences the mechanical and electromagnetic properties by providing a gradient in phase distribution, potentially enhancing strength and magnetic performance.
What are the optimal processing conditions for high electrical conductivity and strength?
Process I (direct cold rolling to 0.12 mm followed by aging at 450°C for 16 h) yields 69.5% IACS conductivity and 513 MPa tensile strength, while Process II (intermediate aging at 500°C) achieves higher strength (533 MPa) with slightly lower conductivity (66.3% IACS).
How does the Fe phase distribution influence electromagnetic shielding?
A uniform distribution of Fe phases at micrometer to nanometer scales enhances electromagnetic wave shielding by improving magnetic properties such as saturation magnetization and coercivity, as demonstrated by the measured values in the processed samples.
What are the potential applications of the Cu-12Fe alloy strips?
The Cu-12Fe alloy strips are suitable for aerospace, automotive connectors, mobile terminals, and medical devices like CT and MRI scanners, where they serve as essential electromagnetic shielding materials.
Related Technical Papers & Translations
Pull-out capacity and energy absorption of cable bolts under impact loading
This study investigates the performance of high-strength cable bolts under impact loading conditions representative of rock bursts in underground environments. Although widely used, the dynamic behaviour of these cable bolts has received limited experimental attention, and their effectiveness in seismically active zones remains a subject of ongoing debate. To address this gap, a reverse pull-out test machine integrated with a drop hammer rig was employed. Tests were conducted on 70-t SUMO bulbed and non-bulbed cable bolts with encapsulation lengths of 300 and 450 mm, subjected to an impact energy of 14.52 kJ. Results indicate that non-bulbed cables, despite showing lower initial peak loads (average 218 vs. 328 kN for bulbed cables at 300 mm encapsulation), demonstrated superior energy absorption (average 11.26 vs. 8.75 kJ) and displacement capacity (average 48.40 vs. 36.25 mm). Increasing the encapsulation length for bulbed cables led to a reduction in initial peak load but improved displacement and energy absorption. The dominant failure mechanism was debonding at the cable-grout interface, characterised by frictional sliding and cable rotation. These findings provide new insights into the energy dissipation mechanisms of cables and support the development of more resilient ground support systems for dynamically active conditions.
Effect of eutectic content on microstructure and mechanical properties of Al-Zn-Mg-Cu alloys
The 7xxx series aluminum alloys have emerged as a particularly promising class of lightweight structural materials. However, the inherent strength of these materials is primarily influenced by the content and type of alloying elements added during the manufacturing process, as well as casting defects. The present study investigated the effects of eutectics formed by solute atoms (Zn, Mg, and Cu), with equal mass ratios (Zn/Mg=2, Mg/Cu=3) but varying overall contents, on the liquid film thickness, crack propagation depth, and the mechanical properties of the Al-Zn-Mg-Cu alloy after heat treatment. The results from gravity casting indicate that the intergranular liquid film thickness increases with the increase of eutectic content. A thick intergranular liquid film in the casting can accommodate greater strain during grain contraction, thereby preventing liquid film rupture and subsequent hot tearing. Concurrently, during the solution treatment at 475 °C, the residual eutectic fraction in the Al-7Zn-3.5Mg-1.18Cu alloy diminishes from 9.1% at 10 h to 0.35% at 40 h. At 165 °C, the Al-6Zn-3.0Mg-1.0Cu alloy exhibits the optimal mechanical properties, with a peak aging tensile strength of 510 MPa and an elongation of 6.4%. The incorporation of lower concentrations of solute atoms (Zn, Mg, and Cu) serves to reduce the barrier to dislocation precipitation, thereby enhancing alloy plasticity. However, when the proportion of alloying elements exceeds the solubility limit of the α-Al matrix at specific heat treatment temperatures, coarse residual phases remain intergranular, thereby significantly impairing the mechanical properties of the alloy. This study provides a reference for the optimal addition level of the main strengthening elements in Al‑Zn‑Mg‑Cu alloys.
Achieving optimal strength-conductivity balance in cast Al-2.3Fe-Mg-Si alloys via Mg/Si ratio regulation
The Al-2.3Fe eutectic alloy is regarded as a promising substitute for Cu conductors in automotive motors owing to its excellent castability and low resistivity. However, its application is restricted by the mutually exclusive relationship between electrical conductivity and mechanical strength. The microstructure and mechanical properties of Al-2.3Fe alloy were modified through Mg/Si alloying combined with T6 heat treatment in this work, leading to the development of a high-performance cast Al-2.3Fe-Mg-Si alloy. In the Al-2.3Fe-0.40Mg-0.72Si (Mg/Si=0.56) alloy subjected to T6 treatment, an electrical conductivity of (52.5±0.6)% IACS is achieved, while the ultimate tensile strength is significantly enhanced to 309.5±5.6 MPa. The addition of Mg and Si brings about marked changes in the solidification process of the Al-2.3Fe alloy, resulting in considerable variations in both the morphology of the second phase and its phase constitution. The aging behavior of the alloy is governed by second phase and solid solubility. Through optimization of the Mg/Si ratio, the aging response can be effectively enhanced. At the ratio of Mg/Si=0.56, a balance is achieved between solid solubility and precipitation, while simultaneously minimizing the detrimental impact on electrical conductivity and reaching the best mechanical properties and electrical conductivity in peak-aged Al-2.3Fe-xMg-ySi alloy. This work providing valuable insights for developing advanced conductor materials.
