Key Takeaways & Executive Findings
- •• Two pre-crystallization processes, gas quenching and vacuum quenching, lead to different crystallization dynamics within perovskite thin films, affecting additive distribution. • A tailor-designed additive, 1,3-bis(4-methoxyphenyl)thiourea, improves the buried interface, achieving a certified efficiency of 23.75% for blade-coated perovskite solar cells. • The perovskite solar module (aperture area: 60.84 cm2) demonstrates an efficiency of 20.18% with excellent operational stability (T90 > 1000 h under maximum power point tracking). • The work provides insights into crystallization dynamics and additive engineering for scalable fabrication of efficient and stable perovskite photovoltaics.
Abstract

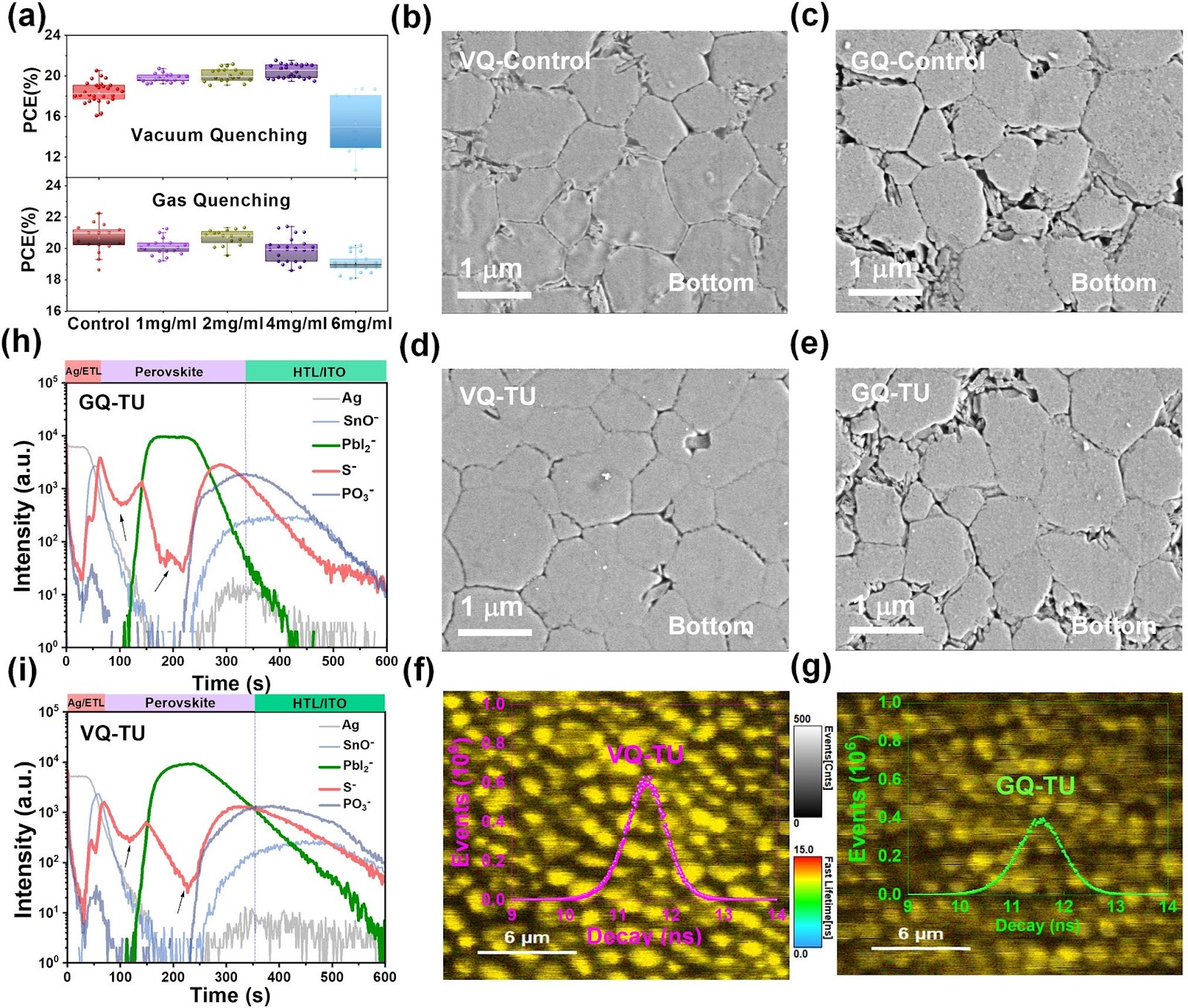

Gas quenching and vacuum quenching process are widely applied to accelerate solvent volatilization to induce nucleation of perovskites in blade-coating method. In this work, we found these two pre-crystallization processes lead to different order of crystallization dynamics within the perovskite thin film, resulting in the differences of additive distribution. We then tailor-designed an additive molecule named 1,3-bis(4-methoxyphenyl)thiourea to obtain films with fewer defects and holes at the buried interface, and prepared perovskite solar cells with a certified efficiency of 23.75%. Furthermore, this work also demonstrates an efficiency of 20.18% for the large-area perovskite solar module (PSM) with an aperture area of 60.84 cm2. The PSM possesses remarkable continuous operation stability for maximum power point tracking of T90 > 1000 h in ambient air.
1. Introduction
The efficiency of perovskite solar cells (PSCs) has continued to grow rapidly, as the small-area laboratory PSCs manufactured by the solution method have gained the certified power conversion efficiency (PCE) up to 26.7% [1]. The challenge to achieve high-quality perovskite thin films via solution method can be associated to the nucleation process that taken place within seconds and overlap each other, making the dynamics control needs to be strict, especially for the large-area perovskite thin film [2–4]. In general, rapid nucleation for pre-crystallization followed with slow crystal growth is necessary to form high-quality perovskites with fully surface coverage and large grain size [5, 6]. Anti-solvent extraction provides a picky strategy to obtain a perfect intermediate phase in spin-coating process that provides seed crystals for the growth of compact polycrystalline thin film with low bulk defects [7–9]. The anti-solvent method is not conducive to triggering uniform nucleation on perovskite surfaces with an area greater than 50 cm2, and it is difficult to obtain smooth perovskite films with high surface coverage [10–14].
Similarly, in the blade coating, gas quenching (GQ) and/or vacuum quenching (VQ) process are applied to accelerate solvent volatilization [15–18]. However, the concentration of wet film is relatively low before the quenching carried out, resulting in the solvent volatilization and reaching the minimum concentration for nucleation will take more times than the anti-solvent method. Ternes et al. obtained supersaturation rates of common quenching methods at critical concentrations by modeling, yielding ~102 s−1 for anti-solvent quenching, ~10−3−10−1 s−1 for VQ, and ~10−5−100 s−1 for GQ [19]. Low nucleation rate leads to inferior crystal, and this may be the reason why the efficiency of blade-coated PSCs still far leg behind the spin-coated counterparts.
The inference above prompted us to investigate the difference between GQ and VQ processes, because the different extraction processes seriously affect the crystallization dynamics, which is the key factor to determine the as-prepared film quality. For GQ, it is simple and economical, the supersaturation is relatively light, and the intermediate phase processing window is long [20–22]. For VQ, it can effectively achieve rapid nucleation to supersaturation, but with the increase in the film area, it has higher requirements for the vacuum system [19, 23, 24]. From the perspective of industrialization, GQ can be easily integrated in a production line and can be better combined with some in situ technologies to real-time monitoring, such as in situ X-ray diffractometer, in situ grazing incidence wide-angle X-ray scattering, and in situ photoluminescence. It is more in line with the demand of perovskite industrialization of cheap photovoltaic technology in principle [19, 20, 22, 25]. In addition, additive is a simple but effective strategy to optimize the intermediate phase through the formation of Lewis acid–base adduct or act as the sacrificial agent to ass
Loading authentic research manuscript (Pages 1–5)...
Mengen Ma, Cuiling Zhang, Yujiao Ma, Weile Li, Yao Wang, Shaohang Wu, Chong Liu, Yaohua Mai (2024). Efficient and Stable Perovskite Solar Cells and Modules Enabled by Tailoring Additive Distribution According to the Film Growth Dynamics. Nano-Micro Letters. https://doi.org/10.1007/s40820-024-01538-7
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the main finding of this study?
The study reveals that gas quenching and vacuum quenching lead to different crystallization dynamics in perovskite films, affecting additive distribution. A tailor-designed additive improves the buried interface, achieving high efficiency and stability in blade-coated perovskite solar cells and modules.
What efficiency was achieved for the perovskite solar cells?
The blade-coated perovskite solar cells achieved a certified efficiency of 23.75%.
What is the performance of the large-area perovskite solar module?
The perovskite solar module with an aperture area of 60.84 cm2 demonstrated an efficiency of 20.18% and excellent operational stability with T90 > 1000 hours under maximum power point tracking.
What additive was used and how does it work?
The additive is 1,3-bis(4-methoxyphenyl)thiourea. It is tailor-designed to improve the buried interface, reducing defects and holes, thereby enhancing device performance.
Why is this study significant for perovskite industrialization?
The study provides insights into crystallization dynamics and additive engineering for scalable blade-coating methods, which are more compatible with industrial production, potentially enabling cost-effective and stable perovskite photovoltaics.
Related Technical Papers & Translations
Direct Repair of the Crystal Structure and Coating Surface of Spent LiFePO4 Materials Enables Superfast Li-Ion Migration
The rapid accumulation of spent LiFePO4 (LFP) cathodes from retired lithium-ion batteries necessitates the development of effective and environmental-friendly recycling strategies. In this context, direct regeneration has emerged as a promising approach for reclaiming LFP cathode materials, offering a streamlined pathway to restore their electrochemical functionality. We report an integrated regeneration protocol that simultaneously repairs the degraded crystal structure and reconstructs the damaged carbon coating in spent LFP. The regenerated cathode material had superfast lithium-ion diffusion kinetics and a stable cathode–electrolyte interface, giving a remarkable rate capability with specific capacities of 122 mAh g−1 at 5C and 106 mAh g−1 at 10C (1C = 170 mA g−1). It also maintained capacities of 110.7 mAh g−1 (5C) and 84.1 mAh g−1 (10C) after 400 cycles. It could be used in harsh environments and could be stably cycled at subzero temperatures (−10 and −20 °C) and in solid-state electrolyte batteries. Life cycle assessment combined with economic evaluation using the EverBatt model reveals that this direct regeneration approach has high economic and environmental benefits.
Oxide Semiconductor for Advanced Memory Architectures: Atomic Layer Deposition, Key Requirement and Challenges
Oxide semiconductors (OSs), introduced by the Hosono group in the early 2000s, have evolved from display backplane materials to promising candidates for advanced memory and logic devices. The exceptionally low leakage current of OSs and compatibility with three-dimensional (3D) architectures have recently sparked renewed interest in their use in semiconductor applications. This review begins by exploring the unique material properties of OSs, which fundamentally originate from their distinct electronic band structure. Subsequently, we focus on atomic layer deposition (ALD), a core technique for growing excellent OS films, covering both basic and advanced processes compatible with 3D scaling. The basic surface reaction mechanisms—adsorption and reaction—and their roles in film growth are introduced. Furthermore, material design strategies, such as cation selection, crystallinity control, anion doping, and heterostructure engineering, are discussed. We also highlight challenges in memory applications, including contact resistance, hydrogen instability, and lack of p-type materials, and discuss the feasibility of ALD-grown OSs as potential solutions. Lastly, we provide an outlook on the role of ALD-grown OSs in memory technologies. This review bridges material fundamentals and device-level requirements, offering a comprehensive perspective on the potential of ALD-driven OSs for next-generation semiconductor memory devices.
Laser powder bed fusion of biodegradable Zn-4Cu alloy: Processing, microstructure and properties
Zn's natural degradability and biocompatibility make it a promising candidate for implants, however, its mechanical properties remain insufficient for bone applications. In this study, the performance of Zn was enhanced by developing Zn-Cu alloys via laser powder bed fusion (LPBF). Optimal LPBF parameters for forming stable tracks were achieved by adjusting laser power and scanning speed. Under optimized conditions of 100 W and 100 mm/s, high-density (99.58%) Zn-Cu alloys with improved hardness (68.2HV) and yield strength (160 MPa) were achieved. These improvements are attributed to solid solution strengthening, segregation strengthening, and grain refinement. The Zn-Cu alloys also demonstrated favorable degradation behavior, with a rate of 0.16 mm/year. This degradation is primarily driven by micro-galvanic corrosion between the CuZn5 phase and Zn matrix, along with refined grains and increased grain boundary density. This work demonstrates a viable strategy for fabricating Zn-based implants with enhanced structural integrity and mechanical performance via LPBF.
