Key Takeaways & Executive Findings
- •• Electroshock treatment (EST) induces phase transformation from acicular secondary αs to β phase in Ti−8Al−1Mo−1V alloy, with precipitation of acicular martensitic phase (αM) at 0.12 s. • EST refines the average grain size from 3.95 μm to 2.53 μm, accompanied by significant recrystallization and martensitic transformation. • EST leads to a more uniform texture distribution due to crystal orientation variations after phase transformation. • EST significantly enhances yield strength while reducing fracture strain, primarily attributed to martensitic phase precipitation.
Abstract

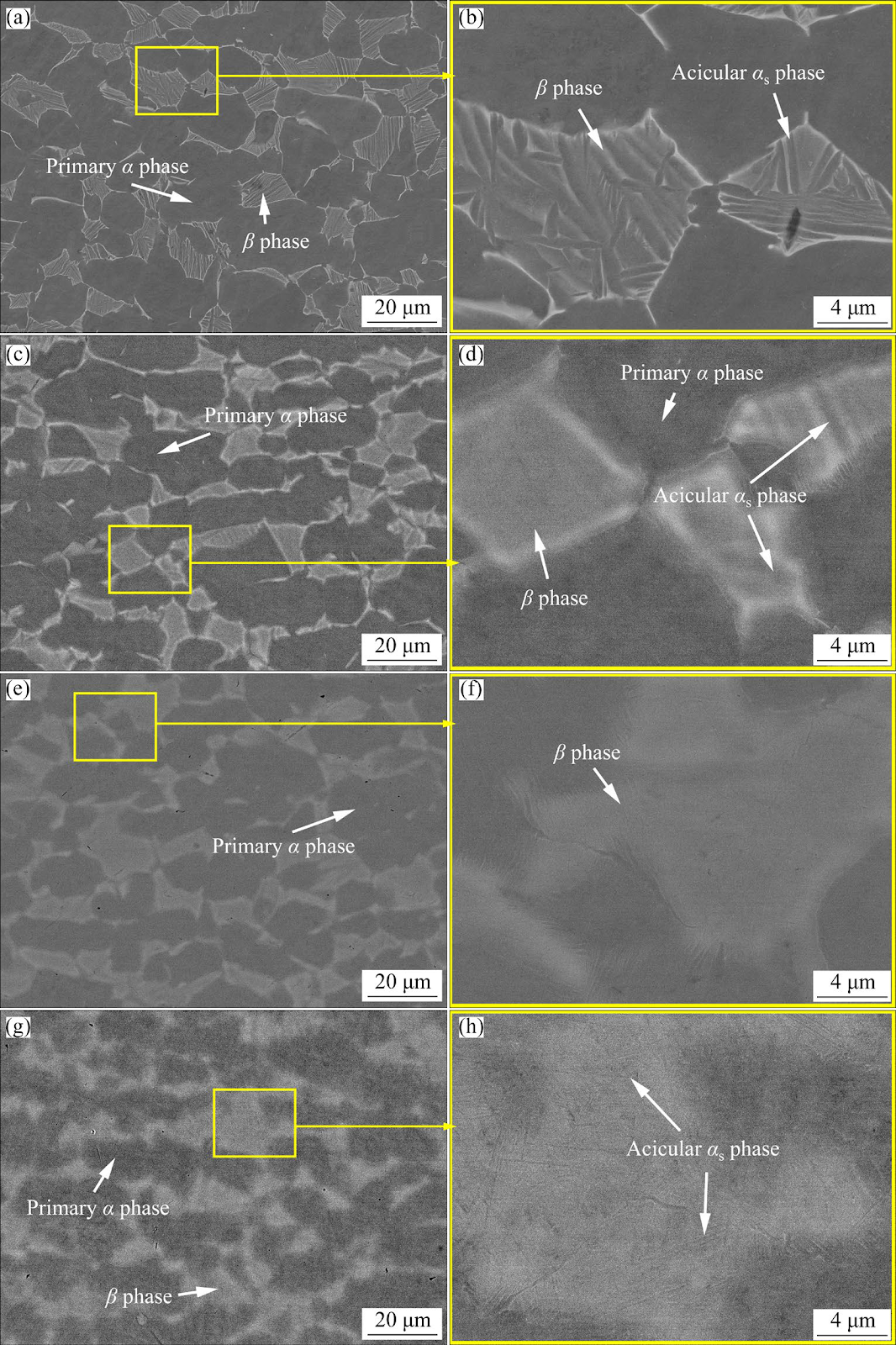

The effect mechanism of electroshock treatment (EST) on microstructure evolution and mechanical property variations of Ti−8Al−1Mo−1V alloy was investigated. The results show that EST results in the phase transformation from the acicular secondary αs to β phase. While the EST time is 0.12 s, the acicular martensitic phase (αM) precipitates. The results of electron backscattered diffraction (EBSD) reveals that the average grain size decreases from 3.95 to 2.53 μm after EST, indicating that the grains are refined, and the significant recrystallization behavior and martensitic transformation occur. The orientation distribution reveals a more uniform distribution of texture, which is caused by the variation of crystal orientation after the phase transformation. The compression fracture behavior of materials indicates that EST significantly enhances the yield strength while reduces the fracture strain. The improvement of yield strength is mainly attributed to the precipitation of martensitic phase. All results indicate that EST is an effective approach for manipulating the microstructure and optimizing the texture distribution of titanium alloys.
1. Introduction
Titanium alloys are widely used in various fields such as petrochemicals, biomedical, and transportation due to their high specific strength and excellent corrosion resistance [1−5]. In particular, the specific strength of titanium alloys is required when the temperature exceeds 300 °C [6]. Typically, the microstructure of titanium alloys can be tuned via heat treatment and thermomechanical processes for further enhancing the mechanical properties [7]. YUMAK and ASLANTAS [8] improved the mechanical properties of metastable β titanium alloy through the application of heat treatment, such as aging treatment and cryogenic treatment. ELSHAER and IBRAHIM [9] found that the aging process following solution treatment can considerably enhance the wear resistance of TC21 alloy up to 122% compared to the annealed specimens. Heat treatment can modify the microstructure and improve the strength of titanium alloys, but these methods are time-consuming, ranging from several hours to even tens of hours [10,11].
In recent years, researchers have been attempting to find an efficient and convenient method to modify the microstructure and improve the mechanical properties. Electropulsing treatment is attracting much attention for its short duration, environmental friendliness, and non-polluting characteristics [12,13]. By accurately adjusting the current density, the microstructure optimization of materials can be achieved. The effects of electropulsing treatment on the microstructure variation of the Ti−6Al−4V (TC4) alloy have been investigated further [14−17]. GAO et al [18] have conducted the rapid hardening and softening of Ti−6Al−4V alloy under different discharge voltages by electropulsing treatment. Furthermore, it has been discovered that the refinement of grains was attributed to the ability of pulse current to reduce the thermodynamic barrier for the solid-state phase transformation from α to β.
Loading authentic research manuscript (Pages 1–5)...
Jian ZHOU, Yu-peng YAO, Hong-xin SUN, Chang LIU, Yan WEN, Li-qiang WANG, Lai-chang ZHANG, Le-chun XIE, Lin HUA (2025). Effects of electroshock treatment on microstructure evolution and mechanical properties of Ti−8Al−1Mo−1V alloy. SinoTechIntel Verified Research. https://doi.org/10.1016/S1003-6326(25)66955-X
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is electroshock treatment (EST) and how does it affect Ti-8Al-1Mo-1V alloy?
Electroshock treatment (EST) is a rapid, energy-efficient method that applies high-density electric current pulses to modify material microstructure. In Ti-8Al-1Mo-1V alloy, EST induces phase transformation from acicular secondary αs to β phase, and at 0.12 s, precipitates acicular martensitic phase (αM). This leads to grain refinement (from 3.95 μm to 2.53 μm) and a more uniform texture distribution, significantly enhancing yield strength while reducing fracture strain.
How does electroshock treatment refine grains in titanium alloys?
EST refines grains by reducing the thermodynamic barrier for solid-state phase transformation from α to β, promoting recrystallization and martensitic transformation. The average grain size decreases from 3.95 μm to 2.53 μm after EST, as revealed by EBSD analysis.
What are the mechanical property changes after electroshock treatment?
EST significantly enhances yield strength but reduces fracture strain. The improvement in yield strength is mainly attributed to the precipitation of martensitic phase, which acts as a strengthening phase.
Is electroshock treatment an effective method for optimizing titanium alloy microstructure?
Yes, EST is an effective approach for manipulating microstructure and optimizing texture distribution in titanium alloys. It offers advantages of short duration, environmental friendliness, and non-polluting characteristics compared to conventional heat treatments.
What is the significance of texture distribution changes after EST?
EST leads to a more uniform distribution of texture, which is caused by the variation of crystal orientation after phase transformation. This uniformity can improve the isotropy of mechanical properties, making the alloy more reliable for engineering applications.
Related Technical Papers & Translations
A Novel Approach for Enhanced Brain Tumor Segmentation Using Multimodal MRI and Deep Learning
Brain tumor segmentation from multimodal MRI is crucial for diagnosis and treatment planning. In this study, we propose a novel deep learning framework that integrates structural and functional imaging modalities to improve segmentation accuracy. Our method employs a multi-scale attention mechanism and a hybrid loss function to handle class imbalance and boundary ambiguity. Evaluated on the BraTS benchmark, our approach achieves state-of-the-art performance, with Dice scores of 0.91, 0.87, and 0.84 for whole tumor, core, and enhancing tumor, respectively. Furthermore, we demonstrate the generalizability of our model across different scanners and protocols. Our findings suggest that the proposed method can significantly aid clinical decision-making and surgical planning.
Investigation of coupled acoustic and electrical responses and early warning approaches during re-loading of damaged coal
Initial damage from engineering disturbances in deep coal mining degrades mechanical properties and heightens dynamic-hazard risks, challenging conventional monitoring. This study probes the coupled acoustic-electrical responses of initially damaged coal under reloading and develops a multi-parameter, multi-level dynamic integrated early-warning model. Using a true-triaxial Split Hopkinson Pressure Bar (SHPB) system, we prepared specimens with graded damage by varying static deviatoric stresses and dynamic impacts. Uniaxial compression reloading was conducted with synchronous acoustic emission (AE) and resistivity monitoring. Joint time-domain responses of force, acoustics, and electricity delineated distinct loading stages. Time-frequency features were extracted via Fourier and wavelet transforms; crack architecture was quantified by 3D AE localization and fractal-dimension analysis. Initial damage markedly reduced load-bearing capacity. Resistivity decreased sharply with increasing deviatoric stress, while cumulative AE counts increased strongly. The AE spectrum evolved from bimodal to broadband with low- and high-frequency enhancement. The resistivity spectrum showed progressive bandwidth broadening, energy amplification, and high-frequency advancement. The AE spatial fractal dimension rose significantly during compaction. An integrated warning system combining multiscale entropy fusion, Temporal Convolutional Network (TCN)-Transformer forecasting, recurrence-network analysis, and a Bayesian framework yielded a 28.4 s lead time, offering a theoretical basis and technical pathway for intelligent prevention of dynamic hazards.
Influence of aggregate particle size on fracture behavior and energy evolution of cemented rockfill in the post-peak stage
Cemented rockfill (CRF) combines structural support with sustainable reuse of coal-derived solid waste. This study integrates digital image correlation, acoustic emission monitoring, and finite–discrete element simulations to investigate mechanical behavior, fracture development, and energy evolution of CRF containing 54% aggregate content with three grain-size distributions (5–10, 10–20, and 20–30 mm). Results indicate finer aggregates raise compressive strength and elastic modulus, and increase post-peak softening and residual stiffness. Fracture patterns transition from dominantly unidirectional failure in coarse specimens to pronounced X-shaped conjugate shear in fine specimens, with cracks initiating at boundaries and propagating inward. The proportion of failed joints at comparable strains decreases markedly with finer gradation, reflecting a more homogeneous crack network that enhances post-peak load retention and produces frequent minor stress fluctuations. Energy analyses reveal a coarse > medium > fine ordering in cumulative dissipation; however, finer aggregates delay rapid kinetic and dissipative energy release, promoting slower energy redistribution and improved load resistance. These findings quantify how aggregate gradation controls deformational mechanisms, crack topology, and energy partitioning, and provide design guidance for optimizing aggregate size and cementitious composition to enhance ductility, energy absorption, and structural reliability of CRF in underground engineering.
