Key Takeaways & Executive Findings
- •• Direct aging (DA) significantly enhances the strength of LPBF TiB2/AlSi7Mg alloys while preserving ductility, with optimal under-aging at 150°C for 4 h yielding YS of 361 MPa, UTS of 503 MPa, and elongation of 9.1%. • DA promotes the formation of nanoprecipitates (Si and β'-Mg1.8Si phases) within the α-Al matrix without altering the grain size or cellular structure, contributing to strengthening via Hall–Petch and Orowan mechanisms. • Under-aging (UA) results in a balanced work-hardening response, whereas over-aging (OA) leads to rapid saturation of work hardening due to dynamic recovery, limiting uniform elongation. • The study validates DA as an effective post-processing strategy for enhancing the mechanical performance of LPBF Al–Si–Mg alloys for engineering applications, particularly in aerospace and transportation.
Abstract
The effects of direct aging (DA) on the microstructure and mechanical properties of TiB2/AlSi7Mg alloys fabricated via laser powder bed fusion (LPBF) were systematically investigated. DA significantly improves strength while maintaining satisfactory ductility. Optimal performance is obtained through under-aging (UA) at 150°C for 4 h, resulting in a yield strength of 361 MPa, tensile strength of 503 MPa, and elongation of 9.1% in the horizontal direction. DA does not substantially alter the grain size or cellular structure but promotes the formation of nanoprecipitates within the α-Al matrix. Specifically, UA induces dot-like and needle-like Si precipitates, whereas over-aging (OA) additionally generates short rod-like β'-Mg1.8Si phases. The strengthening mechanism is attributed to the Hall–Petch effect associated with grain and cell boundaries, and the Orowan mechanism induced by nanoprecipitates. Work-hardening behavior is governed by interactions between dislocations and nanoprecipitates. The OA sample exhibits rapid saturation of work hardening due to a high initial hardening rate and dynamic recovery of dislocations, resulting in limited uniform elongation. In contrast, the UA sample demonstrates a more balanced work hardening response. These findings provide theoretical and experimental validation of DA as an effective post-processing approach aimed at enhancing the performance of LPBF Al–Si–Mg alloys in engineering applications.
1. Introduction
Additive manufacturing (AM) technology, known as 3D printing, demonstrates considerable potential for application in diverse industrial sectors, including aerospace, military equipment, and transportation industries [1–3]. Notably, laser powder bed fusion (LPBF) metal additive manufacturing technology has garnered significant attention due to its ability to construct intricate three-dimensional structures through the layer-by-layer deposition of metal powders, thereby circumventing the constraints imposed by conventional manufacturing methodologies [3–4]. This technology has significantly promoted innovation in product design, manufacturing efficiency, and material utilization.
Near-eutectic Al–Si alloys, such as AlSi10Mg and AlSi7Mg, are among the few aluminum alloy systems suitable for additive manufacturing and have found successful engineering applications, particularly in LPBF, due to their excellent solidification properties and exceptional resistance to hot cracking under extreme solidification conditions [5–6]. Due to the rapid solidification rate (0.01–1 m/s) and steep temperature gradient (105–107°C/m) generated by LPBF processing, near-eutectic Al–Si alloys tend to develop unique strengthening microstructure, termed continuous three-dimensional dual-phase cellular nanostructure (3D-DPCN) [7], which acts as dislocation cages such that significantly enhances the material’s work-hardening capability and fatigue resistance [7–8]. However, the cellular nanostructure in LPBF Al–Si alloys has not resulted in a significant improvement in yield strength (YS) compared to traditional cast Al–Si alloys [9–11]. A component with high YS is, however, crucial for aerospace applications.
Loading authentic research manuscript (Pages 1–5)...
Yirui Chang, Tingting Chen, Yang Li, Yihao Wang, Yuchi Cui, Wenjun Zhao, Yi Wu, Mingliang Wang, Haowei Wang, Zhe Chen (2025). Effects of direct aging on mechanical properties and microstructure of TiB2/AlSi7Mg alloy fabricated by laser powder bed fusion. Int. Journal of Minerals, Metallurgy and Materials (矿物冶金与材料学报). https://doi.org/10.1007/s12613-025-3225-4
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the optimal direct aging condition for TiB2/AlSi7Mg alloy fabricated by LPBF?
The optimal direct aging condition is under-aging at 150°C for 4 hours, which yields a yield strength of 361 MPa, tensile strength of 503 MPa, and elongation of 9.1% in the horizontal direction.
How does direct aging affect the microstructure of LPBF TiB2/AlSi7Mg alloy?

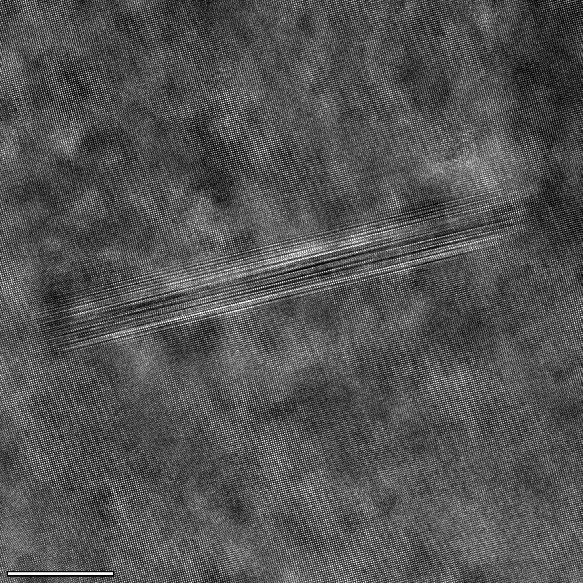

Direct aging does not significantly alter the grain size or cellular structure but promotes the formation of nanoprecipitates within the α-Al matrix. Under-aging induces dot-like and needle-like Si precipitates, while over-aging additionally generates short rod-like β'-Mg1.8Si phases.
What are the main strengthening mechanisms in direct-aged TiB2/AlSi7Mg alloy?
The strengthening mechanisms are attributed to the Hall–Petch effect associated with grain and cell boundaries, and the Orowan mechanism induced by nanoprecipitates.
Why does over-aging lead to limited uniform elongation?
Over-aging exhibits rapid saturation of work hardening due to a high initial hardening rate and dynamic recovery of dislocations, resulting in limited uniform elongation.
What is the significance of this study for engineering applications?
The study validates direct aging as an effective post-processing approach to enhance the mechanical performance of LPBF Al–Si–Mg alloys, which is crucial for high-strength applications in aerospace and rail transit.
Related Technical Papers & Translations
Direct Repair of the Crystal Structure and Coating Surface of Spent LiFePO4 Materials Enables Superfast Li-Ion Migration
The rapid accumulation of spent LiFePO4 (LFP) cathodes from retired lithium-ion batteries necessitates the development of effective and environmental-friendly recycling strategies. In this context, direct regeneration has emerged as a promising approach for reclaiming LFP cathode materials, offering a streamlined pathway to restore their electrochemical functionality. We report an integrated regeneration protocol that simultaneously repairs the degraded crystal structure and reconstructs the damaged carbon coating in spent LFP. The regenerated cathode material had superfast lithium-ion diffusion kinetics and a stable cathode–electrolyte interface, giving a remarkable rate capability with specific capacities of 122 mAh g−1 at 5C and 106 mAh g−1 at 10C (1C = 170 mA g−1). It also maintained capacities of 110.7 mAh g−1 (5C) and 84.1 mAh g−1 (10C) after 400 cycles. It could be used in harsh environments and could be stably cycled at subzero temperatures (−10 and −20 °C) and in solid-state electrolyte batteries. Life cycle assessment combined with economic evaluation using the EverBatt model reveals that this direct regeneration approach has high economic and environmental benefits.
Oxide Semiconductor for Advanced Memory Architectures: Atomic Layer Deposition, Key Requirement and Challenges
Oxide semiconductors (OSs), introduced by the Hosono group in the early 2000s, have evolved from display backplane materials to promising candidates for advanced memory and logic devices. The exceptionally low leakage current of OSs and compatibility with three-dimensional (3D) architectures have recently sparked renewed interest in their use in semiconductor applications. This review begins by exploring the unique material properties of OSs, which fundamentally originate from their distinct electronic band structure. Subsequently, we focus on atomic layer deposition (ALD), a core technique for growing excellent OS films, covering both basic and advanced processes compatible with 3D scaling. The basic surface reaction mechanisms—adsorption and reaction—and their roles in film growth are introduced. Furthermore, material design strategies, such as cation selection, crystallinity control, anion doping, and heterostructure engineering, are discussed. We also highlight challenges in memory applications, including contact resistance, hydrogen instability, and lack of p-type materials, and discuss the feasibility of ALD-grown OSs as potential solutions. Lastly, we provide an outlook on the role of ALD-grown OSs in memory technologies. This review bridges material fundamentals and device-level requirements, offering a comprehensive perspective on the potential of ALD-driven OSs for next-generation semiconductor memory devices.
Laser powder bed fusion of biodegradable Zn-4Cu alloy: Processing, microstructure and properties
Zn's natural degradability and biocompatibility make it a promising candidate for implants, however, its mechanical properties remain insufficient for bone applications. In this study, the performance of Zn was enhanced by developing Zn-Cu alloys via laser powder bed fusion (LPBF). Optimal LPBF parameters for forming stable tracks were achieved by adjusting laser power and scanning speed. Under optimized conditions of 100 W and 100 mm/s, high-density (99.58%) Zn-Cu alloys with improved hardness (68.2HV) and yield strength (160 MPa) were achieved. These improvements are attributed to solid solution strengthening, segregation strengthening, and grain refinement. The Zn-Cu alloys also demonstrated favorable degradation behavior, with a rate of 0.16 mm/year. This degradation is primarily driven by micro-galvanic corrosion between the CuZn5 phase and Zn matrix, along with refined grains and increased grain boundary density. This work demonstrates a viable strategy for fabricating Zn-based implants with enhanced structural integrity and mechanical performance via LPBF.
