Key Takeaways & Executive Findings
- •• Both Al and C promote κ-carbide precipitation, with C having a stronger effect on size and volume fraction. • Increasing C content from 0.8 to 1.4 wt.% raises κ-carbide size from 9.6 nm to 38.2 nm and volume fraction from 10.2% to 29.8%. • Higher Al and C reduce lattice mismatch and Gibbs free energy, enhancing nucleation and driving force for κ-carbide formation. • Precipitation strengthening reaches 583 MPa, with dislocation interaction transitioning from cutting to bypassing as C content increases.
Abstract

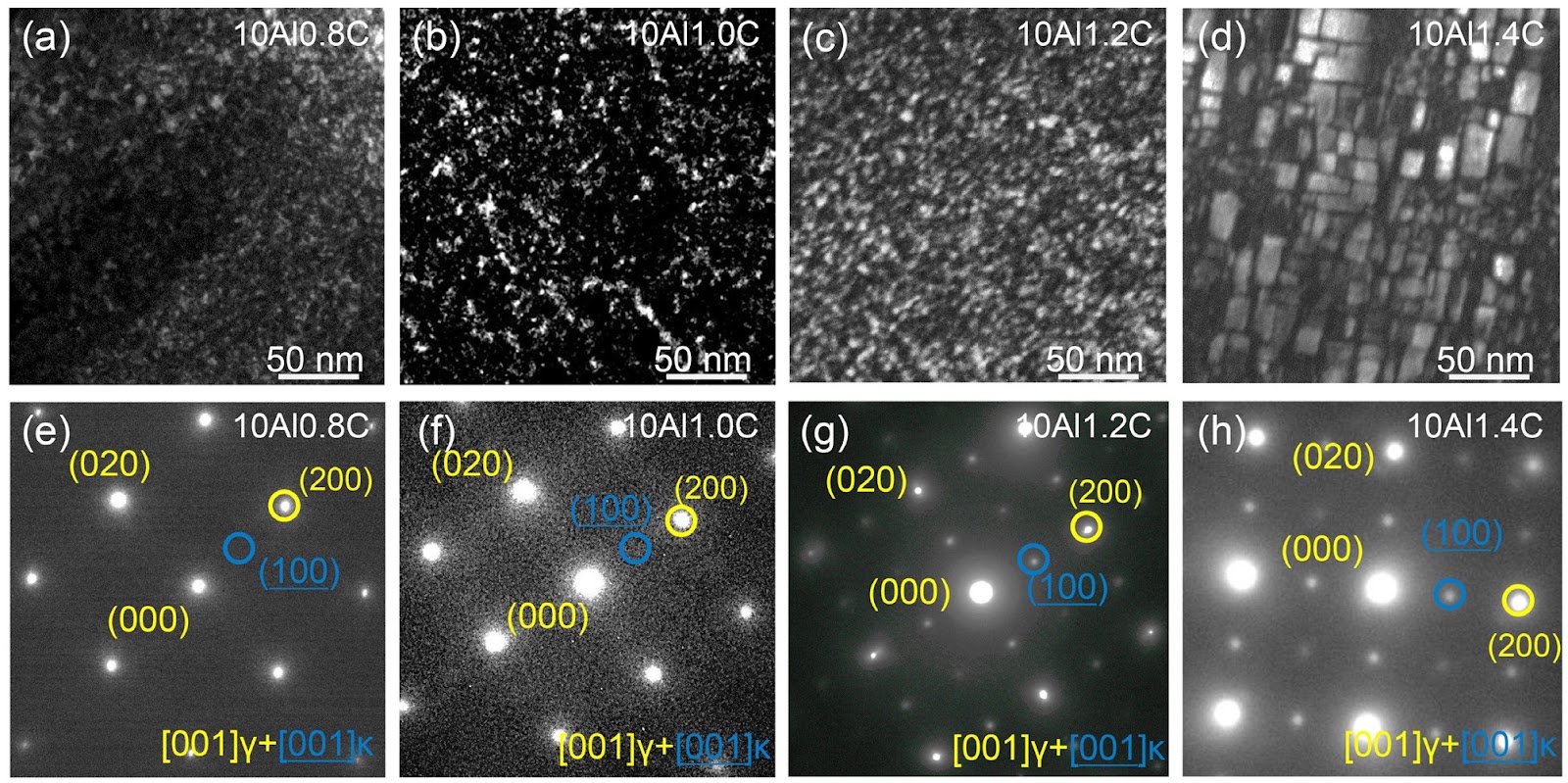

Fe-28Mn-(10-12)Al-(0.8-1.4)C (wt.%) steels were designed to investigate the influence of varying Al and C content on precipitation behavior of κ-carbide and its contribution to the strength of high-Mn low-density steels. Results reveal that both Al and C elements promote κ-carbide precipitation, with C having a more pronounced effect. In near-rapidly solidified 10Al steel strips, increasing C content from 0.8wt.% to 1.4wt.% raises the κ-carbide size from 9.6 nm to 38.2 nm, accompanied by volume fraction increase from 10.2vol.% to 29.8vol.%. In comparison, the average size and volume fraction of κ-carbides in 12Al0.8C steel are only 11.4 nm and 17.8vol.%, respectively. Higher Al and C content reduces the lattice mismatch between austenite and κ-carbides, thus promoting nucleation of κ-carbides. Notably, the increase in C content results in a greater reduction in the Gibbs free energy of κ-carbide, leading to a stronger driving force for κ-carbide formation. Consequently, as the C content increases from 0.8wt.% to 1.4wt.%, the interaction between κ-carbides and dislocations transforms from particle cutting to bypassing, and the maximum precipitation strengthening of κ-carbides reaches 583 MPa. The construction of the relationship between Al and C content and κ-carbide precipitation in this study would provide valuable insights for alloy design of high-Mn steels.
1. Introduction
Fe-Mn-Al-C system steels are characterized by excellent comprehensive mechanical properties and low density, which have received extensive attention in automotive applications [1-5]. The addition of Al has been shown to significantly reduce steel’s density, with reports suggesting that a 12wt.% Al addition could lead to an 18% density reduction [6]. Generally, the high content of Mn and C in low-density steels results in a single-phase austenitic structure or a dual-phase structure with a small amount of ferrite in austenitic matrix, thereby achieving excellent mechanical properties and deformability [7-10].
In austenitic low-density steels, the precipitation of κ-carbide, with a nominal stoichiometry of (Fe, Mn)3AlC, plays a crucial role as a strengthening phase, contributing significantly to the overall strength of steels [11, 12]. Han et al. [13] demonstrated that dispersion of nano-scale intragranular κ-carbide could result in a strength increase of 200-500 MPa. Moreover, the coherent relationship between nano-scale κ-carbide and austenitic matrix can facilitate dislocations to cut through the κ-carbide, which in turn reduces dislocation pile-up and stress concentration. This process effectively enhances the yield strength of low-density steel while maintaining its plasticity [14, 15].
Loading authentic research manuscript (Pages 1–5)...
Yu-xiang Liu, Tao Xu, Jian-lei Zhang, Feng-hui An, Gang Chen, Chang-jiang Song, Qi-jie Zhai (2025). Effects of Al and C content on κ-carbide precipitation and strengthening in high-Mn low-density steels: A quantitative study. China Foundry. https://doi.org/10.1007/s41230-025-4144-8
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the effect of Al and C content on κ-carbide precipitation in high-Mn low-density steels?
Both Al and C promote κ-carbide precipitation, but C has a more pronounced effect. Increasing C content from 0.8 to 1.4 wt.% increases κ-carbide size from 9.6 nm to 38.2 nm and volume fraction from 10.2% to 29.8%.
How does κ-carbide contribute to the strength of high-Mn low-density steels?
κ-carbide acts as a strengthening phase, with nano-scale intragranular particles increasing strength by 200-500 MPa. In this study, maximum precipitation strengthening reached 583 MPa.
What is the mechanism behind the enhanced κ-carbide precipitation with higher Al and C?
Higher Al and C reduce lattice mismatch between austenite and κ-carbide, promoting nucleation. Additionally, increased C content lowers Gibbs free energy of κ-carbide, providing a stronger driving force for formation.
How does the interaction between κ-carbides and dislocations change with C content?
As C content increases from 0.8 to 1.4 wt.%, the interaction transforms from particle cutting to bypassing, which affects the strengthening mechanism and overall mechanical properties.
What are the practical implications of this study for alloy design?
The quantitative relationship between Al and C content and κ-carbide precipitation provides valuable insights for designing high-Mn low-density steels with tailored strength and ductility for automotive applications.
