Key Takeaways & Executive Findings
- •• • At 9 Gs target magnetic field intensity, Cr coatings achieved a maximum hardness of 470.84 HV0.05, a friction coefficient of 0.42, and a wear volume of 1.06×10−7 mm3/(N·m), representing the optimal mechanical performance window; deviations to 3 or 12 Gs shifted the wear mechanism to fatigue-dominated failure, reducing service life in sliding contact applications. • • Coating adhesion strength peaked at 40.3 N at 9 Gs, a critical threshold for load-bearing aerospace and automotive components where interfacial delamination under cyclic stress is the primary failure mode; lower field strengths produced insufficient bonding, while higher strengths degraded it. • • Corrosion resistance was maximized at 9 Gs with a corrosion potential of 76.1 mV and a corrosion current density of 7.57×10−10 A/cm2, a reduction of several orders of magnitude compared to the 3 Gs baseline, directly extending the service interval for 40CrNi steel components exposed to aggressive electrolytes. • • Arc spot motion transitioned from random, coarse, light-cluster-like patterns at 3 Gs to refined, rotating, contracting-expanding arcs at 9 Gs, which reduced macroparticle emission and grain size; this controllability enables reproducible industrial-scale deposition with fewer surface defects and higher deposition rates.
China Advanced Materials & Deep-Tech Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
Arc ion plating of chromium coatings on 40CrNi alloy steel was systematically investigated as a function of target surface magnetic field intensity (3, 6, 9, and 12 Gs). Scanning electron microscopy, X-ray diffraction, microhardness testing, tribological analysis, scratch adhesion testing, and electrochemical polarization were employed to correlate arc spot dynamics with coating microstructure, mechanical properties, and corrosion resistance. Increasing the magnetic field from 3 to 12 Gs initially reduced and then increased surface roughness and macroparticle density, while deposition rate peaked and grain size reached a minimum at intermediate field strengths. The optimal field intensity of 9 Gs produced a maximum hardness of 470.84 HV0.05, a minimum friction coefficient of 0.42, a minimum wear volume of 1.06×10−7 mm3/(N·m), a maximum adhesion strength of 40.3 N, a corrosion potential of 76.1 mV, and a corrosion current density of 7.57×10−10 A/cm2. At 3 and 12 Gs, fatigue wear dominated; at 6 and 9 Gs, abrasive wear prevailed. These results demonstrate that target magnetic field intensity is a decisive process parameter for tailoring arc spot motion, refining grain structure, suppressing macroparticle emission, and enhancing the combined mechanical and corrosion performance of arc ion plated Cr coatings.
1. Introduction
Chromium coatings deposited by physical vapor deposition (PVD), particularly arc ion plating, are widely specified for metal surface protection in aerospace, automotive, and tooling industries due to their high hardness, wear resistance, and corrosion resistance. Commercial adoption, however, has been constrained by persistent process variability: macroparticle contamination, non-uniform coating thickness, and inconsistent adhesion lead to premature failure in service. These deficiencies stem largely from uncontrolled arc spot dynamics on the target surface, which directly govern plasma generation, droplet emission, and film growth kinetics. Existing process windows often rely on fixed magnetic field configurations that cannot simultaneously suppress macroparticles and maintain high deposition rates, forcing trade-offs between surface quality and productivity.
This study addresses the bottleneck by systematically varying target surface magnetic field intensity across 3, 6, 9, and 12 Gs during arc ion plating of Cr on 40CrNi alloy steel. The experimental protocol isolates magnetic field intensity as the sole variable, enabling direct correlation between arc spot behavior, coating microstructure, and functional properties. By identifying 9 Gs as the optimal field strength—where hardness reaches 470.84 HV0.05, adhesion strength peaks at 40.3 N, and corrosion current density falls to 7.57×10−10 A/cm2—the work provides a quantitative process lever for industrial scale-up. The findings establish a pathway to reduce surface defects, refine grain size, and enhance both wear and corrosion performance without compromising deposition rate, thereby closing the gap between laboratory optimization and production-floor reliability.
Loading authentic research manuscript (Pages 1–5)...
LI Zihao, FENG Changjie, CHI Yunfei, JIN Zonghan, ZHANG Yudi, WANG Henan, LI Mingsheng (2026). Effect of Target Magnetic Field Intensity on the Microstructure and Properties of Arc Ion Plated Cr Coatings. Surface Technology (表面技术). https://doi.org/10.16490/j.cnki.issn.1001-3660.2026.10.007
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntelare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the dominant wear mechanism at the optimal 9 Gs magnetic field intensity, and how does it differ from suboptimal conditions?

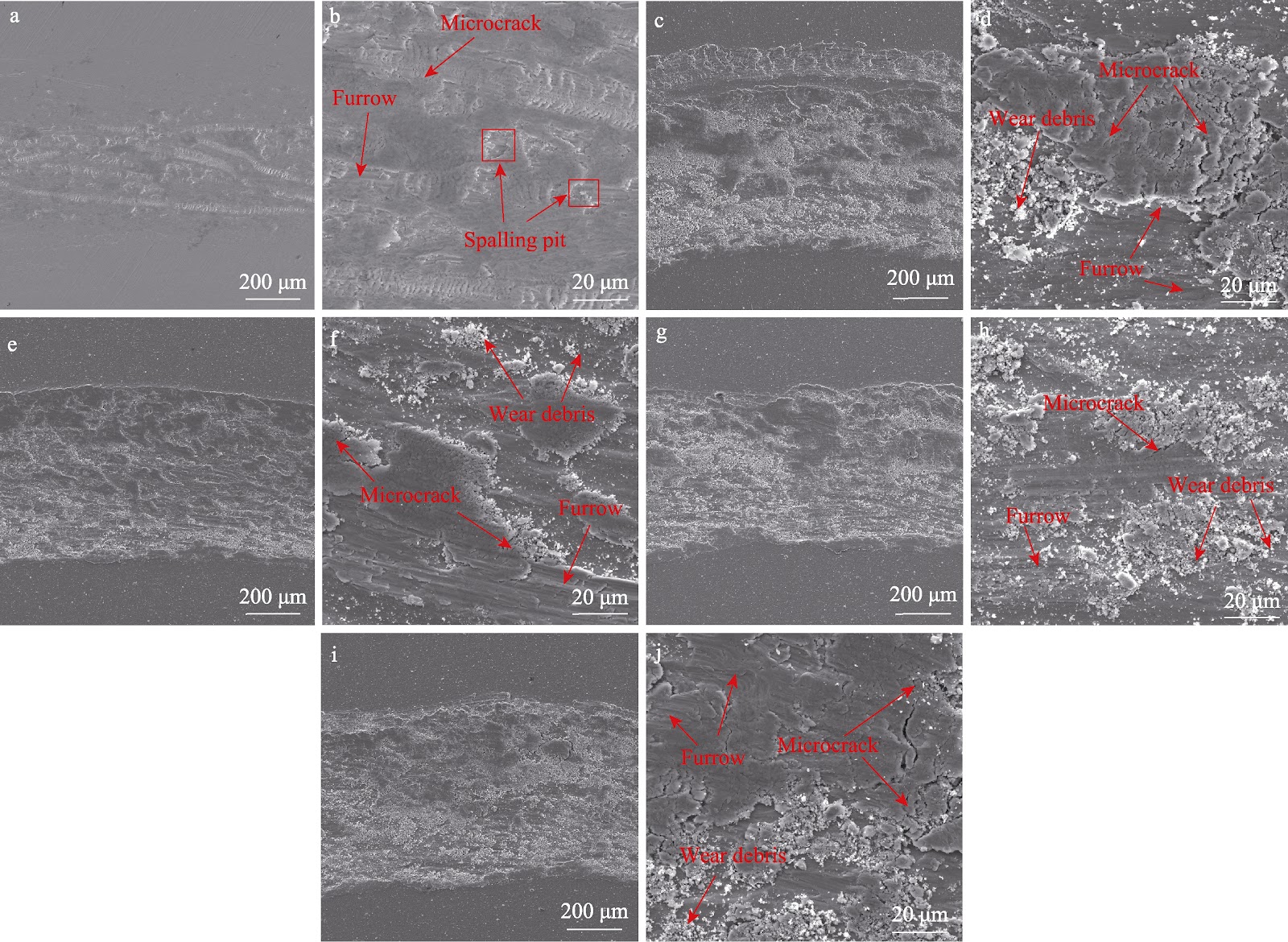

At 9 Gs, the wear mechanism is primarily abrasive wear, characterized by a friction coefficient of 0.42 and a wear volume of 1.06×10−7 mm3/(N·m). In contrast, at 3 Gs and 12 Gs, fatigue wear dominates, leading to accelerated material loss and reduced coating durability. The transition from fatigue to abrasive wear at 9 Gs correlates with refined grain structure and reduced macroparticle density, which minimize stress concentrators and crack initiation sites.
How does target magnetic field intensity affect coating adhesion strength, and what is the industrial implication for load-bearing applications?
Adhesion strength reaches a maximum of 40.3 N at 9 Gs, compared to lower values at 3, 6, and 12 Gs. This peak is attributed to optimized arc spot motion that promotes dense, defect-free coating growth and enhanced interfacial bonding. For load-bearing components such as aerospace actuators or automotive transmission parts, a 40.3 N adhesion threshold reduces the risk of delamination under cyclic loading, directly extending component service life and reducing maintenance intervals.
What is the quantitative corrosion performance improvement at 9 Gs, and how does it compare to the baseline 3 Gs condition?
At 9 Gs, the corrosion potential is 76.1 mV and the corrosion current density is 7.57×10−10 A/cm2. Compared to the 3 Gs baseline, the corrosion current density is reduced by several orders of magnitude, indicating a substantial enhancement in barrier protection. This improvement is critical for 40CrNi steel components exposed to chloride-rich or acidic environments, where even minor pitting can initiate catastrophic failure.
Can the 9 Gs process window be scaled to industrial production without sacrificing deposition rate or uniformity?
Yes. The deposition rate at 9 Gs is higher than at 3 Gs and remains competitive with 6 Gs, while surface roughness and macroparticle density are minimized. The arc spot motion at 9 Gs exhibits a stable rotating, contracting-expanding pattern that promotes uniform target erosion and consistent coating thickness. These characteristics support reproducible scale-up, though target cooling and magnetic field uniformity across larger targets must be engineered to maintain the 9 Gs condition uniformly.
What are the failure modes when the magnetic field deviates from 9 Gs, and what operational risks do they pose?
At 3 Gs, arc spots move randomly and emit coarse macroparticles, resulting in rough coatings, poor adhesion (below 40.3 N), and fatigue-dominated wear. At 12 Gs, excessive field intensity constricts arc spots, reducing deposition rate and increasing grain size, which lowers hardness and corrosion resistance. Both deviations increase the risk of premature coating failure through delamination, accelerated wear, or localized corrosion, raising lifecycle costs in critical applications.
