Key Takeaways & Executive Findings
- •• Increasing Si content from 6.5% to 8.5% promotes eutectic segregation band formation in super-slow-speed die-cast Al-Si-Mn-Mg alloys. • Optimal mechanical properties (quality index) are achieved at different Si contents depending on heat treatment: as-cast (7.5% Si, QI=376.1 MPa), T5 (6.5% Si, QI=373.4 MPa), and T6 (8.5% Si, QI=432.2 MPa). • T6 heat treatment significantly enhances both thermal and electrical conductivities by spheroidizing eutectic silicon and precipitating Mg and Si solutes, reducing electron scattering. • Thermal and electrical conductivities decrease slightly with increasing Si content, indicating a strong correlation with Si content in the alloy.
Abstract

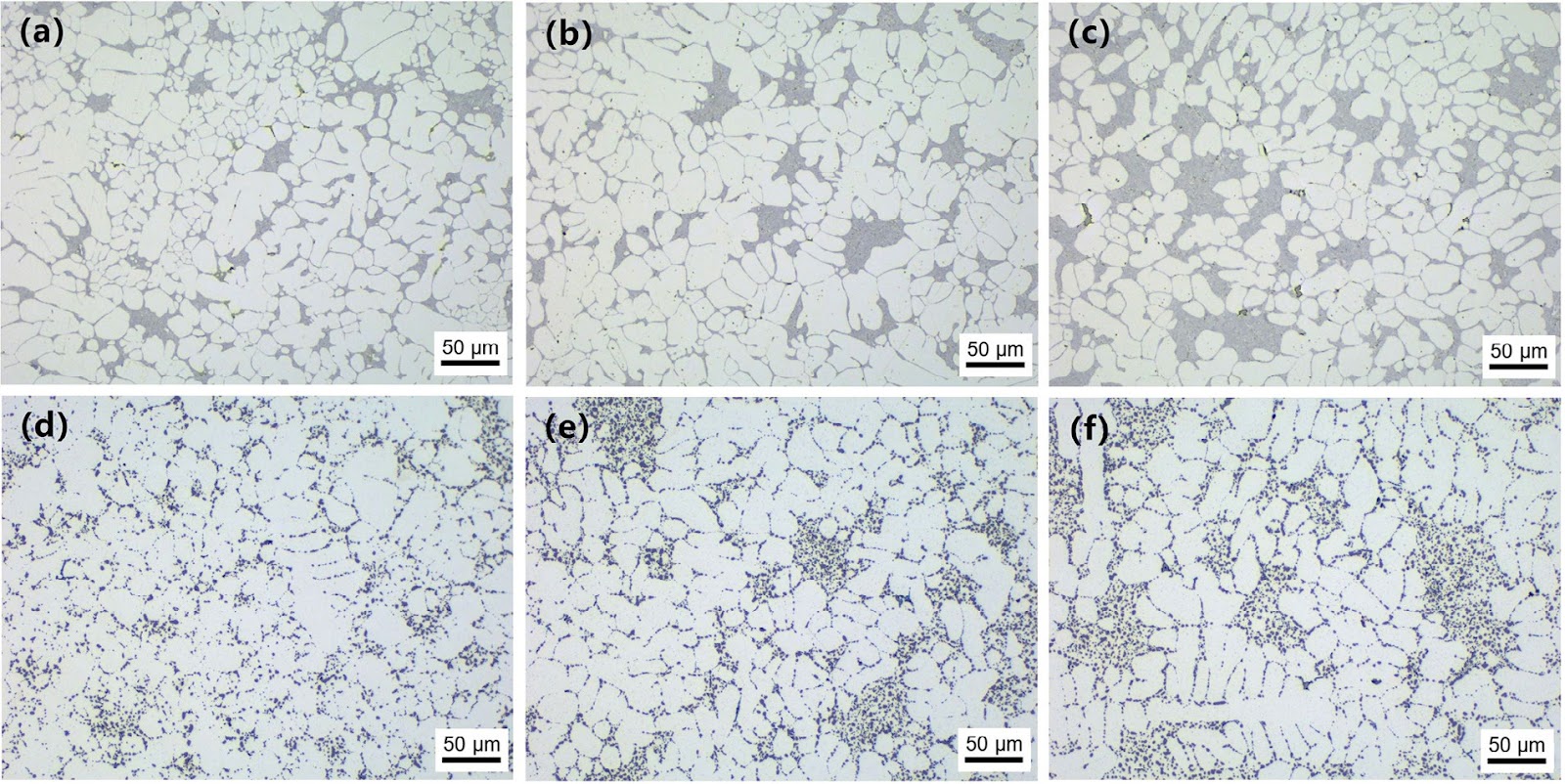

In this study, Al-xSi-0.3Mn-0.3Mg-0.14Fe alloys (x=6.5, 7.5, 8.5, wt.%) were prepared by super-slow-speed die-casting, and the effects of Si content on the microstructure, mechanical, and thermal/electrical conductivities in as-cast, T5, and T6 states (DIN EN 1706:2020) were investigated. It is found that the increase of Si content in the alloy enhances the formation of eutectic segregation band in the casting surface microstructure. Within the Si content range of 6.5%-8.5%, as a comprehensive evaluation criterion of mechanical properties, the quality index (QI) of 376.1 MPa can be obtained in the as-cast state of the alloy with about 7.5% Si content, 373.4 MPa in T5 state of the alloy with 6.5% Si content, and 432.2 MPa in T6 state of the alloy containing 8.5% Si. The heat treatment state significantly affects the thermal conductivity and electrical conductivity of the alloys. The eutectic silicon in the alloy is segemented and further spheroidizaed during the solution process, and the solute atoms of Mg and Si are more adequately precipitated during the aging process. Both of these greatly reduce the probability of electron scattering. Thus, T6 treatment significantly improves the electrical and thermal conductivities. With the increase of Si content, both thermal conductivity and electrical conductivity decrease slightly, demonstrating a strong correlation with the Si content in the alloy.
1. Introduction
With the rapid advancement of science and technology, there is an increasing demand for lightweight new energy vehicles to save energy and reduce emissions. In response to these demands, aluminum alloys have become more and more important in human production and life due to their excellent characteristics [1, 2]. Among them, Al-Si-Mg alloys have good castability, high corrosion resistance, good machinability, and high strength due to the precipitation hardening of Mg2Si transition particles [3, 4].
In addition, due to the rapid development of new energy vehicles (NEVs), the demand for high-performance die-castings of aluminum alloys is increasing. More and more Al-Si-Mg system alloys are being widely used and included in the relevant standards. In the latest European standard DIN EN 1706:2020 [5], the newly included grade EN AC-AlSi7MnMg alloy has a Si content between 6.5% and 8.5%, in which the range of Si content is wider than other AlSi7Mg series alloys (Si content between 6.5% and 7.5%). At the same time, with the rise of electric air conditioning compressors of carbon dioxide refrigerants in NEVs, casting aluminum alloys are required to have higher strength and better thermal conductivity. Therefore, in order to guide production practice, it is necessary to study the influence of Si content on the microstructure, mechanical properties, and thermal/electrical conductivities of AlSi7MnMg alloy by die-casting.
Loading authentic research manuscript (Pages 1–5)...
Lu Zhang, Heng-cheng Liao, Jiang Li (2025). Effect of Si content on microstructure, mechanical, and thermal/electrical conductivities of Al-xSi-0.3Mn-0.3Mg-0.14Fe alloy prepared by super-slow-speed die-casting. China Foundry. https://doi.org/10.1007/s41230-025-4082-5
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the effect of Si content on the microstructure of Al-Si-Mn-Mg alloys?
Increasing Si content from 6.5% to 8.5% enhances the formation of eutectic segregation bands in the casting surface microstructure, as observed in the study.
How does heat treatment affect the mechanical properties of these alloys?
Heat treatment significantly influences mechanical properties. The quality index (QI) varies with Si content and state: as-cast (376.1 MPa at 7.5% Si), T5 (373.4 MPa at 6.5% Si), and T6 (432.2 MPa at 8.5% Si).
What is the impact of T6 treatment on thermal and electrical conductivities?
T6 treatment significantly improves both thermal and electrical conductivities by spheroidizing eutectic silicon and precipitating Mg and Si solutes, which reduces electron scattering.
How does Si content affect thermal and electrical conductivities?
Both thermal and electrical conductivities decrease slightly with increasing Si content, showing a strong correlation with Si content in the alloy.
What is the significance of this study for new energy vehicles?
The study provides guidance for optimizing Si content and heat treatment to achieve high strength and good thermal conductivity in die-cast aluminum alloys, which are essential for lightweight components in new energy vehicles.
