Key Takeaways & Executive Findings
- •• Increasing Si content from 1.38wt% to 2.67wt% increases graphite particle number density but decreases their average size, while Fe3C particles continuously decrease in both number density and size. • Higher tempering temperature (715°C vs 680°C) promotes graphite growth and accelerates Fe3C decomposition and refinement in steels with graphite precipitation, but only coarsens Fe3C in Si-lean steel without graphite. • Fe–0.58C–1.0Al steel with 1.89wt% Si exhibits significantly lower hardness than other Si contents, especially after tempering at 715°C, achieving nearly HV 20 lower hardness than previously reported Fe–0.55C–2.33Si steel. • The study demonstrates a silicon-saving, aluminum-containing free-cutting steel design that balances graphitization and hardness, offering improved machinability and environmental benefits over traditional S/Pb-based steels.
Abstract

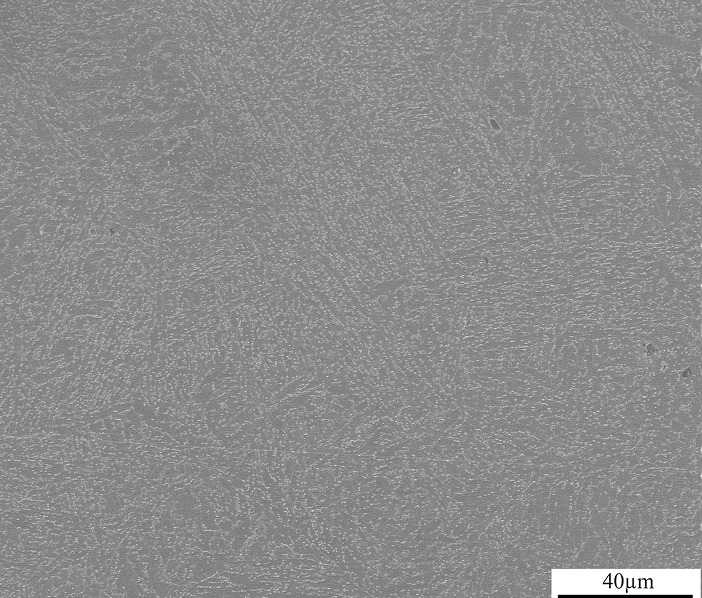

In order to avoid poor machinability caused by excessive hardness under high-silicon conditions in the traditional free-cutting graphited steel, it is important to develop a suitable silicon-saving, aluminum-containing free-cutting steel. This study investigated the microstructure and graphite precipitation behavior of Fe–0.58C–1.0Al (wt%) steels with varying silicon contents (0.55wt%–2.67wt%) after tempering at different temperatures (680°C, 715°C). The tempering structure and the precipitation behavior of graphite and Fe3C in Fe–0.58C–1.0Al steels were systematically studied by optical microscopy (OM), field emission scanning electron microscopy (FESEM), and electron microprobe analyzer (EPMA). The results showed that, at both tempering temperatures, the microstructure of 0.55wt% Si steel is ferrite + granular Fe3C, and the microstructures of 1.38wt%–2.67wt% Si steels are ferrite + petaloid graphite + granular Fe3C. With increasing Si content from 1.38wt% to 2.67wt% at constant tempering temperature, the number density of graphite particles increases, though their average size decreases. Meanwhile, the number density and average size of Fe3C in experimental steels continuously decrease with the increase of Si content. For 0.55wt% Si steel without graphite precipitation, increasing tempering temperature promotes the accumulation and growth of Fe3C. For 1.38wt%–2.67wt% Si steels with graphite precipitation, higher tempering temperature promotes graphite particles growth while accelerating the decomposition and refinement of Fe3C. Furthermore, compared with the experimental steels containing 0.55wt% Si, 1.38wt% Si, and 2.67wt% Si, the 1.89wt% Si steel exhibits significantly lower hardness. Especially, when tempered at 715°C, Fe–0.58C–1.0Al steel with 1.89wt% Si exhibits enhanced graphitization behavior and reduced hardness, which is nearly HV 20 lower than previously reported Fe–0.55C–2.33Si steel.
1. Introduction
With the rapid development of the manufacturing industry and the popularity of computer numerical control (CNC) machine tools, the demand for free-cutting steel used in mechanical structures has grown substantially in recent years [1–2]. Currently, sulfur-based and lead-based free-cutting steel remains the most widely used and the largest quantity of free-cutting steel both domestically and internationally [3]. However, the toxicity of S and Pb elements raises significant environmental and health concerns. During smelting, recycling, and wet cutting processes, these elements generate harmful fumes and wastewater that pose risks to both human health and ecosystems. Therefore, exploring a new lead-free, low-sulfur type of free-cutting steel has become a primary research focus for steel companies and metallurgical scholars [4–5].
Free-cutting graphited steel has attracted widespread attention from scholars and manufacturers in recent years due to its superior machinability, cold-forming property, and fatigue property [6]. Research institutions and production units, such as the University of Leeds [7–8], Kyungpook National University [9], University of Science and Technology Beijing [10], JFE Company [11–12], and POSCO Company [13], have successively developed free-cutting graphited steel. The main research and development focus on promoting the rapid decomposition of cementite in the steel to obtain the free-cutting graphite phase.
Si is commonly used as an alloying element in ductile iron and free-cutting graphited steel due to its ability to promote graphitization and stabilize ferrite [14–15], and it typically maintains a mass fraction of at least 2.3%. However, such high Si content can lead to excessively hardness in graphited steel and compromised machining performance [16]. Therefore, under the premise of ensuring sufficient complete graphitization behavior in the steel, reasonably reducing the Si content to achieve moderate hardness has become an important direction for upgrading the machinability. Similar to the Si, Al can also promote graphitization and stabilize ferrite while having a minimal impact on the hardness of the steel [17]. Samek et al. [18] pointed out that the addition of 1wt% Al to steel can effectively promote graphitization. However, at high Al contents, the extent to which the silicon content can be decreased to achieve an optimal balance remains to be explored.
Loading authentic research manuscript (Pages 1–5)...
Yong Wan, Lijie Tian, Qing Tang, Jianwei Hou, Fengyou Qi, Xingli Zhang, Jinzhong Zuo, Yonghong Wen (2025). Effect of Si content and tempering temperature on microstructure and precipitation behavior of graphite particles in Fe–0.58C–1.0Al steel. Int. Journal of Minerals, Metallurgy and Materials (矿物冶金与材料学报). https://doi.org/10.1007/s12613-025-3115-9
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the effect of silicon content on graphite precipitation in Fe–0.58C–1.0Al steel?
Increasing silicon content from 1.38wt% to 2.67wt% increases the number density of graphite particles but decreases their average size, while the number density and size of Fe3C particles continuously decrease.
How does tempering temperature affect the microstructure of Fe–0.58C–1.0Al steel?
Higher tempering temperature (715°C vs 680°C) promotes graphite particle growth and accelerates Fe3C decomposition and refinement in steels with graphite precipitation. In Si-lean steel (0.55wt% Si) without graphite, it promotes accumulation and growth of Fe3C.
Which silicon content provides the best hardness reduction in Fe–0.58C–1.0Al steel?
The 1.89wt% Si steel exhibits significantly lower hardness compared to 0.55wt%, 1.38wt%, and 2.67wt% Si steels, especially after tempering at 715°C, achieving nearly HV 20 lower hardness than previously reported Fe–0.55C–2.33Si steel.
Why is aluminum added to free-cutting graphited steel?
Aluminum promotes graphitization and stabilizes ferrite while having minimal impact on hardness, allowing reduction of silicon content to achieve moderate hardness and improved machinability.
What are the environmental benefits of this new free-cutting steel?
The steel is lead-free and low-sulfur, reducing toxic fumes and wastewater during smelting, recycling, and wet cutting processes, thus mitigating environmental and health risks associated with traditional S/Pb-based free-cutting steels.
Related Technical Papers & Translations
Direct Repair of the Crystal Structure and Coating Surface of Spent LiFePO4 Materials Enables Superfast Li-Ion Migration
The rapid accumulation of spent LiFePO4 (LFP) cathodes from retired lithium-ion batteries necessitates the development of effective and environmental-friendly recycling strategies. In this context, direct regeneration has emerged as a promising approach for reclaiming LFP cathode materials, offering a streamlined pathway to restore their electrochemical functionality. We report an integrated regeneration protocol that simultaneously repairs the degraded crystal structure and reconstructs the damaged carbon coating in spent LFP. The regenerated cathode material had superfast lithium-ion diffusion kinetics and a stable cathode–electrolyte interface, giving a remarkable rate capability with specific capacities of 122 mAh g−1 at 5C and 106 mAh g−1 at 10C (1C = 170 mA g−1). It also maintained capacities of 110.7 mAh g−1 (5C) and 84.1 mAh g−1 (10C) after 400 cycles. It could be used in harsh environments and could be stably cycled at subzero temperatures (−10 and −20 °C) and in solid-state electrolyte batteries. Life cycle assessment combined with economic evaluation using the EverBatt model reveals that this direct regeneration approach has high economic and environmental benefits.
Oxide Semiconductor for Advanced Memory Architectures: Atomic Layer Deposition, Key Requirement and Challenges
Oxide semiconductors (OSs), introduced by the Hosono group in the early 2000s, have evolved from display backplane materials to promising candidates for advanced memory and logic devices. The exceptionally low leakage current of OSs and compatibility with three-dimensional (3D) architectures have recently sparked renewed interest in their use in semiconductor applications. This review begins by exploring the unique material properties of OSs, which fundamentally originate from their distinct electronic band structure. Subsequently, we focus on atomic layer deposition (ALD), a core technique for growing excellent OS films, covering both basic and advanced processes compatible with 3D scaling. The basic surface reaction mechanisms—adsorption and reaction—and their roles in film growth are introduced. Furthermore, material design strategies, such as cation selection, crystallinity control, anion doping, and heterostructure engineering, are discussed. We also highlight challenges in memory applications, including contact resistance, hydrogen instability, and lack of p-type materials, and discuss the feasibility of ALD-grown OSs as potential solutions. Lastly, we provide an outlook on the role of ALD-grown OSs in memory technologies. This review bridges material fundamentals and device-level requirements, offering a comprehensive perspective on the potential of ALD-driven OSs for next-generation semiconductor memory devices.
Laser powder bed fusion of biodegradable Zn-4Cu alloy: Processing, microstructure and properties
Zn's natural degradability and biocompatibility make it a promising candidate for implants, however, its mechanical properties remain insufficient for bone applications. In this study, the performance of Zn was enhanced by developing Zn-Cu alloys via laser powder bed fusion (LPBF). Optimal LPBF parameters for forming stable tracks were achieved by adjusting laser power and scanning speed. Under optimized conditions of 100 W and 100 mm/s, high-density (99.58%) Zn-Cu alloys with improved hardness (68.2HV) and yield strength (160 MPa) were achieved. These improvements are attributed to solid solution strengthening, segregation strengthening, and grain refinement. The Zn-Cu alloys also demonstrated favorable degradation behavior, with a rate of 0.16 mm/year. This degradation is primarily driven by micro-galvanic corrosion between the CuZn5 phase and Zn matrix, along with refined grains and increased grain boundary density. This work demonstrates a viable strategy for fabricating Zn-based implants with enhanced structural integrity and mechanical performance via LPBF.
