Key Takeaways & Executive Findings
- •• Optimal composite alkali activator proportion of 1:2 enhances 3-day compressive strength by 31.25% in gangue cemented rockfill. • The activator proportion strengthens the pozzolanic effect of gangue and inhibits calcium hydroxide agglomeration, leading to a denser microstructure. • Molecular dynamics reveals that 12% sodium substitution in C–S–H improves interlayer adhesion and stress transfer. • The proposed alkali-activated gangue method offers a low-cost, sustainable approach for solid waste recycling and reduced cement consumption.
Abstract

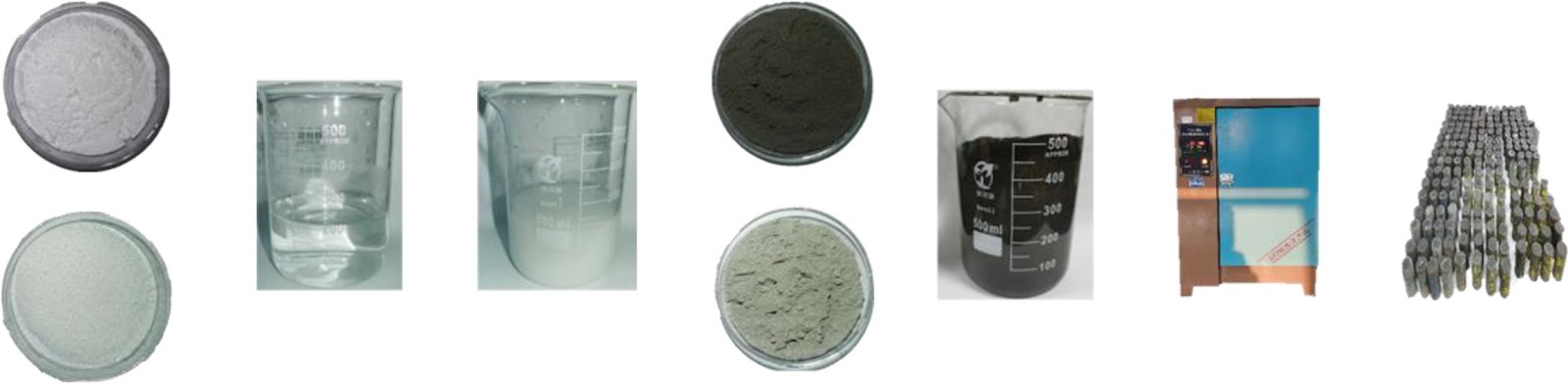

Using cemented rockfill to replace coal pillars offers an effective solution for reducing solid waste while ensuring the safety of gob-side entries. However, achieving the balance among low cost, high waste recycling rates, and adequate strength remains a significant challenge for cemented rockfill. This study used a composite alkali activator to activate gangue cemented rockfill. The compressive strength, scanning electron microscopy, energy dispersive spectrometer, mercury intrusion porosimetry, X-ray diffraction, and thermogravimetric tests were carried out to investigate the effect of the composite alkali activator proportion on the compressive strength, microstructure, and composition of the cemented rockfill. The calcium silicate hydrate (C–S–H) molecular model of cemented rockfill was constructed to explore the fracture evolution of the nucleated molecular structure under tension. The results show that compressive strength initially increased and then decreased with the activator proportion, the optimal activator proportion of 1:2 resulted in a 31.25% increase in strength at 3 d. This reasonable activator proportion strengthens the pozzolanic effect of gangue, and consumes more calcium hydroxide to inhibit its agglomeration, ultimately achieving the densification of microstructure. The activator proportion inevitably substitutes calcium ions with sodium ions in the C–S–H molecular model. The 12% substitution of calcium ions increases the adhesion between silicon chain layers, which is beneficial to the interlayer stress transfer. This work proposes a method for preparing low-cost cemented rockfill from alkali-activated gangue, which can be used for solid waste recycling and reducing cement consumption to achieve low-carbon goals.
1. Introduction
Large accumulations of gangue from coal mining not only occupy land resources but also have the potential to cause collapse and spontaneous combustion, and it also releases hazardous gasses (SO2, CO2, and H2S) into the air [1‒4]. Heavy metal ions from gangue after rainfall further migrate to pollute the groundwater and soil ecosystem [5‒7]. And the surface subsidence caused by goaf is harmful to the ecological environment and people’s safety in the mining region [8‒9]. Using cemented rockfill to fill the goaf may effectively support the overlying strata, alleviate the problem of gangue accumulation, and achieve efficient solid waste recycling while assuring the safety and stability of underground engineering [10‒13].
Overlying strata deformation and safety of underground structures mainly depend on cemented rockfill’s mechanical properties [14‒16]. Ensuring high performance while maintaining low cost has always been the main goal. Previous studies [17‒20] improved the properties of cemented rockfill material by adding external additives (nanomaterials, early strength agents, water reducing agents, activators, etc.). Yeşilmen et al. [21] investigated the effects of nanomaterials on flexural strength, compressive strength, and microstructure, they believed that nano-silica can accelerate the hydration reaction of cement. Roshani and Fall [22] conducted a comprehensive investigation on the rheological properties of cemented paste. Cavusoglu et al. [23] employed sodium silicate as an early strength agent to enhance the early strength and microstructure of cemented rockfill, indicating that adding sodium silicate raised the early strength by 14% and reduced the setting time by 58%. Liu et al. [24] studied the influence of polycarboxylic acid and naphthalene series on the performances of cemented rockfill. We have always focused on enhancing the performance of cemented rockfill through various additives, but the potential of alkali activation on gangue-based cemented rockfill remains underexplored.
Loading authentic research manuscript (Pages 1–5)...
Jiangyu Wu, Wenyu Zhang, Yiming Wang, Feng Ju, Hai Pu, Evgenii Riabokon, Mikhail Guzev, Qian Yin, Dan Ma, Hao Zhang (2025). Effect of composite alkali activator proportion on macroscopic and microscopic properties of gangue cemented rockfill: Experiments and molecular dynamic modelling. Int. Journal of Minerals, Metallurgy and Materials (矿物冶金与材料学报). https://doi.org/10.1007/s12613-025-3140-8
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the optimal composite alkali activator proportion for gangue cemented rockfill?
The optimal proportion is 1:2, which resulted in a 31.25% increase in compressive strength at 3 days compared to other proportions tested.
How does the alkali activator proportion affect the microstructure of cemented rockfill?
A reasonable proportion strengthens the pozzolanic effect of gangue, consumes more calcium hydroxide to inhibit its agglomeration, and ultimately achieves a denser microstructure.
What is the role of molecular dynamics in this study?
Molecular dynamics was used to construct a C–S–H molecular model to explore fracture evolution under tension, revealing that 12% sodium substitution improves interlayer adhesion and stress transfer.
What are the environmental benefits of this research?
The proposed method enables low-cost cemented rockfill production from alkali-activated gangue, promoting solid waste recycling and reducing cement consumption, contributing to low-carbon goals.
What tests were conducted to evaluate the properties of cemented rockfill?
Compressive strength, scanning electron microscopy, energy dispersive spectrometer, mercury intrusion porosimetry, X-ray diffraction, and thermogravimetric tests were carried out.
Related Technical Papers & Translations
Direct Repair of the Crystal Structure and Coating Surface of Spent LiFePO4 Materials Enables Superfast Li-Ion Migration
The rapid accumulation of spent LiFePO4 (LFP) cathodes from retired lithium-ion batteries necessitates the development of effective and environmental-friendly recycling strategies. In this context, direct regeneration has emerged as a promising approach for reclaiming LFP cathode materials, offering a streamlined pathway to restore their electrochemical functionality. We report an integrated regeneration protocol that simultaneously repairs the degraded crystal structure and reconstructs the damaged carbon coating in spent LFP. The regenerated cathode material had superfast lithium-ion diffusion kinetics and a stable cathode–electrolyte interface, giving a remarkable rate capability with specific capacities of 122 mAh g−1 at 5C and 106 mAh g−1 at 10C (1C = 170 mA g−1). It also maintained capacities of 110.7 mAh g−1 (5C) and 84.1 mAh g−1 (10C) after 400 cycles. It could be used in harsh environments and could be stably cycled at subzero temperatures (−10 and −20 °C) and in solid-state electrolyte batteries. Life cycle assessment combined with economic evaluation using the EverBatt model reveals that this direct regeneration approach has high economic and environmental benefits.
Oxide Semiconductor for Advanced Memory Architectures: Atomic Layer Deposition, Key Requirement and Challenges
Oxide semiconductors (OSs), introduced by the Hosono group in the early 2000s, have evolved from display backplane materials to promising candidates for advanced memory and logic devices. The exceptionally low leakage current of OSs and compatibility with three-dimensional (3D) architectures have recently sparked renewed interest in their use in semiconductor applications. This review begins by exploring the unique material properties of OSs, which fundamentally originate from their distinct electronic band structure. Subsequently, we focus on atomic layer deposition (ALD), a core technique for growing excellent OS films, covering both basic and advanced processes compatible with 3D scaling. The basic surface reaction mechanisms—adsorption and reaction—and their roles in film growth are introduced. Furthermore, material design strategies, such as cation selection, crystallinity control, anion doping, and heterostructure engineering, are discussed. We also highlight challenges in memory applications, including contact resistance, hydrogen instability, and lack of p-type materials, and discuss the feasibility of ALD-grown OSs as potential solutions. Lastly, we provide an outlook on the role of ALD-grown OSs in memory technologies. This review bridges material fundamentals and device-level requirements, offering a comprehensive perspective on the potential of ALD-driven OSs for next-generation semiconductor memory devices.
Laser powder bed fusion of biodegradable Zn-4Cu alloy: Processing, microstructure and properties
Zn's natural degradability and biocompatibility make it a promising candidate for implants, however, its mechanical properties remain insufficient for bone applications. In this study, the performance of Zn was enhanced by developing Zn-Cu alloys via laser powder bed fusion (LPBF). Optimal LPBF parameters for forming stable tracks were achieved by adjusting laser power and scanning speed. Under optimized conditions of 100 W and 100 mm/s, high-density (99.58%) Zn-Cu alloys with improved hardness (68.2HV) and yield strength (160 MPa) were achieved. These improvements are attributed to solid solution strengthening, segregation strengthening, and grain refinement. The Zn-Cu alloys also demonstrated favorable degradation behavior, with a rate of 0.16 mm/year. This degradation is primarily driven by micro-galvanic corrosion between the CuZn5 phase and Zn matrix, along with refined grains and increased grain boundary density. This work demonstrates a viable strategy for fabricating Zn-based implants with enhanced structural integrity and mechanical performance via LPBF.
