Key Takeaways & Executive Findings
- •• Reducing catalyst loading from 10 to 1.685 mg·cm−2 and increasing current density in concentrated bicarbonate solutions boosts formate faradaic efficiency to 88% at −30 mA·cm−2, while lowering costs and suppressing hydrogen evolution. • Applying Nafion as a surface coating rather than mixing it into the ink improves formate production, but binder-free systems still outperform due to the intrinsic activity of Sn catalysts. • PVDF binder shows promise for formate production (72% FE at −30 mA·cm−2) despite blocking active sites, owing to its stability, strength, and conductivity. • The study provides practical guidelines for optimizing catalyst ink formulations and binder use to enhance CO2-to-formate conversion, supporting cost-efficient high-current-density operations.
Abstract

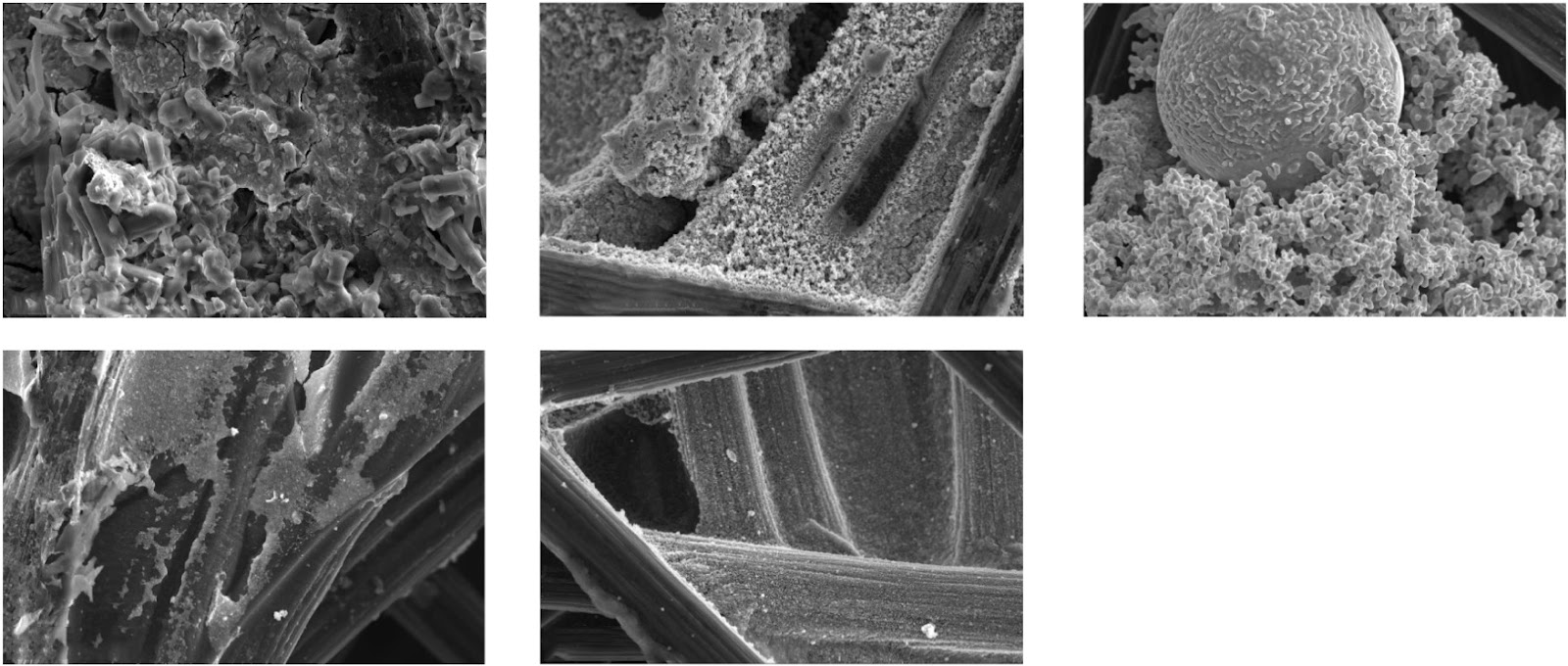

Electrochemical CO2 reduction is a sustainable method for producing fuels and chemicals using renewable energy sources. Sn is a widely employed catalyst for formate production, with its performance closely influenced by the catalyst ink formulations and reaction conditions. The present study explores the influence of catalyst loading, current density, and binder choice on Sn-based CO2 reduction systems. Decreasing catalyst loading from 10 to 1.685 mg·cm−2 and increasing current density in highly concentrated bicarbonate solutions significantly enhances formate selectivity, achieving 88% faradaic efficiency (FE) at a current density of −30 mA·cm−2 with a cathodic potential of −1.22 V vs. reversible hydrogen electrode (RHE) and a catalyst loading of 1.685 mg·cm−2. This low-loading strategy not only reduces catalyst costs but also enhances surface utilization and suppresses the hydrogen evolution reaction. Nafion enhances formate production when applied as a surface coating rather than pre-mixed in the ink, as evidenced by improved faradaic efficiency and lower cathodic potentials. However, this performance still does not match that of binder-free systems because Sn-based catalysts intrinsically exhibit high catalytic activity, making the binder contribution less significant. Although modifying the electrode surface with binders leads to blocked active sites and increased resistance, polyvinylidene fluoride (PVDF) remains promising because of its stability, strength, and conductivity, achieving up to 72% FE to formate at −30 mA·cm−2 and −1.66 V vs. RHE. The findings of this research reveal methodologies for optimizing the catalyst ink formulations and binder utilization to enhance the conversion of CO2 to formate, thereby offering crucial insights for the development of a cost-efficient catalyst for high-current-density operations.
1. Introduction
Climate change has become a major environmental issue due to the release of harmful greenhouse gases. One of the main approaches for addressing this challenge involves converting CO2 emissions into value-added chemicals to achieve a sustainable economy [1–3]. The electrochemical reduction of CO2 (eCO2RR) provides a route for producing chemicals such as methane, formate, ethylene, and ethanol. Sn electrodes have gained attention for their catalytic properties in the transformation of CO2 to formate, a valuable intermediate for applications in various industries such as fuel cells, formic acid production, material synthesis, and energy generation and utilization [4–7]. Formate is a stable intermediate in several biological systems and a promising replacement for environmentally harmful compounds. Therefore, the design of efficient catalysts to enhance the conversion of CO2 to formate has been a matter of debate for several years [8–16].
Sn has garnered research attention as a catalyst owing to its electronic properties, cost, and availability. Moreover, Sn is more stable than other catalysts [17] and meets the essential catalytic requirements, such as low overpotential, good selectivity, and non-toxicity [18]. Recent studies demonstrated that Sn can successfully yield formate with high efficiency and stability [8,19–22]. Moreover, their catalytic properties can be optimized by doping or alloying with other elements [23–24]. SnO2 has been demonstrated to enhance this process [25–26]. SnO2/Sn interfaces, for example, are more selective towards formate and suppress the hydrogen evolution reaction (HER) [27]. In addition, Sn nanonization (in the form of nanoparticles, nanowires, nanosheets, or nanostructured alloys) increases the surface area, improving the response at the active sites [28–29].
The full potential of Sn-based catalysts depends on establishing a more efficient cathode material; therefore, the current density, energy efficiency, system stability, and faradaic efficiency (FE) must be considered [4–5,30–31]. The efficiency of an electrode is determined by the extension of the three-phase boundary (TPB), choice of the catalyst, and surface morphology [32]. The TPB, a crucial factor in catalyst design, is a specific region where three phases converge: the solid catalyst transports electrons, the liquid electrolyte carries ions, and the gas phase supplies reactants.
Loading authentic research manuscript (Pages 1–5)...
Asier Grijalvo Rodriguez, Zhiyuan Chen, Deepak Pant, Jolien Dendooven (2025). Effect of catalyst ink preparation on formate production from CO2 electroreduction using Sn as electrocatalyst. Int. Journal of Minerals, Metallurgy and Materials (矿物冶金与材料学报). https://doi.org/10.1007/s12613-025-3133-7
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the optimal catalyst loading for formate production from CO2 electroreduction using Sn?
The study found that reducing the catalyst loading from 10 to 1.685 mg·cm−2 significantly enhances formate selectivity, achieving 88% faradaic efficiency at −30 mA·cm−2, while also reducing catalyst costs and improving surface utilization.
How does the choice of binder affect CO2 electroreduction to formate?
The binder choice impacts performance: Nafion applied as a surface coating improves formate production compared to pre-mixing, but binder-free systems still outperform. PVDF shows promise with 72% FE to formate, despite blocking some active sites, due to its stability and conductivity.
What current density and potential are needed for high formate selectivity?
High formate selectivity (88% FE) was achieved at a current density of −30 mA·cm−2 and a cathodic potential of −1.22 V vs. RHE with a catalyst loading of 1.685 mg·cm−2 in highly concentrated bicarbonate solutions.
Why is Sn considered a suitable catalyst for CO2 reduction to formate?
Sn is cost-effective, abundant, stable, and non-toxic, with good selectivity for formate. Its performance can be further enhanced through nanostructuring and the formation of SnO2/Sn interfaces, which suppress the hydrogen evolution reaction.
What are the practical implications of this research for industrial applications?
The findings provide guidelines for optimizing catalyst ink formulations and binder usage to enhance CO2-to-formate conversion, enabling cost-efficient operation at high current densities, which is crucial for industrial-scale electrochemical CO2 reduction.
Related Technical Papers & Translations
Direct Repair of the Crystal Structure and Coating Surface of Spent LiFePO4 Materials Enables Superfast Li-Ion Migration
The rapid accumulation of spent LiFePO4 (LFP) cathodes from retired lithium-ion batteries necessitates the development of effective and environmental-friendly recycling strategies. In this context, direct regeneration has emerged as a promising approach for reclaiming LFP cathode materials, offering a streamlined pathway to restore their electrochemical functionality. We report an integrated regeneration protocol that simultaneously repairs the degraded crystal structure and reconstructs the damaged carbon coating in spent LFP. The regenerated cathode material had superfast lithium-ion diffusion kinetics and a stable cathode–electrolyte interface, giving a remarkable rate capability with specific capacities of 122 mAh g−1 at 5C and 106 mAh g−1 at 10C (1C = 170 mA g−1). It also maintained capacities of 110.7 mAh g−1 (5C) and 84.1 mAh g−1 (10C) after 400 cycles. It could be used in harsh environments and could be stably cycled at subzero temperatures (−10 and −20 °C) and in solid-state electrolyte batteries. Life cycle assessment combined with economic evaluation using the EverBatt model reveals that this direct regeneration approach has high economic and environmental benefits.
Oxide Semiconductor for Advanced Memory Architectures: Atomic Layer Deposition, Key Requirement and Challenges
Oxide semiconductors (OSs), introduced by the Hosono group in the early 2000s, have evolved from display backplane materials to promising candidates for advanced memory and logic devices. The exceptionally low leakage current of OSs and compatibility with three-dimensional (3D) architectures have recently sparked renewed interest in their use in semiconductor applications. This review begins by exploring the unique material properties of OSs, which fundamentally originate from their distinct electronic band structure. Subsequently, we focus on atomic layer deposition (ALD), a core technique for growing excellent OS films, covering both basic and advanced processes compatible with 3D scaling. The basic surface reaction mechanisms—adsorption and reaction—and their roles in film growth are introduced. Furthermore, material design strategies, such as cation selection, crystallinity control, anion doping, and heterostructure engineering, are discussed. We also highlight challenges in memory applications, including contact resistance, hydrogen instability, and lack of p-type materials, and discuss the feasibility of ALD-grown OSs as potential solutions. Lastly, we provide an outlook on the role of ALD-grown OSs in memory technologies. This review bridges material fundamentals and device-level requirements, offering a comprehensive perspective on the potential of ALD-driven OSs for next-generation semiconductor memory devices.
Laser powder bed fusion of biodegradable Zn-4Cu alloy: Processing, microstructure and properties
Zn's natural degradability and biocompatibility make it a promising candidate for implants, however, its mechanical properties remain insufficient for bone applications. In this study, the performance of Zn was enhanced by developing Zn-Cu alloys via laser powder bed fusion (LPBF). Optimal LPBF parameters for forming stable tracks were achieved by adjusting laser power and scanning speed. Under optimized conditions of 100 W and 100 mm/s, high-density (99.58%) Zn-Cu alloys with improved hardness (68.2HV) and yield strength (160 MPa) were achieved. These improvements are attributed to solid solution strengthening, segregation strengthening, and grain refinement. The Zn-Cu alloys also demonstrated favorable degradation behavior, with a rate of 0.16 mm/year. This degradation is primarily driven by micro-galvanic corrosion between the CuZn5 phase and Zn matrix, along with refined grains and increased grain boundary density. This work demonstrates a viable strategy for fabricating Zn-based implants with enhanced structural integrity and mechanical performance via LPBF.
