Key Takeaways & Executive Findings
- •• Printing angle critically influences surface accuracy, shrinkage, and printing efficiency of green bodies, as well as microstructure and mechanical properties of sintered silica ceramic cores. • Increasing printing angle reduces bonding area, worsens surface roughness, increases Z-direction shrinkage, and decreases printing efficiency, while also lowering bending strength. • A printing angle of 30° halves printing time compared to 90°, improving molding efficiency while achieving required bulk density, open porosity, and flexural strength. • Optimizing printing angles enables a balance between shrinkage, printing efficiency, and flexural strength, offering a promising route for rapid manufacturing of complex ceramic cores.
Abstract

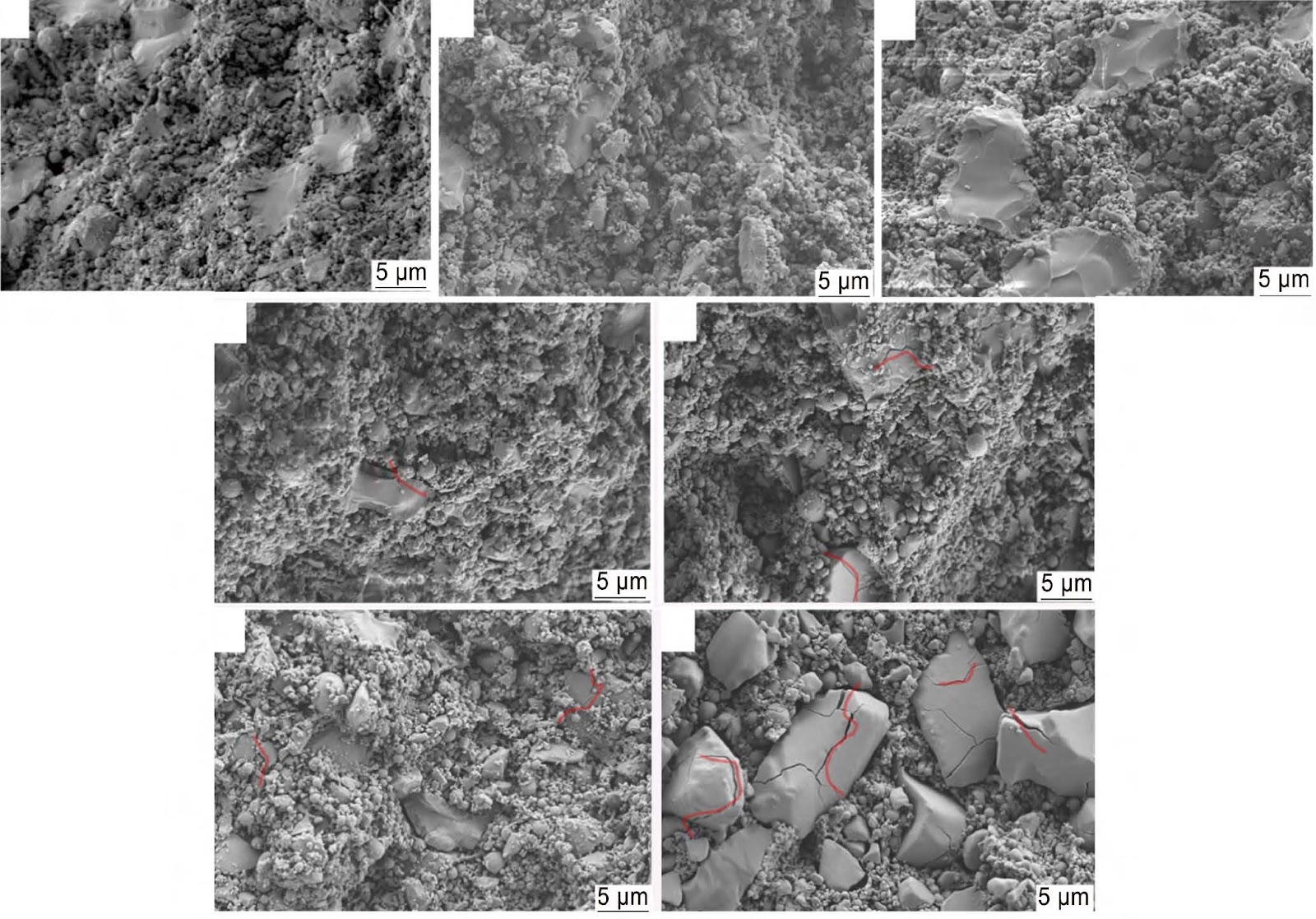

Ceramic cores fabricated by stereolithography exhibit great potential in casting turbine blades. Previous research on ceramic core molding was primarily conducted using vertical printing techniques, which not only resulted in lengthy molding durations but also compromised the mechanical strength. In this work, silica (SiO2) ceramic cores, with fine complex geometric shapes, were fabricated using 65vol.% ceramic slurry by digital light processing (DLP) with different printing angles. Printing angles significantly impact the surface accuracy, shrinkage, printing efficiency of green bodies, as well as the microstructure and mechanical properties of sintered ceramic core samples. As the printing angle in the green body increases, the bonding area decreases, surface roughness on the XY plane worsens, shrinkage in the Z direction becomes more pronounced, and the printing efficiency declines. Similarly, an increase in the printing angle in the sintered body leads to a reduction in bending strength. At a printing angle of 30°, the printing time is reduced to half of that at 90°, which improves the molding efficiency. Meanwhile, the obtained bulk density of 1.71 g·cm-3, open porosity of 24%, and flexural strength of 10.6±1 MPa can meet the requirements of sintered ceramic cores. Therefore, designing and optimizing the printing angles can achieve the balance between shrinkage, printing efficiency, and flexural strength.
1. Introduction
With the development of modern industrial manufacturing technology and the improvement of aero-engine performance [1], the products are increasingly required to be more precise and complex. Single crystal superalloy hollow blades with complex cavity cooling structures are increasingly urgent [2, 3]. As an important part of hollow precision and complex casting, the ceramic core has become one of the core elements in modern industrial manufacturing technology [4-6]. Ceramic cores are generally molded by injection molding [7, 8]. However, when producing ceramic cores with complex structures, hot injection molding technology faces the challenges of complicated processes, long production cycles, and high costs [9, 10]. In addition, limited by traditional molding methods, ceramic cores have approached the upper limit of achievable geometric complexity, making it increasingly difficult to fabricate components with complex structures [11, 12].
Stereolithography 3D printing ceramic technology is widely used to compensate for the limitations of traditional thermal injection processes in the preparation of complex core materials [13, 14]. Given the unique capabilities of 3D printing, industrial and academic interests in 3D printing complex shaped castings such as ceramic cores are booming [15-17]. The printing technology provides a feasible technique for preparing ceramic cores with complex structures [7, 18] due to its many advantages including high design flexibility, customizability, mold free manufacturing [19], reduced material waste, shorter production cycles [20], ability to control porosity, and improved mechanical properties [21, 22]. Therefore, ceramic cores with high performance [23], high precision [24], high bending strength [25], and reduced production cost can be manufactured through stereolithography technology. This approach offers a promising route for the rapid manufacturing of high-complexity, high-quality ceramic cores essential for producing hollow turbine blades [26].
Loading authentic research manuscript (Pages 1–5)...
Yue Gu, Wen-yan Duan, Gong Wang, Bing-shan Liu, Xiao-dong Liu, Shan Li (2025). Effect of 3D printing angle on microstructure and mechanical properties of silica ceramic cores by stereolithography. China Foundry. https://doi.org/10.1007/s41230-025-4072-7
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the effect of printing angle on silica ceramic cores?
The printing angle significantly impacts surface accuracy, shrinkage, printing efficiency, and mechanical properties. Increasing the angle reduces bonding area, worsens surface roughness, increases Z-direction shrinkage, and decreases printing efficiency and bending strength.
What printing angle is optimal for silica ceramic cores?
A printing angle of 30° is optimal as it halves printing time compared to 90° while achieving required bulk density, open porosity, and flexural strength, balancing efficiency and properties.
What are the mechanical properties of the sintered ceramic cores?
At a printing angle of 30°, the sintered cores exhibit a bulk density of 1.71 g·cm-3, open porosity of 24%, and flexural strength of 10.6±1 MPa, meeting requirements.
Why is stereolithography used for ceramic cores?
Stereolithography offers high design flexibility, customizability, mold-free manufacturing, reduced waste, shorter production cycles, and improved mechanical properties, enabling fabrication of complex ceramic cores for hollow turbine blades.
What is the significance of this research?
This research demonstrates that optimizing printing angles can achieve a balance between shrinkage, printing efficiency, and flexural strength, providing a promising route for rapid manufacturing of high-complexity ceramic cores.
Related Technical Papers & Translations
Pull-out capacity and energy absorption of cable bolts under impact loading
This study investigates the performance of high-strength cable bolts under impact loading conditions representative of rock bursts in underground environments. Although widely used, the dynamic behaviour of these cable bolts has received limited experimental attention, and their effectiveness in seismically active zones remains a subject of ongoing debate. To address this gap, a reverse pull-out test machine integrated with a drop hammer rig was employed. Tests were conducted on 70-t SUMO bulbed and non-bulbed cable bolts with encapsulation lengths of 300 and 450 mm, subjected to an impact energy of 14.52 kJ. Results indicate that non-bulbed cables, despite showing lower initial peak loads (average 218 vs. 328 kN for bulbed cables at 300 mm encapsulation), demonstrated superior energy absorption (average 11.26 vs. 8.75 kJ) and displacement capacity (average 48.40 vs. 36.25 mm). Increasing the encapsulation length for bulbed cables led to a reduction in initial peak load but improved displacement and energy absorption. The dominant failure mechanism was debonding at the cable-grout interface, characterised by frictional sliding and cable rotation. These findings provide new insights into the energy dissipation mechanisms of cables and support the development of more resilient ground support systems for dynamically active conditions.
Effect of eutectic content on microstructure and mechanical properties of Al-Zn-Mg-Cu alloys
The 7xxx series aluminum alloys have emerged as a particularly promising class of lightweight structural materials. However, the inherent strength of these materials is primarily influenced by the content and type of alloying elements added during the manufacturing process, as well as casting defects. The present study investigated the effects of eutectics formed by solute atoms (Zn, Mg, and Cu), with equal mass ratios (Zn/Mg=2, Mg/Cu=3) but varying overall contents, on the liquid film thickness, crack propagation depth, and the mechanical properties of the Al-Zn-Mg-Cu alloy after heat treatment. The results from gravity casting indicate that the intergranular liquid film thickness increases with the increase of eutectic content. A thick intergranular liquid film in the casting can accommodate greater strain during grain contraction, thereby preventing liquid film rupture and subsequent hot tearing. Concurrently, during the solution treatment at 475 °C, the residual eutectic fraction in the Al-7Zn-3.5Mg-1.18Cu alloy diminishes from 9.1% at 10 h to 0.35% at 40 h. At 165 °C, the Al-6Zn-3.0Mg-1.0Cu alloy exhibits the optimal mechanical properties, with a peak aging tensile strength of 510 MPa and an elongation of 6.4%. The incorporation of lower concentrations of solute atoms (Zn, Mg, and Cu) serves to reduce the barrier to dislocation precipitation, thereby enhancing alloy plasticity. However, when the proportion of alloying elements exceeds the solubility limit of the α-Al matrix at specific heat treatment temperatures, coarse residual phases remain intergranular, thereby significantly impairing the mechanical properties of the alloy. This study provides a reference for the optimal addition level of the main strengthening elements in Al‑Zn‑Mg‑Cu alloys.
Achieving optimal strength-conductivity balance in cast Al-2.3Fe-Mg-Si alloys via Mg/Si ratio regulation
The Al-2.3Fe eutectic alloy is regarded as a promising substitute for Cu conductors in automotive motors owing to its excellent castability and low resistivity. However, its application is restricted by the mutually exclusive relationship between electrical conductivity and mechanical strength. The microstructure and mechanical properties of Al-2.3Fe alloy were modified through Mg/Si alloying combined with T6 heat treatment in this work, leading to the development of a high-performance cast Al-2.3Fe-Mg-Si alloy. In the Al-2.3Fe-0.40Mg-0.72Si (Mg/Si=0.56) alloy subjected to T6 treatment, an electrical conductivity of (52.5±0.6)% IACS is achieved, while the ultimate tensile strength is significantly enhanced to 309.5±5.6 MPa. The addition of Mg and Si brings about marked changes in the solidification process of the Al-2.3Fe alloy, resulting in considerable variations in both the morphology of the second phase and its phase constitution. The aging behavior of the alloy is governed by second phase and solid solubility. Through optimization of the Mg/Si ratio, the aging response can be effectively enhanced. At the ratio of Mg/Si=0.56, a balance is achieved between solid solubility and precipitation, while simultaneously minimizing the detrimental impact on electrical conductivity and reaching the best mechanical properties and electrical conductivity in peak-aged Al-2.3Fe-xMg-ySi alloy. This work providing valuable insights for developing advanced conductor materials.
