Key Takeaways & Executive Findings
- •• Optimal energy density (292–333 J/mm³) yields highest material density and impact resistance; exceeding 333 J/mm³ introduces keyhole defects. • Peak dynamic strength at 292 J/mm³ is 8.4–17.6% higher than at 500 J/mm³, highlighting energy density as a critical process parameter. • At strain rates ≥2000 s⁻¹, failure occurs rapidly (crack initiation within 12 μs, strength limit at ~110 μs), while lower rates produce only microcracks and adiabatic shear bands. • Fracture morphology transitions from ductile to brittle with increasing strain rate, informing design for high-impact applications.
Abstract

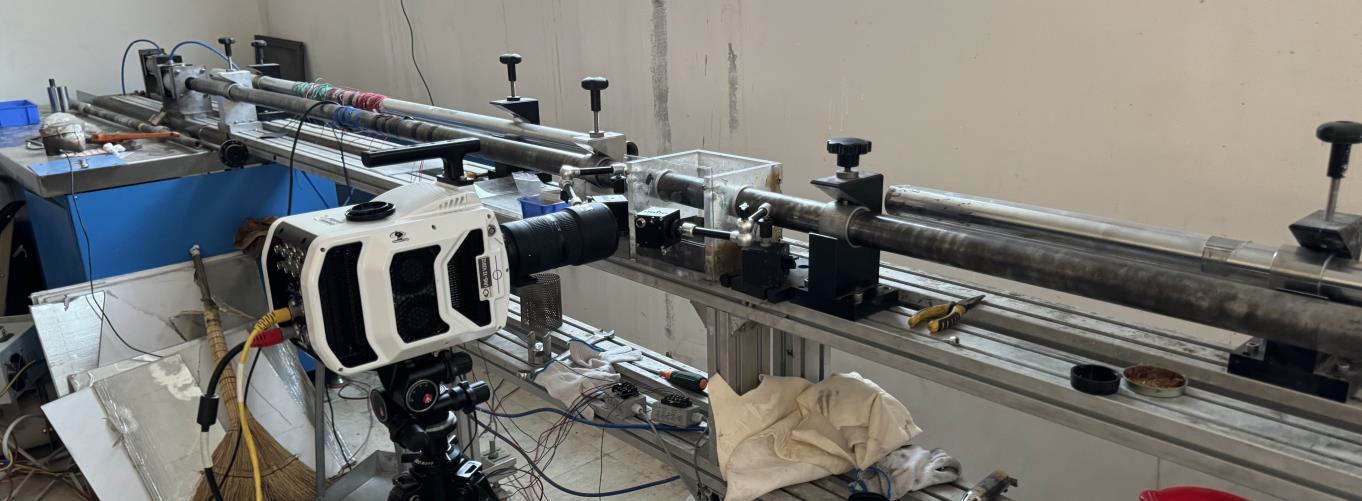

Ultra-high strength steel (UHSS) fabricated via laser additive manufacturing (LAM) holds significant promise for applications in defense, aerospace, and other high-performance sectors. However, its response to high-impact loading remains insufficiently understood, particularly regarding the influence of energy density on its dynamic mechanical behavior. In this study, scanning electron microscopy, electron backscatter diffraction, and image recognition techniques were employed to investigate the microstructural variations of LAM-fabricated UHSS under different energy density conditions. The dynamic mechanical behavior of the material was characterized using a Split Hopkinson Pressure Bar system in combination with high-speed digital image correlation. The study reveals the spatiotemporal evolution of surface strain and crack formation, as well as the underlying dynamic fracture mechanisms. A clear correlation was established between the microstructures formed under varying energy densities and the resulting dynamic mechanical strength of the material. Results demonstrate that optimal material density is achieved at energy densities of 292 and 333 J/mm3. In contrast, energy densities exceeding 333 J/mm3 induce keyhole defects, compromising structural integrity. Dynamic performance is strongly dependent on material density, with peak impact resistance observed at 292 J/mm3—where strength is 8.4% to 17.6% higher than that at 500 J/mm3. At strain rates ≥ 2000 s−1, the material reaches its strength limit at approximately 110 μs, with the initial crack appearing within 12 μs, followed by rapid failure. Conversely, at strain rates ≤ 1500 s−1, only microcracks and adiabatic shear bands are detected. A transition in fracture surface morphology from ductile to brittle is observed with increasing strain rate. These findings offer critical insights into optimizing the dynamic mechanical properties of LAM-fabricated UHSS and provide a valuable foundation for its deployment in high-impact environments.
1. Introduction
Ultra-high strength steel, renowned for its excellent mechanical properties such as high strength and toughness, is extensively utilized in defense, aerospace, and other high-performance fields. These applications often demand complex geometric shapes, which pose significant challenges for traditional forging and machining processes due to their long production cycles, substantial material wastage, and high costs. In recent years, the rapid development of laser additive manufacturing (LAM) has addressed many of these limitations, emerging as a key technique for processing ultra-high strength steel [1].
In application scenarios involving LAM-processed ultra-high strength steel structures, damage and failure are often induced by high-impact loading, accompanied by the coupling effects of high strain, elevated temperatures, and extreme pressures. Under such conditions, conventional quasi-static mechanical testing methods are no longer applicable. Moreover, the manufacturing processes of LAM and traditional techniques differ significantly, with variations in LAM processing parameters greatly influencing the dynamic mechanical performance of ultra-high strength steel components. Research into the dynamic performance of ultra-high strength steel fabricated via LAM remains in its infancy. The mechanisms of structural damage under dynamic loading conditions for such materials are poorly understood. Consequently, investigating the dynamic behavior of ultra-high strength steel produced by LAM holds substantial theoretical and practical significance, paving the way for improved performance and reliability in demanding operational environments.
Loading authentic research manuscript (Pages 1–5)...
Xiaoyu Gong, Zhengqing Zhou, Dayong Li, Zhiyang Fan, Zhiming Bai, Bin Hu, Yageng Li, Jia Liu, Wenyue Zheng (2025). Dynamic mechanical behavior of ultra-high strength steel fabricated by laser additive manufacturing: Influence of energy density. Int. Journal of Minerals, Metallurgy and Materials (矿物冶金与材料学报). https://doi.org/10.1007/s12613-025-3202-y
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the optimal energy density for laser additive manufacturing of ultra-high strength steel?
The optimal energy density is between 292 and 333 J/mm³, which yields the highest material density and dynamic impact resistance. Energy densities above 333 J/mm³ introduce keyhole defects that compromise structural integrity.
How does strain rate affect the dynamic failure of LAM-fabricated ultra-high strength steel?
At strain rates ≥2000 s⁻¹, the material reaches its strength limit at approximately 110 μs, with initial cracks appearing within 12 μs, leading to rapid failure. At strain rates ≤1500 s⁻¹, only microcracks and adiabatic shear bands are observed, indicating a less catastrophic failure mode.
What is the significance of the fracture surface morphology transition?
The fracture surface morphology transitions from ductile to brittle with increasing strain rate. This indicates a change in the dominant failure mechanism, which is critical for predicting material behavior under high-impact loading conditions.
How does energy density influence the dynamic mechanical strength of LAM-fabricated UHSS?
Energy density directly affects the microstructure and porosity of the material. The study found that at 292 J/mm³, the dynamic strength is 8.4% to 17.6% higher than at 500 J/mm³, demonstrating that optimizing energy density can significantly enhance impact resistance.
What experimental techniques were used in this study?
The study employed scanning electron microscopy (SEM), electron backscatter diffraction (EBSD), and image recognition techniques for microstructural analysis, along with a Split Hopkinson Pressure Bar system combined with high-speed digital image correlation (DIC) to characterize dynamic mechanical behavior.
