Key Takeaways & Executive Findings
- •• A self-constructed IrO2/IrTaOx bi-layer nanostructure, derived from an Ir–Ta metallic glass, achieves high-efficiency acidic OER with a mass activity of 1.06 A mgIr−1 at 300 mV overpotential, outperforming commercial Ir/C and IrO2 by 13.6 and 31.2 times, respectively. • The electronic interaction between Ir and Ta modulates the coordination environment of active Ir sites, preventing rapid oxidation to high-valence states and suppressing lattice oxygen participation, thereby enhancing both activity and stability. • The underlying amorphous IrTaOx layer dynamically replenishes depleted surface Ir sites via inward crystallization and selective dissolution, ensuring long-term durability under industrial-relevant current densities in acid. • This work provides a novel strategy for designing durable, low-Ir OER catalysts for PEM water electrolysis, addressing critical challenges of high noble metal loading and inadequate stability.
Abstract
Proton exchange membrane (PEM) water electrolysis presents considerable advantages in green hydrogen production. Nevertheless, oxygen evolution reaction (OER) catalysts in PEM water electrolysis currently encounter several pressing challenges, including high noble metal loading, low mass activity, and inadequate durability, which impede their practical application and commercialization. Here we report a self-constructed layered catalyst for acidic OER by directly using an Ir–Ta-based metallic glass as the matrix, featuring a nanoporous IrO2 surface formed in situ on the amorphous IrTaOx nanostructure during OER. This distinctive architecture significantly enhances the accessibility and utilization of Ir, achieving a high mass activity of 1.06 A mgIr−1 at a 300 mV overpotential, 13.6 and 31.2 times greater than commercial Ir/C and IrO2, respectively. The catalyst also exhibits superb stability under industrial-relevant current densities in acid, indicating its potential for practical uses. Our analyses reveal that the coordinated nature of the surface-active Ir species is effectively modulated through electronic interaction between Ir and Ta, preventing them from rapidly evolving into high valence states and suppressing the lattice oxygen participation. Furthermore, the underlying IrTaOx dynamically replenishes the depletion of surface-active sites through inward crystallization and selective dissolution, thereby ensuring the catalyst’s long-term durability.
1. Introduction
Green hydrogen produced through water electrolysis is considered a promising energy carrier for balancing the intermittency of renewable energy sources [1, 2]. Among various water electrolysis technologies, proton-exchange membrane (PEM) water electrolysis has recently garnered significant research interest due to its advantages of high current density, low resistance, and super gas purity [3–7], outperforming the dominant alkaline water electrolysis. However, the large-scale implementation of PEM water electrolysis is impeded by the scarcity of active and stable anodic oxygen evolution reaction (OER) electrocatalysts [8, 9]. Most existing OER catalysts are impaired by sluggish reaction kinetics in acidic environments and suffer from severe degradation under harsh corrosive and oxidative conditions [10–13].
To date, precious iridium (Ir)-based materials, such as IrO2, remain the only known practical OER catalysts [14–17]. Nevertheless, they still face challenges of low mass activity and thermodynamic instability during prolonged and high-current-density acidic oxygen evolution [18, 19]. Therefore, to enhance the competitiveness of PEM water electrolysis, it is highly desirable, yet remains a challenge, to develop novel acidic OER electrocatalysts with higher activity, long-term stability, and lower Ir content.
Recently, alloying strategies have emerged as a promising approach to enhancing acidic OER performance and reducing the content of Ir [20–22]. Various studies indicate that alloying or doping high-valence metals with strong electronegativity and high chemical stability, such as Ta, W, and Nb, can effectively enhance the OER activity and stability of Ir-based catalysts. For instance, synthesized compounds such as Ir0.1Ta0.9O2.45 [23], TaxTmyIr1−x−yO2−δ [24], Ir-W@Ir-WO3−x [25], and Ir/Nb2O5−x [26] demonstrate superior OER activity and stability compared to basic IrO2 nanoparticles in acid media due to the electronic structure manipulation induced by high-valence metals, which can effectively optimize the Ir–O bonding strength and thereby enhancing the OER electrocatalysis. However, the stability of these nanocatalysts is still limited under a low current density (e.g., 10 mA cm−2).
Loading authentic research manuscript (Pages 1–5)...
Qi Guo, Rui Li, Yanan Zhang, Qiqin Zhang, Yi He, Zhibin Li, Weihong Liu, Xiongjun Liu, Zhaoping Lu (2025). Durable Acidic Oxygen Evolution Via Self-Construction of Iridium Oxide/Iridium-Tantalum Oxide Bi-Layer Nanostructure with Dynamic Replenishment of Active Sites. Nano-Micro Letters. https://doi.org/10.1007/s40820-025-01680-w
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the main innovation of this research?
The research introduces a self-constructed catalyst with an in situ formed IrO2/IrTaOx bi-layer nanostructure derived from an Ir–Ta metallic glass, which significantly enhances acidic oxygen evolution reaction (OER) activity and durability while reducing iridium content.
How does the catalyst achieve high mass activity?
The nanoporous IrO2 surface formed in situ on the amorphous IrTaOx nanostructure increases the accessibility and utilization of iridium, achieving a mass activity of 1.06 A mgIr−1 at 300 mV overpotential, which is 13.6 and 31.2 times higher than commercial Ir/C and IrO2, respectively.
What is the role of tantalum in the catalyst?
Tantalum modulates the electronic structure of iridium through electronic interaction, preventing rapid oxidation to high-valence states and suppressing lattice oxygen participation, thereby enhancing both activity and stability.
How does the catalyst maintain long-term durability?

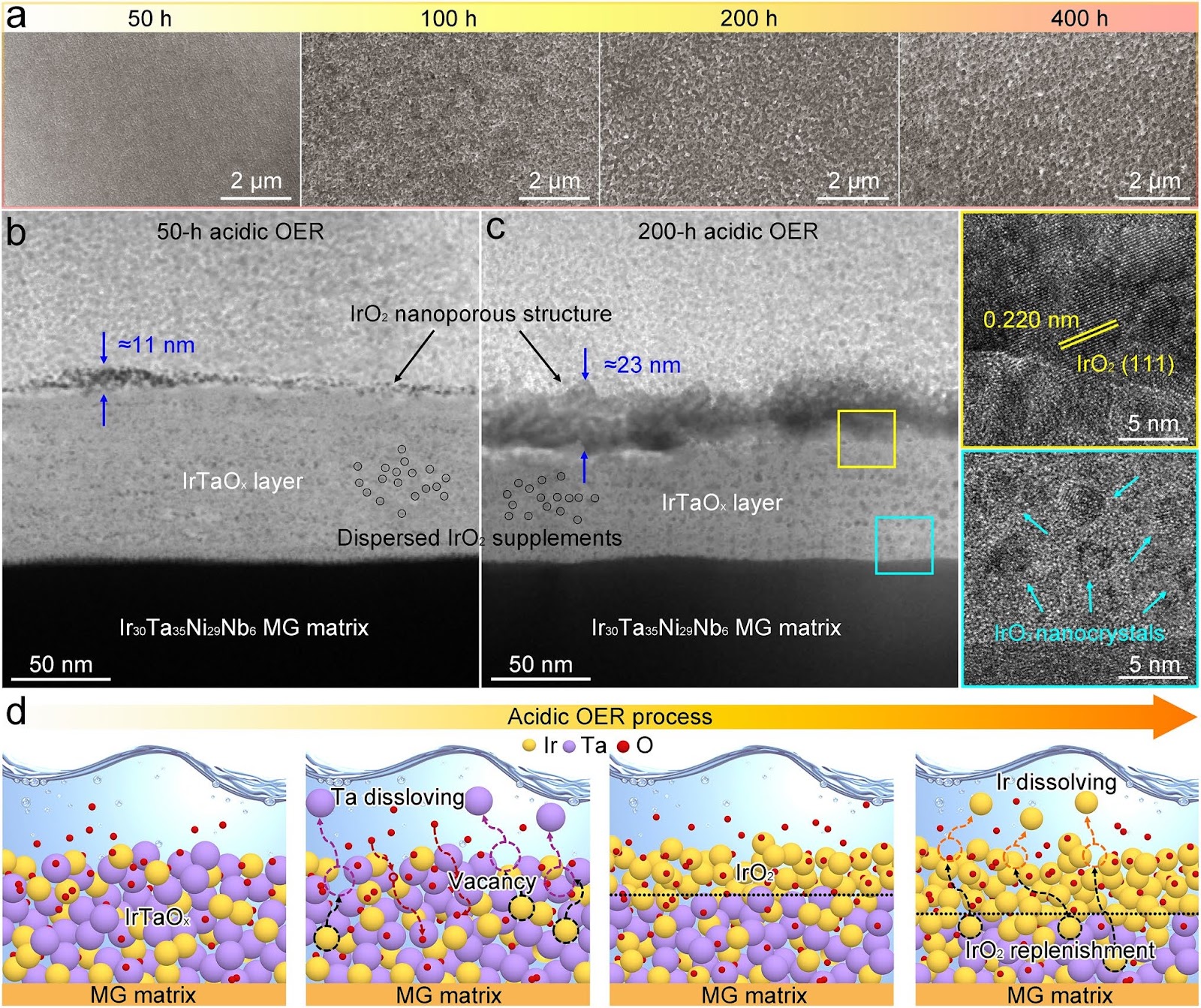

The underlying amorphous IrTaOx layer dynamically replenishes depleted surface iridium sites through inward crystallization and selective dissolution, ensuring sustained catalytic activity under industrial-relevant current densities in acid.
What are the potential applications of this catalyst?
This catalyst is designed for proton exchange membrane (PEM) water electrolysis, offering a promising solution for efficient and durable green hydrogen production with reduced noble metal loading.
Related Technical Papers & Translations
Direct Repair of the Crystal Structure and Coating Surface of Spent LiFePO4 Materials Enables Superfast Li-Ion Migration
The rapid accumulation of spent LiFePO4 (LFP) cathodes from retired lithium-ion batteries necessitates the development of effective and environmental-friendly recycling strategies. In this context, direct regeneration has emerged as a promising approach for reclaiming LFP cathode materials, offering a streamlined pathway to restore their electrochemical functionality. We report an integrated regeneration protocol that simultaneously repairs the degraded crystal structure and reconstructs the damaged carbon coating in spent LFP. The regenerated cathode material had superfast lithium-ion diffusion kinetics and a stable cathode–electrolyte interface, giving a remarkable rate capability with specific capacities of 122 mAh g−1 at 5C and 106 mAh g−1 at 10C (1C = 170 mA g−1). It also maintained capacities of 110.7 mAh g−1 (5C) and 84.1 mAh g−1 (10C) after 400 cycles. It could be used in harsh environments and could be stably cycled at subzero temperatures (−10 and −20 °C) and in solid-state electrolyte batteries. Life cycle assessment combined with economic evaluation using the EverBatt model reveals that this direct regeneration approach has high economic and environmental benefits.
Oxide Semiconductor for Advanced Memory Architectures: Atomic Layer Deposition, Key Requirement and Challenges
Oxide semiconductors (OSs), introduced by the Hosono group in the early 2000s, have evolved from display backplane materials to promising candidates for advanced memory and logic devices. The exceptionally low leakage current of OSs and compatibility with three-dimensional (3D) architectures have recently sparked renewed interest in their use in semiconductor applications. This review begins by exploring the unique material properties of OSs, which fundamentally originate from their distinct electronic band structure. Subsequently, we focus on atomic layer deposition (ALD), a core technique for growing excellent OS films, covering both basic and advanced processes compatible with 3D scaling. The basic surface reaction mechanisms—adsorption and reaction—and their roles in film growth are introduced. Furthermore, material design strategies, such as cation selection, crystallinity control, anion doping, and heterostructure engineering, are discussed. We also highlight challenges in memory applications, including contact resistance, hydrogen instability, and lack of p-type materials, and discuss the feasibility of ALD-grown OSs as potential solutions. Lastly, we provide an outlook on the role of ALD-grown OSs in memory technologies. This review bridges material fundamentals and device-level requirements, offering a comprehensive perspective on the potential of ALD-driven OSs for next-generation semiconductor memory devices.
Laser powder bed fusion of biodegradable Zn-4Cu alloy: Processing, microstructure and properties
Zn's natural degradability and biocompatibility make it a promising candidate for implants, however, its mechanical properties remain insufficient for bone applications. In this study, the performance of Zn was enhanced by developing Zn-Cu alloys via laser powder bed fusion (LPBF). Optimal LPBF parameters for forming stable tracks were achieved by adjusting laser power and scanning speed. Under optimized conditions of 100 W and 100 mm/s, high-density (99.58%) Zn-Cu alloys with improved hardness (68.2HV) and yield strength (160 MPa) were achieved. These improvements are attributed to solid solution strengthening, segregation strengthening, and grain refinement. The Zn-Cu alloys also demonstrated favorable degradation behavior, with a rate of 0.16 mm/year. This degradation is primarily driven by micro-galvanic corrosion between the CuZn5 phase and Zn matrix, along with refined grains and increased grain boundary density. This work demonstrates a viable strategy for fabricating Zn-based implants with enhanced structural integrity and mechanical performance via LPBF.
