Key Takeaways & Executive Findings
- •• Hydrogen plasma smelting reduction enables direct stainless steel production from lateritic nickel and chromite ores in a single step, eliminating the need for AOD and VOD converters. • Optimal feed composition of 30wt% chromite ore and 70wt% calcined nickel ore yields AISI 300 stainless steel with Fe, Cr, Ni, and Si contents of 62.95wt%, 19.37wt%, 11.83wt%, and 0.72wt% after 180 seconds. • NiO is fully reduced to Ni within 60 seconds, while FeO is nearly fully reduced to Fe within 120 seconds, demonstrating ultrafast kinetics. • The process significantly reduces CO2 emissions by replacing fossil-based carbon reductants with hydrogen, offering a sustainable alternative for stainless steelmaking.
Abstract

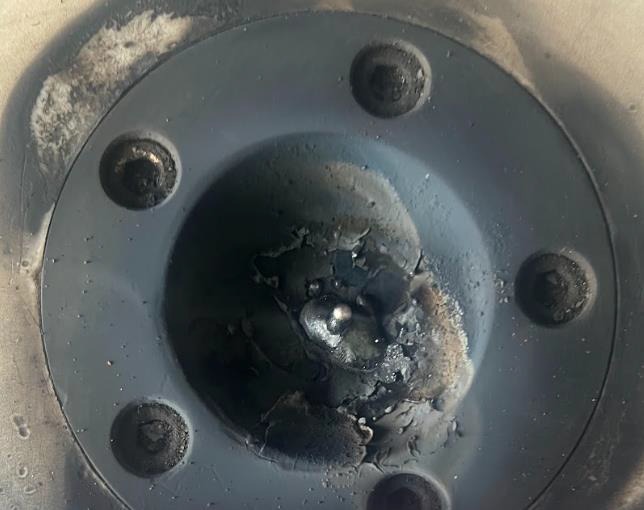

Stainless steel, known for its exceptional properties and diverse applications, conventionally requires a multistage process that generates considerable CO2 emissions by using fossil-based carbon reductants. This study investigated hydrogen plasma smelting reduction as a novel, sustainable, and efficient method for producing stainless steel directly from lateritic nickel and chromite ores. The research aimed to examine the effect of ore proportion on AISI 300 series stainless steel production and assess the reduction process over time through thermochemical calculations and experimental studies. Results showed that increasing the proportion of chromite ore in the feed raises Cr content and reduces Ni content in metals while increasing Cr2O3 and Al2O3 content in oxides. A briquette comprising 30wt% chromite ore and 70wt% calcined nickel ore yields better results for AISI 300 stainless steel, with Fe, Cr, Ni, and Si content of 62.95wt%, 19.37wt%, 11.83wt%, and 0.72wt%, respectively, after 180 s of hydrogen plasma exposure. Nearly all NiO compounds are converted into Ni after 60 s of smelting reduction, whereas FeO compounds are almost fully converted into Fe after 120 s of smelting reduction. AISI 300 series stainless steel is successfully produced after 120 s of reduction, achieving Fe, Cr, Ni, and Si content of 64.36wt%, 21.92wt%, 10.08wt%, and 0.61wt%, respectively. Process optimization remains promising because the Cr2O3 content in the slag is still relatively high at 15.52wt%. This ultrafast and direct production method holds considerable potential to transform stainless steel production by reducing environmental impact and enhancing process efficiency. Specifically, the method eliminates the use of an argon oxygen decarburization converter and vacuum oxygen decarburization in stainless steelmaking.
1. Introduction
Stainless steel is one of the most remarkable materials ever discovered because of its exceptional properties and countless applications [1]. However, stainless steel production involves multiple stages with highly complex operating conditions and technologies that still rely on fossil-based carbon reductants, which generate CO2 emissions. To date, no research has successfully developed a single-stage process for producing green stainless steel directly from ores.
Stainless steel was discovered in the 20th century after the discovery of iron–chromium alloys (ferrochrome) in the 19th century. Early challenges in stainless steelmaking included significant chromium losses during carbon removal. The “rustless process” utilized electric arc furnace (EAF) to melt carbon steel scrap, burned lime, iron ore, and large amounts of expensive low-carbon ferrochrome (LC-FeCr) [2]. A more efficient process emerged in the late 1940s, involving the melting of stainless-steel scrap, high-carbon ferrochrome (HC-FeCr), nickel, and lime, followed by oxygen blowing at 1850–1950°C and the addition of silicon and aluminum for deoxidation. This method offered reduced LC-FeCr consumption and shorter processing times. However, the high-temperature operation leads to the destruction of EAF refractory bricks. Major breakthroughs occurred with vacuum oxygen decarburization (VOD) in the late 1950s [3] and argon–oxygen decarburization (AOD) in 1954 [4], both enabling decarburization with minimal chromium loss. These innovations laid the groundwork for advanced processes like KCB-S, K-BOP, and K-OBM-S [5].
The widely used technology for stainless steel production is EAF–AOD, which is also known as the duplex process. This method utilizes raw materials, such as ferronickel (FeNi), ferrochrome (FeCr), and Fe-scrap. Since 2006, nickel pig iron (NPI), which has a nickel content of 3wt%–12wt%, has been widely used [6]. Two main technologies produce FeNi and NPI from nickel saprolite ore: rotary kiln–electric furnace (RK–EF) and blast furnace. Currently, the RK–EF route dominates global FeNi and NPI production, accounting for up to 95% of worldwide output.
Loading authentic research manuscript (Pages 1–5)...
Abrar Taimullah, Izzul Islam, Dale Tandersen, Ulil Amri Nizhamul, Taufiq Hidayat, Yerbolat Makhambetov, Yopi Hendrawan, Zulfiadi Zulhan (2025). Direct and sustainable stainless steelmaking from nickel and chromite ores by hydrogen plasma smelting reduction. Int. Journal of Minerals, Metallurgy and Materials (矿物冶金与材料学报). https://doi.org/10.1007/s12613-024-3068-4
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is hydrogen plasma smelting reduction?
Hydrogen plasma smelting reduction is a novel single-step process that uses hydrogen plasma to reduce metal oxides directly from ores, producing metals without fossil-based carbon reductants, thereby minimizing CO2 emissions.
How does this method reduce CO2 emissions in stainless steel production?
By replacing carbon-based reductants with hydrogen, the process eliminates CO2 emissions from reduction reactions. Additionally, it bypasses energy-intensive steps like AOD and VOD converters, further reducing the carbon footprint.
What are the optimal ore proportions for producing AISI 300 stainless steel?
A briquette containing 30wt% chromite ore and 70wt% calcined nickel ore yields the best results, achieving Fe, Cr, Ni, and Si contents of 62.95wt%, 19.37wt%, 11.83wt%, and 0.72wt% after 180 seconds of hydrogen plasma exposure.
How fast is the reduction process?
The reduction is ultrafast: NiO is fully converted to Ni within 60 seconds, and FeO is nearly fully converted to Fe within 120 seconds, enabling stainless steel production in as little as 120 seconds.
What is the significance of eliminating AOD and VOD converters?
AOD and VOD converters are traditionally required for decarburization in stainless steelmaking. Eliminating them simplifies the process, reduces energy consumption, and lowers capital and operational costs, making production more sustainable and efficient.
Related Technical Papers & Translations
Direct Repair of the Crystal Structure and Coating Surface of Spent LiFePO4 Materials Enables Superfast Li-Ion Migration
The rapid accumulation of spent LiFePO4 (LFP) cathodes from retired lithium-ion batteries necessitates the development of effective and environmental-friendly recycling strategies. In this context, direct regeneration has emerged as a promising approach for reclaiming LFP cathode materials, offering a streamlined pathway to restore their electrochemical functionality. We report an integrated regeneration protocol that simultaneously repairs the degraded crystal structure and reconstructs the damaged carbon coating in spent LFP. The regenerated cathode material had superfast lithium-ion diffusion kinetics and a stable cathode–electrolyte interface, giving a remarkable rate capability with specific capacities of 122 mAh g−1 at 5C and 106 mAh g−1 at 10C (1C = 170 mA g−1). It also maintained capacities of 110.7 mAh g−1 (5C) and 84.1 mAh g−1 (10C) after 400 cycles. It could be used in harsh environments and could be stably cycled at subzero temperatures (−10 and −20 °C) and in solid-state electrolyte batteries. Life cycle assessment combined with economic evaluation using the EverBatt model reveals that this direct regeneration approach has high economic and environmental benefits.
Oxide Semiconductor for Advanced Memory Architectures: Atomic Layer Deposition, Key Requirement and Challenges
Oxide semiconductors (OSs), introduced by the Hosono group in the early 2000s, have evolved from display backplane materials to promising candidates for advanced memory and logic devices. The exceptionally low leakage current of OSs and compatibility with three-dimensional (3D) architectures have recently sparked renewed interest in their use in semiconductor applications. This review begins by exploring the unique material properties of OSs, which fundamentally originate from their distinct electronic band structure. Subsequently, we focus on atomic layer deposition (ALD), a core technique for growing excellent OS films, covering both basic and advanced processes compatible with 3D scaling. The basic surface reaction mechanisms—adsorption and reaction—and their roles in film growth are introduced. Furthermore, material design strategies, such as cation selection, crystallinity control, anion doping, and heterostructure engineering, are discussed. We also highlight challenges in memory applications, including contact resistance, hydrogen instability, and lack of p-type materials, and discuss the feasibility of ALD-grown OSs as potential solutions. Lastly, we provide an outlook on the role of ALD-grown OSs in memory technologies. This review bridges material fundamentals and device-level requirements, offering a comprehensive perspective on the potential of ALD-driven OSs for next-generation semiconductor memory devices.
Laser powder bed fusion of biodegradable Zn-4Cu alloy: Processing, microstructure and properties
Zn's natural degradability and biocompatibility make it a promising candidate for implants, however, its mechanical properties remain insufficient for bone applications. In this study, the performance of Zn was enhanced by developing Zn-Cu alloys via laser powder bed fusion (LPBF). Optimal LPBF parameters for forming stable tracks were achieved by adjusting laser power and scanning speed. Under optimized conditions of 100 W and 100 mm/s, high-density (99.58%) Zn-Cu alloys with improved hardness (68.2HV) and yield strength (160 MPa) were achieved. These improvements are attributed to solid solution strengthening, segregation strengthening, and grain refinement. The Zn-Cu alloys also demonstrated favorable degradation behavior, with a rate of 0.16 mm/year. This degradation is primarily driven by micro-galvanic corrosion between the CuZn5 phase and Zn matrix, along with refined grains and increased grain boundary density. This work demonstrates a viable strategy for fabricating Zn-based implants with enhanced structural integrity and mechanical performance via LPBF.
