Key Takeaways & Executive Findings
- •• A novel gold leaching reagent synthesized from sodium cyanate, sodium hydroxide, and sodium ferrocyanide achieves high leaching rates (87.56% for roasted gold concentrate, >90% for electronic waste) as a safer alternative to cyanide. • The reagent exhibits excellent selectivity for gold over other metals, reducing co-dissolution and simplifying downstream recovery. • Synthesis conditions (mass ratio 15:3:1, 600°C, 1 h) are optimized, and the effective component is identified as sodium isocyanate. • This development addresses the toxicity and safety concerns of cyanide, offering a promising eco-friendly solution for gold extraction from ores and electronic waste.

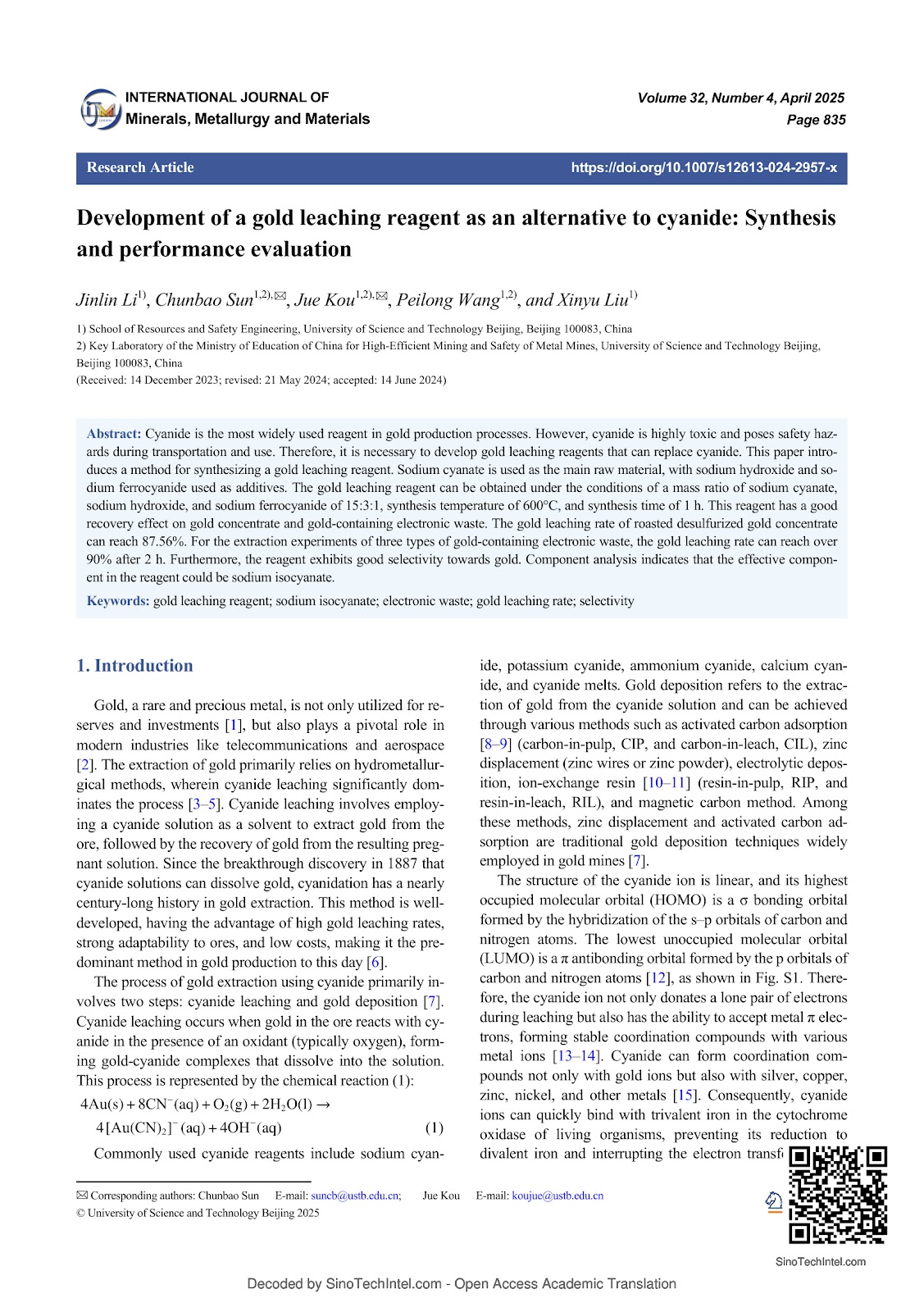

Abstract
Cyanide is the most widely used reagent in gold production processes. However, cyanide is highly toxic and poses safety hazards during transportation and use. Therefore, it is necessary to develop gold leaching reagents that can replace cyanide. This paper introduces a method for synthesizing a gold leaching reagent. Sodium cyanate is used as the main raw material, with sodium hydroxide and sodium ferrocyanide used as additives. The gold leaching reagent can be obtained under the conditions of a mass ratio of sodium cyanate, sodium hydroxide, and sodium ferrocyanide of 15:3:1, synthesis temperature of 600°C, and synthesis time of 1 h. This reagent has a good recovery effect on gold concentrate and gold-containing electronic waste. The gold leaching rate of roasted desulfurized gold concentrate can reach 87.56%. For the extraction experiments of three types of gold-containing electronic waste, the gold leaching rate can reach over 90% after 2 h. Furthermore, the reagent exhibits good selectivity towards gold. Component analysis indicates that the effective component in the reagent could be sodium isocyanate.
1. Introduction
Gold, a rare and precious metal, is not only utilized for reserves and investments [1], but also plays a pivotal role in modern industries like telecommunications and aerospace [2]. The extraction of gold primarily relies on hydrometallurgical methods, wherein cyanide leaching significantly dominates the process [3–5]. Cyanide leaching involves employing a cyanide solution as a solvent to extract gold from the ore, followed by the recovery of gold from the resulting pregnant solution. Since the breakthrough discovery in 1887 that cyanide solutions can dissolve gold, cyanidation has a nearly century-long history in gold extraction. This method is well-developed, having the advantage of high gold leaching rates, strong adaptability to ores, and low costs, making it the predominant method in gold production to this day [6].
The process of gold extraction using cyanide primarily involves two steps: cyanide leaching and gold deposition [7]. Cyanide leaching occurs when gold in the ore reacts with cyanide in the presence of an oxidant (typically oxygen), forming gold-cyanide complexes that dissolve into the solution. This process is represented by the chemical reaction (1): 4Au(s)+8CN−(aq)+O2(g)+2H2O(l) → 4[Au(CN)2]−(aq)+4OH−(aq) (1). Commonly used cyanide reagents include sodium cyanide, potassium cyanide, ammonium cyanide, calcium cyanide, and cyanide melts. Gold deposition refers to the extraction of gold from the cyanide solution and can be achieved through various methods such as activated carbon adsorption [8–9] (carbon-in-pulp, CIP, and carbon-in-leach, CIL), zinc displacement (zinc wires or zinc powder), electrolytic deposition, ion-exchange resin [10–11] (resin-in-pulp, RIP, and resin-in-leach, RIL), and magnetic carbon method. Among these methods, zinc displacement and activated carbon adsorption are traditional gold deposition techniques widely employed in gold mines [7].
The structure of the cyanide ion is linear, and its highest occupied molecular orbital (HOMO) is a σ bonding orbital formed by the hybridization of the s–p orbitals of carbon and nitrogen atoms. The lowest unoccupied molecular orbital (LUMO) is a π antibonding orbital formed by the p orbitals of carbon and nitrogen atoms [12], as shown in Fig. S1. Therefore, the cyanide ion not only donates a lone pair of electrons during leaching but also has the ability to accept metal π electrons, forming stable coordination compounds with various metal ions [13–14]. Cyanide can form coordination compounds not only with gold ions but also with silver, copper, zinc, nickel, and other metals [15]. Consequently, cyanide ions can quickly bind with trivalent iron in the cytochrome oxidase of living organisms, preventing its reduction to divalent iron and interrupting the electron transfer process, leading to cell asphyxiation and respiratory failure, which is the fundamental reason for the high toxicity of cyanide to living organisms [16]. Cyanide is categorized as a highly toxic hazardous chemical. According to literature reports, the lethal dose of sodium cyanide is 1–10 mg/kg [17–19], posing safety risks during use and transportation [20]. Therefore, it is necessary to develop low-toxicity leaching reagents as alternatives.
Loading authentic research manuscript (Pages 1–5)...
Jinlin Li, Chunbao Sun, Jue Kou, Peilong Wang, Xinyu Liu (2025). Development of a gold leaching reagent as an alternative to cyanide: Synthesis and performance evaluation. Int. Journal of Minerals, Metallurgy and Materials (矿物冶金与材料学报). https://doi.org/10.1007/s12613-024-2957-x
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the main purpose of the gold leaching reagent developed in this study?
The reagent is designed as a safer alternative to cyanide for gold leaching, aiming to reduce toxicity and safety hazards while maintaining high leaching efficiency.
What are the key synthesis conditions for the gold leaching reagent?
The reagent is synthesized using sodium cyanate, sodium hydroxide, and sodium ferrocyanide in a mass ratio of 15:3:1, at a temperature of 600°C for 1 hour.
How effective is the reagent in leaching gold from different materials?
It achieves a gold leaching rate of 87.56% for roasted desulfurized gold concentrate and over 90% for three types of gold-containing electronic waste after 2 hours.
What is the effective component responsible for gold leaching?
Component analysis indicates that the effective component in the reagent is likely sodium isocyanate.
Does the reagent show selectivity towards gold?
Yes, the reagent exhibits good selectivity towards gold, which is beneficial for reducing co-dissolution of other metals and simplifying downstream processing.
Related Technical Papers & Translations
Direct Repair of the Crystal Structure and Coating Surface of Spent LiFePO4 Materials Enables Superfast Li-Ion Migration
The rapid accumulation of spent LiFePO4 (LFP) cathodes from retired lithium-ion batteries necessitates the development of effective and environmental-friendly recycling strategies. In this context, direct regeneration has emerged as a promising approach for reclaiming LFP cathode materials, offering a streamlined pathway to restore their electrochemical functionality. We report an integrated regeneration protocol that simultaneously repairs the degraded crystal structure and reconstructs the damaged carbon coating in spent LFP. The regenerated cathode material had superfast lithium-ion diffusion kinetics and a stable cathode–electrolyte interface, giving a remarkable rate capability with specific capacities of 122 mAh g−1 at 5C and 106 mAh g−1 at 10C (1C = 170 mA g−1). It also maintained capacities of 110.7 mAh g−1 (5C) and 84.1 mAh g−1 (10C) after 400 cycles. It could be used in harsh environments and could be stably cycled at subzero temperatures (−10 and −20 °C) and in solid-state electrolyte batteries. Life cycle assessment combined with economic evaluation using the EverBatt model reveals that this direct regeneration approach has high economic and environmental benefits.
Oxide Semiconductor for Advanced Memory Architectures: Atomic Layer Deposition, Key Requirement and Challenges
Oxide semiconductors (OSs), introduced by the Hosono group in the early 2000s, have evolved from display backplane materials to promising candidates for advanced memory and logic devices. The exceptionally low leakage current of OSs and compatibility with three-dimensional (3D) architectures have recently sparked renewed interest in their use in semiconductor applications. This review begins by exploring the unique material properties of OSs, which fundamentally originate from their distinct electronic band structure. Subsequently, we focus on atomic layer deposition (ALD), a core technique for growing excellent OS films, covering both basic and advanced processes compatible with 3D scaling. The basic surface reaction mechanisms—adsorption and reaction—and their roles in film growth are introduced. Furthermore, material design strategies, such as cation selection, crystallinity control, anion doping, and heterostructure engineering, are discussed. We also highlight challenges in memory applications, including contact resistance, hydrogen instability, and lack of p-type materials, and discuss the feasibility of ALD-grown OSs as potential solutions. Lastly, we provide an outlook on the role of ALD-grown OSs in memory technologies. This review bridges material fundamentals and device-level requirements, offering a comprehensive perspective on the potential of ALD-driven OSs for next-generation semiconductor memory devices.
Laser powder bed fusion of biodegradable Zn-4Cu alloy: Processing, microstructure and properties
Zn's natural degradability and biocompatibility make it a promising candidate for implants, however, its mechanical properties remain insufficient for bone applications. In this study, the performance of Zn was enhanced by developing Zn-Cu alloys via laser powder bed fusion (LPBF). Optimal LPBF parameters for forming stable tracks were achieved by adjusting laser power and scanning speed. Under optimized conditions of 100 W and 100 mm/s, high-density (99.58%) Zn-Cu alloys with improved hardness (68.2HV) and yield strength (160 MPa) were achieved. These improvements are attributed to solid solution strengthening, segregation strengthening, and grain refinement. The Zn-Cu alloys also demonstrated favorable degradation behavior, with a rate of 0.16 mm/year. This degradation is primarily driven by micro-galvanic corrosion between the CuZn5 phase and Zn matrix, along with refined grains and increased grain boundary density. This work demonstrates a viable strategy for fabricating Zn-based implants with enhanced structural integrity and mechanical performance via LPBF.
