Key Takeaways & Executive Findings
- •• A novel machine learning strategy integrating GRU recurrent neural network and elastic network model was developed to design counter pressure casting gating systems, achieving high prediction accuracy. • The method eliminates trial-and-error iterations, reducing casting defect volume from 11.23 cm³ to 2.23 cm³ and eliminating internal defects via an internally cooled iron. • Spearman’s correlation analysis and orthogonal experiments ensured high-quality feature selection and dataset construction, enhancing model reliability. • Comparative simulations using EasyCast and ProCAST confirmed steady filling and top-down sequential solidification, validating the intelligent gating system design.
Abstract

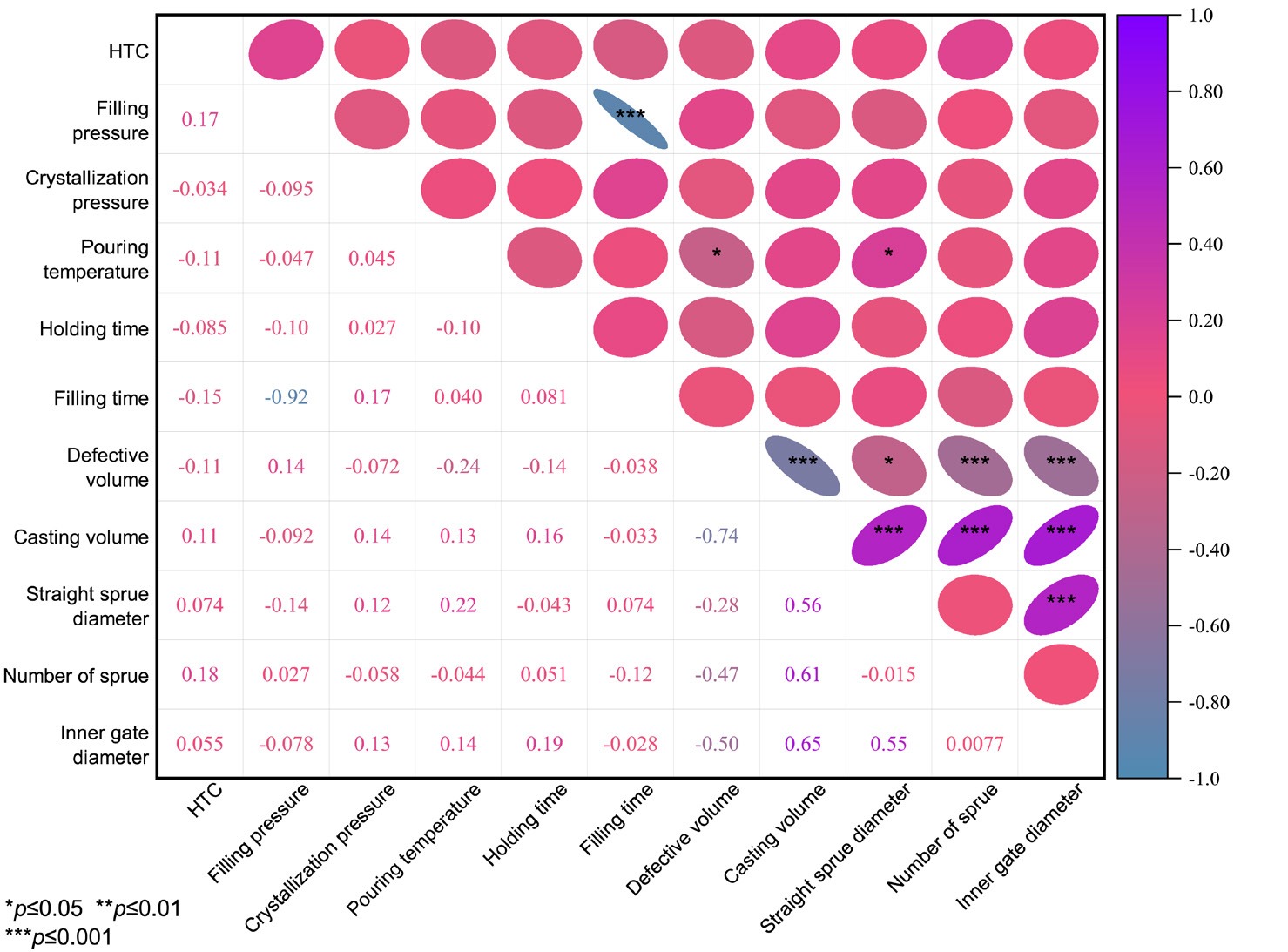

The design of casting gating system directly determines the solidification sequence, defect severity, and overall quality of the casting. A novel machine learning strategy was developed to design the counter pressure casting gating system of a large thin-walled cabin casting. A high-quality dataset was established through orthogonal experiments combined with design criteria for the gating system. Spearman’s correlation analysis was used to select high-quality features. The gating system dimensions were predicted using a gated recurrent unit (GRU) recurrent neural network and an elastic network model. Using EasyCast and ProCAST casting software, a comparative analysis of the flow field, temperature field, and solidification field can be conducted to demonstrate the achievement of steady filling and top-down sequential solidification. Compared to the empirical formula method, this method eliminates trial-and-error iterations, reduces porosity, reduces casting defect volume from 11.23 cubic centimeters to 2.23 cubic centimeters, eliminates internal casting defects through the incorporation of an internally cooled iron, fulfilling the goal of intelligent gating system design.
1. Introduction
Counter pressure casting, a type of anti-gravity casting, plays a critical role in diverse industrial sectors, particularly in aviation, defense, and railway manufacturing [1-2]. The casting process involves two primary stages: mold filling with molten metal and subsequent solidification. Inadequate design of the gating system or improper pouring methods can lead to severe defects, significantly compromising casting quality. These defects may include shrinkage cavities, porosity, and cold shuts [3-9].
Current mainstream research utilizes empirical formulas to determine gating system dimensions in conjunction with computer numerical simulations to optimize process parameters and predict potential defects. This approach seeks to establish optimal process plans and reduce casting production costs [10-11]. Jiang et al. [12] developed three optimized gating system designs based on trial production results of a support component. They further refined the gating system parameters through numerical simulations, ultimately determining the optimal pouring process that was subsequently validated in actual production. Wang et al. [13] designed a combination of bottom injection and slit gating system for low-pressure casting of aluminum alloy thin-walled shells, employing numerical simulation and other means to optimize the casting process parameters. The results showed that the optimized aluminum alloy thin-walled shells were free of shrinkage and porosity defects and the mechanical properties of the castings were significantly improved. Andrzej et al. [14] improved an existing gating system using MAGMAsoft software for casting process simulation. This approach enabled optimization of process parameters, which were subsequently validated through experiments, demonstrating their suitability for industrial production.
To meet the demands of industrial production, counter pressure casting processes require high precision, high efficiency, and intelligent design [15]. However, the traditional approach of iteratively modifying the gating system to eliminate potential casting defects often results in inefficient trial-and-error cycles [16]. Furthermore, traditional empirical formula methods fail to adequately address the design of straight sprue diameter dimensions in slit gating system for counter pressure casting [17-19]. The basic concept of material genetic engineering is to change the traditional “trial-and-error” research mode. Instead, it aims to develop a new R&D paradigm that deeply integrates “rational design”, “efficient experimentation”, and “big data technology”, along with collaborative innovation [20]. Building upon this concept, the integration of domain-specific material knowledge with machine learning techniques enables the construction of data-driven models. These models, incorporating big data analysis, design, and prediction capabilities, offer innovative approaches to gating system design.
Loading authentic research manuscript (Pages 1–5)...
Xiao-long Zhang, Hua Hou, Xiao-long Pei, Zhi-qiang Duan, Yu-hong Zhao (2025). Designing the counter pressure casting gating system for a large thin-walled cabin by machine learning. China Foundry. https://doi.org/10.1007/s41230-025-4177-z
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the main contribution of this paper?
The paper presents a novel machine learning strategy for designing counter pressure casting gating systems, which eliminates trial-and-error iterations and significantly reduces casting defects, achieving intelligent gating system design.
How does the proposed method compare to traditional empirical formula methods?
The proposed method uses machine learning models (GRU and elastic network) to predict gating system dimensions, reducing defect volume from 11.23 cm³ to 2.23 cm³ and eliminating internal defects, whereas traditional methods rely on iterative trial-and-error.
What are the key techniques used in the study?
Key techniques include orthogonal experiments for dataset construction, Spearman's correlation analysis for feature selection, GRU recurrent neural network and elastic network for prediction, and EasyCast/ProCAST simulations for validation.
What is the significance of the internally cooled iron?
The incorporation of an internally cooled iron helps eliminate internal casting defects, contributing to the overall reduction in defect volume and improved casting quality.
What are the potential applications of this research?
The research can be applied to intelligent design of gating systems for large thin-walled castings in industries such as aviation, defense, and railway manufacturing, enhancing efficiency and quality.
