Key Takeaways & Executive Findings
- •• A novel deep learning retrieval method integrates process design features (modulus, wall thickness, symmetry, length-to-height ratio) with CLIP-based shape features, significantly improving process reuse. • Incorporating process design features boosts retrieval accuracy by 6.09% to 97.82% and increases process similarity by 30.25% on a database of 230 production casting models. • The retrieved process, validated via EasyCast simulation, yields minimal shrinkage in the target model, demonstrating superior process reuse capability. • The method requires no large training dataset, making it highly applicable to casting process design and related manufacturing.
Abstract

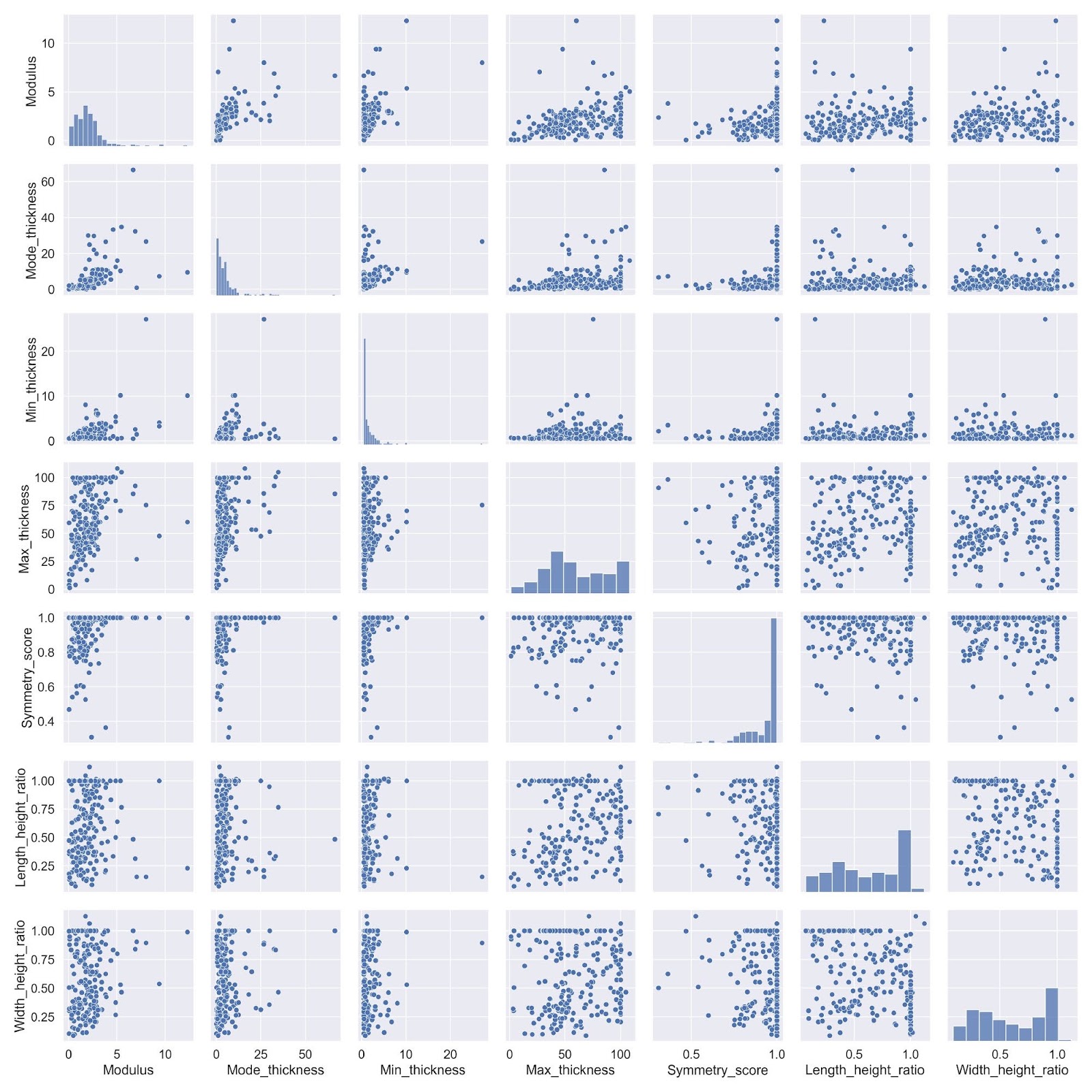

Accurate retrieval of casting 3D models is crucial for process reuse. Current methods primarily focus on shape similarity, neglecting process design features, which compromises reusability. In this study, a novel deep learning retrieval method for process reuse was proposed, which integrates process design features into the retrieval of casting 3D models. This method leverages the comparative language-image pretraining (CLIP) model to extract shape features from the three views and sectional views of the casting model and combines them with process design features such as modulus, main wall thickness, symmetry, and length-to-height ratio to enhance process reusability. A database of 230 production casting models was established for model validation. Results indicate that incorporating process design features improves model accuracy by 6.09%, reaching 97.82%, and increases process similarity by 30.25%. The reusability of the process was further verified using the casting simulation software EasyCast. The results show that the process retrieved after integrating process design features produces the least shrinkage in the target model, demonstrating this method’s superior ability for process reuse. This approach does not require a large dataset for training and optimization, making it highly applicable to casting process design and related manufacturing processes.
1. Introduction
Casting is crucial in industries such as aviation, aerospace, transportation, and shipbuilding, supporting the innovation of numerous products and high-end equipment. Typical castings, such as satellite brackets, missile shells, engine casings, and aerospace engine blades, feature complex structures like irregular surfaces, internal channels, and structural holes, making process design highly challenging and time-consuming.
In industrial manufacturing, over 75% of product designs are based on case studies [1]. Reusing and refining mature processes from existing products can significantly shorten production cycles. However, current process reuse relies on manual retrieval of casting process cards, which is inefficient and dependent on experience [2]. With the advancement of Industry 4.0 and digital intelligent manufacturing [3, 4], 3D model-based process design is widely adopted in casting enterprises [5]. Thus, accurate retrieval of 3D models is essential for effective process reuse.
Loading authentic research manuscript (Pages 1–5)...
Xiao-long Pei, Hua Hou, Li-wen Chen, Zhi-qiang Duan, Yu-hong Zhao (2025). Deep learning retrieval of 3D casting models combined with professional knowledge for process reuse. China Foundry. https://doi.org/10.1007/s41230-025-4145-7
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the main contribution of this paper?
The paper proposes a novel deep learning retrieval method that integrates process design features with shape features extracted by CLIP, significantly improving the accuracy and reusability of casting 3D model retrieval for process reuse.
How does the method improve retrieval accuracy?
By incorporating process design features such as modulus, main wall thickness, symmetry, and length-to-height ratio, the method achieves a 6.09% improvement in accuracy (reaching 97.82%) and a 30.25% increase in process similarity compared to shape-only methods.
What dataset was used for validation?
A database of 230 production casting models was established to validate the proposed method.
How was process reusability verified?
The reusability was verified using the casting simulation software EasyCast, showing that the process retrieved with integrated process design features produces the least shrinkage in the target model.
Does the method require a large training dataset?
No, the method does not require a large dataset for training and optimization, making it highly applicable to casting process design and related manufacturing processes.
