Key Takeaways & Executive Findings
- •• Uniaxial compressive strength and elastic modulus increase with loading rate, with a maximum strength increase of 25.15%. • Failure modes are classified into 'slip-crack synchronization' and 'crack-first-then-slip' types, with slip more severe at high loading rates. • Shear cracks dominate at low loading rates (60.01%), while tensile cracks dominate at high loading rates (70.52%). • Total and dissipated energy peaks increase with loading rate, with C & S type exhibiting higher peak energy than S & C type.
Abstract

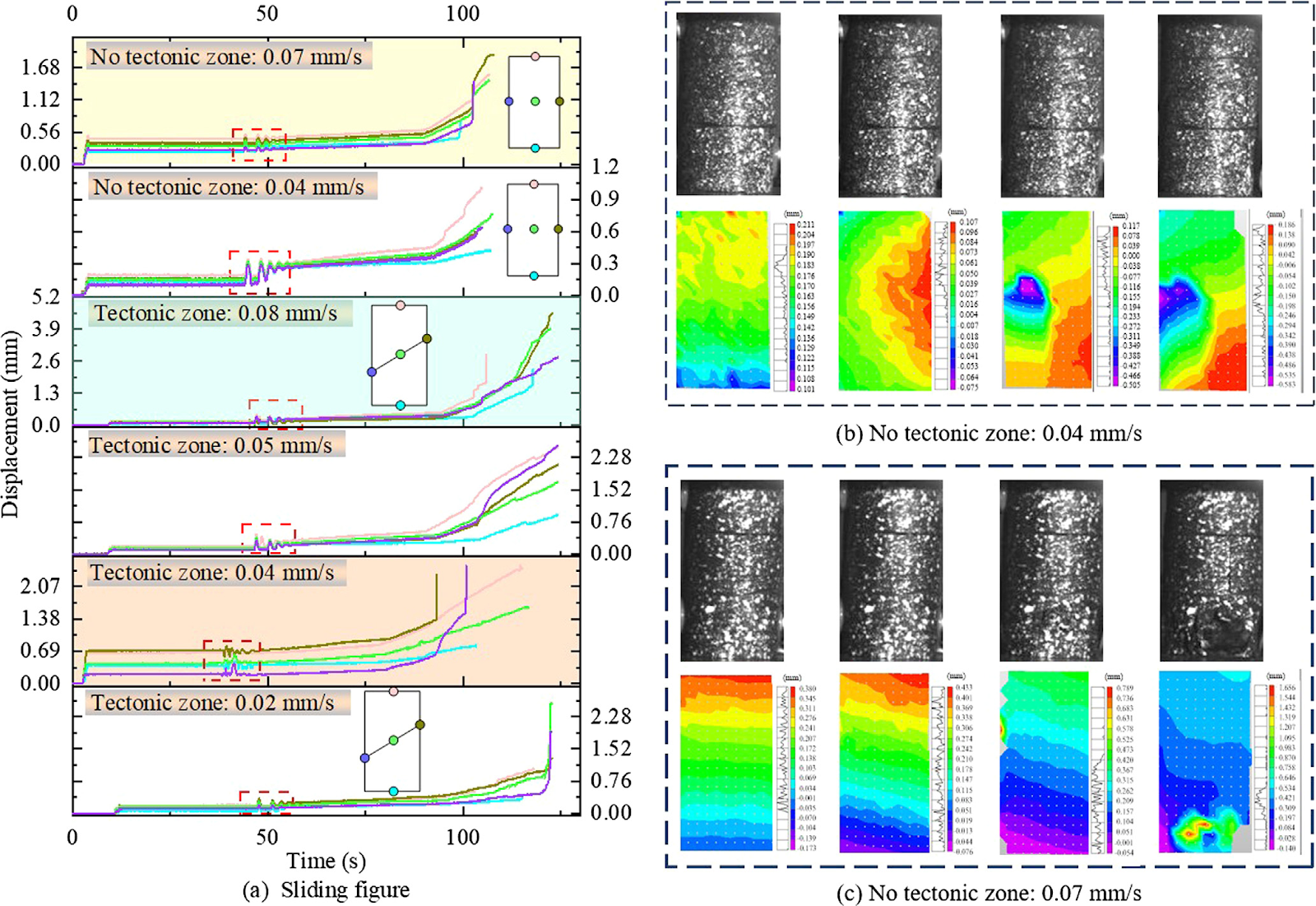

The geological tectonic zone is closely related to outburst. Taking the outburst coal bodies in tectonic zones as the research object, combined with DIC and AE monitoring technologies and discrete element simulation, the mechanical response, crack evolution and energy characteristics of coal bodies under different loading rates (impact disturbances) were studied. The results show that both the uniaxial compressive strength and elastic modulus are positively correlated with the loading rate, with a maximum increase in compressive strength of 25.15%. The uniaxial compressive strength is more sensitive to impact disturbances. The failure modes of coal bodies can be divided into the ''slip-crack synchronization (S & C) type'' and the ''crack-first-then-slip (C & S) type''. The slip in tectonic zones is more severe at high loading rates. At low loading rates, shear cracks dominate (60.01%), while the proportion of tensile cracks increases significantly (70.52%) at high loading rates. Additionally, the rate of axial crack growth decreases as the loading rate increases. The peak values of total energy and dissipated energy increase significantly with the loading rate, and the peak energy of the C & S type is greater than that of the S & C type. Energy is preferentially released through the slip of tectonic zones and the propagation of radial cracks.
1. Introduction
Coal is the primary energy source in China, which plays the role of ''ballast stone'' in the energy system and plays the role of energy security [1,2]. As a complex phenomenon of dynamic instability, outbursts pose a significant threat to the safe operation of coal mines and the stable supply of coal [3–5]. Since the outburst accident at the Isaac coal mine in the Loire coalfield of France in 1834, scholars have conducted a series of studies on the mechanisms, causes, phenomena, and prevention measures related to outbursts, achieving remarkable results. Through numerous cases of outbursts, it has been observed that these accidents predominantly occur in geological tectonic zones [6,7].
On March 25, 2021, a significant outburst accident occurred at the 15210 intake airflow roadway excavation face of Shanxi Shigang Coal Industry Co., Ltd., resulting in four fatalities. The direct cause of the accident was attributed to several factors: small faults in the 15210 intake airflow roadway excavation face, the development of tectonic coal, the superposition of multiple stresses, a short pre-pumping time for the project, substandard gas extraction, and the comprehensive excavator, which collectively induced the occurrence of an outburst. On April 28, 2006, an outburst accident occurred in the coal excavation roadway of the reverse upward slope in the second cross-cut at the −70 m level of the Pingshilong Coal Mine, located in Tianxin Township, Jiahe County, Chenzhou City. The incident resulted in the deaths of three individuals. The reasons for the accident are as follows: The geological structure of the mine is primarily characterized by folds, accompanied by faults. The main coal-mining seam, Seam VI, poses a significant risk of outburst. The exposed Seam VI unexpectedly thickened to 7 m with a dip angle of 110°, resulting in the formation of a coal bulge. Additionally, the roof and floor of the seam consist of carbon mudstone and sandy mudstone interbedded with silty sandstone, which exhibit excellent closure properties. Furthermore, the coal seam possesses a high gas-bearing capacity. The outburst was triggered by the superimposition of illegal blasting activities.
Loading authentic research manuscript (Pages 1–5)...
Lingran Ren, Liping Li, Jupeng Tang, Yishan Pan, Song Yang, Xin Zhang (2025). Damage and fracture law of outburst coal bodies in tectonic zones under impact disturbances. SinoTechIntel Verified Research. https://doi.org/10.1016/j.ijmst.2025.08.002
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the main objective of this study?
The study investigates the mechanical response, crack evolution, and energy characteristics of outburst coal bodies in tectonic zones under different loading rates (impact disturbances) using DIC, AE monitoring, and discrete element simulation.
How does loading rate affect the mechanical properties of coal?
Both uniaxial compressive strength and elastic modulus increase with loading rate, with a maximum increase in compressive strength of 25.15%. The uniaxial compressive strength is more sensitive to impact disturbances.
What are the failure modes of coal under impact disturbances?
The failure modes are classified into 'slip-crack synchronization (S & C) type' and 'crack-first-then-slip (C & S) type'. Slip in tectonic zones is more severe at high loading rates.
How does loading rate influence crack types?
At low loading rates, shear cracks dominate (60.01%), while at high loading rates, tensile cracks increase significantly to 70.52%. The rate of axial crack growth decreases as loading rate increases.
What is the energy release pattern in coal under impact?
Peak total and dissipated energy increase significantly with loading rate, with C & S type showing greater peak energy than S & C type. Energy is preferentially released through slip of tectonic zones and propagation of radial cracks.
