Key Takeaways & Executive Findings
- •• Core–shell IrPt nanoalloy on La/Ni–Co3O4 achieves unprecedented bifunctional activity (2 A cm−2 at 1.72 V) in PEMWE with ultralow loadings (0.075 mg cm−2 Ir/Pt at both electrodes). • 646-h durability in PEMWE cell (5 μV h−1 decay) via IrPt-core@IrPtOx-shell synergy, hierarchical pores, and oxygen vacancies for robust electron/mass transfer and active-site stability. • In situ X-ray absorption spectroscopy combined with density functional theory unveils Ir–O–Pt sites enabling bi-nuclear oxygen evolution reaction and Volmer–Tafel hydrogen evolution reaction mechanisms through optimized Ir/Pt charge redistribution, breaking kinetic limitations. • This work provides a cost-effective solution for green hydrogen production and advances the design of high-performance bifunctional catalysts for PEMWE.
Abstract

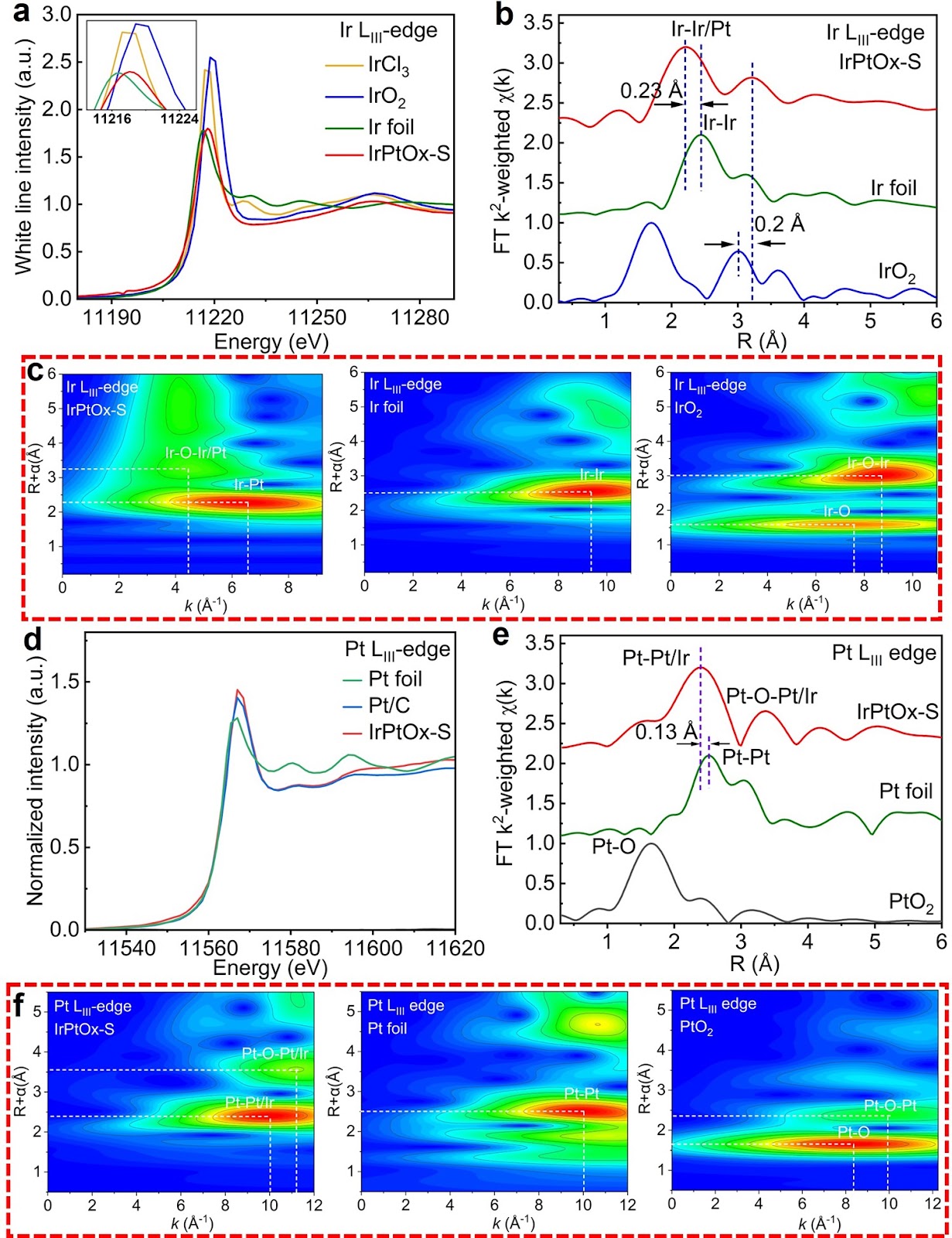

The development of highly efficient and durable bifunctional catalysts with minimal precious metal usage is critical for advancing proton exchange membrane water electrolysis (PEMWE). We present an iridium–platinum nanoalloy (IrPt) supported on lanthanum and nickel co-doped cobalt oxide, featuring a core–shell architecture with an amorphous IrPtOx shell and an IrPt core. This catalyst exhibits exceptional bifunctional activity for oxygen and hydrogen evolution reactions in acidic media, achieving 2 A cm−2 at 1.72 V in a PEMWE device with ultralow loadings of 0.075 mgIr cm−2 and 0.075 mgPt cm−2 at anode and cathode, respectively. It demonstrates outstanding durability, sustaining water splitting for over 646 h with a degradation rate of only 5 μV h−1, outperforming state-of-the-art Ir-based catalysts. In situ X-ray absorption spectroscopy and density functional theory simulations reveal that the optimized charge redistribution between Ir and Pt, along with the IrPt core–IrPtOx shell structure, enhances performance. The Ir–O–Pt active sites enable a bi-nuclear mechanism for oxygen evolution reaction and a Volmer–Tafel mechanism for hydrogen evolution reaction, reducing kinetic barriers. Hierarchical porosity, abundant oxygen vacancies, and a high electrochemical surface area further improve electron and mass transfer. This work offers a cost-effective solution for green hydrogen production and advances the design of high-performance bifunctional catalysts for PEMWE.
1. Introduction
The transition to a sustainable energy future hinges on the development of efficient technologies for green hydrogen production, with proton exchange membrane water electrolysis (PEMWE) emerging as a leading candidate [1]. PEMWE offers a promising pathway to convert and store renewable energy, addressing the global energy crisis and advancing carbon neutrality goals [2–6]. However, the widespread adoption of PEMWE is hindered by the reliance on precious group metals (PGMs), such as platinum (Pt) and iridium (Ir), which are scarce, expensive, and subject to supply chain constraints [7]. Currently, Pt and Ir remain the materials of choice for the hydrogen evolution reaction (HER) and oxygen evolution reaction (OER), respectively, due to their optimal balance of electrocatalytic activity and durability under the harsh acidic and corrosive conditions of PEMWE [8]. Nevertheless, typical Pt loadings at the cathode (~0.4 mg cm−2) and Ir loadings at the anode (2–4 mg cm−2) far exceed the U.S. Department of Energy (DOE) 2026 target of reducing total PGM loading to <0.5 mg cm−2 without compromising performance [9, 10].
The development of bifunctional catalysts capable of catalyzing both OER and HER has gained significant attention, as they simplify electrode manufacturing and reduce costs [11–15]. However, designing such catalysts with significantly reduced PGM loadings while maintaining high activity and stability remains a formidable challenge, particularly under the extreme chemical and electrochemical conditions of PEMWE [16, 17]. While Pt is the most effective HER catalyst, it performs poorly
Loading authentic research manuscript (Pages 1–5)...
Yifei Liu, Xinmeng Er, Xinyao Wang, Hangxing Ren, Wenchao Wang, Feng Cao, Taiyan Zhang, Pan Liu, Yakun Yuan, Fangbo Yu, Yang Ren, Fuqiang Huang, Wenjiang Ding, Lina Chong (2025). Core–Shell IrPt Nanoalloy on La/Ni–Co3O4 for High-Performance Bifunctional PEM Electrolysis with Ultralow Noble Metal Loading. Nano-Micro Letters. https://doi.org/10.1007/s40820-025-01845-7
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the main achievement of this study?
The study presents a core-shell IrPt nanoalloy on La/Ni-Co3O4 that achieves high-performance bifunctional PEM electrolysis with ultralow noble metal loadings (0.075 mg cm−2 Ir/Pt at both electrodes), reaching 2 A cm−2 at 1.72 V and sustaining over 646 hours with only 5 μV h−1 degradation.
How does the catalyst achieve high activity and durability?
The catalyst's core-shell structure (IrPt core with amorphous IrPtOx shell), hierarchical porosity, oxygen vacancies, and optimized charge redistribution between Ir and Pt enhance electron/mass transfer and active-site stability, enabling efficient bi-nuclear OER and Volmer-Tafel HER mechanisms.
What is the significance of the ultralow noble metal loading?
The ultralow loading (0.075 mg cm−2 Ir and Pt) significantly reduces the cost of PEM electrolyzers, addressing the DOE 2026 target of total PGM loading <0.5 mg cm−2, making green hydrogen production more economically viable.
What methods were used to investigate the catalyst?
The researchers used in situ X-ray absorption spectroscopy (XAS) and density functional theory (DFT) simulations to reveal the Ir–O–Pt active sites and the reaction mechanisms, along with electrochemical testing in a PEMWE device.
What are the practical implications of this work?
This work offers a cost-effective solution for green hydrogen production by reducing reliance on scarce and expensive precious metals, and provides a design strategy for high-performance bifunctional catalysts for PEMWE.
Related Technical Papers & Translations
Pull-out capacity and energy absorption of cable bolts under impact loading
This study investigates the performance of high-strength cable bolts under impact loading conditions representative of rock bursts in underground environments. Although widely used, the dynamic behaviour of these cable bolts has received limited experimental attention, and their effectiveness in seismically active zones remains a subject of ongoing debate. To address this gap, a reverse pull-out test machine integrated with a drop hammer rig was employed. Tests were conducted on 70-t SUMO bulbed and non-bulbed cable bolts with encapsulation lengths of 300 and 450 mm, subjected to an impact energy of 14.52 kJ. Results indicate that non-bulbed cables, despite showing lower initial peak loads (average 218 vs. 328 kN for bulbed cables at 300 mm encapsulation), demonstrated superior energy absorption (average 11.26 vs. 8.75 kJ) and displacement capacity (average 48.40 vs. 36.25 mm). Increasing the encapsulation length for bulbed cables led to a reduction in initial peak load but improved displacement and energy absorption. The dominant failure mechanism was debonding at the cable-grout interface, characterised by frictional sliding and cable rotation. These findings provide new insights into the energy dissipation mechanisms of cables and support the development of more resilient ground support systems for dynamically active conditions.
Effect of eutectic content on microstructure and mechanical properties of Al-Zn-Mg-Cu alloys
The 7xxx series aluminum alloys have emerged as a particularly promising class of lightweight structural materials. However, the inherent strength of these materials is primarily influenced by the content and type of alloying elements added during the manufacturing process, as well as casting defects. The present study investigated the effects of eutectics formed by solute atoms (Zn, Mg, and Cu), with equal mass ratios (Zn/Mg=2, Mg/Cu=3) but varying overall contents, on the liquid film thickness, crack propagation depth, and the mechanical properties of the Al-Zn-Mg-Cu alloy after heat treatment. The results from gravity casting indicate that the intergranular liquid film thickness increases with the increase of eutectic content. A thick intergranular liquid film in the casting can accommodate greater strain during grain contraction, thereby preventing liquid film rupture and subsequent hot tearing. Concurrently, during the solution treatment at 475 °C, the residual eutectic fraction in the Al-7Zn-3.5Mg-1.18Cu alloy diminishes from 9.1% at 10 h to 0.35% at 40 h. At 165 °C, the Al-6Zn-3.0Mg-1.0Cu alloy exhibits the optimal mechanical properties, with a peak aging tensile strength of 510 MPa and an elongation of 6.4%. The incorporation of lower concentrations of solute atoms (Zn, Mg, and Cu) serves to reduce the barrier to dislocation precipitation, thereby enhancing alloy plasticity. However, when the proportion of alloying elements exceeds the solubility limit of the α-Al matrix at specific heat treatment temperatures, coarse residual phases remain intergranular, thereby significantly impairing the mechanical properties of the alloy. This study provides a reference for the optimal addition level of the main strengthening elements in Al‑Zn‑Mg‑Cu alloys.
Achieving optimal strength-conductivity balance in cast Al-2.3Fe-Mg-Si alloys via Mg/Si ratio regulation
The Al-2.3Fe eutectic alloy is regarded as a promising substitute for Cu conductors in automotive motors owing to its excellent castability and low resistivity. However, its application is restricted by the mutually exclusive relationship between electrical conductivity and mechanical strength. The microstructure and mechanical properties of Al-2.3Fe alloy were modified through Mg/Si alloying combined with T6 heat treatment in this work, leading to the development of a high-performance cast Al-2.3Fe-Mg-Si alloy. In the Al-2.3Fe-0.40Mg-0.72Si (Mg/Si=0.56) alloy subjected to T6 treatment, an electrical conductivity of (52.5±0.6)% IACS is achieved, while the ultimate tensile strength is significantly enhanced to 309.5±5.6 MPa. The addition of Mg and Si brings about marked changes in the solidification process of the Al-2.3Fe alloy, resulting in considerable variations in both the morphology of the second phase and its phase constitution. The aging behavior of the alloy is governed by second phase and solid solubility. Through optimization of the Mg/Si ratio, the aging response can be effectively enhanced. At the ratio of Mg/Si=0.56, a balance is achieved between solid solubility and precipitation, while simultaneously minimizing the detrimental impact on electrical conductivity and reaching the best mechanical properties and electrical conductivity in peak-aged Al-2.3Fe-xMg-ySi alloy. This work providing valuable insights for developing advanced conductor materials.
