Key Takeaways & Executive Findings
- •• Ceramic shot sleeves and higher slow shot speeds significantly reduce porosity and externally solidified crystals (ESCs) in HPDC Al-Si alloys. • Increasing slow shot speed from 0.05 to 0.1 m/s reduces pore volume fraction by 67.1% in ceramic-shot-sleeve samples versus 10.2% in steel-shot-sleeve samples. • At 0.1 m/s slow shot speed, ceramic shot sleeve castings show 8.3% higher yield strength, 17.4% higher tensile strength, and 81.4% higher elongation than steel shot sleeve. • The findings offer practical guidance for minimizing defects and enhancing mechanical properties in automotive die-cast components.
Abstract
The effects of the high pressure die casting (HPDC) processes on porosity, microstructure, and mechanical properties of heat-treatment-free aluminum silicon (Al-Si) alloys have long been a focal point in automotive die-casting research. In this work, the combined effect of shot sleeve materials and slow shot speeds on porosity, microstructure and mechanical properties of a newly designed HPDC Al-Si alloy was investigated. Results show that employing a ceramic shot sleeve or increasing the slow shot speed significantly reduces both the average size and area fraction of externally solidified crystals (ESCs), as well as the average pore size and volume fraction. When the slow shot speed is increased from 0.05 m·s-1 to 0.1 m·s-1, the pore volume fraction decreases by 10.2% in steel-shot-sleeve samples, compared to a substantial 67.1% reduction in ceramic-shot-sleeve samples. At a slow shot speed of 0.1 m·s-1, castings produced with a ceramic shot sleeve exhibit superior mechanical properties: 8.3% higher yield strength, 17.4% greater tensile strength, and an 81.4% improvement in elongation, relative to those from a steel shot sleeve. These findings provide valuable insights for minimizing porosity and coarse ESCs in die castings, offering promising potential for broader industrial applications.
1. Introduction
As energy consumption and environmental issues grow more pressing, energy-saving and environmental protection have emerged as top priorities for automobile manufacturers [1-3]. Automobile lightweighting is a long-established effective approach to cut emissions in the automotive sector. Statistics show that a 10% reduction in vehicle body weight can slash fuel consumption by about 7%, bringing significant environmental benefits [4,5]. Aluminum alloys, featuring low density, excellent corrosion resistance, and high specific strength, meet the requirements for automotive lightweighting [6]. Aluminum alloys have emerged as crucial alternatives to traditional steels in the automotive industry [7,8].
High pressure die casting (HPDC) is an environmentally friendly metal casting process characterized by the rapid injection of molten metal from the shot sleeve into the mold under high pressure [9]. It combines high production efficiency with high accuracy casting dimensions and excellent surface quality [10,11]. However, due to its high-speed filling characteristics, there are many defects in the HPDC workpieces. A major shortcoming of HPDC is the formation of numerous pores [12]. Li et al. [13] used X-ray tomography to characterize the porosity of AM60B alloy and they found gas-shrinkage pore and net-shrinkage are the main crack sources which promote the crack propagation along the boundary of externally solidified crystals (ESCs). Liu et al. [14] studied the effects of porosity distribution and maximum pore volume on the tensile properties of HPDC Al-Si-Mn-Mg alloy, and it concluded that the pore with the largest volume in the sample was the main factor affecting the ductility. Yang et al. [15] studied the effect of porosity on the mechanical properties of HPDC Al-7Si-0.2Mg thin-plates and the results showed that porosity had a significant effect on the elongation of the alloy. In addition, ESCs are also non-negligible defects in HPDC aluminum alloys. ESCs are formed in the shot sleeve, which is a kind of coarse primary phase. In our previous work [16], it is found the coarse ESCs promoted the formation of pores and reduced the mechanical properties of the material. Zheng et al. [17] studied the synergistic effect of ESCs and iron-rich phases on the fracture behavior of HPDC Al-8Si-0.4Mg-2Zn alloy using in-situ tensile test. The results revealed that the localized stress concentration during tensile test was significantly depended on the characteristics of ESCs and iron-rich phases. The crack preferentially initiated in the area where the fine iron-rich phase was surrounded by the clustered ESCs. Zhang et al. [18] studied the effect of porosity characteristics on the mechanical properties of HPDC AlSi7MgMn alloy. The morphology and 3D distribution of pores in tensile samples were characterized by micro-c...

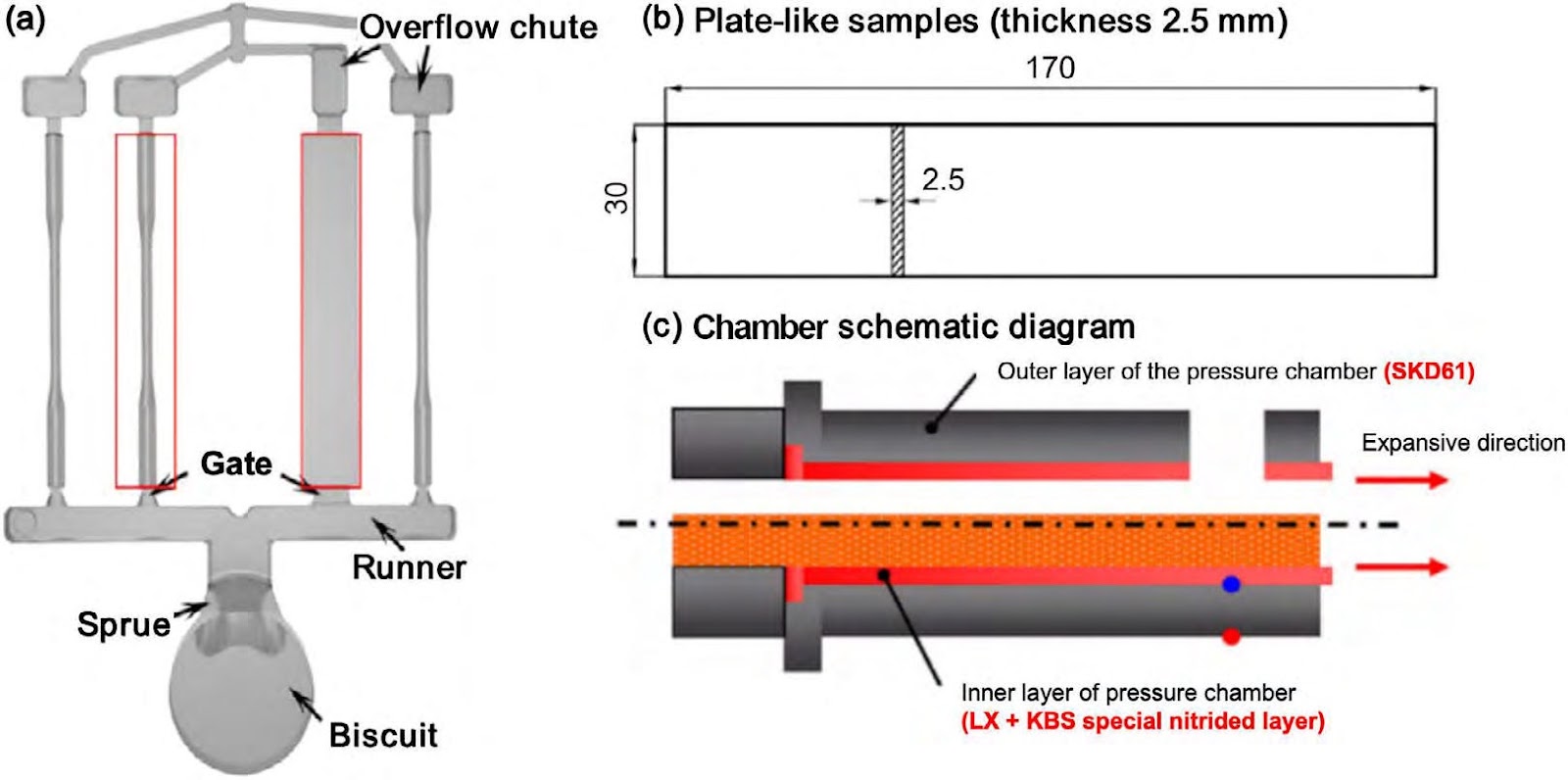

Loading authentic research manuscript (Pages 1–5)...
Yi-hui Zhang, Xiang-yi Jiao, Peng-yue Wang, Yi-xian Liu, Jin-rui Wang, Wen-ning Liu, Li-jun Shi, Cheng-gang Wang, Shou-mei Xiong (2026). Controlling externally solidified crystals and porosity for enhancing mechanical properties of a die-casting aluminum-silicon alloy. China Foundry. https://doi.org/10.1007/s41230-025-4147-5
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the effect of shot sleeve material on porosity in HPDC Al-Si alloys?
Using a ceramic shot sleeve significantly reduces both the average pore size and volume fraction compared to a steel shot sleeve, especially at higher slow shot speeds. For example, at a slow shot speed of 0.1 m/s, the pore volume fraction decreases by 67.1% in ceramic-shot-sleeve samples versus 10.2% in steel-shot-sleeve samples.
How does slow shot speed influence externally solidified crystals (ESCs)?
Increasing the slow shot speed from 0.05 m/s to 0.1 m/s reduces both the average size and area fraction of ESCs. This reduction is more pronounced when using a ceramic shot sleeve, leading to improved mechanical properties.
What are the mechanical property improvements observed with ceramic shot sleeves?
At a slow shot speed of 0.1 m/s, castings produced with a ceramic shot sleeve exhibit 8.3% higher yield strength, 17.4% greater tensile strength, and an 81.4% improvement in elongation compared to those from a steel shot sleeve.
Why are ESCs and porosity considered defects in HPDC aluminum alloys?
ESCs are coarse primary phases formed in the shot sleeve that promote pore formation and reduce mechanical properties. Porosity, especially large pores, significantly affects ductility and can lead to crack initiation and propagation, compromising the structural integrity of die-cast components.
What is the significance of this research for industrial applications?
The findings provide practical insights for minimizing porosity and coarse ESCs in die castings, which can enhance the mechanical properties and reliability of automotive components, contributing to lightweighting and improved fuel efficiency.
