Key Takeaways & Executive Findings
- •• Ni doping at A-site (Sm1−xNixCrO3) significantly enhances low-temperature magnetic properties, with Sm0.80Ni0.20CrO3 showing up to 93.5% increase in field-cooling magnetization at 100 Oe. • A-site Ni doping outperforms B-site doping at equivalent ratios, yielding higher magnetization, lower dielectric loss, and improved electrical quality factors. • All Ni-doped ceramics retain orthorhombic Pbnm structure, and Ni ions exist as Ni2+ as confirmed by XPS. • The study provides a structure-activity relationship for optimizing magnetic and dielectric properties in SmCrO3-based ceramics for potential applications in electronic and spintronic devices.
Abstract

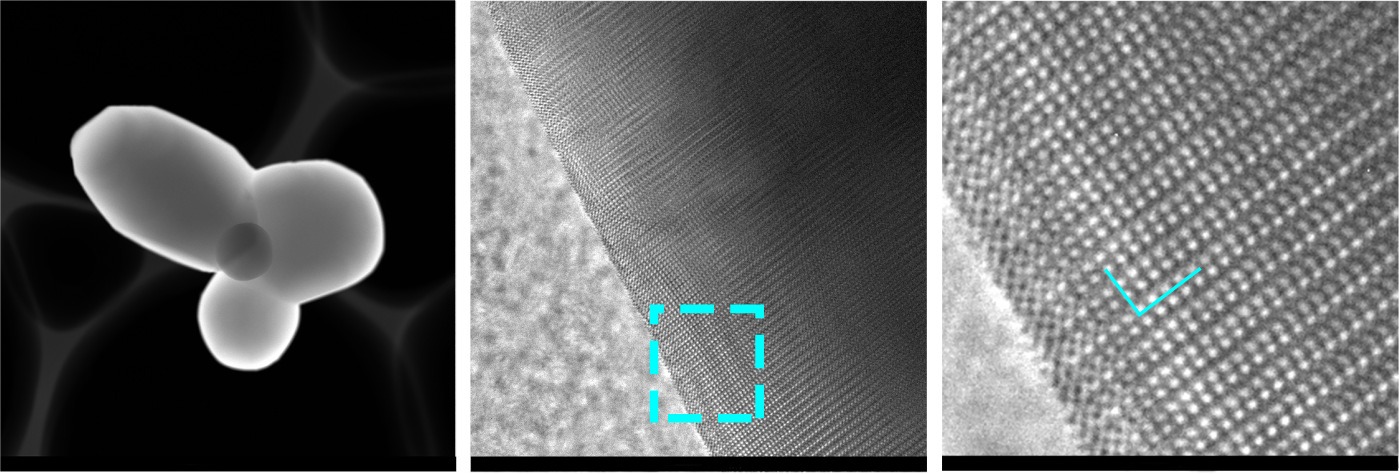

Doping small amounts at the A-site or B-site of SmCrO3 ceramics is a promising approach for modifying their microstructure, as well as their magnetic and dielectric properties. In this study, polycrystalline ceramics of Sm1−xNixCrO3 (x = 0, 0.05, and 0.20) and SmCr1−yNiyO3 (y = 0.05 and 0.20) were synthesized via a conventional solid-state reaction. X-ray diffraction validated that all the doped ceramics maintained an orthorhombic crystalline structure consistent with the Pbnm space group. Furthermore, X-ray photoelectron spectroscopy demonstrated the presence of Ni2+ ions in the doped specimens. Notably, doping resulted in significant enhancement of low-temperature magnetic properties, particularly in samples doped at the A-site, such as Sm0.80Ni0.20CrO3. Compared with the pristine sample, the maximum magnetization of Sm0.80Ni0.20CrO3 increased by approximately 60.9% and 93.5% in the zero-field cooling and field-cooling modes, respectively, in an external magnetic field of 100 Oe. Furthermore, the dielectric constants of the Ni-doped ceramics initially exceeded that of the pristine sample as the temperature increased. At equivalent doping ratios, A-site doping demonstrated superior performance over B-site doping, including higher magnetization, lower dielectric loss, and enhanced electrical quality factors.
1. Introduction
Perovskite-like composite oxides (ABO3) represent a distinct class of inorganic nonmetal materials that are recognized for their unique physical and chemical attributes. In this structure, the A-site is predominantly occupied by ions from rare earth or alkaline earth elements, whereas the B-site is typically occupied by transition metal ions. Additionally, ions at both the A- and B-sites can be partially replaced by other metal ions that have similar ionic radii, facilitating in maintaining the stability of the crystal structure [1–3].
Perovskite composite oxides are characterized by their unique crystalline structures that contribute to a range of exceptional physical and chemical properties attributed to defects and doping. Perovskites have garnered significant attention in contemporary scientific research owing to their crystal lattice stability, unique electromagnetic properties, effective light absorption capabilities, and high reactivity in processes such as oxidation-reduction, hydrogenolysis, isomerization, and electrocatalysis [4–6].
Samarium orthochromite (SmCrO3) has attracted significant attention owing to its distinctive antiferromagnetic and dielectric characteristics. A transition from paramagnetic to canted antiferromagnetic behavior occurs at approximately 197 K, attributed to the ordering of Cr3+ spins [7–10]. Furthermore, as the temperature decreases, a spontaneous reorientation of the magnetic structure occurs at approximately 34 K, where Cr3+ spins transition from one preferred orientation to another [11–12]. Below the Néel temperature (TN), the magnetic structure of SmCrO3 transitions from paramagnetic to G-type antiferromagnetic, indicating its potential as a functional material for storage applications [13]. In addition, SmCrO3 exhibits dielectric properties consistent with Debye-type dielectric relaxation. The frequency-dependent dielectric properties of perovskite oxides are critical for optimizing the performance of devices such as electronics, optoelectronics, energy storage systems, and sensors [14–18].
Loading authentic research manuscript (Pages 1–5)...
Wenjie Huang, Rui Li, Ruoxuan Zhang, Yimin Cui, Rongming Wang (2025). Controllable synthesis and structure-activity relationship of Ni doping in SmCrO3 for improved magnetic and dielectric properties. Int. Journal of Minerals, Metallurgy and Materials (矿物冶金与材料学报). https://doi.org/10.1007/s12613-025-3099-5
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the effect of Ni doping on the magnetic properties of SmCrO3?
Ni doping, especially at the A-site, significantly enhances low-temperature magnetic properties. For example, Sm0.80Ni0.20CrO3 shows up to 93.5% increase in field-cooling magnetization at 100 Oe compared to pristine SmCrO3.
How does A-site doping compare to B-site doping in SmCrO3?
At equivalent doping ratios, A-site doping (Sm1−xNixCrO3) demonstrates superior performance over B-site doping (SmCr1−yNiyO3), including higher magnetization, lower dielectric loss, and enhanced electrical quality factors.
What crystal structure do Ni-doped SmCrO3 ceramics maintain?
All Ni-doped ceramics maintain an orthorhombic crystalline structure consistent with the Pbnm space group, as confirmed by X-ray diffraction.
What is the significance of this study for practical applications?
The study provides a structure-activity relationship for optimizing magnetic and dielectric properties in SmCrO3-based ceramics, which is crucial for developing advanced materials for electronic, spintronic, and energy storage devices.
Related Technical Papers & Translations
Direct Repair of the Crystal Structure and Coating Surface of Spent LiFePO4 Materials Enables Superfast Li-Ion Migration
The rapid accumulation of spent LiFePO4 (LFP) cathodes from retired lithium-ion batteries necessitates the development of effective and environmental-friendly recycling strategies. In this context, direct regeneration has emerged as a promising approach for reclaiming LFP cathode materials, offering a streamlined pathway to restore their electrochemical functionality. We report an integrated regeneration protocol that simultaneously repairs the degraded crystal structure and reconstructs the damaged carbon coating in spent LFP. The regenerated cathode material had superfast lithium-ion diffusion kinetics and a stable cathode–electrolyte interface, giving a remarkable rate capability with specific capacities of 122 mAh g−1 at 5C and 106 mAh g−1 at 10C (1C = 170 mA g−1). It also maintained capacities of 110.7 mAh g−1 (5C) and 84.1 mAh g−1 (10C) after 400 cycles. It could be used in harsh environments and could be stably cycled at subzero temperatures (−10 and −20 °C) and in solid-state electrolyte batteries. Life cycle assessment combined with economic evaluation using the EverBatt model reveals that this direct regeneration approach has high economic and environmental benefits.
Oxide Semiconductor for Advanced Memory Architectures: Atomic Layer Deposition, Key Requirement and Challenges
Oxide semiconductors (OSs), introduced by the Hosono group in the early 2000s, have evolved from display backplane materials to promising candidates for advanced memory and logic devices. The exceptionally low leakage current of OSs and compatibility with three-dimensional (3D) architectures have recently sparked renewed interest in their use in semiconductor applications. This review begins by exploring the unique material properties of OSs, which fundamentally originate from their distinct electronic band structure. Subsequently, we focus on atomic layer deposition (ALD), a core technique for growing excellent OS films, covering both basic and advanced processes compatible with 3D scaling. The basic surface reaction mechanisms—adsorption and reaction—and their roles in film growth are introduced. Furthermore, material design strategies, such as cation selection, crystallinity control, anion doping, and heterostructure engineering, are discussed. We also highlight challenges in memory applications, including contact resistance, hydrogen instability, and lack of p-type materials, and discuss the feasibility of ALD-grown OSs as potential solutions. Lastly, we provide an outlook on the role of ALD-grown OSs in memory technologies. This review bridges material fundamentals and device-level requirements, offering a comprehensive perspective on the potential of ALD-driven OSs for next-generation semiconductor memory devices.
Laser powder bed fusion of biodegradable Zn-4Cu alloy: Processing, microstructure and properties
Zn's natural degradability and biocompatibility make it a promising candidate for implants, however, its mechanical properties remain insufficient for bone applications. In this study, the performance of Zn was enhanced by developing Zn-Cu alloys via laser powder bed fusion (LPBF). Optimal LPBF parameters for forming stable tracks were achieved by adjusting laser power and scanning speed. Under optimized conditions of 100 W and 100 mm/s, high-density (99.58%) Zn-Cu alloys with improved hardness (68.2HV) and yield strength (160 MPa) were achieved. These improvements are attributed to solid solution strengthening, segregation strengthening, and grain refinement. The Zn-Cu alloys also demonstrated favorable degradation behavior, with a rate of 0.16 mm/year. This degradation is primarily driven by micro-galvanic corrosion between the CuZn5 phase and Zn matrix, along with refined grains and increased grain boundary density. This work demonstrates a viable strategy for fabricating Zn-based implants with enhanced structural integrity and mechanical performance via LPBF.
