Key Takeaways & Executive Findings
- •• Proposes a novel closed-loop model integrating contextual design with real-time verification to streamline casting process design. • Demonstrates three typical closed-loop scenarios in an intelligent casting process system, reducing design cycles and enhancing efficiency. • Addresses the inefficiency of traditional iterative CAE-based verification by embedding real-time rule checks during 3D model creation. • Offers a software development methodology based on the V-model, promoting modular design and open data flows for agile casting design.
Abstract
In the foundry industries, process design has traditionally relied on manuals and complex theoretical calculations. With the advent of 3D design in casting, computer-aided design (CAD) has been applied to integrate the features of casting process, thereby expanding the scope of design options. These technologies use parametric model design techniques for rapid component creation and use databases to access standard process parameters and design specifications. However, 3D models are currently still created through inputting or calling parameters, which requires numerous verifications through calculations to ensure the design rationality. This process may be significantly slowed down due to repetitive modifications and extended design time. As a result, there are increasingly urgent demands for a real-time verification mechanism to address this issue. Therefore, this study proposed a novel closed-loop model and software development method that integrated contextual design with real-time verification, dynamically verifying relevant rules for designing 3D casting components. Additionally, the study analyzed three typical closed-loop scenarios of agile design in an independent developed intelligent casting process system. It is believed that foundry industries can potentially benefit from favorably reduced design cycles to yield an enhanced competitive product market.
1. Introduction
With advancements in computer graphics and the increasing use of CAD tools in industry, traditional hand-drawn modeling has become less prevalent. The drawing-based 2D CAD design method is being phased out. By contrast, a full-link design process using 3D CAD has been adopted by most foundries. This method not only streamlines the understanding of design intentions but also allows for the efficient integration of upstream and downstream systems [1-5].
In recent years, the use of CAD software has enabled scholars and engineers to create tools that integrate casting process manuals with experience-based knowledge [6-13]. This approach accelerates the design process and enhances its efficiency by reducing reliance on individual expertise. It facilitates the creation of well-defined parameters and design techniques through the development of tools. Given that different casting methods involve various process components and parameters, the prevailing method is to develop knowledge-based engineering (KBE) tools for rapid 3D model design through inputting parameters. Once the basic process design is established, computer-aided engineering (CAE) software for casting simulation is used to analyze the mold filling and solidification processes. The design parameters and simulation calculations can be adjusted based on these simulation results, with iterations performed as necessary. However, because of the multitude of process components and the complexity of parameter calculations in the casting process design system, traditional development approaches that rely on industrial software occurs only at the tool level. These methods lack a unified architecture and do not incorporate real-time feedback from user experiences during the design phase.

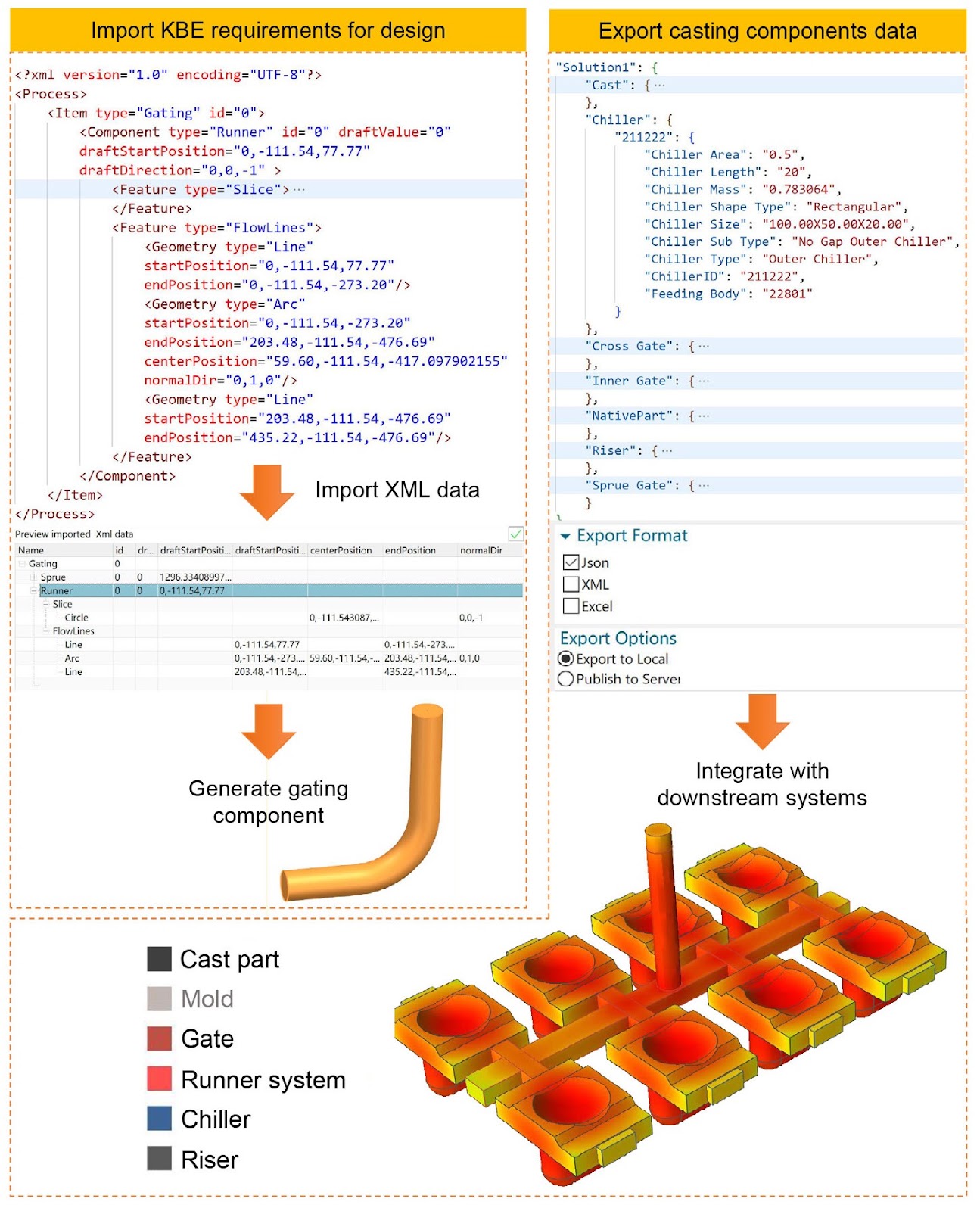

More importantly, this iterative process can hinder both the design efficiency and quality. Therefore, swiftly developing applications to effectively minimize the need for repetitive verification due to CAE modifications is crucial for streamlining the casting process design workflow [14-15]. The V-model [16] is a well-established software development life cycle (SDLC) model that follows a sequential process and is often referred to as the verification and validation (V&V) model. This model is employed to standardize the comprehensive development framework. In this study, a novel approach for the development of casting process application software is introduced, which is aimed at improving the efficiency of the software development. Based on the research on the casting design process, the casting process design system can be divided into three closed-loop models that collectively form a development model in terms of the V-model approach. This approach has emphasized the integration of related systems and built the establishment of open data flows to facilitate modular design and seamless integration to establish an agile casting process design model, thereby improving both the quality and development efficiency of the designed application. The adoption of a three-layered closed-loop model substantially mitigates the efficiency issues as
Loading authentic research manuscript (Pages 1–5)...
Dong Xiang, Chu-hao Zhou, Xuan-pu Dong, Shu-ren Guo, Yan-song Ding, Hua-tang Cao (2025). Contextual design and real-time verification for agile casting design. China Foundry. https://doi.org/10.1007/s41230-024-3173-z
