Key Takeaways & Executive Findings
- •• Fe–Mn dual-atom catalysts exhibit superior oxygen reduction reaction (ORR) activity and stability, with high half-wave potentials in both alkaline and acidic conditions. • Synergistic Mn incorporation effectively anchors Fe atoms, mitigates the Fenton reaction, and enhances the durability of ORR catalysts. • Advanced characterization and density-functional theory calculations reveal Mn-induced electronic structure modifications, promoting superior ORR kinetics and active site performance. • (FeMn-DA)-N-C catalysts show remarkable potential for practical fuel cell applications.
Abstract

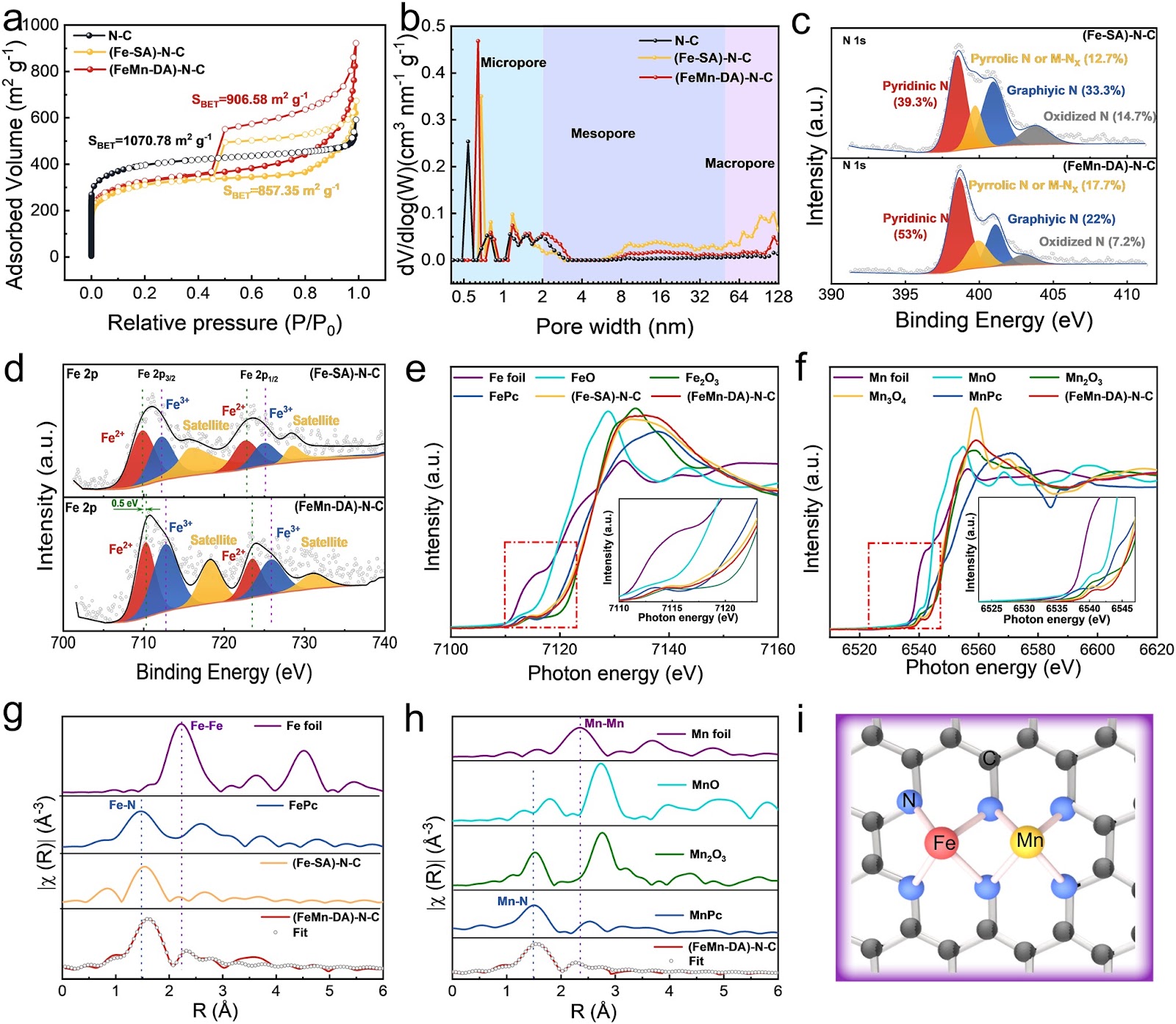

The ability to unlock the interplay between the activity and stability of oxygen reduction reaction (ORR) represents an important endeavor toward creating robust ORR catalysts for efficient fuel cells. Herein, we report an effective strategy to concurrent enhance the activity and stability of ORR catalysts via constructing atomically dispersed Fe–Mn dual-metal sites on N-doped carbon (denoted (FeMn-DA)–N–C) for both anion-exchange membrane fuel cells (AEMFC) and proton exchange membrane fuel cells (PEMFC). The (FeMn-DA)–N–C catalysts possess ample dual-metal atoms consisting of adjacent Fe-N4 and Mn-N4 sites on the carbon surface, yielded via a facile doping-adsorption-pyrolysis route. The introduction of Mn carries several advantageous attributes: increasing the number of active sites, effectively anchoring Fe due to effective electron transfer to Mn (revealed by X-ray absorption spectroscopy and density-functional theory (DFT), thus preventing the aggregation of Fe), and effectively circumventing the occurrence of Fenton reaction, thus reducing the consumption of Fe. The (FeMn-DA)–N–C catalysts showcase half-wave potentials of 0.92 and 0.82 V in 0.1 M KOH and 0.1 M HClO4, respectively, as well as outstanding stability. As manifested by DFT calculations, the introduction of Mn affects the electronic structure of Fe, down-shifts the d-band Fe active center, accelerates the desorption of OH groups, and creates higher limiting potentials. The AEMFC and PEMFC with (FeMn-DA)–N–C as the cathode catalyst display high power densities of 1060 and 746 mW cm−2, respectively, underscoring their promising potential for practical applications. Our study highlights the robustness of designing Fe-containing dual-atom ORR catalysts to promote both activity and stability for energy conversion and storage materials and devices.
1. Introduction
The past several decades witnessed the advances in platinum group metal-free catalysts as the cathode for hydrogen fuel cells [1–4]. Single-atom catalysts (SACs) have garnered much attention due to their excellent activity, selectivity, and maximum atomic utilization [5–7]. Among them, owing to low cost and outstanding oxygen reduction reaction (ORR) activity, iron–nitrogen co-doped carbon (Fe–N–C) SACs (denoted (Fe-SA)–N–C) with highly dispersed Fe-Nx are regarded as the most promising, low-cost alternative to platinum-based catalysts [8–10]. However, Fe–N–C catalysts are prone to participate in the Fenton reaction, in which dissolved Fe ions combine with H2O2 produced by partial two-electron reaction to produce hydroxyl radicals. As such, it leads to carbon oxidation and demetallization, thereby reducing ORR stability [11–14].
In contrast to SACs, dual-atom catalysts (DACs) carry more complex and flexible synergistic active sites [15–17]. Recent studies revealed that the introduction of additional active sites (e.g., Co, Ni, and Mn) into the Fe-N4 structure could effectively regulate the electronic structure of the latter and optimize the adsorption free energy of intermediates [2, 12, 18–20]. More importantly, the Fenton reaction between Mn ions and H2O2 is difficult to occur, thereby conferring high stability to the catalyst [13, 21–23]. Thus, the introduction of Mn sites into the Fe-N4 sites may inhibit the Fenton reaction and in turn improve the ORR activity.
The key to render the practical application of non-noble metal ORR catalysts for fuel cells lies in improving the effective active sites and accelerating the transfer of oxygen in electrode. Notably, many ORR catalysts composed of M–N–C (M = Fe, Co, Mn, etc.) structures have low performance in real proton exchange membrane fuel cells (PEMFC) and anion-exchange membrane fuel cells (AEMFC), despite their excellent performance on rotating disk electrodes (RDE) [8, 24, 25]. This is because in fuel cell, the active sites of catalysts distributed on the surface layer contact with reactive gases and ionomers, forming a three-phase interface conducive to the reaction.
Loading authentic research manuscript (Pages 1–5)...
Lei Zhang, Yuchen Dong, Lubing Li, Yuchuan Shi, Yan Zhang, Liting Wei, Chung-Li Dong, Zhiqun Lin, Jinzhan Su (2024). Concurrently Boosting Activity and Stability of Oxygen Reduction Reaction Catalysts via Judiciously Crafting Fe–Mn Dual Atoms for Fuel Cells. Nano-Micro Letters. https://doi.org/10.1007/s40820-024-01580-5
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What are Fe-Mn dual-atom catalysts and how do they improve ORR performance?
Fe-Mn dual-atom catalysts consist of adjacent Fe-N4 and Mn-N4 sites on N-doped carbon. The Mn incorporation enhances activity by increasing active sites, anchoring Fe to prevent aggregation, and modifying the electronic structure to optimize intermediate adsorption. It also improves stability by mitigating the Fenton reaction.
How does the introduction of Mn affect the Fenton reaction in ORR catalysts?
Mn ions are less prone to participate in the Fenton reaction compared to Fe ions. By incorporating Mn into the Fe-N4 structure, the catalyst reduces the generation of harmful hydroxyl radicals, thereby preventing carbon oxidation and demetallization, which enhances long-term stability.
What are the half-wave potentials achieved by (FeMn-DA)-N-C catalysts?
The (FeMn-DA)-N-C catalysts exhibit half-wave potentials of 0.92 V in 0.1 M KOH and 0.82 V in 0.1 M HClO4, indicating excellent ORR activity in both alkaline and acidic media.
How do (FeMn-DA)-N-C catalysts perform in practical fuel cells?
When used as cathode catalysts, they deliver high power densities of 1060 mW cm−2 in anion-exchange membrane fuel cells (AEMFC) and 746 mW cm−2 in proton exchange membrane fuel cells (PEMFC), demonstrating promising potential for real-world applications.
What is the significance of the doping-adsorption-pyrolysis route in synthesizing these catalysts?
This facile synthesis route enables the formation of atomically dispersed dual-metal sites on N-doped carbon, ensuring high density of active sites and uniform distribution, which is crucial for achieving high ORR performance and stability.
Related Technical Papers & Translations
Direct Repair of the Crystal Structure and Coating Surface of Spent LiFePO4 Materials Enables Superfast Li-Ion Migration
The rapid accumulation of spent LiFePO4 (LFP) cathodes from retired lithium-ion batteries necessitates the development of effective and environmental-friendly recycling strategies. In this context, direct regeneration has emerged as a promising approach for reclaiming LFP cathode materials, offering a streamlined pathway to restore their electrochemical functionality. We report an integrated regeneration protocol that simultaneously repairs the degraded crystal structure and reconstructs the damaged carbon coating in spent LFP. The regenerated cathode material had superfast lithium-ion diffusion kinetics and a stable cathode–electrolyte interface, giving a remarkable rate capability with specific capacities of 122 mAh g−1 at 5C and 106 mAh g−1 at 10C (1C = 170 mA g−1). It also maintained capacities of 110.7 mAh g−1 (5C) and 84.1 mAh g−1 (10C) after 400 cycles. It could be used in harsh environments and could be stably cycled at subzero temperatures (−10 and −20 °C) and in solid-state electrolyte batteries. Life cycle assessment combined with economic evaluation using the EverBatt model reveals that this direct regeneration approach has high economic and environmental benefits.
Oxide Semiconductor for Advanced Memory Architectures: Atomic Layer Deposition, Key Requirement and Challenges
Oxide semiconductors (OSs), introduced by the Hosono group in the early 2000s, have evolved from display backplane materials to promising candidates for advanced memory and logic devices. The exceptionally low leakage current of OSs and compatibility with three-dimensional (3D) architectures have recently sparked renewed interest in their use in semiconductor applications. This review begins by exploring the unique material properties of OSs, which fundamentally originate from their distinct electronic band structure. Subsequently, we focus on atomic layer deposition (ALD), a core technique for growing excellent OS films, covering both basic and advanced processes compatible with 3D scaling. The basic surface reaction mechanisms—adsorption and reaction—and their roles in film growth are introduced. Furthermore, material design strategies, such as cation selection, crystallinity control, anion doping, and heterostructure engineering, are discussed. We also highlight challenges in memory applications, including contact resistance, hydrogen instability, and lack of p-type materials, and discuss the feasibility of ALD-grown OSs as potential solutions. Lastly, we provide an outlook on the role of ALD-grown OSs in memory technologies. This review bridges material fundamentals and device-level requirements, offering a comprehensive perspective on the potential of ALD-driven OSs for next-generation semiconductor memory devices.
Laser powder bed fusion of biodegradable Zn-4Cu alloy: Processing, microstructure and properties
Zn's natural degradability and biocompatibility make it a promising candidate for implants, however, its mechanical properties remain insufficient for bone applications. In this study, the performance of Zn was enhanced by developing Zn-Cu alloys via laser powder bed fusion (LPBF). Optimal LPBF parameters for forming stable tracks were achieved by adjusting laser power and scanning speed. Under optimized conditions of 100 W and 100 mm/s, high-density (99.58%) Zn-Cu alloys with improved hardness (68.2HV) and yield strength (160 MPa) were achieved. These improvements are attributed to solid solution strengthening, segregation strengthening, and grain refinement. The Zn-Cu alloys also demonstrated favorable degradation behavior, with a rate of 0.16 mm/year. This degradation is primarily driven by micro-galvanic corrosion between the CuZn5 phase and Zn matrix, along with refined grains and increased grain boundary density. This work demonstrates a viable strategy for fabricating Zn-based implants with enhanced structural integrity and mechanical performance via LPBF.
