Key Takeaways & Executive Findings
- •• CO2 adsorption is more energetically favorable on the β-C2S(111) surface than on the β-C2S(100) surface, with adsorption energies of –0.647 eV and –0.423 eV, respectively. • H2O adsorption on β-C2S(111) is significantly stronger than CO2 adsorption (–1.588 eV vs. –0.647 eV), indicating that hydration occurs preferentially before carbonation. • Electronic structure analyses reveal that Ca and O sites on the β-C2S(111) surface exhibit higher chemical reactivity for CO2 adsorption, as evidenced by changes in valence electron counts. • The findings provide a theoretical basis for designing cementitious materials with enhanced CO2 capture and storage capabilities, contributing to carbon sequestration strategies.
Abstract

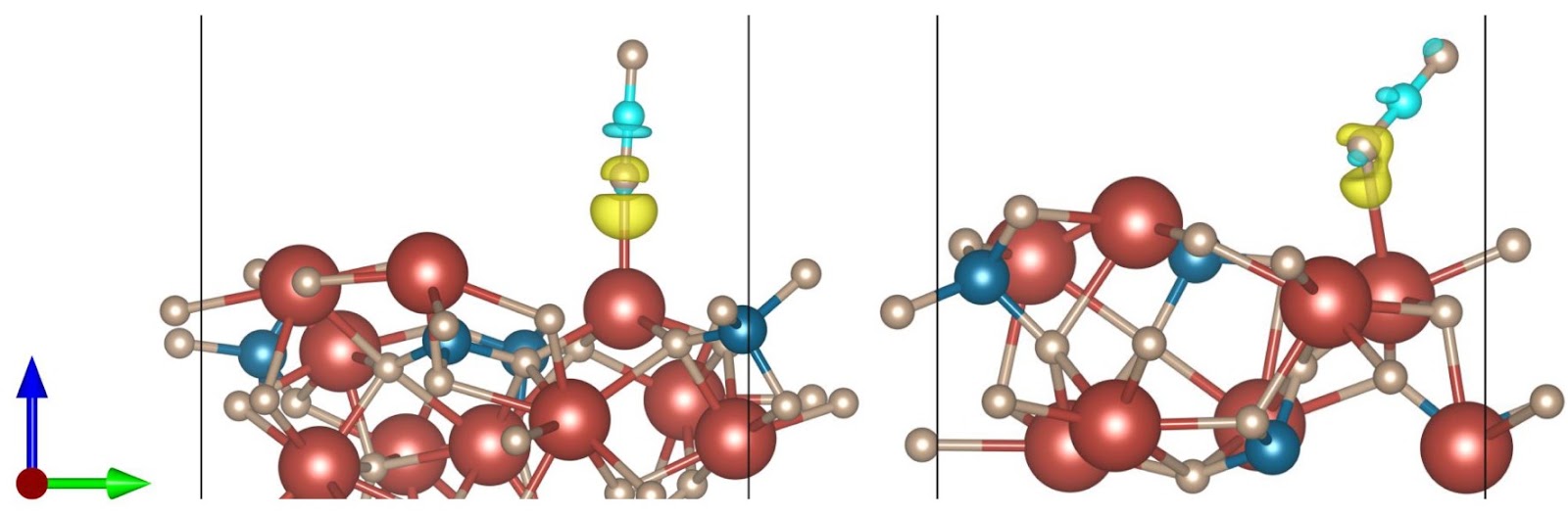

Understanding the differences in CO2 adsorption in cementitious material is critical in mitigating the carbon footprint of the construction industry. This study chose the most common β-C2S phase in the industry as the cementitious material, selecting the β-C2S(111) and β-C2S(100) surfaces for CO2 adsorption. First-principles calculations were employed to systematically compare the CO2 adsorption behaviors on both surfaces focusing on adsorption energy, adsorption configurations, and surface reconstruction. The comparison of CO2 and H2O adsorption behaviors on the β-C2S(111) surface was also conducted to shed light on the influence of CO2 on cement hydration. The adsorption energies of CO2 on the β-C2S(111) and β-C2S(100) surfaces were determined as –0.647 and –0.423 eV, respectively, suggesting that CO2 adsorption is more energetically favorable on the β-C2S(111) surface than on the β-C2S(100) surface. The adsorption energy of H2O on the β-C2S(111) surface was –1.588 eV, which is 0.941 eV more negative than that of CO2, implying that β-C2S tends to become hydrated before reacting with CO2. Bader charges, charge density differences, and the partial density of states were applied to characterize the electronic properties of CO2 and H2O molecules and those of the surface atoms. The initial Ca/O sites on the β-C2S(111) surface exhibited higher chemical reactivity due to the greater change in the average number of valence electrons in the CO2 adsorption. Specifically, after CO2 adsorption, the average number of valence electrons for both the Ca and O atoms increased by 0.002 on the β-C2S(111) surface, while both decreased by 0.001 on the β-C2S(100) surface. In addition, due to the lower valence electron number of O atoms, the chemical reactivity of O atoms on the β-C2S(111) surface after H2O adsorption was higher than the case of CO2 adsorption, which favors the occurrence of further reactions. Overall, this work assessed the adsorption capacity of the β-C2S surface for CO2 molecules, offering a strong theoretical foundation for the design of novel cementitious materials for CO2 capture and storage.
1. Introduction
Rapid industrialization has led to significant improvements in the living standards of human beings. However, this progress has also introduced new environmental challenges, such as the emission of greenhouse gases [1–2]. Carbon dioxide (CO2) is recognized as a major greenhouse gas [3]; according to statistical reports, the global average atmospheric carbon dioxide concentration in 2022 reached 417.2 ppm [4–6], over 50% higher than the pre-industrial level of approximately 278 ppm [7–8]. Excessive CO2 emissions not only adversely affect agricultural production [9–10] but also lead to human health problems, such as kidney and cardiovascular diseases [11–12]. Therefore, controlling and reducing atmospheric CO2 concentrations has become a major environmental challenge [13–15].
Current industrial methods for regulating and reducing atmospheric CO2 concentrations include enhancing energy efficiency [16–17], using renewable energy [18–19], and promoting carbon capture and storage (CCS) technology [20–21]. Enhancing energy efficiency entails reducing energy consumption by optimizing production processes [22]. However, this may lead to an economic rebound effect [23–24]. Using renewable energy involves reducing fossil fuel dependence by utilizing sources such as wind and solar power [25], but the availability of these energy sources can be significantly affected by climate change [26–27]. CCS is considered a pivotal technology in reducing CO2 concentrations while sustaining global energy demands [28–29]. It plays an essential role in achieving long-term environmental sustainability and carbon neutrality goals [30].
The demand for cement, the most commonly used building material, is constantly increasing [31–33]. Global annual cement production is estimated to increase from about 2.54 billion tons in 2006 to approximately 3.68–4.38 billion tons by 2050 [34]. However, the process of cement production consumes a large amount of energy [35–36]. Specifically, the production of 1 t of cement...
Loading authentic research manuscript (Pages 1–5)...
Chongchong Qi, Zirou Liu, Dino Spagnoli, Danial Jahed Armaghani, Xinhang Xu (2025). CO2 adsorption behaviour on β-C2S(111) and (100) surfaces: Implications for carbon sequestration in cementitious materials. Int. Journal of Minerals, Metallurgy and Materials (矿物冶金与材料学报). https://doi.org/10.1007/s12613-024-3039-9
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the main objective of this study?
The study aims to compare CO2 adsorption behaviors on the β-C2S(111) and β-C2S(100) surfaces using first-principles calculations, to understand the adsorption mechanisms and provide a theoretical basis for designing cementitious materials for CO2 capture and storage.
Which surfaces of β-C2S were investigated?
The β-C2S(111) and β-C2S(100) surfaces were selected for CO2 adsorption analysis, as they are common surfaces in cementitious materials.
What were the adsorption energies of CO2 on the two surfaces?
The adsorption energies of CO2 on the β-C2S(111) and β-C2S(100) surfaces were –0.647 eV and –0.423 eV, respectively, indicating that CO2 adsorption is more favorable on the (111) surface.
How does H2O adsorption compare to CO2 adsorption on β-C2S(111)?
H2O adsorption on β-C2S(111) has an adsorption energy of –1.588 eV, which is 0.941 eV more negative than that of CO2, suggesting that β-C2S tends to hydrate before reacting with CO2.
What are the implications of this study for carbon sequestration?
The findings provide insights into the adsorption capacity of β-C2S surfaces for CO2, which can guide the development of novel cementitious materials with enhanced CO2 capture and storage capabilities, contributing to carbon sequestration efforts.
Related Technical Papers & Translations
Direct Repair of the Crystal Structure and Coating Surface of Spent LiFePO4 Materials Enables Superfast Li-Ion Migration
The rapid accumulation of spent LiFePO4 (LFP) cathodes from retired lithium-ion batteries necessitates the development of effective and environmental-friendly recycling strategies. In this context, direct regeneration has emerged as a promising approach for reclaiming LFP cathode materials, offering a streamlined pathway to restore their electrochemical functionality. We report an integrated regeneration protocol that simultaneously repairs the degraded crystal structure and reconstructs the damaged carbon coating in spent LFP. The regenerated cathode material had superfast lithium-ion diffusion kinetics and a stable cathode–electrolyte interface, giving a remarkable rate capability with specific capacities of 122 mAh g−1 at 5C and 106 mAh g−1 at 10C (1C = 170 mA g−1). It also maintained capacities of 110.7 mAh g−1 (5C) and 84.1 mAh g−1 (10C) after 400 cycles. It could be used in harsh environments and could be stably cycled at subzero temperatures (−10 and −20 °C) and in solid-state electrolyte batteries. Life cycle assessment combined with economic evaluation using the EverBatt model reveals that this direct regeneration approach has high economic and environmental benefits.
Oxide Semiconductor for Advanced Memory Architectures: Atomic Layer Deposition, Key Requirement and Challenges
Oxide semiconductors (OSs), introduced by the Hosono group in the early 2000s, have evolved from display backplane materials to promising candidates for advanced memory and logic devices. The exceptionally low leakage current of OSs and compatibility with three-dimensional (3D) architectures have recently sparked renewed interest in their use in semiconductor applications. This review begins by exploring the unique material properties of OSs, which fundamentally originate from their distinct electronic band structure. Subsequently, we focus on atomic layer deposition (ALD), a core technique for growing excellent OS films, covering both basic and advanced processes compatible with 3D scaling. The basic surface reaction mechanisms—adsorption and reaction—and their roles in film growth are introduced. Furthermore, material design strategies, such as cation selection, crystallinity control, anion doping, and heterostructure engineering, are discussed. We also highlight challenges in memory applications, including contact resistance, hydrogen instability, and lack of p-type materials, and discuss the feasibility of ALD-grown OSs as potential solutions. Lastly, we provide an outlook on the role of ALD-grown OSs in memory technologies. This review bridges material fundamentals and device-level requirements, offering a comprehensive perspective on the potential of ALD-driven OSs for next-generation semiconductor memory devices.
Laser powder bed fusion of biodegradable Zn-4Cu alloy: Processing, microstructure and properties
Zn's natural degradability and biocompatibility make it a promising candidate for implants, however, its mechanical properties remain insufficient for bone applications. In this study, the performance of Zn was enhanced by developing Zn-Cu alloys via laser powder bed fusion (LPBF). Optimal LPBF parameters for forming stable tracks were achieved by adjusting laser power and scanning speed. Under optimized conditions of 100 W and 100 mm/s, high-density (99.58%) Zn-Cu alloys with improved hardness (68.2HV) and yield strength (160 MPa) were achieved. These improvements are attributed to solid solution strengthening, segregation strengthening, and grain refinement. The Zn-Cu alloys also demonstrated favorable degradation behavior, with a rate of 0.16 mm/year. This degradation is primarily driven by micro-galvanic corrosion between the CuZn5 phase and Zn matrix, along with refined grains and increased grain boundary density. This work demonstrates a viable strategy for fabricating Zn-based implants with enhanced structural integrity and mechanical performance via LPBF.
