Key Takeaways & Executive Findings
- •• Successfully fabricated atomically dispersed dual-atom catalyst featuring Pt1-Ru1 sites anchored on defective graphene (Pt1Ru1/ND@G). • Achieves high turnover frequency of 17.6 × 10−2 s−1 for CO oxidation at 30 °C, 10 times higher than Pt1/ND@G and outperforming previous reports. • Pt-Ru bond enhances metallicity of both Pt and Ru atoms, facilitating simultaneous adsorption and activation of CO and O2, overcoming limitations of single-atom catalysts. • Catalyst demonstrates excellent stability, maintaining activity for 40 h at 80 °C without significant deactivation.
Abstract

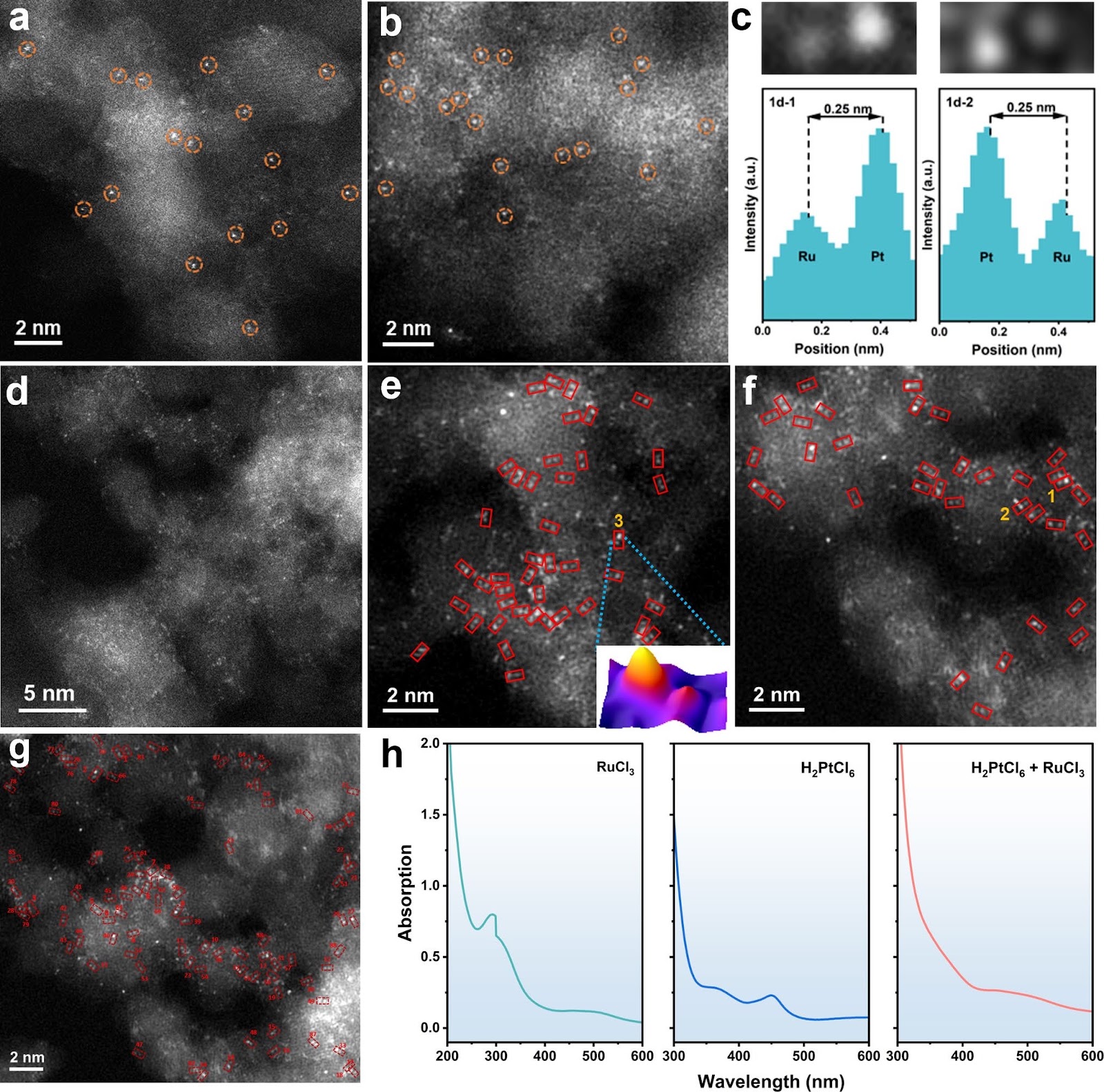

Single-atom catalysts (SACs) have demonstrated excellent performance in heterogeneous catalytic reactions owing to their maximized atomic efficiency, distinctive geometric, and electronic configurations. However, the efficacy of SACs remains limited for certain reactions requiring simultaneous activation of multiple reactants over metallic active sites. Herein, we report an atomically dispersed Pt1Ru1 dual-atom pair site anchored on nanodiamond@graphene (ND@G) for CO oxidation. The Pt1Ru1 dual-atom catalyst shows an exceptional turnover frequency (TOF) of 17.6 × 10−2 s−1 at significantly lower temperature (30 °C), achieving a tenfold increase in TOF compared to single-atom Pt1/ND@G catalyst (1.5 × 10−2 s−1) and surpassing to previously reported Pt-based catalysts under similar conditions. Moreover, the catalyst demonstrates excellent stability, maintaining its activity for 40 h at 80 °C without significant deactivation. The superior catalytic performance of Pt-Ru dual-atom catalysts is attributed to the synergistic effect between Pt and Ru atoms with enhanced metallicity for improving simultaneous adsorption and activation of CO and O2, and the tuning of conventional competitive reactant adsorption into a non-competitive pathway over dual-atom pair sites. The present work manifests the advantages of dual-atom pair sites in heterogeneous catalysis and paves the way for precise design of catalysts at the atomic scale.
1. Introduction
Low-temperature CO oxidation holds significance in the environment and fundamental catalysis due to its crucial application in automobile emission purification [1, 2] and the role as a model reaction in investigating the structure–activity relationship and reaction mechanism [3, 4]. Although precious metal catalysts have been extensively studied for CO oxidation due to their exceptional catalytic activity [5–8], the natural scarcity and high cost impede their practical application. The effective strategy to enhance metal utilization efficiency is to reduce the size of catalyst particle, making single-atom catalysts (SACs) an ideal solution [9–11]. SACs not only achieve near-perfect atom utilization efficiency but also provide highly uniform active sites with distinct geometric coordination and electronic properties. These features enable SACs to outperform conventional nanoparticle catalysts in various reactions, such as selective oxidation and hydrogenation [12–16].
However, it is undeniable that the single-site nature of SACs inherently limits their ability to co-activate multiple reactants simultaneously, such as CO and O2 in CO oxidation owing to their competitive adsorption, especially when metal species are supported on inert supports [17, 18]. Additionally, the diminished metallicity in single-atom sites further compromises the catalytic activity [19, 20]. Recent studies have revealed that fully exposed cluster catalysts (FECCs) address the limitations of SACs through spatially adjacent sites, providing diverse structural configurations and versatile catalytic functionalities [21–23]. While this ensemble effect of atomically dispersed sites could enhance the catalytic performance, the variability in size
Loading authentic research manuscript (Pages 1–5)...
Yanan Qi, Hongqiu Chen, Feng Hong, Xiangbin Cai, Zhehan Ying, Jiangyong Diao, Zhimin Jia, Jiawei Chen, Ning Wang, Shengling Xiang, Xiaowen Chen, Guodong Wen, Bo Sun, Geng Sun, Hongyang Liu (2026). Atomically Dispersed Pt-Ru Dual-Atom Catalysts for Efficient Low-Temperature CO Oxidation Reaction. Nano-Micro Letters. https://doi.org/10.1007/s40820-025-01997-6
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the main achievement of this study?
The study successfully fabricated an atomically dispersed Pt1Ru1 dual-atom catalyst on nanodiamond@graphene (ND@G) that achieves a high turnover frequency of 17.6 × 10−2 s−1 for CO oxidation at 30 °C, which is 10 times higher than the single-atom Pt1/ND@G catalyst and outperforms previously reported Pt-based catalysts.
How does the Pt-Ru dual-atom catalyst overcome the limitations of single-atom catalysts?
The Pt-Ru bond enhances the metallicity of both Pt and Ru atoms, facilitating the simultaneous adsorption and activation of CO and O2. This synergistic effect transforms the conventional competitive adsorption into a non-competitive pathway, overcoming the limitations of single-atom catalysts in co-activating multiple reactants.
What is the stability of the Pt1Ru1/ND@G catalyst?
The catalyst demonstrates excellent stability, maintaining its activity for 40 hours at 80 °C without significant deactivation.
What is the significance of this work for heterogeneous catalysis?
This work manifests the advantages of dual-atom pair sites in heterogeneous catalysis, providing a strategy for precise design of catalysts at the atomic scale and paving the way for efficient low-temperature CO oxidation.
Related Technical Papers & Translations
Direct Repair of the Crystal Structure and Coating Surface of Spent LiFePO4 Materials Enables Superfast Li-Ion Migration
The rapid accumulation of spent LiFePO4 (LFP) cathodes from retired lithium-ion batteries necessitates the development of effective and environmental-friendly recycling strategies. In this context, direct regeneration has emerged as a promising approach for reclaiming LFP cathode materials, offering a streamlined pathway to restore their electrochemical functionality. We report an integrated regeneration protocol that simultaneously repairs the degraded crystal structure and reconstructs the damaged carbon coating in spent LFP. The regenerated cathode material had superfast lithium-ion diffusion kinetics and a stable cathode–electrolyte interface, giving a remarkable rate capability with specific capacities of 122 mAh g−1 at 5C and 106 mAh g−1 at 10C (1C = 170 mA g−1). It also maintained capacities of 110.7 mAh g−1 (5C) and 84.1 mAh g−1 (10C) after 400 cycles. It could be used in harsh environments and could be stably cycled at subzero temperatures (−10 and −20 °C) and in solid-state electrolyte batteries. Life cycle assessment combined with economic evaluation using the EverBatt model reveals that this direct regeneration approach has high economic and environmental benefits.
Oxide Semiconductor for Advanced Memory Architectures: Atomic Layer Deposition, Key Requirement and Challenges
Oxide semiconductors (OSs), introduced by the Hosono group in the early 2000s, have evolved from display backplane materials to promising candidates for advanced memory and logic devices. The exceptionally low leakage current of OSs and compatibility with three-dimensional (3D) architectures have recently sparked renewed interest in their use in semiconductor applications. This review begins by exploring the unique material properties of OSs, which fundamentally originate from their distinct electronic band structure. Subsequently, we focus on atomic layer deposition (ALD), a core technique for growing excellent OS films, covering both basic and advanced processes compatible with 3D scaling. The basic surface reaction mechanisms—adsorption and reaction—and their roles in film growth are introduced. Furthermore, material design strategies, such as cation selection, crystallinity control, anion doping, and heterostructure engineering, are discussed. We also highlight challenges in memory applications, including contact resistance, hydrogen instability, and lack of p-type materials, and discuss the feasibility of ALD-grown OSs as potential solutions. Lastly, we provide an outlook on the role of ALD-grown OSs in memory technologies. This review bridges material fundamentals and device-level requirements, offering a comprehensive perspective on the potential of ALD-driven OSs for next-generation semiconductor memory devices.
Laser powder bed fusion of biodegradable Zn-4Cu alloy: Processing, microstructure and properties
Zn's natural degradability and biocompatibility make it a promising candidate for implants, however, its mechanical properties remain insufficient for bone applications. In this study, the performance of Zn was enhanced by developing Zn-Cu alloys via laser powder bed fusion (LPBF). Optimal LPBF parameters for forming stable tracks were achieved by adjusting laser power and scanning speed. Under optimized conditions of 100 W and 100 mm/s, high-density (99.58%) Zn-Cu alloys with improved hardness (68.2HV) and yield strength (160 MPa) were achieved. These improvements are attributed to solid solution strengthening, segregation strengthening, and grain refinement. The Zn-Cu alloys also demonstrated favorable degradation behavior, with a rate of 0.16 mm/year. This degradation is primarily driven by micro-galvanic corrosion between the CuZn5 phase and Zn matrix, along with refined grains and increased grain boundary density. This work demonstrates a viable strategy for fabricating Zn-based implants with enhanced structural integrity and mechanical performance via LPBF.
