Key Takeaways & Executive Findings
- •• The as-synthesized rN-pC exhibited H2 uptake of ~0.9 wt% at 77 K and ultralow pressure of ~0.1 bar, with an isosteric adsorption enthalpy (Qst) of ~14 kJ mol-1 H2 at zero coverage. • The 60MgH2@rN-pC started to decompose at 175 °C and released H2 of 3.38 wt% at 300 °C within 30 min, which showed outstanding desorption kinetics of MgH2 among Mg-carbon material nanocomposites. • The drawback of nanoconfinement scaffolds that cannot store hydrogen was firstly overcome. • The nanoconfined MgH2 formation enthalpy is reduced to ~68 kJ mol−1 H2 from ~75 kJ mol−1 H2 for pure MgH2, and the composite can be compressed to pellets with volumetric H2 density reaching 33.4 g L−1, surpassing 350 bar compressed H2.
Abstract
Nanoconfinement is a promising approach to simultaneously enhance the thermodynamics, kinetics, and cycling stability of hydrogen storage materials. The introduction of supporting scaffolds usually causes a reduction in the total hydrogen storage capacity due to “dead weight.” Here, we synthesize an optimized N-doped porous carbon (rN-pC) without heavy metal as supporting scaffold to confine Mg/MgH2 nanoparticles (Mg/MgH2@rN-pC). rN-pC with 60 wt% loading capacity of Mg (denoted as 60 Mg@rN-pC) can adsorb and desorb 0.62 wt% H2 on the rN-pC scaffold. The nanoconfined MgH2 can be chemically dehydrided at 175 °C, providing ~3.59 wt% H2 with fast kinetics (fully dehydrogenated at 300 °C within 15 min). This study presents the first realization of nanoconfined Mg-based system with adsorption-active scaffolds. Besides, the nanoconfined MgH2 formation enthalpy is reduced to ~68 kJ mol−1 H2 from ~75 kJ mol−1 H2 for pure MgH2. The composite can be also compressed to nanostructured pellets, with volumetric H2 density reaching 33.4 g L−1 after 500 MPa compression pressure, which surpasses the 24 g L−1 volumetric capacity of 350 bar compressed H2. Our approach can be implemented to the design of hybrid H2 storage materials with enhanced capacity and desorption rate.
1. Introduction
Clean and renewable energy is vital for sustainable development [1]. Hydrogen has high gravimetric energy density (lower heating value (LHV) ~120 MJ kg−1) [2] and zero carbon emission (only water as combustion product) [3], making it promising as energy carrier. However, the large-scale application of H2 as energy carrier is still hampered by the difficulties of effective storage [4]. Compared with storing H2 as a compressed gas at high pressures up to 70 MPa [5], or as a liquid at cryogenic temperatures (T=20 K) [6], solid-state H2 storage has the advantages of mild operation conditions (lower than 10 Mpa working pressure [7] and higher than 77 K working T [8] for storage and transportation) and reduced cost of storage systems.
Due to the high gravimetric and volumetric H2 storage density (~7.6 wt% H2 and ~110 kg m−3 H2, respectively) [9], complete heat-driven reversible transformation (MgH2 ⇌ Mg + H2) [10], and earth-abundant natural Mg containing minerals such as dolomite [11] and seawater [12], MgH2 is one of the most promising candidates for solid-state H2 storage [13]. Nonetheless, the high thermodynamic stability and kinetic reaction barriers (ΔH = ~75 kJ mol−1 H2, and ΔE = ~160 kJ mol−1 H2, respectively) [14] limit its industrial application. Zhang et al. studied the solar-driven reversible hydrogen storage of MgH2 and utilized solar energy as the sustainable energy source to reduce the energy costs [15, 16]. Besides, different approaches have been proposed to improve the thermodynamic and kinetic properties of MgH2, including alloying [17], catalysts doping [18], and nanostructuring [19].
Loading authentic research manuscript (Pages 1–5)...
Yinghui Li, Li Ren, Zi Li, Yingying Yao, Xi Lin, Wenjiang Ding, Andrea C. Ferrari, Jianxin Zou (2026). Achieving Wide-Temperature-Range Physical and Chemical Hydrogen Sorption in a Structural Optimized Mg/N-Doped Porous Carbon Nanocomposite. Nano-Micro Letters. https://doi.org/10.1007/s40820-025-01931-w
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the main achievement of this study?
The study presents the first realization of a nanoconfined Mg-based system with adsorption-active scaffolds, overcoming the drawback of nanoconfinement scaffolds that cannot store hydrogen. The composite exhibits enhanced hydrogen storage capacity and desorption kinetics.
How does the N-doped porous carbon scaffold contribute to hydrogen storage?

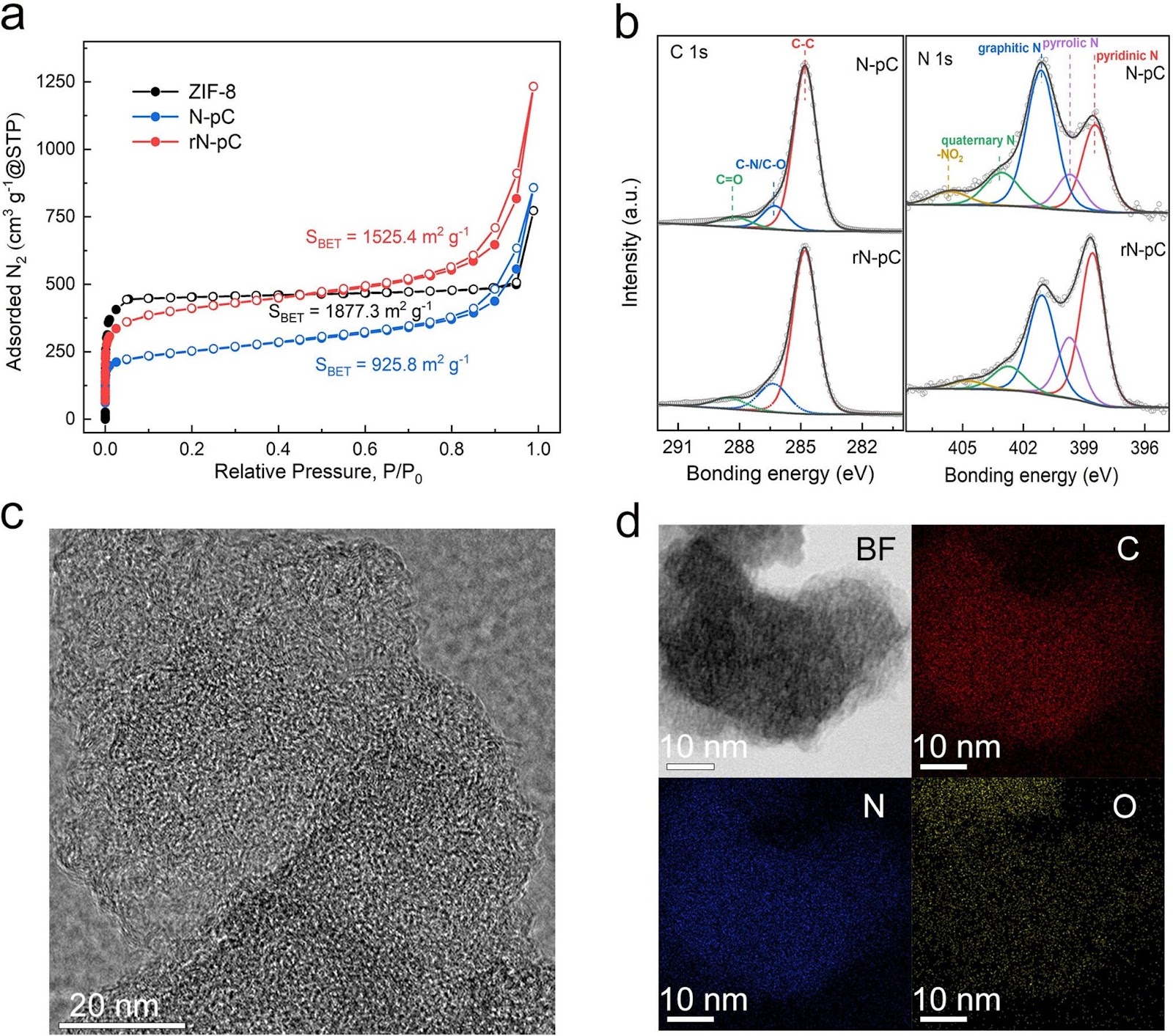

The N-doped porous carbon scaffold (rN-pC) not only confines Mg/MgH2 nanoparticles to prevent aggregation and improve kinetics, but also actively adsorbs hydrogen via physisorption, contributing to the total hydrogen uptake. It achieves ~0.9 wt% H2 uptake at 77 K and ultralow pressure.
What are the improved thermodynamic properties of the nanoconfined MgH2?
The nanoconfined MgH2 formation enthalpy is reduced to ~68 kJ mol−1 H2 from ~75 kJ mol−1 H2 for pure MgH2, indicating improved thermodynamics for hydrogen release and uptake.
Can the composite be used in practical applications?
Yes, the composite can be compressed into nanostructured pellets with a volumetric H2 density of 33.4 g L−1 after 500 MPa compression, surpassing the volumetric capacity of 350 bar compressed H2 (24 g L−1), making it promising for practical storage systems.
What is the significance of the wide-temperature-range hydrogen sorption?
The composite demonstrates both physisorption at low temperatures (77 K) and chemisorption at higher temperatures (e.g., 175 °C for desorption), enabling hydrogen storage across a wide temperature range, which is beneficial for various operating conditions.
Related Technical Papers & Translations
Direct Repair of the Crystal Structure and Coating Surface of Spent LiFePO4 Materials Enables Superfast Li-Ion Migration
The rapid accumulation of spent LiFePO4 (LFP) cathodes from retired lithium-ion batteries necessitates the development of effective and environmental-friendly recycling strategies. In this context, direct regeneration has emerged as a promising approach for reclaiming LFP cathode materials, offering a streamlined pathway to restore their electrochemical functionality. We report an integrated regeneration protocol that simultaneously repairs the degraded crystal structure and reconstructs the damaged carbon coating in spent LFP. The regenerated cathode material had superfast lithium-ion diffusion kinetics and a stable cathode–electrolyte interface, giving a remarkable rate capability with specific capacities of 122 mAh g−1 at 5C and 106 mAh g−1 at 10C (1C = 170 mA g−1). It also maintained capacities of 110.7 mAh g−1 (5C) and 84.1 mAh g−1 (10C) after 400 cycles. It could be used in harsh environments and could be stably cycled at subzero temperatures (−10 and −20 °C) and in solid-state electrolyte batteries. Life cycle assessment combined with economic evaluation using the EverBatt model reveals that this direct regeneration approach has high economic and environmental benefits.
Oxide Semiconductor for Advanced Memory Architectures: Atomic Layer Deposition, Key Requirement and Challenges
Oxide semiconductors (OSs), introduced by the Hosono group in the early 2000s, have evolved from display backplane materials to promising candidates for advanced memory and logic devices. The exceptionally low leakage current of OSs and compatibility with three-dimensional (3D) architectures have recently sparked renewed interest in their use in semiconductor applications. This review begins by exploring the unique material properties of OSs, which fundamentally originate from their distinct electronic band structure. Subsequently, we focus on atomic layer deposition (ALD), a core technique for growing excellent OS films, covering both basic and advanced processes compatible with 3D scaling. The basic surface reaction mechanisms—adsorption and reaction—and their roles in film growth are introduced. Furthermore, material design strategies, such as cation selection, crystallinity control, anion doping, and heterostructure engineering, are discussed. We also highlight challenges in memory applications, including contact resistance, hydrogen instability, and lack of p-type materials, and discuss the feasibility of ALD-grown OSs as potential solutions. Lastly, we provide an outlook on the role of ALD-grown OSs in memory technologies. This review bridges material fundamentals and device-level requirements, offering a comprehensive perspective on the potential of ALD-driven OSs for next-generation semiconductor memory devices.
Laser powder bed fusion of biodegradable Zn-4Cu alloy: Processing, microstructure and properties
Zn's natural degradability and biocompatibility make it a promising candidate for implants, however, its mechanical properties remain insufficient for bone applications. In this study, the performance of Zn was enhanced by developing Zn-Cu alloys via laser powder bed fusion (LPBF). Optimal LPBF parameters for forming stable tracks were achieved by adjusting laser power and scanning speed. Under optimized conditions of 100 W and 100 mm/s, high-density (99.58%) Zn-Cu alloys with improved hardness (68.2HV) and yield strength (160 MPa) were achieved. These improvements are attributed to solid solution strengthening, segregation strengthening, and grain refinement. The Zn-Cu alloys also demonstrated favorable degradation behavior, with a rate of 0.16 mm/year. This degradation is primarily driven by micro-galvanic corrosion between the CuZn5 phase and Zn matrix, along with refined grains and increased grain boundary density. This work demonstrates a viable strategy for fabricating Zn-based implants with enhanced structural integrity and mechanical performance via LPBF.
