Key Takeaways & Executive Findings
- •• A novel FeCrNiAl0.1Si0.1 medium entropy alloy achieves exceptional strength-ductility synergy at intermediate temperatures (873 K) with yield strength of 693.83 MPa, ultimate tensile strength of 817.55 MPa, and uniform elongation of 18.27%. • Heterogeneous precipitation of micron-scale σ phase at grain boundaries and nanoscale B2 phase within grains enables simultaneous strengthening and toughening across a wide temperature range. • The alloy exhibits excellent cryogenic and ambient temperature mechanical properties due to dislocation shearing of B2 phases, Orowan bypass of σ phase, and high density of nano-twins and stacking faults. • The study provides a new strategy for developing precipitation-hardened Fe-Cr-Ni austenitic alloys for high-temperature applications in nuclear and aerospace industries.
Abstract

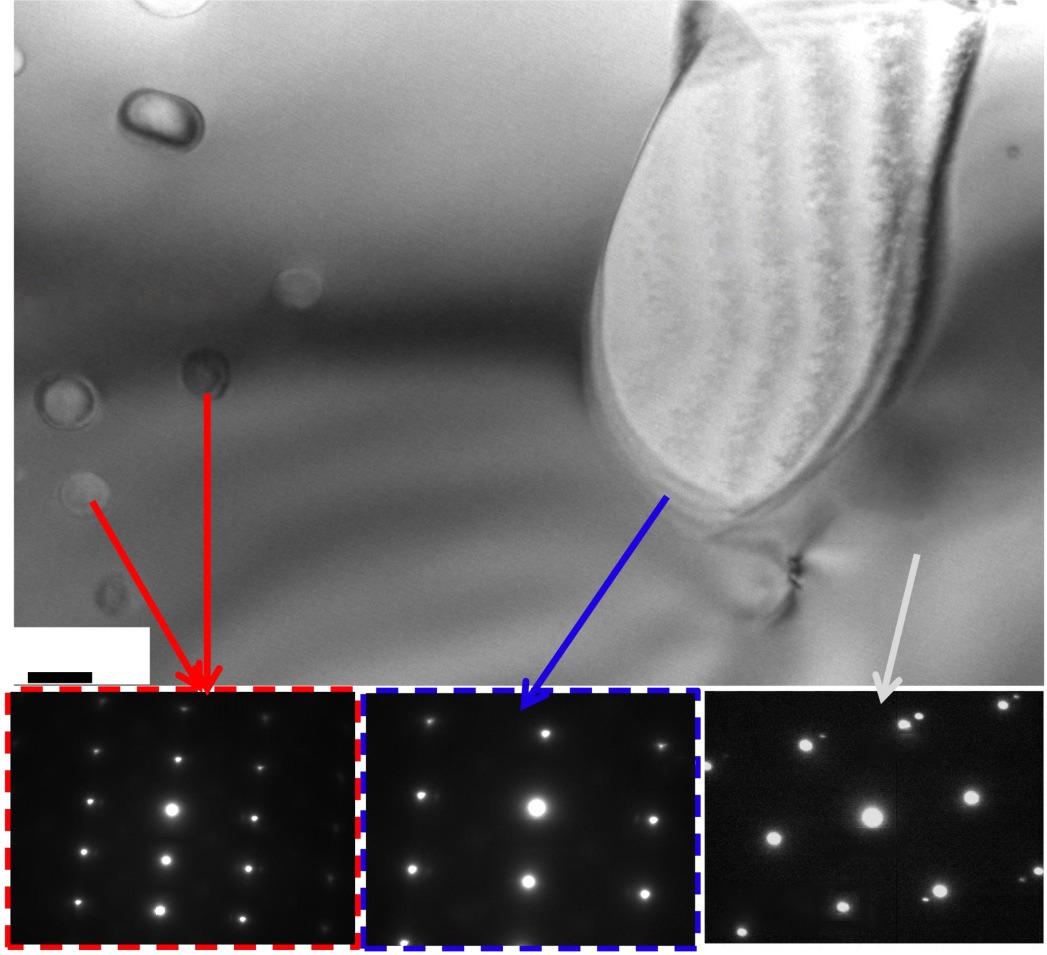

Fe–Cr–Ni austenitic alloys are extensively utilized in the hot-end components of nuclear light water reactors, turbine disks, and gas compressors. However, their low strength at elevated temperatures limits their engineering applications. In this study, a novel precipitation-strengthened alloy system is developed by incorporating Al and Si elements into a FeCrNi equiatomic alloy. The results indicate that the FeCrNiAlxSix (at%, x = 0.1, 0.2) alloys possess heterogeneous precipitation structures that feature a micron-scale σ phase at the grain boundaries and a nanoscale ordered body-centered cube (B2) phase within the grains. An exceptional strength–ductility synergy across a wide temperature range is achieved in FeCrNiAl0.1Si0.1 alloys due to grain refinement and precipitation strengthening. Notably, a yield strength of 693.83 MPa, an ultimate tensile strength of 817.55 MPa, and a uniform elongation of 18.27% are attained at 873 K. The dislocation shearing mechanism for B2 phases and the Orowan bypass mechanism for σ phase, coupled with a high density of nano-twins and stacking faults in the matrix, contribute to the excellent mechanical properties at cryogenic and ambient temperatures. Moreover, the emergence of serrated σ phase and micro-twins in the matrix plays a crucial role in the strengthening and toughening mechanisms at intermediate temperatures. This study offers a novel perspective and strategy for the development of precipitation-hardened Fe–Cr–Ni austenitic alloys with exceptional strength–ductility synergy over a broad temperature range.
1. Introduction
The search for materials with excellent mechanical properties across a wide temperature range has been a long-term goal of the materials community. Alloys with high contents of chromium (Cr), iron (Fe), and nickel (Ni) have served as engineering heat-resistant materials for over a century, primarily in the core components of nuclear light water reactors, turbine disks, and gas compressors [1–2]. The mechanical properties of these heat-resistant materials are notably affected by service temperature, posing a considerable challenge in achieving an optimal strength–toughness synergy across a wide temperature spectrum. The development of medium- and high-entropy alloys (M/HEAs) has recently introduced an innovative approach that differs from traditional alloy design [3–7]. Reports indicate that single-phase face-centered cubic (FCC) M/HEAs exhibit excellent low-temperature mechanical properties, even at 4.2 K [8], and possess the best cryogenic fracture toughness reported to date [9–12].
Numerous studies have demonstrated that nearly all single-phase FCC M/HEAs exhibit a remarkable reduction in strength at elevated temperatures [13–16]. A single-phase matrix must be strengthened by second phases and precipitates to maintain high strength [17–20]. Precipitation-reinforced microstructures are extensively employed in high-temperature materials, such as Ni–Fe-based superalloys and heat-resistant steels, where a single FCC matrix is strengthened by the L12 phase and carbides [17–21]. The primary constituent elements of these alloys are Cr, Fe, and Ni, while other solid solution elements such as V, Ti, and Nb promote the precipitation of brittle carbides, enhancing the mechanical properties of heat-resistant steel at elevated temperatures [21–22]. However, the presence of carbides within the matrix can lead to notable strain softening due to severe interface cracking during deformation at high temperatures [22], a phenomenon similar to that observed in particle-reinforced composites [23]. Additionally, the ordered L12 phase, commonly utilized in superalloys, exhibits considerable embrittlement in the intermediate temperature range, although the underlying reasons for this remain controversial [17,21]. Consequently, reinstating the NiAl-B2 phase, which was previously considered a potential high-temperature phase for high-temperature alloys, is crucial. The B2 phase features an ordered body-centered cubic (BCC) structure that has been extensively studied and introduced as a precipitating phase to enhance the mechanical properties of alloys.
Loading authentic research manuscript (Pages 1–5)...
Tianxiang Bai, Tuanwei Zhang, Zhiming Jiao, Jinyao Ma, Hui Chang, Jianjun Wang, Dan Zhao, Shengguo Ma, Zhouzhu Mao, Xiaoxiao Liu, Zhihua Wang (2025). Achieving the excellent intermediate-temperature strength–ductility synergy in a fine-grained FeCrNi-based medium entropy alloy with heterogeneous precipitation. Int. Journal of Minerals, Metallurgy and Materials (矿物冶金与材料学报). https://doi.org/10.1007/s12613-024-3034-1
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the main achievement of this study?
The study develops a novel FeCrNiAl0.1Si0.1 medium entropy alloy that achieves excellent strength-ductility synergy at intermediate temperatures, with yield strength of 693.83 MPa, ultimate tensile strength of 817.55 MPa, and uniform elongation of 18.27% at 873 K.
What are the key microstructural features contributing to the improved properties?
The alloy exhibits heterogeneous precipitation with micron-scale σ phase at grain boundaries and nanoscale B2 phase within grains, along with high density of nano-twins and stacking faults, which together enhance strength and ductility.
How does the alloy perform at cryogenic and ambient temperatures?
At cryogenic and ambient temperatures, the alloy shows excellent mechanical properties due to dislocation shearing of B2 phases and Orowan bypass of σ phase, coupled with nano-twins and stacking faults.
What is the significance of this research for engineering applications?
This research provides a new strategy for developing precipitation-hardened Fe-Cr-Ni austenitic alloys with exceptional strength-ductility synergy over a broad temperature range, which is crucial for hot-end components in nuclear reactors, turbines, and gas compressors.
What are the mechanisms responsible for strengthening at intermediate temperatures?
At intermediate temperatures, the emergence of serrated σ phase and micro-twins in the matrix plays a crucial role in strengthening and toughening mechanisms.
Related Technical Papers & Translations
Direct Repair of the Crystal Structure and Coating Surface of Spent LiFePO4 Materials Enables Superfast Li-Ion Migration
The rapid accumulation of spent LiFePO4 (LFP) cathodes from retired lithium-ion batteries necessitates the development of effective and environmental-friendly recycling strategies. In this context, direct regeneration has emerged as a promising approach for reclaiming LFP cathode materials, offering a streamlined pathway to restore their electrochemical functionality. We report an integrated regeneration protocol that simultaneously repairs the degraded crystal structure and reconstructs the damaged carbon coating in spent LFP. The regenerated cathode material had superfast lithium-ion diffusion kinetics and a stable cathode–electrolyte interface, giving a remarkable rate capability with specific capacities of 122 mAh g−1 at 5C and 106 mAh g−1 at 10C (1C = 170 mA g−1). It also maintained capacities of 110.7 mAh g−1 (5C) and 84.1 mAh g−1 (10C) after 400 cycles. It could be used in harsh environments and could be stably cycled at subzero temperatures (−10 and −20 °C) and in solid-state electrolyte batteries. Life cycle assessment combined with economic evaluation using the EverBatt model reveals that this direct regeneration approach has high economic and environmental benefits.
Oxide Semiconductor for Advanced Memory Architectures: Atomic Layer Deposition, Key Requirement and Challenges
Oxide semiconductors (OSs), introduced by the Hosono group in the early 2000s, have evolved from display backplane materials to promising candidates for advanced memory and logic devices. The exceptionally low leakage current of OSs and compatibility with three-dimensional (3D) architectures have recently sparked renewed interest in their use in semiconductor applications. This review begins by exploring the unique material properties of OSs, which fundamentally originate from their distinct electronic band structure. Subsequently, we focus on atomic layer deposition (ALD), a core technique for growing excellent OS films, covering both basic and advanced processes compatible with 3D scaling. The basic surface reaction mechanisms—adsorption and reaction—and their roles in film growth are introduced. Furthermore, material design strategies, such as cation selection, crystallinity control, anion doping, and heterostructure engineering, are discussed. We also highlight challenges in memory applications, including contact resistance, hydrogen instability, and lack of p-type materials, and discuss the feasibility of ALD-grown OSs as potential solutions. Lastly, we provide an outlook on the role of ALD-grown OSs in memory technologies. This review bridges material fundamentals and device-level requirements, offering a comprehensive perspective on the potential of ALD-driven OSs for next-generation semiconductor memory devices.
Laser powder bed fusion of biodegradable Zn-4Cu alloy: Processing, microstructure and properties
Zn's natural degradability and biocompatibility make it a promising candidate for implants, however, its mechanical properties remain insufficient for bone applications. In this study, the performance of Zn was enhanced by developing Zn-Cu alloys via laser powder bed fusion (LPBF). Optimal LPBF parameters for forming stable tracks were achieved by adjusting laser power and scanning speed. Under optimized conditions of 100 W and 100 mm/s, high-density (99.58%) Zn-Cu alloys with improved hardness (68.2HV) and yield strength (160 MPa) were achieved. These improvements are attributed to solid solution strengthening, segregation strengthening, and grain refinement. The Zn-Cu alloys also demonstrated favorable degradation behavior, with a rate of 0.16 mm/year. This degradation is primarily driven by micro-galvanic corrosion between the CuZn5 phase and Zn matrix, along with refined grains and increased grain boundary density. This work demonstrates a viable strategy for fabricating Zn-based implants with enhanced structural integrity and mechanical performance via LPBF.
