Key Takeaways & Executive Findings
- •• The hybrid ion system strategically combines the high-voltage characteristics of Zn2+ redox with the exceptionally fast kinetics of NH4+, significantly boosting thermoelectric performance for low-grade heat harvesting. • The Zn2+/NH4+ co-insertion/thermoextraction mechanism is elucidated, where NH4+ exhibits exceptionally fast migration due to its unique hydrogen bonding diffusion behavior. • The device achieves a record 19.6 mW m⁻2 K⁻2 normalized power density with 72 h continuous operation, demonstrating strong application potential. • The thermal charging cell achieves a high thermopower of 12.5 mV K−1 and a Carnot-relative efficiency of 12.74%, offering a simple and effective strategy for low-grade heat conversion and storage.
Abstract
Zn-based thermal charging devices, utilizing the synergistic effect of ion thermoextraction and thermodiffusion, are able to efficiently convert thermal energy into electrical energy and storage in the devices, making them a highly promising technology for low-grade heat recovery and utilization. However, the low output power density and energy conversion efficiency resulted by the slow diffusion kinetics of Zn2+ hinder their development. Herein, we present a high-performance thermal charging cell design using Zn2+/NH4+ hybrid ion electrolyte, which not only maintains the high output voltage of the Zn-based thermoelectric system, but also significantly enhances the output power density due to the fast diffusion kinetics of NH4+. Based on this strategy, the thermal charging cell displays a high thermopower of 12.5 mV K−1 and an excellent normalized power density of 19.6 mW m−2 K−2 at a temperature difference of 35 K. The Carnot-relative efficiency is as high as 12.74%. Moreover, it can operate continuously for over 72 h when the temperature difference persists, achieving a balance between thermoelectric conversion and output. This work provides a simple and effective strategy for the design of high-performance thermal charging cells for low-grade heat conversion and utilization.
1. Introduction
Low-grade heat (<100 °C) is generated in daily life and industrial production of human society, which is often neglected and wasted because it is difficult to utilize efficiently [1–3]. Conventional solid-state thermoelectric devices (s-TEs) based on the Seebeck effect can realize the direct conversion of heat to electricity [4]. However, the relatively low Seebeck coefficient (~µV K–1) still limits its practical application in areas such as Internet-of-Things (IoTs) sensors and wearable devices [5–7]. The emerging ionic thermoelectric devices (i-TEs), with a thermopower on the order of mV K–1, have overcome the critical limitation of insufficient energy conversion efficiency of s-TEs, offering new possibilities for the utilization of low-grade heat and source-free power supply for low-power devices [8–10].

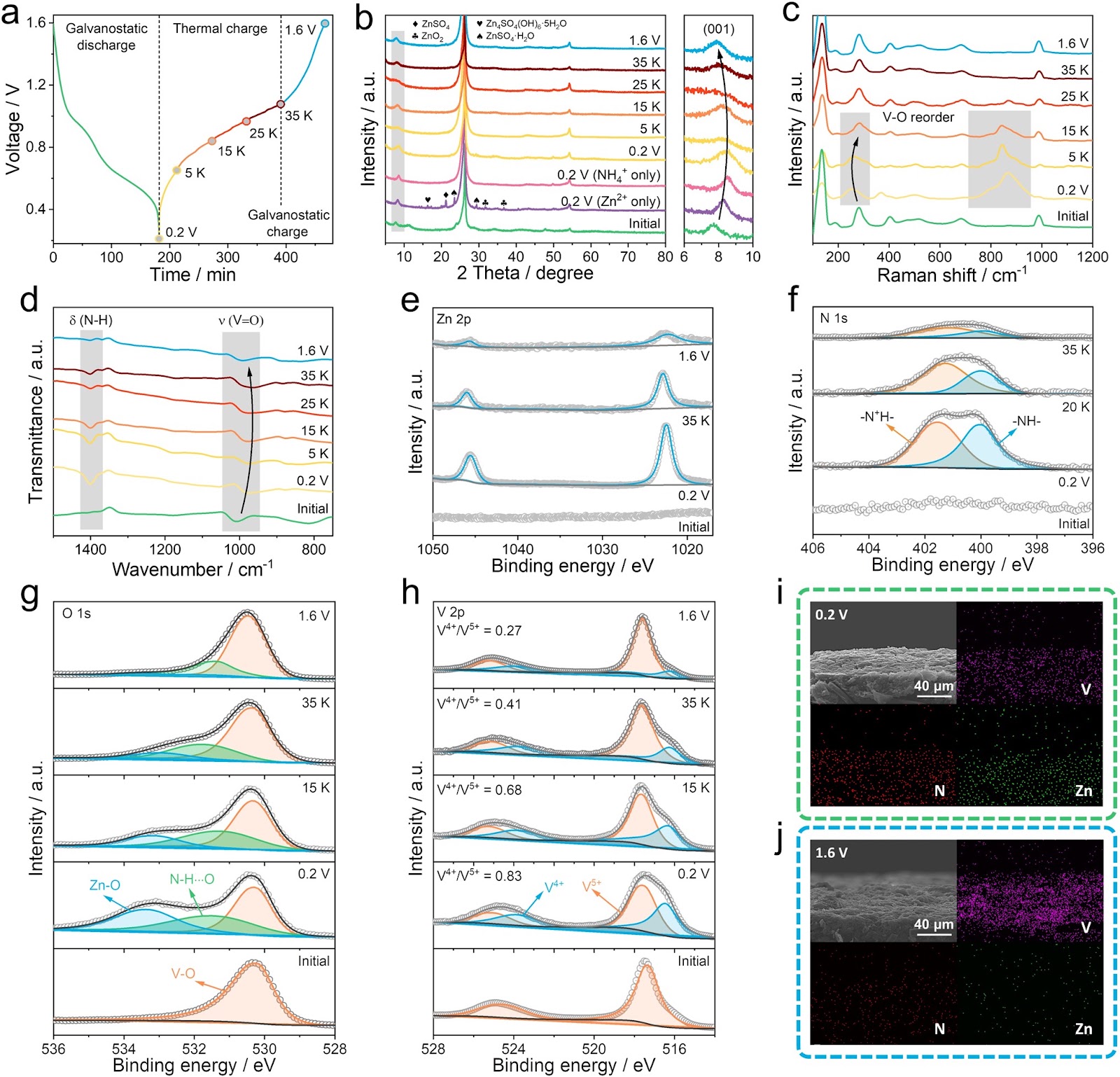

During last decade, substantial progress has been made in the area of i-TEs. The thermopower of i-TEs has effectively improved by regulating the entropy difference of thermally driven redox reactions or designing nanostructure electrode materials [11–16]. However, the energy conversion efficiency remains relatively low. Moreover, additional energy storage units are often required for practical applications, thereby increasing the complexity of system integration [17–19]. To address these challenges, our group has developed novel zinc-ion thermal charging cells (ZTCCs) combining zinc-ion batteries with the ionic thermoelectric system, which not only improve the thermoelectric conversion efficiency but also integrate energy conversion with energy storage into a single system [20]. Through the thermoextraction of Zn2⁺ (its thermal-driven ejection from the cathode lattice) and its subsequent thermodiffusion (the concentration-gradient-driven diffusion in the electrolyte), coupled with the plating/stripping process on the Zn metal anode, the ZTCCs realized the high-efficiency conversion and storage of low-grade heat into electrical energy. By rationally designing the structure of the VO2 cathode material, a thermopower of 12.5 mV K–1 and an energy conversion efficiency of 0.95% (7.25% of the relative efficiency of Carnot) were obtained for the ZTCCs [21]. Furthermore, by employing a V2O5 cathode material with a higher ionic diffusion rate, the thermopower of the ZTCCs was further enhanced to 23.4 mV K–1 [22]. In addition, Cui et al. introduced the concept of zinc-ion hybrid supercapacitors into ionic thermoelectric systems, selecting a common adsorption-type cathode (commercial activated carbon YP-80F) to match with Zn metal anode, and assembled a new type of zinc-ion thermally charged supercapacitor (ZTCSCs) [23]. Specifically, by utilizing the reversible adsorptio
Loading authentic research manuscript (Pages 1–5)...
Zhiwei Han, Shengliang Zhang, Helang Huang, Jing Wang, Hui Dou, Tianran Zhang, Xiaogang Zhang (2026). A High-Performance Thermal Charging Cell with High Power Density and Long Runtime Enabled by Zn2+ and NH4+ Co-insertion. Nano-Micro Letters. https://doi.org/10.1007/s40820-025-02011-9
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the main innovation of this thermal charging cell?
The main innovation is the use of a Zn2+/NH4+ hybrid ion electrolyte, which combines the high voltage of Zn2+ redox with the fast kinetics of NH4+, significantly enhancing power density and efficiency for low-grade heat harvesting.
What are the key performance metrics of the device?
The device achieves a thermopower of 12.5 mV K−1, a normalized power density of 19.6 mW m−2 K−2 at a temperature difference of 35 K, and a Carnot-relative efficiency of 12.74%. It can operate continuously for over 72 hours.
How does the Zn2+/NH4+ co-insertion mechanism work?
The mechanism involves the co-insertion and thermoextraction of Zn2+ and NH4+ ions. NH4+ exhibits exceptionally fast migration due to its unique hydrogen bonding diffusion behavior, which enhances the overall kinetics and power density.
What is the significance of this work for low-grade heat recovery?
This work provides a simple and effective strategy to design high-performance thermal charging cells, enabling efficient conversion and storage of low-grade heat (<100°C) into electrical energy, which is often wasted in daily life and industrial processes.
What are the potential applications of this technology?
Potential applications include powering low-power devices such as IoT sensors and wearable devices, as well as integrating with energy storage systems for efficient low-grade heat utilization.
