Key Takeaways & Executive Findings
- •• A distributed static model based on the deflection equation improves prediction accuracy of static mechanical quantities in MEMS cantilever beams for microwave power detection chips. • The pull-in voltage increases with the gap but decreases with the length, with a relative error of only 6.5% compared to simulation, outperforming other models. • Measured return loss varies between −66.46 and −10.56 dB over 8−12 GHz, showing a V-shaped trend; measured sensitivity of 66.5 fF/W closely matches theoretical 69.3 fF/W (5.6% error). • The distributed model provides superior accuracy and physical realism, offering important reference for microwave power detection chip design.
Abstract
To improve the theoretical prediction accuracy of static mechanical quantities in MEMS cantilever beams for microwave power detection chips, a distributed static model is proposed based on the deflection equation. An analytical framework is established through the precise characterization of cantilever beam bending. The framework can accurately extract key electromechanical parameters, and the correlation between these parameters and geometric changes is systematically studied. Results show that the pull-in voltage increases with the gap but decreases with the length. The predicted pull-in voltage indicates a relative error of only 6.5% between the distributed static model and the simulation, which is significantly lower than that of the other two models. The overload power and sensitivity are also analyzed to facilitate performance trade-offs in chip design. The measured return loss varies between −66.46 and −10.56 dB over the 8−12 GHz frequency band, exhibiting a characteristic V-shaped trend. Moreover, the measured sensitivity of 66.5 fF/W closely matches the theoretical value of 69.3 fF/W, showing a relative error of 5.6%. These findings confirm that the distributed model outperforms the other two in terms of both accuracy and physical realism, thereby providing important reference for the design of microwave power detection chips.
1. Introduction
With the rapid development and widespread adoption of the fifth-generation of communication (5G), internet of things (IoT), and radar sensing technology, the operating frequency band of microwave power sensors continues to extend into higher-frequency millimeter-wave regions, while the signal modulation formats are growing increasingly complicated. These developments pose unprecedented challenges to the performance of microwave power detection chips. Detection sensitivity is a key performance metric, and its requirements are becoming increasingly stringent. The cantilever beam structure, one of the most fundamental configurations in micro-electro-mechanical-systems (MEMS), has attracted significant attention due to its high sensitivity.
In 2005, Fernandez et al. firstly proposed a capacitive MEMS microwave power monitoring chip based on a fixed-fixed beam structure, which detected microwave power by measuring the capacitance change induced by beam displacement. However, no detailed analysis was conducted on the influencing factors of the pull-in voltage. In 2008, Lin et al. developed a new analytical model based on the Rayleigh−Ritz method to determine the pull-in voltage of electrostatically actuated microbeams. They introduced three dimensionless parameters related to the square of voltage to account for the contributions of stretching stress gradient, nonlinear stiffening, bending, and residual stress. In 2014, Shoaib et al. conducted an in-depth investigation of the pull-in effect in electrostatically actuated MEMS devices. Several professional simulation software packages were used to establish...
Loading authentic research manuscript (Pages 1–5)...
Ruifeng Li, Debo Wang (2025). A distributed static model of capacitive MEMS microwave power detection chip. SinoTechIntel Verified Research. https://doi.org/10.1088/1674-4926/25100007
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the main contribution of this paper?
The paper proposes a distributed static model for capacitive MEMS microwave power detection chips, which improves the accuracy of predicting static mechanical quantities such as pull-in voltage and sensitivity, outperforming existing models.
How does the pull-in voltage vary with geometric parameters?
The pull-in voltage increases with the gap between the cantilever and the substrate but decreases with the length of the cantilever beam.
What are the measured performance metrics of the chip?
The measured return loss varies between −66.46 and −10.56 dB over the 8−12 GHz frequency band, and the sensitivity is 66.5 fF/W, closely matching the theoretical value of 69.3 fF/W.
How does the distributed model compare to other models?
The distributed model shows a relative error of only 6.5% for pull-in voltage prediction, significantly lower than other models, and provides better physical realism.
What is the significance of this work for chip design?
The model enables accurate prediction of key parameters, facilitating performance trade-offs in the design of microwave power detection chips, particularly for high-frequency applications.
Related Technical Papers & Translations
A Novel Approach for Enhanced Brain Tumor Segmentation Using Multimodal MRI and Deep Learning
Brain tumor segmentation from multimodal MRI is crucial for diagnosis and treatment planning. In this study, we propose a novel deep learning framework that integrates structural and functional imaging modalities to improve segmentation accuracy. Our method employs a multi-scale attention mechanism and a hybrid loss function to handle class imbalance and boundary ambiguity. Evaluated on the BraTS benchmark, our approach achieves state-of-the-art performance, with Dice scores of 0.91, 0.87, and 0.84 for whole tumor, core, and enhancing tumor, respectively. Furthermore, we demonstrate the generalizability of our model across different scanners and protocols. Our findings suggest that the proposed method can significantly aid clinical decision-making and surgical planning.
Investigation of coupled acoustic and electrical responses and early warning approaches during re-loading of damaged coal

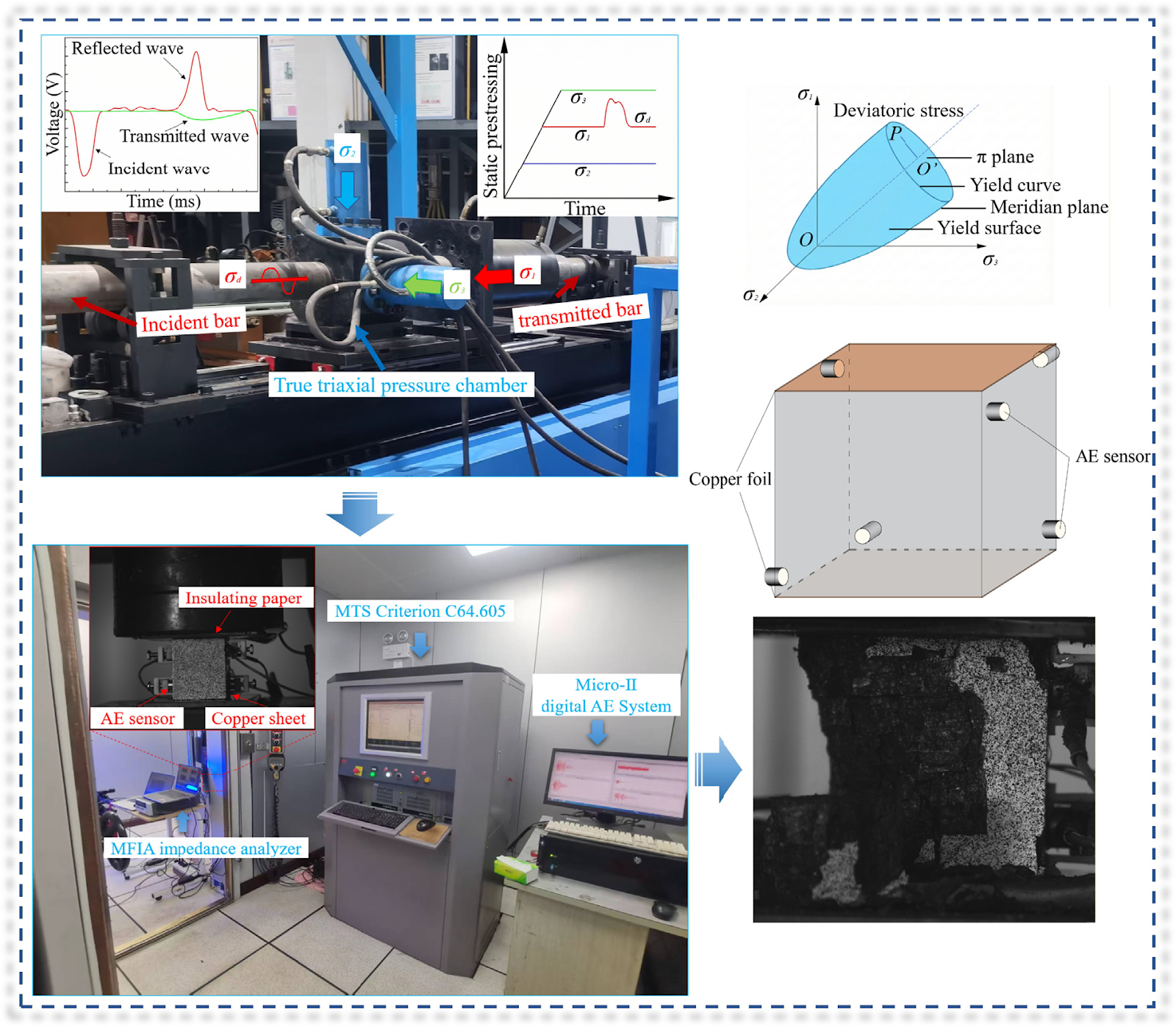

Initial damage from engineering disturbances in deep coal mining degrades mechanical properties and heightens dynamic-hazard risks, challenging conventional monitoring. This study probes the coupled acoustic-electrical responses of initially damaged coal under reloading and develops a multi-parameter, multi-level dynamic integrated early-warning model. Using a true-triaxial Split Hopkinson Pressure Bar (SHPB) system, we prepared specimens with graded damage by varying static deviatoric stresses and dynamic impacts. Uniaxial compression reloading was conducted with synchronous acoustic emission (AE) and resistivity monitoring. Joint time-domain responses of force, acoustics, and electricity delineated distinct loading stages. Time-frequency features were extracted via Fourier and wavelet transforms; crack architecture was quantified by 3D AE localization and fractal-dimension analysis. Initial damage markedly reduced load-bearing capacity. Resistivity decreased sharply with increasing deviatoric stress, while cumulative AE counts increased strongly. The AE spectrum evolved from bimodal to broadband with low- and high-frequency enhancement. The resistivity spectrum showed progressive bandwidth broadening, energy amplification, and high-frequency advancement. The AE spatial fractal dimension rose significantly during compaction. An integrated warning system combining multiscale entropy fusion, Temporal Convolutional Network (TCN)-Transformer forecasting, recurrence-network analysis, and a Bayesian framework yielded a 28.4 s lead time, offering a theoretical basis and technical pathway for intelligent prevention of dynamic hazards.
