Key Takeaways & Executive Findings
- •• The Arrhenius constitutive model with coupled correction accurately predicts the flow stress of SLM-processed AlMgScZr alloy, with a correlation coefficient of 0.999 and an average absolute relative error of 2.766%. • Hot processing maps at different strains identify stable and unstable regions, guiding optimal thermal deformation conditions for the alloy. • Microstructural evolution during thermal deformation is temperature-dependent: dynamic recrystallization dominates at 300–360 °C, while dynamic recovery prevails at 390–500 °C. • The study provides a foundation for optimizing hot working processes and predicting performance of SLM-fabricated high-strength aluminum alloys in high-temperature applications.
Abstract

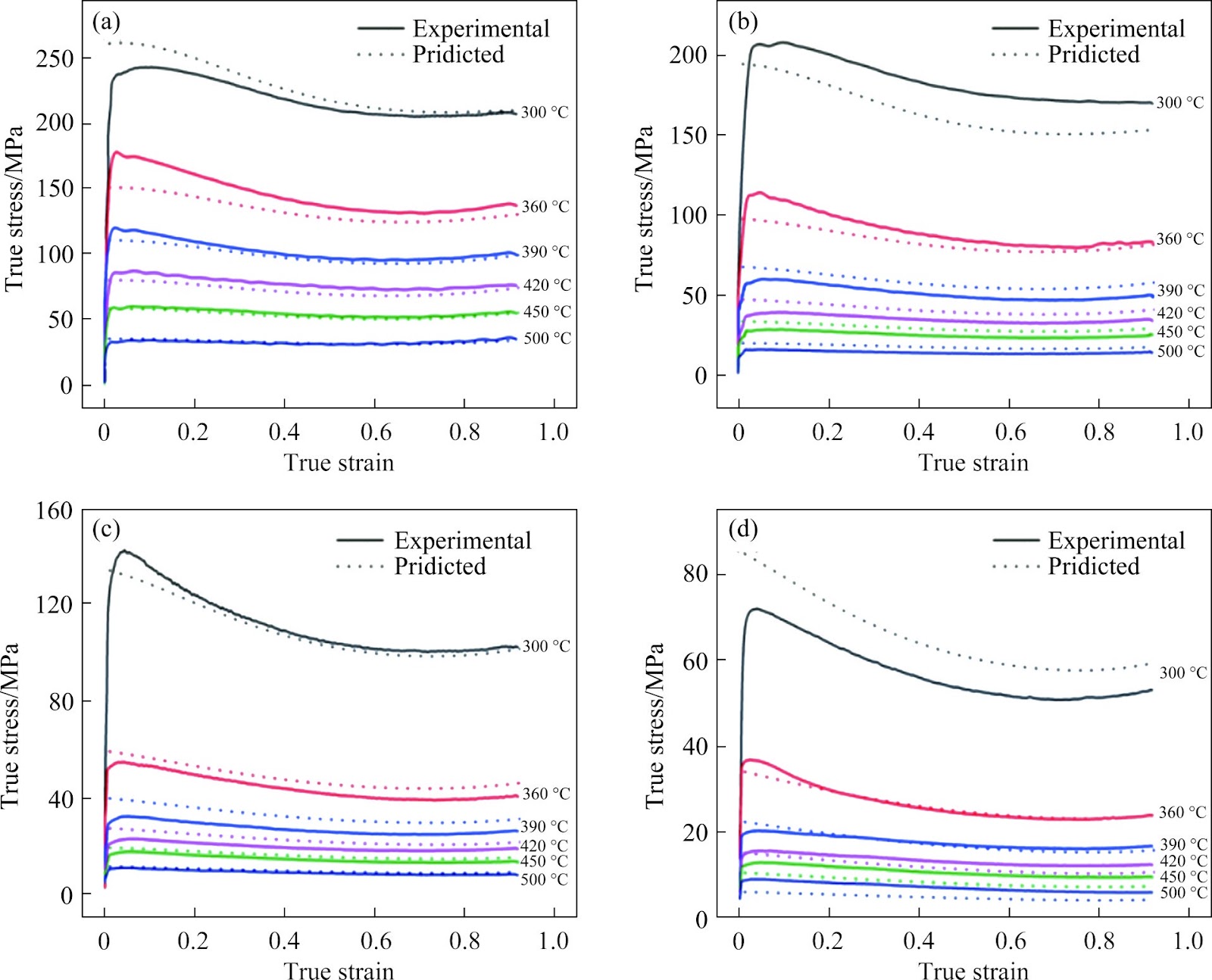

The AlMgScZr high-strength aluminum alloy fabricated by selective laser melting (SLM) technology exhibits a “bimodal microstructure”, resulting in significant non-uniform deformation during thermal deformation. This study investigates the flow behavior of SLM-processed AlMgScZr aluminum alloy utilizing the Gleeble-1500D thermal simulation machine. The true stress−strain curves were amended based on the friction theory. Through determining the Zener-Hollomon parameters, the correlation between flow stress, deformation temperature, and strain rate during the high-temperature thermoplastic deformation of SLM-processed AlMgScZr aluminum alloy with a “bimodal microstructure” was established. In addition, the microstructural evolution during thermal deformation was analyzed. The results indicated that the predicted flow stress values obtained from the Arrhenius constitutive equation with coupled correction of thermal deformation parameters closely matched the experimental values. The correlation coefficient and the average absolute relative error of the corrected model were 0.999 and 2.766%, respectively, accurately predicting the thermoplastic deformation behavior of SLM-processed high-strength aluminum alloy with a “bimodal microstructure”. Furthermore, hot processing maps at different strains were established, identifying stable and unstable regions under different deformation conditions. Microstructural observations revealed different thermal deformation mechanisms under various deformation temperatures. Specifically, dynamic recrystallization characteristics dominated the microstructure at lower temperatures (300−360 ℃), while dynamic recovery was dominant at higher temperatures (390−500 ℃).
1. Introduction
Selective laser melting (SLM) technology leverages the interaction between a laser and metal powder to create molten pools that rapidly melt and solidify, resulting in a refined microstructure and mechanical properties that surpass those achieved through traditional casting processes. SLM enables the rapid manufacture of high-precision customized components with complex structures, successfully applied in key components for aerospace, marine engineering, and automotive industries, including engine turbine discs, propellers, and thermostat covers [1−5].
To satisfy the lightweight requirements for industry application, extensive research has been conducted on manufacturing different series of aluminum alloys using SLM technology. An Airbus subsidiary in Germany designed a high-strength Al-Mg aluminum alloy that contains scandium and zirconium elements [6, 7]. During the SLM process, columnar and equiaxed grains alternately grow across layers due to complex thermal cycles and the precipitation of Al3(Sc, Zr) particles, maintaining a balance between strength and plasticity after heat treatment [8−13].
SLM-processed AlMgScZr alloys exhibit excellent specific strength and high-temperature creep resistance, making them promising candidates for high-temperature load-bearing structural components in aerospace applications. Under severe service conditions, high-strength aluminum alloy structural components undergo micro-scale thermal deformation when exposed to high temperatures [14]. Understanding the microstructural evolution during thermal deformation contributes to predicting performance changes in aluminum alloys and alloy design under high pressure technology [15, 16]. Flow stress is a fundamental parameter characterizing the deformation behavior of metals and alloys, and constitutive equations describe the flow stress behavior. The Arrhenius constitutive model describes the plastic deformation behavior of materials at high temperatures by using macroscopic variables to replace microstructural changes [17, 18]. The model is applicable for superalloys and aluminum alloys [19], but it primarily considers temperature and strain rate, neglecting the influence of strain on flow stress. To address
Loading authentic research manuscript (Pages 1–5)...
ZHU Zeng-wei, LIU Qian-li, WANG Qiu-ping, JIANG Tao, GUAN Jie-ren (2025). Thermal compression behavior and microstructural evolution of selective laser melted AlMgScZr high-strength aluminum alloys. Journal of Central South University. https://doi.org/10.1007/s11771-025-6114-0
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the main objective of this study?
The study investigates the thermal compression behavior and microstructural evolution of selective laser melted AlMgScZr high-strength aluminum alloys, focusing on establishing a constitutive model to predict flow stress and analyzing deformation mechanisms.
How was the flow stress behavior modeled?
The flow stress behavior was modeled using an Arrhenius-type constitutive equation with coupled correction of thermal deformation parameters, which accurately predicted experimental values with a correlation coefficient of 0.999 and an average absolute relative error of 2.766%.
What are the key microstructural changes during thermal deformation?
At lower temperatures (300–360 °C), dynamic recrystallization dominates, while at higher temperatures (390–500 °C), dynamic recovery is the primary mechanism.
What practical applications does this research support?
The findings help optimize hot working processes and predict the performance of SLM-fabricated high-strength aluminum alloys in high-temperature aerospace and other load-bearing applications.
What is the significance of the hot processing maps?
Hot processing maps at different strains identify stable and unstable regions, guiding the selection of safe deformation conditions to avoid defects and improve formability.
Related Technical Papers & Translations
Direct Repair of the Crystal Structure and Coating Surface of Spent LiFePO4 Materials Enables Superfast Li-Ion Migration
The rapid accumulation of spent LiFePO4 (LFP) cathodes from retired lithium-ion batteries necessitates the development of effective and environmental-friendly recycling strategies. In this context, direct regeneration has emerged as a promising approach for reclaiming LFP cathode materials, offering a streamlined pathway to restore their electrochemical functionality. We report an integrated regeneration protocol that simultaneously repairs the degraded crystal structure and reconstructs the damaged carbon coating in spent LFP. The regenerated cathode material had superfast lithium-ion diffusion kinetics and a stable cathode–electrolyte interface, giving a remarkable rate capability with specific capacities of 122 mAh g−1 at 5C and 106 mAh g−1 at 10C (1C = 170 mA g−1). It also maintained capacities of 110.7 mAh g−1 (5C) and 84.1 mAh g−1 (10C) after 400 cycles. It could be used in harsh environments and could be stably cycled at subzero temperatures (−10 and −20 °C) and in solid-state electrolyte batteries. Life cycle assessment combined with economic evaluation using the EverBatt model reveals that this direct regeneration approach has high economic and environmental benefits.
Oxide Semiconductor for Advanced Memory Architectures: Atomic Layer Deposition, Key Requirement and Challenges
Oxide semiconductors (OSs), introduced by the Hosono group in the early 2000s, have evolved from display backplane materials to promising candidates for advanced memory and logic devices. The exceptionally low leakage current of OSs and compatibility with three-dimensional (3D) architectures have recently sparked renewed interest in their use in semiconductor applications. This review begins by exploring the unique material properties of OSs, which fundamentally originate from their distinct electronic band structure. Subsequently, we focus on atomic layer deposition (ALD), a core technique for growing excellent OS films, covering both basic and advanced processes compatible with 3D scaling. The basic surface reaction mechanisms—adsorption and reaction—and their roles in film growth are introduced. Furthermore, material design strategies, such as cation selection, crystallinity control, anion doping, and heterostructure engineering, are discussed. We also highlight challenges in memory applications, including contact resistance, hydrogen instability, and lack of p-type materials, and discuss the feasibility of ALD-grown OSs as potential solutions. Lastly, we provide an outlook on the role of ALD-grown OSs in memory technologies. This review bridges material fundamentals and device-level requirements, offering a comprehensive perspective on the potential of ALD-driven OSs for next-generation semiconductor memory devices.
Laser powder bed fusion of biodegradable Zn-4Cu alloy: Processing, microstructure and properties
Zn's natural degradability and biocompatibility make it a promising candidate for implants, however, its mechanical properties remain insufficient for bone applications. In this study, the performance of Zn was enhanced by developing Zn-Cu alloys via laser powder bed fusion (LPBF). Optimal LPBF parameters for forming stable tracks were achieved by adjusting laser power and scanning speed. Under optimized conditions of 100 W and 100 mm/s, high-density (99.58%) Zn-Cu alloys with improved hardness (68.2HV) and yield strength (160 MPa) were achieved. These improvements are attributed to solid solution strengthening, segregation strengthening, and grain refinement. The Zn-Cu alloys also demonstrated favorable degradation behavior, with a rate of 0.16 mm/year. This degradation is primarily driven by micro-galvanic corrosion between the CuZn5 phase and Zn matrix, along with refined grains and increased grain boundary density. This work demonstrates a viable strategy for fabricating Zn-based implants with enhanced structural integrity and mechanical performance via LPBF.
