Key Takeaways & Executive Findings
- •• The oxidation of ethylene tar proceeds in three stages, with the reaction mechanism involving initial side-chain oxidation to alcohols/aldehydes and subsequent polymerization/condensation of aromatic compounds via peroxy-radicals. • Kinetic analysis using the Coats-Redfern method identified a fourth-order reaction model for the first three stages (activation energies 47.33, 18.69, and 9.00 kJ·mol−1) and a three-dimensional diffusion model for the fourth stage (activation energy 88.37 kJ·mol−1). • A high softening point pitch produced from oxidized ethylene tar was applied as a coating on graphite anodes, significantly improving capacity retention after 300 cycles from 51.54% to 79.07%. • The study provides a detailed understanding of the oxidation kinetics and mechanism, enabling the optimization of ethylene tar as a carbonaceous precursor for high-performance lithium-ion battery anodes.
Abstract
The oxidation reaction mechanism and its kinetics for ethylene tar were investigated in order to obtain a suitable anode material for Li-ion batteries. The oxidation of ethylene tar was divided into 3 stages (350–550, 550–700 and 700–900 K) according to the thermogravimetric curve. To reveal the oxidation reaction mechanism, the components of the gases evolved at different stages were analyzed by mass spectrometry and infrared technology. Based on these results the reaction was divided into 4 stages (323–400, 400–605, 605–750 and 750–860 K) to perform simulation calculations of the kinetics. Using the iso-conversion method (Coats-Redfern) to analyze the linear regression rates (R2) between 17 common reaction kinetics models and experimental data, an optimum reaction kinetics model for expressing the oxidation of ethylene tar was determined and the results were as follows. (1) During oxidation, the side chains of aromatic compounds first react with oxygen to form alcohols and aldehydes, leaving peroxy-radicals on aromatic rings. Subsequently, the aromatic compounds with peroxy-radicals undergo polymerization/condensation reactions to form larger molecules. (2) A fourth-order reaction model was used to describe the first 3 stages in the oxidation process, and the activation energies are 47.33, 18.69 and 9.00 kJ·mol−1 at 323–400, 400–605, 605–750 K, respectively. A three-dimensional diffusion model was applied to the fourth stage of the oxidation process, and the activation energy is 88.37 kJ·mol−1 at 750–860 K. A high softening point pitch was also produced for use as a coating of the graphite anode, and after it had been applied the capacity retention after 300 cycles increased from 51.54% to 79.07%.

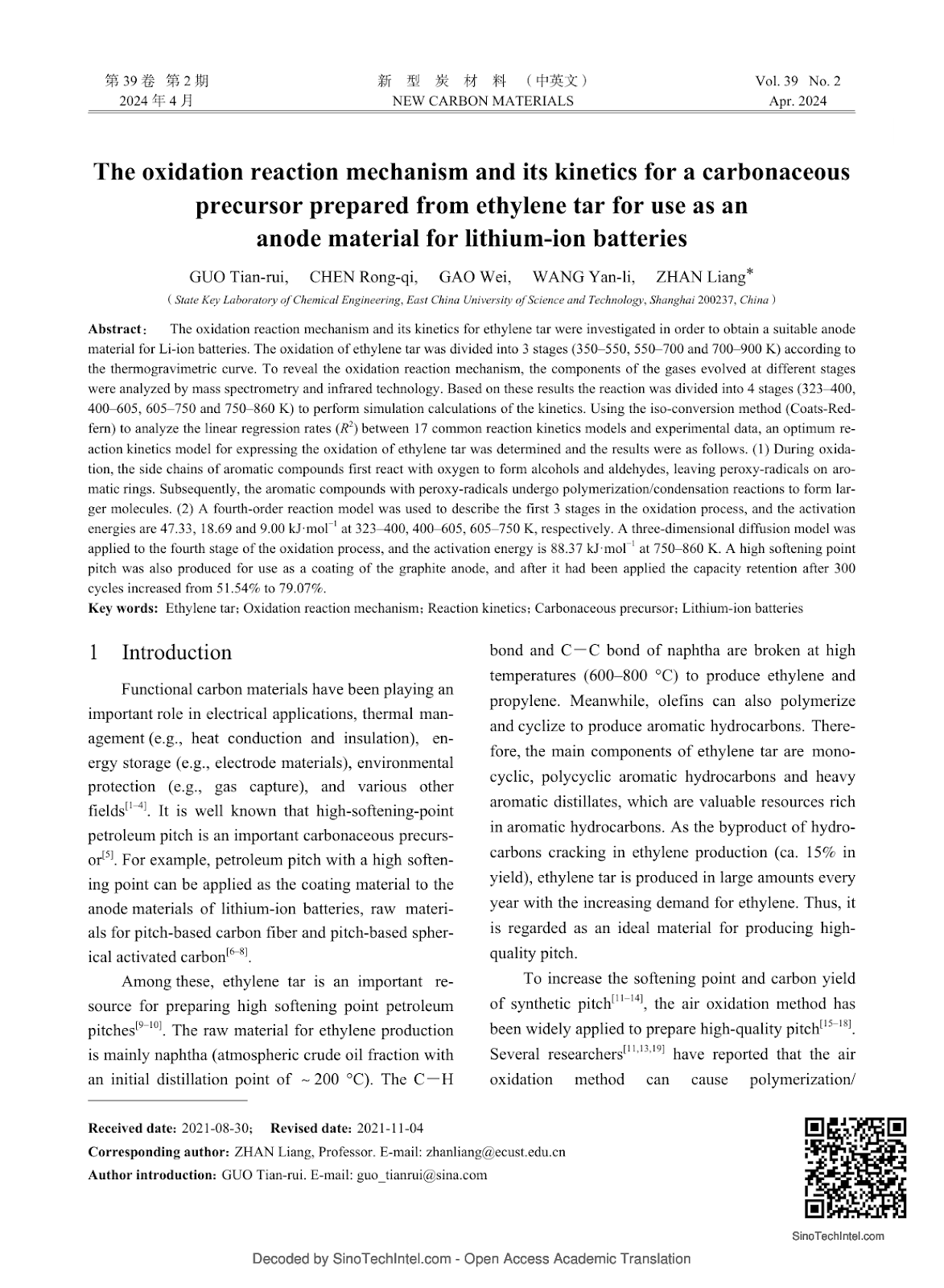

1. Introduction
Functional carbon materials have been playing an important role in electrical applications, thermal management (e.g., heat conduction and insulation), energy storage (e.g., electrode materials), environmental protection (e.g., gas capture), and various other fields[1–4]. It is well known that high-softening-point petroleum pitch is an important carbonaceous precursor[5]. For example, petroleum pitch with a high softening point can be applied as the coating material to the anode materials of lithium-ion batteries, raw materials for pitch-based carbon fiber and pitch-based spherical activated carbon[6–8].
Among these, ethylene tar is an important resource for preparing high softening point petroleum pitches[9–10]. The raw material for ethylene production is mainly naphtha (atmospheric crude oil fraction with an initial distillation point of ～200 °C). The C―H bond and C―C bond of naphtha are broken at high temperatures (600–800 °C) to produce ethylene and propylene. Meanwhile, olefins can also polymerize and cyclize to produce aromatic hydrocarbons. Therefore, the main components of ethylene tar are monocyclic, polycyclic aromatic hydrocarbons and heavy aromatic distillates, which are valuable resources rich in aromatic hydrocarbons. As the byproduct of hydrocarbons cracking in ethylene production (ca. 15% in yield), ethylene tar is produced in large amounts every year with the increasing demand for ethylene. Thus, it is regarded as an ideal material for producing high-quality pitch.
To increase the softening point and carbon yield of synthetic pitch[11–14], the air oxidation method has been widely applied to prepare high-quality pitch[15–18]. Several researchers[11,13,19] have reported that the air oxidation method can cause polymerization/condensation reactions, leading to increased molecular weight and softening point. However, the detailed oxidation mechanism and kinetics of ethylene tar have not been fully elucidated. This study aims to investigate the oxidation reaction mechanism and kinetics of ethylene tar to optimize its use as a carbonaceous precursor for lithium-ion battery anodes.
Loading authentic research manuscript (Pages 1–5)...
GUO Tian-rui, CHEN Rong-qi, GAO Wei, WANG Yan-li, ZHAN Liang (2025). The oxidation reaction mechanism and its kinetics for a carbonaceous precursor prepared from ethylene tar for use as an anode material for lithium-ion batteries. SinoTechIntel Verified Research. https://doi.org/10.1016/S1872-5805(NCM2024-39-02-13)
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the oxidation reaction mechanism of ethylene tar?
The oxidation of ethylene tar proceeds in three stages. Initially, side chains of aromatic compounds react with oxygen to form alcohols and aldehydes, leaving peroxy-radicals on aromatic rings. Subsequently, these aromatic compounds with peroxy-radicals undergo polymerization/condensation reactions to form larger molecules.
What kinetic models describe the oxidation of ethylene tar?
A fourth-order reaction model describes the first three stages (323–400, 400–605, 605–750 K) with activation energies of 47.33, 18.69, and 9.00 kJ·mol−1, respectively. A three-dimensional diffusion model applies to the fourth stage (750–860 K) with an activation energy of 88.37 kJ·mol−1.
How does the oxidation of ethylene tar improve lithium-ion battery performance?
The oxidized ethylene tar produces a high softening point pitch that, when used as a coating on graphite anodes, increases capacity retention after 300 cycles from 51.54% to 79.07%, enhancing battery longevity.
Why is ethylene tar considered an ideal precursor for high-quality pitch?
Ethylene tar is rich in aromatic hydrocarbons, making it suitable for producing high softening point pitch via air oxidation. It is a byproduct of ethylene production, available in large quantities, and its oxidation can be optimized to yield high-quality carbonaceous precursors for battery anodes.
What methods were used to analyze the oxidation kinetics?
The study used thermogravimetric analysis, mass spectrometry, and infrared spectroscopy to analyze evolved gases. Kinetic parameters were determined using the iso-conversion method (Coats-Redfern) by comparing 17 common reaction kinetic models with experimental data.
Related Technical Papers & Translations
A Novel Approach for Enhanced Brain Tumor Segmentation Using Multimodal MRI and Deep Learning
Brain tumor segmentation from multimodal MRI is crucial for diagnosis and treatment planning. In this study, we propose a novel deep learning framework that integrates structural and functional imaging modalities to improve segmentation accuracy. Our method employs a multi-scale attention mechanism and a hybrid loss function to handle class imbalance and boundary ambiguity. Evaluated on the BraTS benchmark, our approach achieves state-of-the-art performance, with Dice scores of 0.91, 0.87, and 0.84 for whole tumor, core, and enhancing tumor, respectively. Furthermore, we demonstrate the generalizability of our model across different scanners and protocols. Our findings suggest that the proposed method can significantly aid clinical decision-making and surgical planning.
Investigation of coupled acoustic and electrical responses and early warning approaches during re-loading of damaged coal
Initial damage from engineering disturbances in deep coal mining degrades mechanical properties and heightens dynamic-hazard risks, challenging conventional monitoring. This study probes the coupled acoustic-electrical responses of initially damaged coal under reloading and develops a multi-parameter, multi-level dynamic integrated early-warning model. Using a true-triaxial Split Hopkinson Pressure Bar (SHPB) system, we prepared specimens with graded damage by varying static deviatoric stresses and dynamic impacts. Uniaxial compression reloading was conducted with synchronous acoustic emission (AE) and resistivity monitoring. Joint time-domain responses of force, acoustics, and electricity delineated distinct loading stages. Time-frequency features were extracted via Fourier and wavelet transforms; crack architecture was quantified by 3D AE localization and fractal-dimension analysis. Initial damage markedly reduced load-bearing capacity. Resistivity decreased sharply with increasing deviatoric stress, while cumulative AE counts increased strongly. The AE spectrum evolved from bimodal to broadband with low- and high-frequency enhancement. The resistivity spectrum showed progressive bandwidth broadening, energy amplification, and high-frequency advancement. The AE spatial fractal dimension rose significantly during compaction. An integrated warning system combining multiscale entropy fusion, Temporal Convolutional Network (TCN)-Transformer forecasting, recurrence-network analysis, and a Bayesian framework yielded a 28.4 s lead time, offering a theoretical basis and technical pathway for intelligent prevention of dynamic hazards.
Influence of aggregate particle size on fracture behavior and energy evolution of cemented rockfill in the post-peak stage
Cemented rockfill (CRF) combines structural support with sustainable reuse of coal-derived solid waste. This study integrates digital image correlation, acoustic emission monitoring, and finite–discrete element simulations to investigate mechanical behavior, fracture development, and energy evolution of CRF containing 54% aggregate content with three grain-size distributions (5–10, 10–20, and 20–30 mm). Results indicate finer aggregates raise compressive strength and elastic modulus, and increase post-peak softening and residual stiffness. Fracture patterns transition from dominantly unidirectional failure in coarse specimens to pronounced X-shaped conjugate shear in fine specimens, with cracks initiating at boundaries and propagating inward. The proportion of failed joints at comparable strains decreases markedly with finer gradation, reflecting a more homogeneous crack network that enhances post-peak load retention and produces frequent minor stress fluctuations. Energy analyses reveal a coarse > medium > fine ordering in cumulative dissipation; however, finer aggregates delay rapid kinetic and dissipative energy release, promoting slower energy redistribution and improved load resistance. These findings quantify how aggregate gradation controls deformational mechanisms, crack topology, and energy partitioning, and provide design guidance for optimizing aggregate size and cementitious composition to enhance ductility, energy absorption, and structural reliability of CRF in underground engineering.
