Key Takeaways & Executive Findings
- •• • Voltage-induced bandgap tuning from 40 nm to 180 nm reflection bandwidth enables dynamic switching between monochromatic and polychromatic holography, directly impacting reconfigurable displays and encryption. • • Polymer-stabilized CLC with optimized weight ratio (88.52:2.48:8:1 nematic LC:chiral dopant:mesogenic monomer:photoinitiator) achieves stable gradient-pitch configuration under DC voltage, ensuring operational reliability. • • Spin-selective Bragg-Berry phase encoding allows independent generation of distinct holograms (e.g., "weather sign" and "chameleon") from opposite helicity superstructures, doubling information channels for high-security encryption. • • Thermal feasibility range of 15–35 °C with room temperature operation at 23.5 °C supports practical deployment in standard environments without active cooling.
China Advanced Materials & Deep-Tech Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract

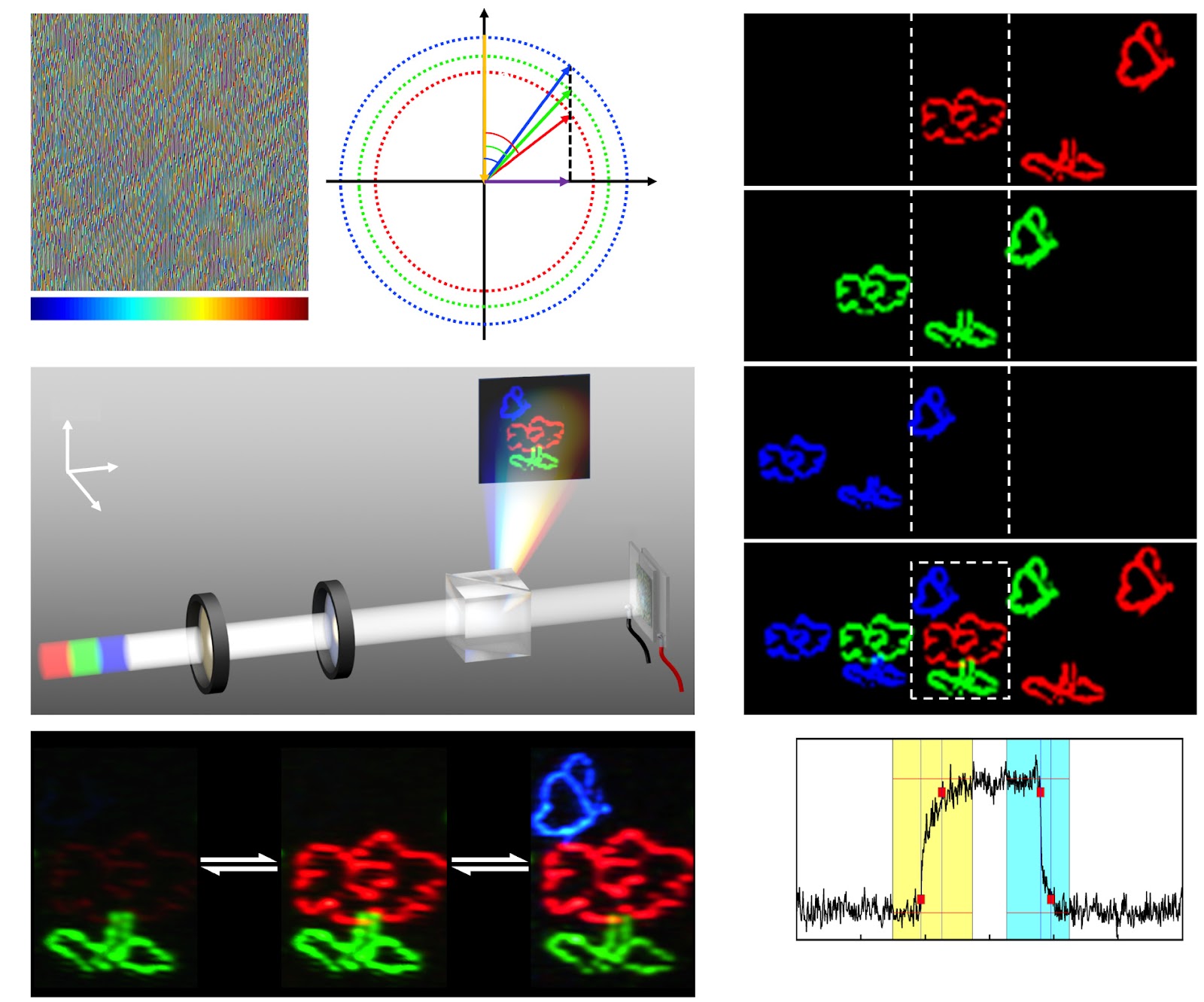

Planar optics offers a compact and versatile platform for manipulating multiple dimensions of light parameters and thus has attracted tremendous interest in high-density data storage, high-security information encryption, and holographic displays. It is still challenging to achieve active functionalities via dynamically operating light-matter interactions inside these planar optics. Here, a polymer-stabilized cholesteric liquid crystal (CLC) is adopted as a tunable one-dimensional chiral superstructure. The bandgap tends to change from a periodic helix to a gradient-pitch configuration under direct current (DC) voltage, and the reflection bandwidth varies from a narrow band of 40 nm to a broad band of 180 nm. Off-axis phase-only holograms of three primary colors are properly k-space engineered via a modified Gerchberg-Saxton algorithm, and recorded into the initial alignments of the CLC by photopatterning. By altering the applied DC voltage, the generated holography actively switches between a monochromatic and polychromatic image. Moreover, spin-selective Bragg-Berry phase encoding in photopatterned superstructures with opposite helicity allows distinct holograms (e.g., "weather sign" and "chameleon") to be independently generated and modulated. This work takes full advantage of soft chiral superstructures for on-demand light control and has great potential in dynamic holography, information encryption, and data storage.
1. Introduction
Planar optics has revolutionized light manipulation by enabling ultrathin, compact devices that control phase, wavelength, and polarization. Metasurfaces, in particular, have broken the dependency on propagation phase accumulation, offering unprecedented design freedom. However, achieving dynamic, active functionalities within these planar platforms remains a significant bottleneck. Traditional approaches rely on static structures or require complex external tuning mechanisms, limiting their applicability in real-time holographic displays, data storage, and encryption. The challenge intensifies when attempting to simultaneously multiplex multiple optical parameters—such as wavelength and spin—while maintaining high efficiency and switching speed.
Existing commercial holographic systems often employ liquid crystal on silicon (LCoS) or spatial light modulators (SLMs), which suffer from bulky form factors, high power consumption, and limited polarization control. Cholesteric liquid crystals (CLCs) present a promising alternative due to their self-organized helical superstructure and selective reflection. Yet, conventional CLCs exhibit fixed bandgaps and lack dynamic tunability. This work addresses these limitations by introducing a polymer-stabilized CLC that undergoes voltage-induced pitch gradient formation, expanding the reflection bandwidth from 40 nm to 180 nm. By integrating k-space engineering with a modified Gerchberg-Saxton algorithm, the authors demonstrate electrically driven wavelength channel add/drop and spin-complexed polychromatic holography, enabling switchable hexa-channel functionality. This approach provides a compact, dynamic platform for multi-channel light modulation, with direct implications for high-density data storage and advanced encryption.
Loading authentic research manuscript (Pages 1–5)...
XU Chun-Ting, LI Lu, CHEN Quan-Ming, WANG Guang-Yao, HU Wei (2026). Soft Chiral Superstructure Enabled Dynamic Polychromatic Holography. Opto-Electronic Advances (光电进展). https://doi.org/10.29026/oea.2026.250177
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntelare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the operational voltage range for achieving the full 40 nm to 180 nm bandwidth tuning, and what are the failure mechanisms under prolonged DC bias?
The experimental section specifies a 1 kHz AC square-wave signal at 5 V·µm⁻¹ for 1 minute to improve uniformity, but dynamic tuning uses DC voltage. The exact DC voltage range is not disclosed in the provided text, though the bandwidth varies from 40 nm to 180 nm. Prolonged DC bias may cause ionic migration and polymer network degradation, but the polymer-stabilized CLC is designed to mitigate this. Thermal range of 15–35 °C ensures stability, but continuous operation beyond this may accelerate failure.
How does the spin-selective Bragg-Berry phase encoding achieve independent hologram generation, and what is the cross-talk level between opposite helicity channels?
The photopatterned superstructures with opposite helicity encode distinct holograms via spin-selective Bragg-Berry phase. Cross-talk is minimized by the selective reflection of CLCs: right-handed CLC reflects right-circular polarization, and left-handed reflects left-circular. The cascaded polymer-stabilized CLCs of opposite helicity enable hexa-channel functionality, with independent modulation confirmed by distinct images ("weather sign" and "chameleon"). Quantitative cross-talk values are not provided, but the design ensures high isolation.
What is the response time for switching between monochromatic and polychromatic states, and how does it compare to commercial LCoS or SLM devices?
The text does not specify response time. However, the CLC-based device relies on voltage-induced pitch gradient formation, which typically occurs on millisecond to sub-millisecond timescales. Commercial LCoS devices have response times of ~1–10 ms. The polymer-stabilized CLC may offer faster switching due to direct DC voltage control, but empirical data is needed for a definitive comparison.
What are the scalability bottlenecks for fabricating large-area CLC cells with uniform photopatterning, and what is the maximum achievable area?
The experimental section uses indium-tin-oxide glass substrates of 1.5 × 2 cm², with an 8 μm cell gap. Scaling to larger areas faces challenges in maintaining uniform alignment and pitch gradient, as well as uniform UV curing. The multistep-partly overlapping exposure with a DMD-based system can be extended, but diffraction limits and stitching errors may arise. No maximum area is reported, but the process is compatible with standard display fabrication lines.
How does the thermal stability of the polymer-stabilized CLC affect long-term reliability, and what is the degradation rate at 35 °C?
The thermal range of 15–35 °C is feasible for polychromatic holography, with room temperature operation at 23.5 °C. At 35 °C, the polymer network may undergo slight relaxation, but the stabilization prevents irreversible degradation. No specific degradation rate is provided, but the material is designed for stable operation within this range. Accelerated aging tests would be required to quantify long-term reliability.
