AbstractEnglish Translation
Titanium alloys, particularly TC4 (Ti–6Al–4V), suffer from poor tribological performance and susceptibility to pitting corrosion, limiting their application in marine and biomedical fields. Layered double hydroxide (LDH) coatings offer potential protection but are hindered by the dense oxide layer on titanium alloys. In this study, a ZnAl LDH coating was fabricated on TC4 via in situ growth, followed by molybdate anion intercalation through ion exchange. A biomimetic slippery liquid-infused porous surface (SLIPS) was then created by UV-grafting polydimethylsiloxane (PDMS) onto the nanoporous LDH structure. The resulting surface exhibited excellent hydrophobicity, corrosion resistance, and wear resistance. Electrochemical tests (Tafel polarization and electrochemical impedance spectroscopy) demonstrated superior corrosion protection, with a low corrosion current density of 2.34×10−7 A/cm2. The infused silicone oil and ZnAl LDH nanosheets synergistically improved wear performance compared to bare TC4. This work provides insights into controllable in situ fabrication of LDH coatings and offers a novel strategy for broadening TC4 alloy applications in metal protection.
Executive Findings & Technical Breakthroughs
- •• • The ZnAl LDH coating with molybdate intercalation and PDMS infusion achieved a corrosion current density of 2.34×10−7 A/cm2, indicating a significant reduction in corrosion rate compared to bare TC4, which is critical for long-term durability in marine environments. • • The nanoporous LDH structure provides a physical confinement effect that limits PDMS lubricant loss, enhancing wear resistance; this is essential for moving components in orthopedic implants and marine machinery where lubricant depletion leads to failure. • • UV-grafted PDMS chains chemically bond to hydroxyl groups on LDH, reducing lubricant depletion and ensuring sustained hydrophobicity and corrosion protection over extended operational periods. • • The synergistic effect of LDH nanosheets and infused silicone oil improves wear performance, addressing the adhesive wear issue of TC4 alloys, which is a bottleneck for their use in high-friction applications.
Abstract
Titanium alloys, particularly TC4 (Ti–6Al–4V), suffer from poor tribological performance and susceptibility to pitting corrosion, limiting their application in marine and biomedical fields. Layered double hydroxide (LDH) coatings offer potential protection but are hindered by the dense oxide layer on titanium alloys. In this study, a ZnAl LDH coating was fabricated on TC4 via in situ growth, followed by molybdate anion intercalation through ion exchange. A biomimetic slippery liquid-infused porous surface (SLIPS) was then created by UV-grafting polydimethylsiloxane (PDMS) onto the nanoporous LDH structure. The resulting surface exhibited excellent hydrophobicity, corrosion resistance, and wear resistance. Electrochemical tests (Tafel polarization and electrochemical impedance spectroscopy) demonstrated superior corrosion protection, with a low corrosion current density of 2.34×10−7 A/cm2. The infused silicone oil and ZnAl LDH nanosheets synergistically improved wear performance compared to bare TC4. This work provides insights into controllable in situ fabrication of LDH coatings and offers a novel strategy for broadening TC4 alloy applications in metal protection.
1. Introduction
TC4 alloys are widely used in marine and biomedical applications due to their light weight, high strength, and weldability, yet their poor tribological performance and susceptibility to localized corrosion, especially under prolonged exposure to corrosive environments, have hindered broader adoption. The native oxide film on titanium alloys is thin, has poor wear resistance, and is vulnerable to fluoride ions, leading to compromised corrosion resistance. Furthermore, friction-induced wear can exacerbate surface corrosion, releasing harmful Al and V ions in biomedical contexts. Conventional surface modification strategies have struggled to simultaneously address wear and corrosion, particularly on titanium alloys where the dense oxide layer impedes the growth of protective coatings like layered double hydroxides (LDHs).
This study introduces a novel approach by first fabricating a ZnAl LDH coating on TC4 via in situ growth, overcoming the oxide layer barrier, then intercalating molybdate anions to enhance corrosion inhibition. A slippery liquid-infused porous surface (SLIPS) is constructed by UV-grafting PDMS onto the nanoporous LDH, creating a chemically anchored lubricant layer that resists depletion. This dual-action surface provides both corrosion resistance and wear protection, addressing the critical bottleneck of simultaneous degradation mechanisms. The reported corrosion current density of 2.34×10−7 A/cm2 and improved wear performance demonstrate a viable strategy for extending TC4 alloy service life in demanding applications.
Loading authentic research manuscript (Pages 1–5)...
Xionggang Chen, Deke Li, Tianqi Wei, Zhiwei Chen, Haidong Wang, Danyan Zhan, Jinxia Huang, Zhiguang Guo (2026). Slippery Liquid-Infused Porous Surface with Layered Double Hydroxides for Enhanced Corrosion and Wear Resistance of TC4 Alloys. SinoTechIntel Verified Research. https://doi.org/10.26599/FRICT.2025.9441191
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, corporate R&D benchmarking, and educational evaluation under international fair use principles.
Copyright Ownership: Source copyright remains with original Chinese academic publishers and authors. SinoTechIntel claims editorial rights over its original English translations and structural index enhancements.
Frequently Asked Questions
What is the long-term stability of the SLIPS under cyclic mechanical loading or abrasive wear conditions?
The study demonstrates that the nanoporous LDH structure provides a physical confinement effect and chemical grafting of PDMS reduces lubricant depletion, but long-term cyclic wear data are not provided. The corrosion current density of 2.34×10−7 A/cm2 indicates excellent initial corrosion resistance, but further testing under dynamic mechanical stress is required to assess durability.
How does the cost of this LDH-based SLIPS fabrication compare to conventional protective coatings for titanium alloys?
The in situ growth and ion exchange processes are relatively straightforward and use common chemicals (ZnAl LDH precursors, molybdate, PDMS), potentially offering cost advantages over vacuum-based or plasma-sprayed coatings. However, a detailed cost analysis is not provided, and scale-up feasibility remains to be evaluated.
What is the adhesion strength of the LDH coating to the TC4 substrate, and how does it withstand thermal cycling or high-temperature exposure?
The paper does not report adhesion strength or thermal stability data. The in situ growth method suggests strong interfacial bonding, but quantitative measurements (e.g., scratch test, pull-off test) are necessary to confirm reliability under thermal and mechanical stresses.
Can the molybdate intercalation be optimized to further reduce corrosion current density below 2.34×10−7 A/cm2, and what is the mechanism?
Molybdate acts as a corrosion inhibitor by forming insoluble compounds at anodic sites. The current density achieved is already low, but optimization of ion exchange time and concentration could potentially enhance protection. The mechanism involves release of molybdate upon damage, but further electrochemical studies are needed to quantify the self-healing effect.
Related Literature in This Field
Study on the effect of diketone lubricant on the tribological properties of angular contact ball bearings with skidding behavior
Skidding in angular contact ball bearings significantly increases friction, wear, and temperature, adversely affecting bearing performance and service life. Despite its critical impact, systematic investigations of lubrication behavior under skidding conditions remain scarce, with conventional lubricants often failing to provide stable low-friction operation. To address this gap, this study first calculated critical skidding parameters using a quasi-static model. Subsequently, experimental parameters for bearings with and without skidding were selected to evaluate tribological behaviors under three lubricants: base oil, commercial lubricant, and a diketone-based lubricant (PAO = 14 (20%)). Results demonstrate that under skidding conditions, the diketone lubricant achieved the lowest coefficient of friction (COF) of 0.0008 and temperature rise of 2.8 °C. Furthermore, diketone-lubricated bearings exhibited excellent anti-wear performance and an extremely short running-in period. The superior tribological performance is attributed to the synergistic effect of diketone molecular adsorption and chelation with iron atoms, which reduces friction and temperature rise. These findings highlight the potential of diketone lubricants to enhance bearing performance and durability under extreme operating conditions.
Steady Shear Rheological Response of Ferrofluids Containing Hydrophilic Fumed Silica under Magnetic Fields
This study investigates the steady shear rheological behavior of water-based ferrofluids composited with hydrophilic fumed silica under different magnetic field strengths, with particular attention paid to avoiding gelation that reduces fluidity. Seven composite ferrofluid samples were prepared and characterized. By adjusting the silica particle size and volume fraction, their effects on viscosity and yield stress were explored. As a result, pronounced shear-thinning behavior is observed in this dispersion, with their flow curves under different magnetic field strengths effectively scaled by the Mason number. A higher silica concentration or larger particle size increases the critical Mason number, showing that field-induced structures become more stable. In contrast, only high silica concentrations significantly enhance shear thinning, as reflected by a larger flow index, whereas particle size has little influence. Yield stress analysis further shows that macroscopic models capture normalized Bingham yield stress, while microscopic models better predict normalized static yield stress. Overall, this work demonstrates that hydrophilic fumed silica offers a simple and effective route for tuning the magnetorheology of water-based ferrofluids without inducing gelation, ensuring controllable rheology and good fluidity.

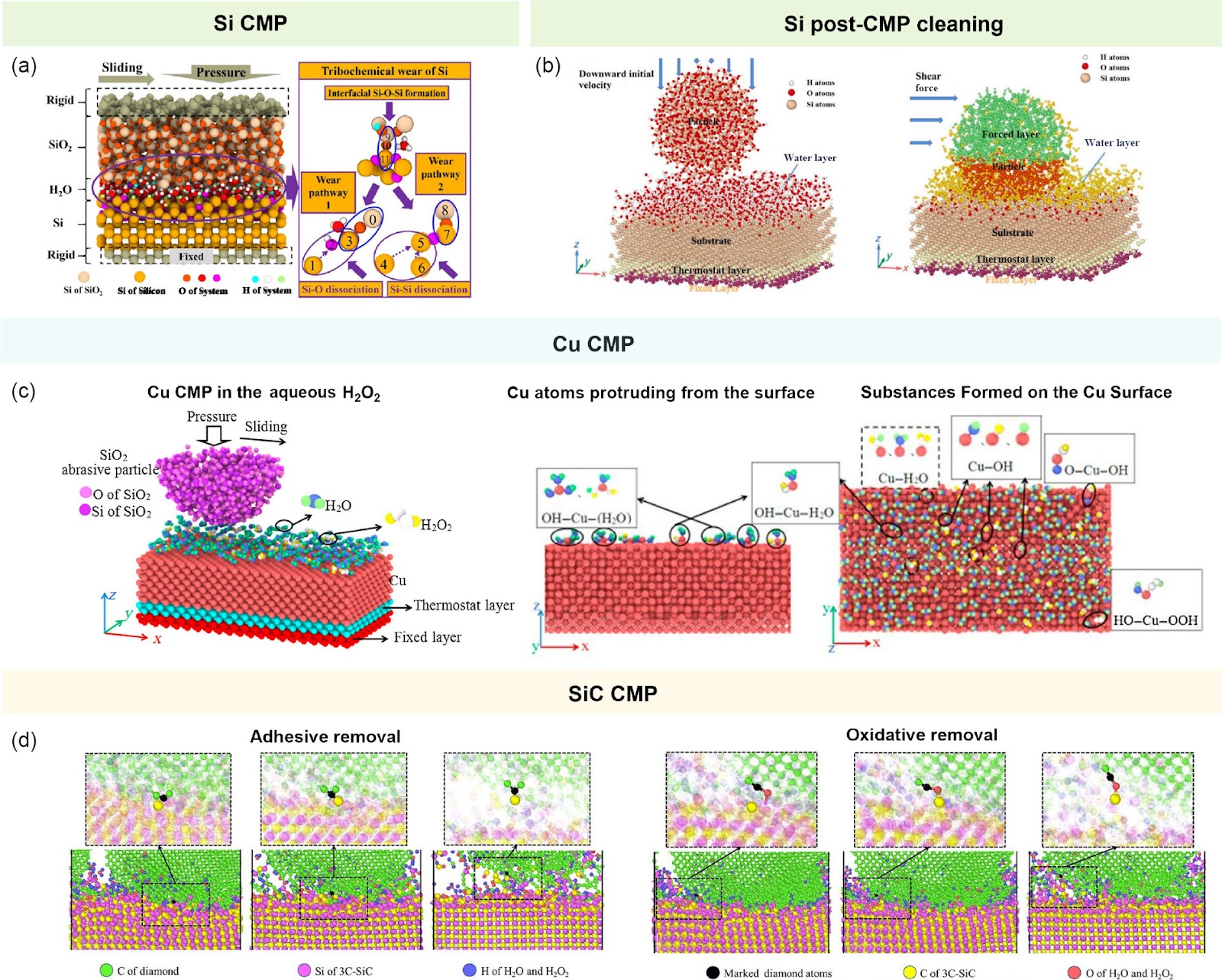

Molecular Dynamics Simulations Addressing Atomic-Scale Core Issues in Chemical Mechanical Polishing and Post-CMP Cleaning: A Concise Review
Chemical mechanical polishing (CMP) and post-CMP cleaning are critical steps in semiconductor manufacturing, requiring atomic-scale flatness and complete removal of contaminants. This review examines the use of molecular dynamics (MD) simulations to elucidate atomic-scale mechanisms underlying these processes, focusing on four major MD methodologies: classical MD, reactive force field MD (ReaxFF), tight-binding quantum chemical MD (TB-QC MD), and ab initio MD (AIMD). Classical MD provides a foundation for simulating large-scale systems but lacks accuracy for modeling chemical reactions. ReaxFF allows real-time bond breaking and formation simulations during CMP. TB-QC MD combines quantum accuracy with classical efficiency, enabling exploration of chemical reaction effects on friction and material removal. AIMD directly calculates atomic interactions for precise depictions of chemical processes, albeit with high computational cost. MD simulations act as a 'computational microscope', enhancing CMP and postcleaning processes by quantifying interactions, material removal pathways, and contaminant desorption. Future research should address multiscale modeling challenges, improve AIMD efficiency, and develop accurate potential functions to propel semiconductor manufacturing toward greater precision and efficiency.

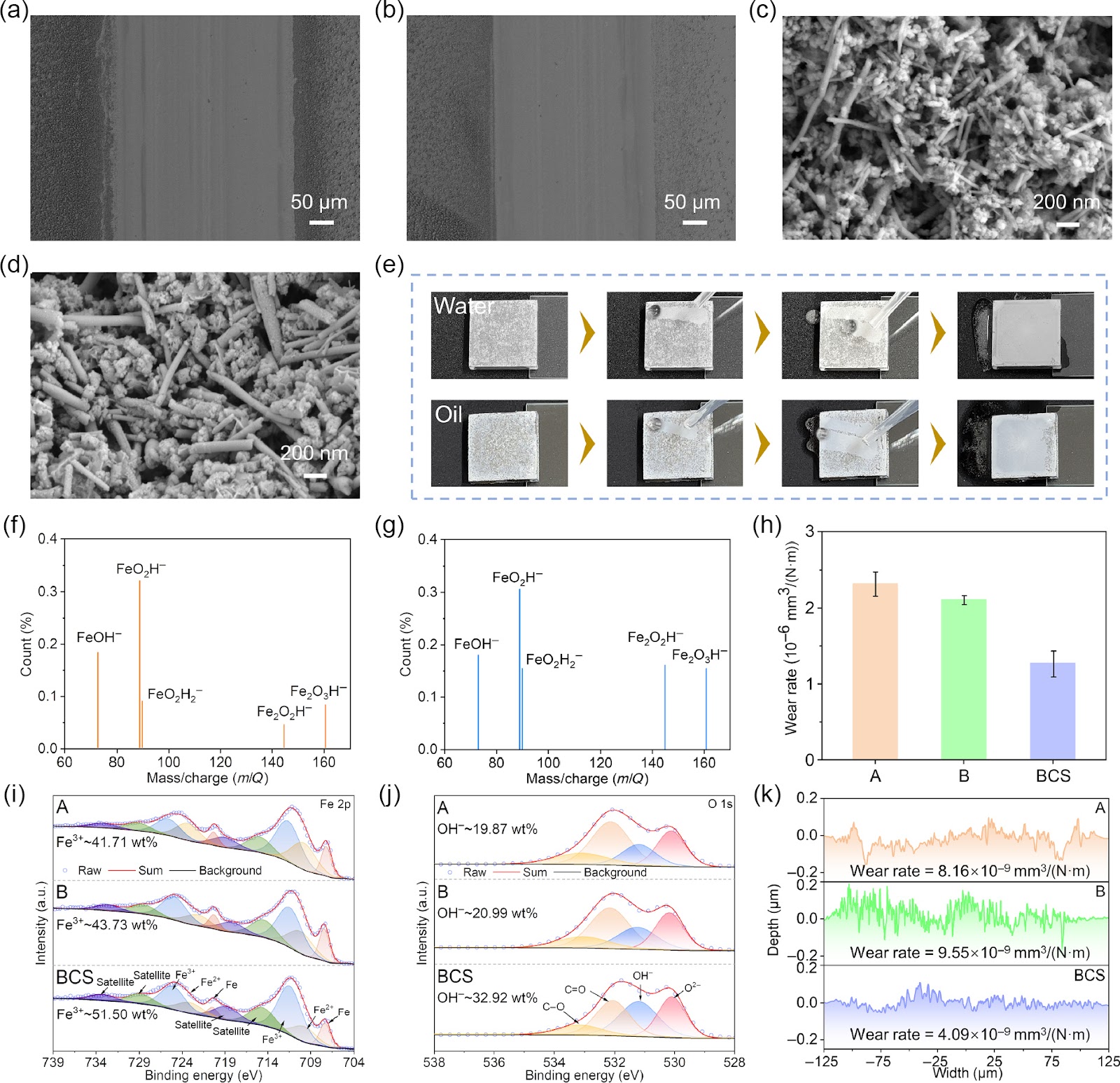

Manipulating the Conversion of Nanoscale Wear Debris into Tribofilm for Wear Reduction of Steel
