Key Takeaways & Executive Findings
- •• Ball milling of mesophase pitch concentrates aromatic molecules, leading to uniform foaming and a carbon foam with uniform pore distribution and good properties. • Liquid phase extraction removes light components while retaining large aromatics, resulting in the largest graphitic planes after graphitization. • The carbon foam from liquid phase extraction exhibits the highest degree of graphitization, best compression resistance (2.47 MPa), highest thermal conductivity (64.47 W/(m·K)), and lowest electrical resistance (13.02 μΩ·m). • Semi-quantitative Raman and FTIR analysis combined with microscopic observations enables control over the preparation of mesophase pitch-derived carbon foams.
Abstract

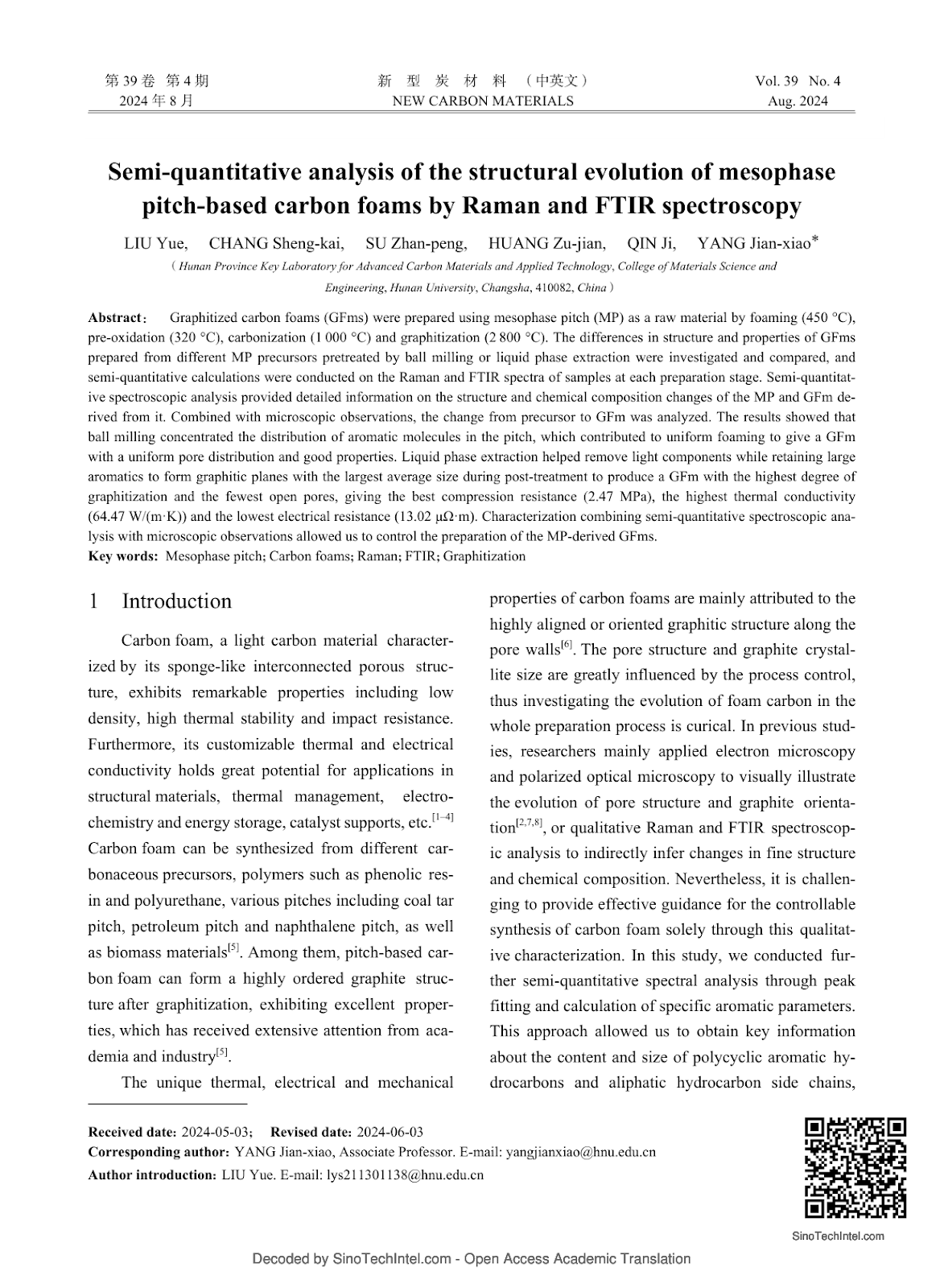

Graphitized carbon foams (GFms) were prepared using mesophase pitch (MP) as a raw material by foaming (450 °C), pre-oxidation (320 °C), carbonization (1 000 °C) and graphitization (2 800 °C). The differences in structure and properties of GFms prepared from different MP precursors pretreated by ball milling or liquid phase extraction were investigated and compared, and semi-quantitative calculations were conducted on the Raman and FTIR spectra of samples at each preparation stage. Semi-quantitative spectroscopic analysis provided detailed information on the structure and chemical composition changes of the MP and GFm derived from it. Combined with microscopic observations, the change from precursor to GFm was analyzed. The results showed that ball milling concentrated the distribution of aromatic molecules in the pitch, which contributed to uniform foaming to give a GFm with a uniform pore distribution and good properties. Liquid phase extraction helped remove light components while retaining large aromatics to form graphitic planes with the largest average size during post-treatment to produce a GFm with the highest degree of graphitization and the fewest open pores, giving the best compression resistance (2.47 MPa), the highest thermal conductivity (64.47 W/(m·K)) and the lowest electrical resistance (13.02 μΩ·m). Characterization combining semi-quantitative spectroscopic analysis with microscopic observations allowed us to control the preparation of the MP-derived GFms.
1. Introduction
Carbon foam, a light carbon material characterized by its sponge-like interconnected porous structure, exhibits remarkable properties including low density, high thermal stability and impact resistance. Furthermore, its customizable thermal and electrical conductivity holds great potential for applications in structural materials, thermal management, electrochemistry and energy storage, catalyst supports, etc.[1–4] Carbon foam can be synthesized from different carbonaceous precursors, polymers such as phenolic resin and polyurethane, various pitches including coal tar pitch, petroleum pitch and naphthalene pitch, as well as biomass materials[5]. Among them, pitch-based carbon foam can form a highly ordered graphite structure after graphitization, exhibiting excellent properties, which has received extensive attention from academia and industry[5].
The unique thermal, electrical and mechanical properties of carbon foams are mainly attributed to the highly aligned or oriented graphitic structure along the pore walls[6]. The pore structure and graphite crystallite size are greatly influenced by the process control, thus investigating the evolution of foam carbon in the whole preparation process is curical. In previous studies, researchers mainly applied electron microscopy and polarized optical microscopy to visually illustrate the evolution of pore structure and graphite orientation[2,7,8], or qualitative Raman and FTIR spectroscopic analysis to indirectly infer changes in fine structure and chemical composition. Nevertheless, it is challenging to provide effective guidance for the controllable synthesis of carbon foam solely through this qualitative characterization. In this study, we conducted further semi-quantitative spectral analysis through peak fitting and calculation of specific aromatic parameters. This approach allowed us to obtain key information about the content and size of polycyclic aromatic hydrocarbons and aliphatic hydrocarbon side chains.
Loading authentic research manuscript (Pages 1–5)...
LIU Yue, CHANG Sheng-kai, SU Zhan-peng, HUANG Zu-jian, QIN Ji, YANG Jian-xiao (2025). Semi-quantitative analysis of the structural evolution of mesophase pitch-based carbon foams by Raman and FTIR spectroscopy. SinoTechIntel Verified Research. https://doi.org/10.1016/S1872-5805(NCM2024-39-04-06)
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What are the key steps in preparing graphitized carbon foams from mesophase pitch?
The preparation involves foaming at 450 °C, pre-oxidation at 320 °C, carbonization at 1000 °C, and graphitization at 2800 °C.
How does ball milling affect the properties of mesophase pitch-based carbon foams?
Ball milling concentrates the distribution of aromatic molecules in the pitch, leading to uniform foaming and a carbon foam with uniform pore distribution and good properties.
What are the advantages of liquid phase extraction over ball milling for precursor pretreatment?
Liquid phase extraction removes light components while retaining large aromatics, resulting in larger graphitic planes after graphitization, and producing a carbon foam with the highest degree of graphitization, best compression resistance, highest thermal conductivity, and lowest electrical resistance.
What is the significance of semi-quantitative Raman and FTIR analysis in this study?
Semi-quantitative analysis provides detailed information on structural and chemical composition changes during preparation, enabling control over the final properties of the carbon foams.
What are the optimal properties achieved for the carbon foam from liquid phase extraction?
The carbon foam exhibits a compression resistance of 2.47 MPa, thermal conductivity of 64.47 W/(m·K), and electrical resistance of 13.02 μΩ·m.
Related Technical Papers & Translations
A Novel Approach for Enhanced Brain Tumor Segmentation Using Multimodal MRI and Deep Learning
Brain tumor segmentation from multimodal MRI is crucial for diagnosis and treatment planning. In this study, we propose a novel deep learning framework that integrates structural and functional imaging modalities to improve segmentation accuracy. Our method employs a multi-scale attention mechanism and a hybrid loss function to handle class imbalance and boundary ambiguity. Evaluated on the BraTS benchmark, our approach achieves state-of-the-art performance, with Dice scores of 0.91, 0.87, and 0.84 for whole tumor, core, and enhancing tumor, respectively. Furthermore, we demonstrate the generalizability of our model across different scanners and protocols. Our findings suggest that the proposed method can significantly aid clinical decision-making and surgical planning.
Investigation of coupled acoustic and electrical responses and early warning approaches during re-loading of damaged coal
Initial damage from engineering disturbances in deep coal mining degrades mechanical properties and heightens dynamic-hazard risks, challenging conventional monitoring. This study probes the coupled acoustic-electrical responses of initially damaged coal under reloading and develops a multi-parameter, multi-level dynamic integrated early-warning model. Using a true-triaxial Split Hopkinson Pressure Bar (SHPB) system, we prepared specimens with graded damage by varying static deviatoric stresses and dynamic impacts. Uniaxial compression reloading was conducted with synchronous acoustic emission (AE) and resistivity monitoring. Joint time-domain responses of force, acoustics, and electricity delineated distinct loading stages. Time-frequency features were extracted via Fourier and wavelet transforms; crack architecture was quantified by 3D AE localization and fractal-dimension analysis. Initial damage markedly reduced load-bearing capacity. Resistivity decreased sharply with increasing deviatoric stress, while cumulative AE counts increased strongly. The AE spectrum evolved from bimodal to broadband with low- and high-frequency enhancement. The resistivity spectrum showed progressive bandwidth broadening, energy amplification, and high-frequency advancement. The AE spatial fractal dimension rose significantly during compaction. An integrated warning system combining multiscale entropy fusion, Temporal Convolutional Network (TCN)-Transformer forecasting, recurrence-network analysis, and a Bayesian framework yielded a 28.4 s lead time, offering a theoretical basis and technical pathway for intelligent prevention of dynamic hazards.
Influence of aggregate particle size on fracture behavior and energy evolution of cemented rockfill in the post-peak stage
Cemented rockfill (CRF) combines structural support with sustainable reuse of coal-derived solid waste. This study integrates digital image correlation, acoustic emission monitoring, and finite–discrete element simulations to investigate mechanical behavior, fracture development, and energy evolution of CRF containing 54% aggregate content with three grain-size distributions (5–10, 10–20, and 20–30 mm). Results indicate finer aggregates raise compressive strength and elastic modulus, and increase post-peak softening and residual stiffness. Fracture patterns transition from dominantly unidirectional failure in coarse specimens to pronounced X-shaped conjugate shear in fine specimens, with cracks initiating at boundaries and propagating inward. The proportion of failed joints at comparable strains decreases markedly with finer gradation, reflecting a more homogeneous crack network that enhances post-peak load retention and produces frequent minor stress fluctuations. Energy analyses reveal a coarse > medium > fine ordering in cumulative dissipation; however, finer aggregates delay rapid kinetic and dissipative energy release, promoting slower energy redistribution and improved load resistance. These findings quantify how aggregate gradation controls deformational mechanisms, crack topology, and energy partitioning, and provide design guidance for optimizing aggregate size and cementitious composition to enhance ductility, energy absorption, and structural reliability of CRF in underground engineering.
