Key Takeaways & Executive Findings
- •• A hydrothermal method using scorodite formation selectively removes arsenic from acid polymetallic solutions containing high concentrations of Cd and Zn. • Thermodynamic analysis identified a pH range of 1.8–3.9 for selective As removal as FeAsO4, preventing Cd precipitation as Cd5H2(AsO4)4. • Under optimized conditions (pH adjusted to 1.0), 88.96% of As was removed as scorodite with minimal loss of Cd (2.44%) and Zn (1.13%). • The study provides a practical approach to recover valuable metals from arsenic-bearing metallurgical wastes while achieving stable arsenic disposal.
Abstract

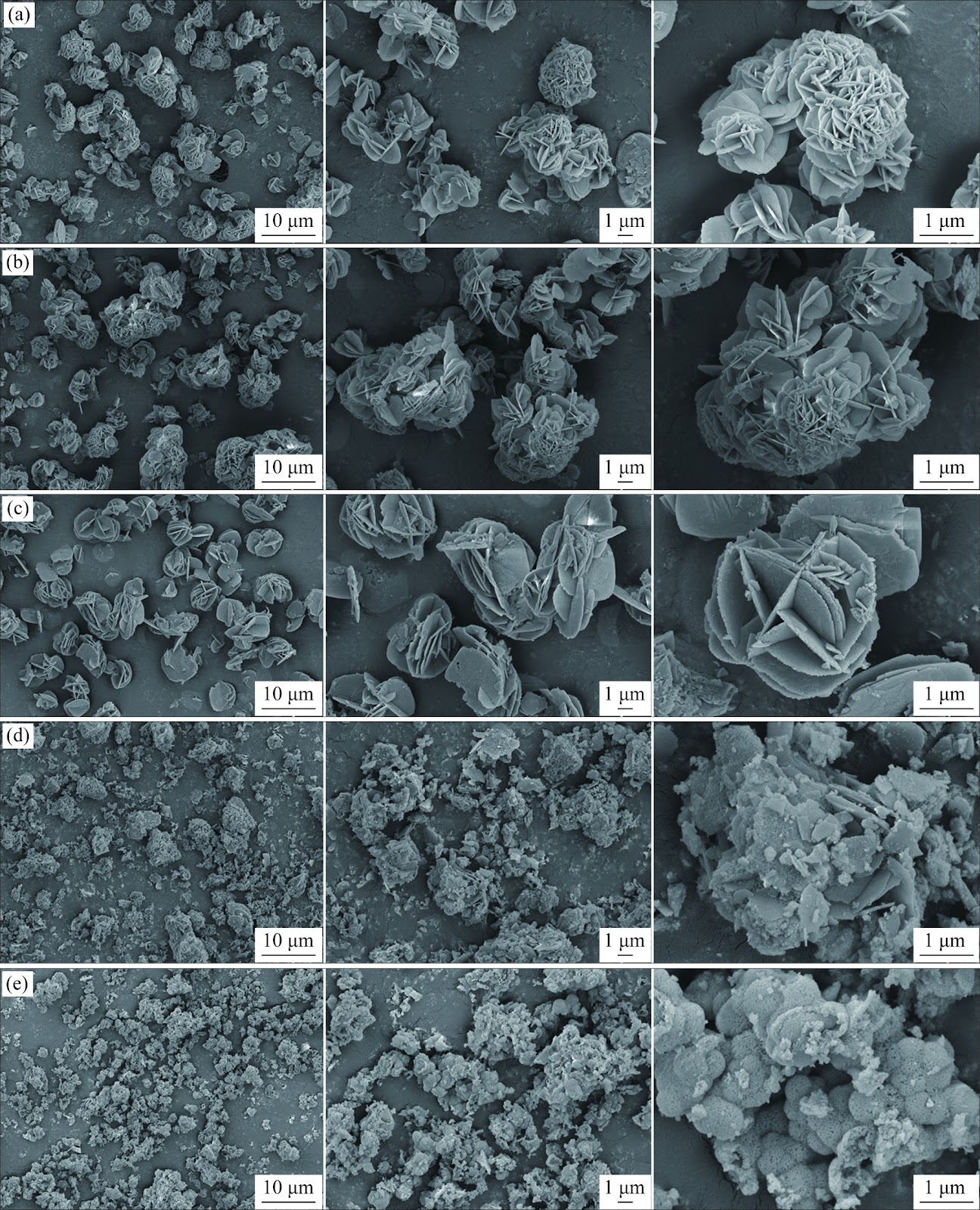

Arsenic-contained acid polymetallic solutions (AAPS) are produced from the H2SO4 leaching of dust generated during nonferrous metals pyrometallurgy such as copper, lead, and zinc. It is difficult to selectively remove As and efficiently recover valuable metals simultaneously. In this study, arsenic was removed from an acid polymetallic solution containing As, Cd, and Zn via scorodite formation using a hydrothermal method. First, a thermodynamic analysis of the Cd2+-Zn2+-Fe3+-AsO4 3−-SO4 2−-H2O system showed that the pH range for selective As removal as FeAsO4 was 1.8−3.9, and a higher pH will result in the precipitation of Cd in the form of Cd5H2(AsO4)4. Second, the experimental investigations, including neutralization and hydrothermal processes, showed that 88.96% As was selectively removed as scorodite with a flower cluster morphology in a hydrothermal process after adjusting the pH of AAPS to 1.0 via a neutralization process, while the total loss ratios of Cd and Zn were 2.44% and 1.13%, respectively. This study realized selective separation of Zn and Cd from AAPS by controlling the pH to avoid their loss into scorodite.
1. Introduction
Arsenic is widely associated with sulfide ores of lead, copper, zinc, and bismuth. Its presence cannot be avoided in nonferrous metallurgy and a large amount of As-bearing polymetallic waste is produced, such as smelting dust, waste water and slag. Owing to the volatility of As, a large amount of As accumulates with valuable metals Pb, Cu, and Zn in smelting dust. These dusts are significant resources and hazardous materials, and it is challenging to realize their resource utilization and harmless disposal.
Therefore, significant research has been conducted for the treatment of As-bearing dust, including pyrometallurgical and hydrometallurgical processes. Based on the volatility of As2O3, direct roasting, H2SO4 roasting, reduction roasting were used to separate As, and the product could be further purified for As recovery. However, pyrometallurgical processes have some disadvantages such as high energy consumption. Hydrometallurgical processes, including alkaline and acid methods, have been widely studied. The alkaline method mainly involves As separation via NaOH, NaOH-Na2S, or NaOH oxidative leaching and As precipitation via calcium arsenate formation. The method has the advantage of good selectivity for As but is unsuitable for treating As-bearing dust containing Pb and Zn because of the amphoteric nature of both metals. Acid leaching, such as H2SO4 or H2SO4 oxidative leaching, can separate Pb from As-bearing dust; however, it is necessary to selectively precipitate As from the generated As-bearing acid solution.
Loading authentic research manuscript (Pages 1–5)...
LIU Shu-fen, YANG Sheng-hai, YE Long-gang, CHEN Yong-ming (2025). Selective separation of Zn and Cd from arsenic-contained acid polymetallic solution. Journal of Central South University. https://doi.org/10.1007/s11771-025-6057-5
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the main challenge in treating arsenic-contained acid polymetallic solutions?
The main challenge is to selectively remove arsenic while efficiently recovering valuable metals like zinc and cadmium, as conventional methods often cause co-precipitation or loss of these metals.
How does the hydrothermal method achieve selective arsenic removal?
The hydrothermal method promotes the formation of scorodite (FeAsO4·2H2O) under controlled pH conditions, which selectively precipitates arsenic while leaving zinc and cadmium in solution.
What pH range is optimal for selective arsenic removal?
Thermodynamic analysis indicates that a pH range of 1.8–3.9 is optimal for selective arsenic removal as FeAsO4, preventing cadmium precipitation as Cd5H2(AsO4)4.
What are the recovery rates for zinc and cadmium in this process?
The process achieves high recovery rates, with loss ratios of only 2.44% for cadmium and 1.13% for zinc, meaning over 97% of these valuable metals are retained.
What is the significance of this study for industrial applications?
This study provides a practical and efficient method for treating arsenic-bearing metallurgical wastes, enabling both environmental remediation and resource recovery, which is crucial for sustainable nonferrous metal production.
Related Technical Papers & Translations
Direct Repair of the Crystal Structure and Coating Surface of Spent LiFePO4 Materials Enables Superfast Li-Ion Migration
The rapid accumulation of spent LiFePO4 (LFP) cathodes from retired lithium-ion batteries necessitates the development of effective and environmental-friendly recycling strategies. In this context, direct regeneration has emerged as a promising approach for reclaiming LFP cathode materials, offering a streamlined pathway to restore their electrochemical functionality. We report an integrated regeneration protocol that simultaneously repairs the degraded crystal structure and reconstructs the damaged carbon coating in spent LFP. The regenerated cathode material had superfast lithium-ion diffusion kinetics and a stable cathode–electrolyte interface, giving a remarkable rate capability with specific capacities of 122 mAh g−1 at 5C and 106 mAh g−1 at 10C (1C = 170 mA g−1). It also maintained capacities of 110.7 mAh g−1 (5C) and 84.1 mAh g−1 (10C) after 400 cycles. It could be used in harsh environments and could be stably cycled at subzero temperatures (−10 and −20 °C) and in solid-state electrolyte batteries. Life cycle assessment combined with economic evaluation using the EverBatt model reveals that this direct regeneration approach has high economic and environmental benefits.
Oxide Semiconductor for Advanced Memory Architectures: Atomic Layer Deposition, Key Requirement and Challenges
Oxide semiconductors (OSs), introduced by the Hosono group in the early 2000s, have evolved from display backplane materials to promising candidates for advanced memory and logic devices. The exceptionally low leakage current of OSs and compatibility with three-dimensional (3D) architectures have recently sparked renewed interest in their use in semiconductor applications. This review begins by exploring the unique material properties of OSs, which fundamentally originate from their distinct electronic band structure. Subsequently, we focus on atomic layer deposition (ALD), a core technique for growing excellent OS films, covering both basic and advanced processes compatible with 3D scaling. The basic surface reaction mechanisms—adsorption and reaction—and their roles in film growth are introduced. Furthermore, material design strategies, such as cation selection, crystallinity control, anion doping, and heterostructure engineering, are discussed. We also highlight challenges in memory applications, including contact resistance, hydrogen instability, and lack of p-type materials, and discuss the feasibility of ALD-grown OSs as potential solutions. Lastly, we provide an outlook on the role of ALD-grown OSs in memory technologies. This review bridges material fundamentals and device-level requirements, offering a comprehensive perspective on the potential of ALD-driven OSs for next-generation semiconductor memory devices.
Laser powder bed fusion of biodegradable Zn-4Cu alloy: Processing, microstructure and properties
Zn's natural degradability and biocompatibility make it a promising candidate for implants, however, its mechanical properties remain insufficient for bone applications. In this study, the performance of Zn was enhanced by developing Zn-Cu alloys via laser powder bed fusion (LPBF). Optimal LPBF parameters for forming stable tracks were achieved by adjusting laser power and scanning speed. Under optimized conditions of 100 W and 100 mm/s, high-density (99.58%) Zn-Cu alloys with improved hardness (68.2HV) and yield strength (160 MPa) were achieved. These improvements are attributed to solid solution strengthening, segregation strengthening, and grain refinement. The Zn-Cu alloys also demonstrated favorable degradation behavior, with a rate of 0.16 mm/year. This degradation is primarily driven by micro-galvanic corrosion between the CuZn5 phase and Zn matrix, along with refined grains and increased grain boundary density. This work demonstrates a viable strategy for fabricating Zn-based implants with enhanced structural integrity and mechanical performance via LPBF.
