Key Takeaways & Executive Findings
- •• Established a quantitative DRX kinetics model for Ti-10V-2Fe-3Al alloy, linking DRX grain size and volume fraction to abnormal coarse grain (ACG) formation during solid solution. • Identified critical DRX criteria (dDRX ≤ 2.60 μm, 72.5% ≤ XDRX ≤ 87.9%) that predict ACG occurrence, showing that both excessive and insufficient DRX suppress ACG. • Developed a finite element simulation platform with a coarse grain criterion subroutine to visually predict macroscopic ACG distribution in die forging, validated by experiments. • Demonstrated that deformation temperature and strain rate significantly influence DRX and ACG, providing process windows to avoid ACG defects in aerospace components.
Abstract

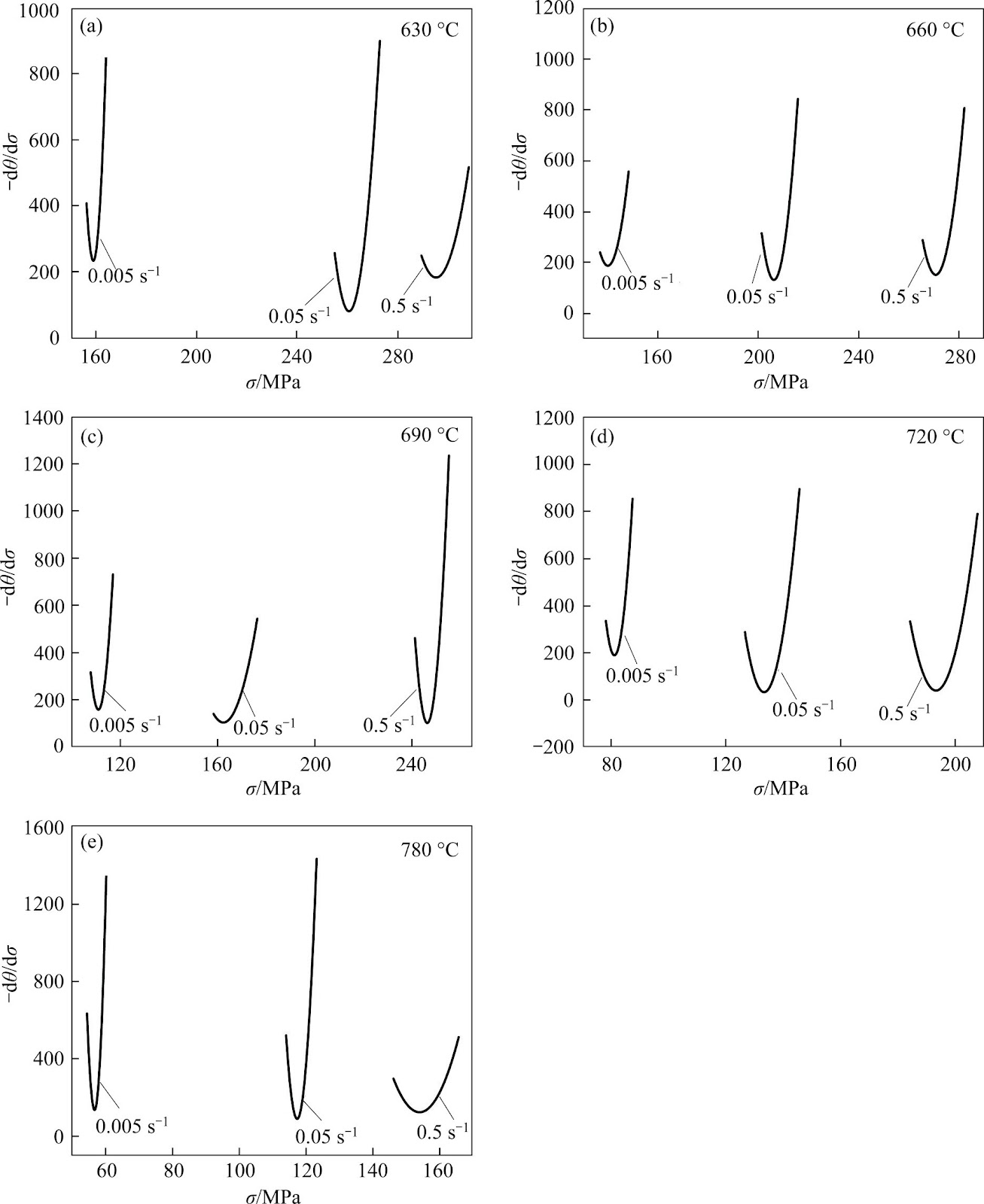

After the hot deformation sample of Ti-10V-2Fe-3Al alloy was treated by solid solution in the α+β two-phase region, the coarse β grains that often appeared in the β single phase region were observed in the local region, indicating that the abnormal grain growth occurred in the local microstructural region, and the macrostructure also showed abnormally coarse grains (ACGs). The dynamic recrystallization (DRX) behavior of Ti-10V-2Fe-3Al titanium alloy was systematically investigated through hot compression tests on the Gleeble-3800 system. The DRX model of β grains was established, and the quantitative correlation between DRX characteristics and the appearance of ACG was clarified. Based on these results, a numerical simulation platform was developed to realize the visual prediction of ACG distribution. The results show that the increase of deformation temperature and the decrease of strain rate both contribute to a significant increase in the grain size (dDRX) and volume fraction (XDRX) of DRXed grains. However, the proper XDRX and smaller dDRX at low deformation temperature and high strain rate make the macro and microstructure show ACGs after solid solution. Interestingly, if the DRX degree is excessive or insufficient, ACGs cannot be produced, indicating that ACGs are solid solution products based on the appropriate DRX degree. According to the flow curves and statistical results of microstructure, the quantitative model of DRX kinetics and DRX grain size model were constructed, and the quantitative criterion model that is related to the formation of ACG with grain size (dDRX) and volume fraction (XDRX) of DRXed grains as the key parameters was established, i. e., dDRX£2.60 μm, 72.5%£XDRX£87.9%. By integrating the subroutine of coarse grain criterion, the isothermal compression process of cylindrical samples and the actual die forging process of H-shaped parts were simulated by DEFORM-3D software of finite element (FE), respectively, and the visual prediction of the distribution of macroscopic ACGs was realized. There is a good consistency between the tested results and the simulated results, indicating a strong correlation between macroscopic ACGs and microscopic DRX.
1. Introduction
Ti-10V-2Fe-3Al alloy, a typical nearly β-type titanium alloy, has an excellent combination of strength, fracture toughness and corrosion resistance, whereby it has been widely used to manufacture various kinds of aviation components [1, 2] (e.g., landing gear [3], rotor systems [4].) with complex shape through die-forging process at high temperature. For this kind of aerospace die forgings, due to the complex structure and shape, it is easy to lead to uneven deformation in different forging parts during the forming process. This often leads to the problem of microstructure uniformity in forging manufacturing [5, 6], resulting in low-magnification defects, which in turn affects mechanical properties [7].
Moreover, Ti-10V-2Fe-3Al titanium alloy is prone to defects of ACG during solid solution [8], which leads to the problem of microstructure uniformity in the manufacture of forging part and to the differences in mechanical properties of Ti-10V-2Fe-3Al alloy. In order to avoid the influence of the ACG defects, it is even necessary to remove localized regions with ACG defects, which greatly reduces the production yield of titanium alloy die forgings.
Recently, several literatures reported the strong correlation between DRX behavior and ACG formation in Ti alloys. DAVIS et al [9] systematically proposed dominate process parameters that control the level of β recrystallization, specifically focusing on final grain size and mic...
Loading authentic research manuscript (Pages 1–5)...
ZHANG Yu-sen, CHEN Lei, GAO Xiao-peng, GUO Cong-de, CAI Xing-zhou, JIN Miao, MA Xiao-cong (2025). Prediction of macroscopic abnormally coarse grain during solid solution of Ti-10V-2Fe-3Al alloy based on dynamic recrystallization kinetics. Journal of Central South University. https://doi.org/10.1007/s11771-025-6126-9
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the main objective of this study?
The study aims to predict the occurrence of macroscopic abnormally coarse grains (ACGs) during solid solution treatment of Ti-10V-2Fe-3Al alloy by establishing a quantitative relationship between dynamic recrystallization (DRX) characteristics and ACG formation, and to develop a numerical simulation platform for visual prediction.
How was the DRX behavior of Ti-10V-2Fe-3Al alloy investigated?
Hot compression tests were conducted on a Gleeble-3800 system to systematically investigate the DRX behavior. The DRX model of β grains was established, and the quantitative correlation between DRX characteristics and ACG appearance was clarified.
What are the critical DRX parameters for ACG formation?
The quantitative criterion model indicates that ACGs form when the DRX grain size (dDRX) is ≤ 2.60 μm and the DRX volume fraction (XDRX) is between 72.5% and 87.9%. Both excessive and insufficient DRX degrees suppress ACG formation.
How was the visual prediction of ACG distribution achieved?
A subroutine incorporating the coarse grain criterion was integrated into DEFORM-3D finite element software. Simulations of isothermal compression and actual die forging of H-shaped parts were performed, and the predicted ACG distribution showed good consistency with experimental results.
What is the significance of this research for industry?
The findings provide a predictive tool to avoid ACG defects in titanium alloy die forgings, thereby improving production yield and ensuring uniform mechanical properties in aerospace components.
Related Technical Papers & Translations
Direct Repair of the Crystal Structure and Coating Surface of Spent LiFePO4 Materials Enables Superfast Li-Ion Migration
The rapid accumulation of spent LiFePO4 (LFP) cathodes from retired lithium-ion batteries necessitates the development of effective and environmental-friendly recycling strategies. In this context, direct regeneration has emerged as a promising approach for reclaiming LFP cathode materials, offering a streamlined pathway to restore their electrochemical functionality. We report an integrated regeneration protocol that simultaneously repairs the degraded crystal structure and reconstructs the damaged carbon coating in spent LFP. The regenerated cathode material had superfast lithium-ion diffusion kinetics and a stable cathode–electrolyte interface, giving a remarkable rate capability with specific capacities of 122 mAh g−1 at 5C and 106 mAh g−1 at 10C (1C = 170 mA g−1). It also maintained capacities of 110.7 mAh g−1 (5C) and 84.1 mAh g−1 (10C) after 400 cycles. It could be used in harsh environments and could be stably cycled at subzero temperatures (−10 and −20 °C) and in solid-state electrolyte batteries. Life cycle assessment combined with economic evaluation using the EverBatt model reveals that this direct regeneration approach has high economic and environmental benefits.
Oxide Semiconductor for Advanced Memory Architectures: Atomic Layer Deposition, Key Requirement and Challenges
Oxide semiconductors (OSs), introduced by the Hosono group in the early 2000s, have evolved from display backplane materials to promising candidates for advanced memory and logic devices. The exceptionally low leakage current of OSs and compatibility with three-dimensional (3D) architectures have recently sparked renewed interest in their use in semiconductor applications. This review begins by exploring the unique material properties of OSs, which fundamentally originate from their distinct electronic band structure. Subsequently, we focus on atomic layer deposition (ALD), a core technique for growing excellent OS films, covering both basic and advanced processes compatible with 3D scaling. The basic surface reaction mechanisms—adsorption and reaction—and their roles in film growth are introduced. Furthermore, material design strategies, such as cation selection, crystallinity control, anion doping, and heterostructure engineering, are discussed. We also highlight challenges in memory applications, including contact resistance, hydrogen instability, and lack of p-type materials, and discuss the feasibility of ALD-grown OSs as potential solutions. Lastly, we provide an outlook on the role of ALD-grown OSs in memory technologies. This review bridges material fundamentals and device-level requirements, offering a comprehensive perspective on the potential of ALD-driven OSs for next-generation semiconductor memory devices.
Laser powder bed fusion of biodegradable Zn-4Cu alloy: Processing, microstructure and properties
Zn's natural degradability and biocompatibility make it a promising candidate for implants, however, its mechanical properties remain insufficient for bone applications. In this study, the performance of Zn was enhanced by developing Zn-Cu alloys via laser powder bed fusion (LPBF). Optimal LPBF parameters for forming stable tracks were achieved by adjusting laser power and scanning speed. Under optimized conditions of 100 W and 100 mm/s, high-density (99.58%) Zn-Cu alloys with improved hardness (68.2HV) and yield strength (160 MPa) were achieved. These improvements are attributed to solid solution strengthening, segregation strengthening, and grain refinement. The Zn-Cu alloys also demonstrated favorable degradation behavior, with a rate of 0.16 mm/year. This degradation is primarily driven by micro-galvanic corrosion between the CuZn5 phase and Zn matrix, along with refined grains and increased grain boundary density. This work demonstrates a viable strategy for fabricating Zn-based implants with enhanced structural integrity and mechanical performance via LPBF.
