Key Takeaways & Executive Findings
- •• A combined phase transformation and magnetic separation process effectively separates Fe and Mn from intergrown ferromanganese ore. • Optimal roasting conditions (600°C, 30 min) and grinding fineness (50% passing <0.074 mm) yield high Fe and Mn grades and recoveries. • Hematite transforms to magnetite and pyrolusite to manganosite, enabling efficient magnetic separation. • This clean utilization technology addresses the challenge of complex intergrown ferromanganese ore, reducing resource waste and environmental pollution.
Abstract

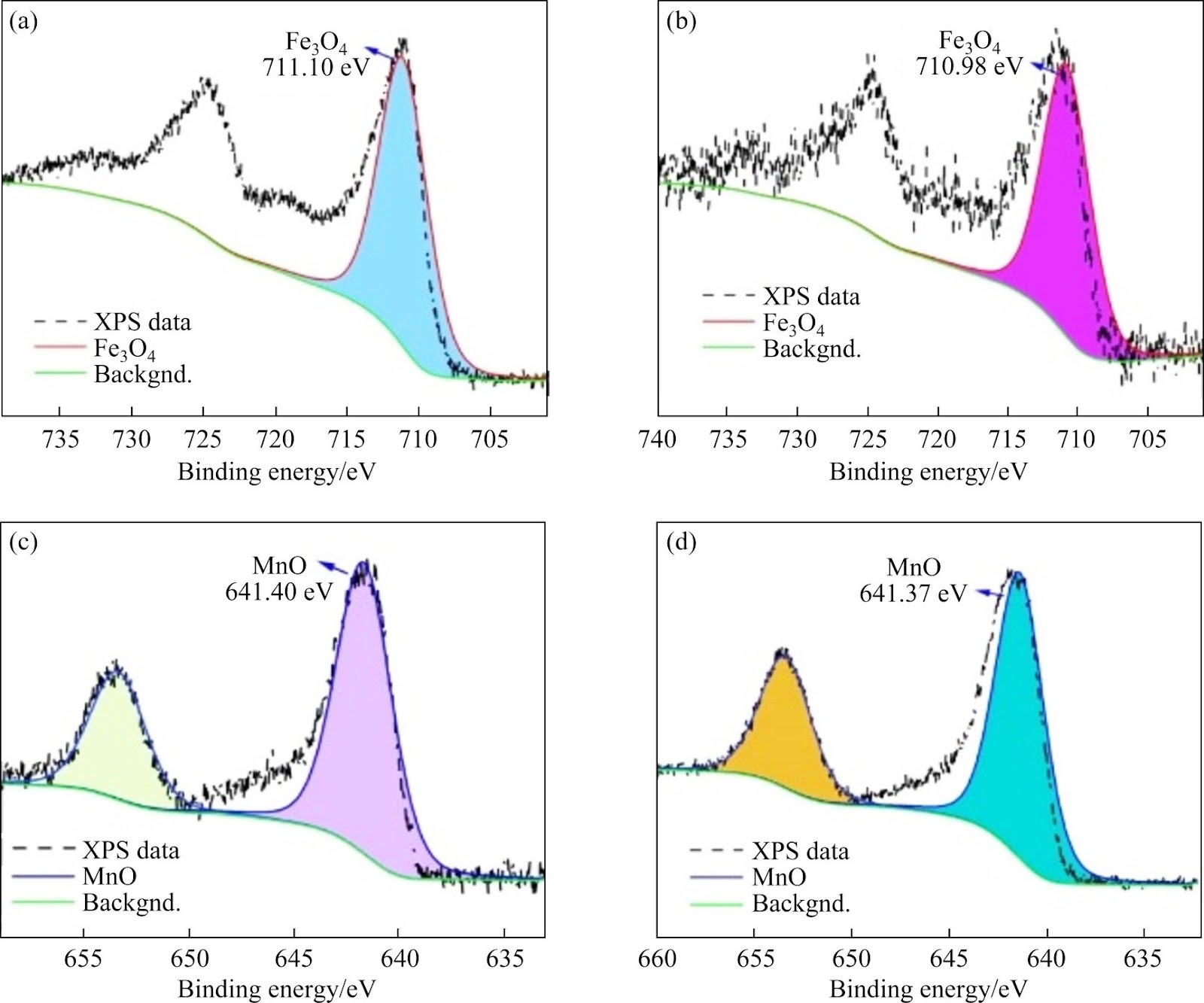

Intergrown ferromanganese ore resources are typical strategic mineral resources with huge reserves and abundant hematite, pyrolusite, and other valuable minerals, which is of great significance for its development and utilization. This paper adopts a combination of phase transformation and magnetic separation to explore the phase transformation mechanism of Fe minerals and Mn minerals during the roasting process. The analysis of the properties of the raw ore shows that the Fe-containing and Mn-containing minerals of the intergrown ferromanganese ore are hematite and pyrolusite, respectively. The optimal conditions for controlling the mineral phase were obtained, including roasting temperature of 600 ℃ for 30 min, and a grinding fineness of <0.074 mm accounting for 50%. Meanwhile, a Fe grade of 61.05% with a recovery of 80.77%, and a Mn grade of 61.60% with a recovery of 87.81% were acquired. The precise mineral phase transformation (MPT) could be realized via adjusting the roasting conditions. Hematite is transformed into magnetite, while pyrolusite is transformed into manganosite, and then they were effectively separated and concentrated via magnetic separation.
1. Introduction
Due to the relatively active chemical nature of Mn, it can combine with oxygen to form various types of manganese oxides. Manganese exists in nature mainly in the form of divalent manganese and tetravalent manganese, mainly including oxidized and carbonate ores. China's manganese ore imports were 2.93×10^7 t in 2024, with a degree of external dependence of more than 85% [1]. Due to the composition complexity of the intergrown ferromanganese ore, Fe and Mn with similar physical and chemical properties are difficult to achieve effective separation through traditional beneficiation techniques [2, 3]. Therefore, the research and development of independent innovative technology to realize the efficient comprehensive utilization of intergrown ferromanganese ore resources is of great strategic significance to strengthen China's ferromanganese resource security capacity.
Intergrown ferromanganese ore resources have a complex mineral composition, in which Fe element is mainly in hematite and limonite, and Mn element is mainly in pyrolusite and manganite. Around its development and utilization, mineral processing workers have carried out numerous studies [4−6]. LIU et al [7] introduced V2O5 as an additive and mixed it with iron manganese ore for roasting. They systematically studied the phase evolution law of the mixed roasting process, as well as the migration and separation law and recycling mechanism of manganese, iron, and vanadium elements in the acid leaching process. The results indicate that the manganese-containing phase in the roasted iron manganese ore is transformed into acid-soluble manganese pyrovanadate, while iron and silicon still exist in the form of Fe2O3 and SiO2. After acid leaching at pH 2 and at pH 1.8, respectively, the leaching rates of Mn, Fe, and V in roasted clinker were 81.25%, 0.0074%, and 5.77%, respectively, achieving effective separation of manganese and iron components [8]. At present, when such ferromanganese ore resources are processed by traditional sorting technology processes such as re-beneficiation, magnetic separation, flotation, leaching, or combined processes, only manganese concentrates with manganese grades of about 30% to 40% and manganese recoveries of about 50% to 60% can be obtained, and Fe ores are discarded in the row of rock ores and tailings, which results in resources waste and environmental pollution [9].
Mineral phase transformation (MPT) technology is a promising way to process the intergrown ferromanganese ore resources [10 −13]. Magnetic differences of Fe and Mn minerals are increased, enabling efficient separation through MPT [14−17]. In this paper, we put forward an MPT technical idea to realize efficient separation of Fe and Mn minerals in ferromanganese ore.
Loading authentic research manuscript (Pages 1–5)...
CHEN Jia-li, GAO Peng, LIU Jie, ZHU Yi-min, ZHOU Wen-tao (2026). Precise mineral phase transformation and separation utilization technology for ferromanganese ore. Journal of Central South University. https://doi.org/10.1007/s11771-026-6237-y
Research & Educational Purpose Only:The translations, structured abstracts, analytical annotations, and data reports provided by SinoTechIntel are intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoTechIntel claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the main challenge in processing intergrown ferromanganese ore?
The main challenge is the complex mineral composition and the similar physical and chemical properties of Fe and Mn, which make effective separation difficult using traditional beneficiation techniques.
What method is proposed in this paper for efficient separation?
The paper proposes a combination of mineral phase transformation (MPT) and magnetic separation. Roasting conditions are optimized to transform hematite to magnetite and pyrolusite to manganosite, enhancing magnetic differences for effective separation.
What are the optimal roasting conditions and results?
The optimal conditions are a roasting temperature of 600°C for 30 minutes and a grinding fineness of <0.074 mm accounting for 50%. Under these conditions, a Fe grade of 61.05% with a recovery of 80.77%, and a Mn grade of 61.60% with a recovery of 87.81% were achieved.
Why is this technology considered 'clean utilization'?
This technology enables efficient recovery of both Fe and Mn, reducing waste and environmental pollution compared to traditional methods that discard Fe ores in tailings. It also improves resource utilization efficiency.
What is the significance of this research for China?
China has a high external dependence on manganese ore imports (over 85% in 2024). This technology can strengthen China's ferromanganese resource security by enabling efficient utilization of domestic intergrown ferromanganese ore resources.
Related Technical Papers & Translations
Direct Repair of the Crystal Structure and Coating Surface of Spent LiFePO4 Materials Enables Superfast Li-Ion Migration
The rapid accumulation of spent LiFePO4 (LFP) cathodes from retired lithium-ion batteries necessitates the development of effective and environmental-friendly recycling strategies. In this context, direct regeneration has emerged as a promising approach for reclaiming LFP cathode materials, offering a streamlined pathway to restore their electrochemical functionality. We report an integrated regeneration protocol that simultaneously repairs the degraded crystal structure and reconstructs the damaged carbon coating in spent LFP. The regenerated cathode material had superfast lithium-ion diffusion kinetics and a stable cathode–electrolyte interface, giving a remarkable rate capability with specific capacities of 122 mAh g−1 at 5C and 106 mAh g−1 at 10C (1C = 170 mA g−1). It also maintained capacities of 110.7 mAh g−1 (5C) and 84.1 mAh g−1 (10C) after 400 cycles. It could be used in harsh environments and could be stably cycled at subzero temperatures (−10 and −20 °C) and in solid-state electrolyte batteries. Life cycle assessment combined with economic evaluation using the EverBatt model reveals that this direct regeneration approach has high economic and environmental benefits.
Oxide Semiconductor for Advanced Memory Architectures: Atomic Layer Deposition, Key Requirement and Challenges
Oxide semiconductors (OSs), introduced by the Hosono group in the early 2000s, have evolved from display backplane materials to promising candidates for advanced memory and logic devices. The exceptionally low leakage current of OSs and compatibility with three-dimensional (3D) architectures have recently sparked renewed interest in their use in semiconductor applications. This review begins by exploring the unique material properties of OSs, which fundamentally originate from their distinct electronic band structure. Subsequently, we focus on atomic layer deposition (ALD), a core technique for growing excellent OS films, covering both basic and advanced processes compatible with 3D scaling. The basic surface reaction mechanisms—adsorption and reaction—and their roles in film growth are introduced. Furthermore, material design strategies, such as cation selection, crystallinity control, anion doping, and heterostructure engineering, are discussed. We also highlight challenges in memory applications, including contact resistance, hydrogen instability, and lack of p-type materials, and discuss the feasibility of ALD-grown OSs as potential solutions. Lastly, we provide an outlook on the role of ALD-grown OSs in memory technologies. This review bridges material fundamentals and device-level requirements, offering a comprehensive perspective on the potential of ALD-driven OSs for next-generation semiconductor memory devices.
Laser powder bed fusion of biodegradable Zn-4Cu alloy: Processing, microstructure and properties
Zn's natural degradability and biocompatibility make it a promising candidate for implants, however, its mechanical properties remain insufficient for bone applications. In this study, the performance of Zn was enhanced by developing Zn-Cu alloys via laser powder bed fusion (LPBF). Optimal LPBF parameters for forming stable tracks were achieved by adjusting laser power and scanning speed. Under optimized conditions of 100 W and 100 mm/s, high-density (99.58%) Zn-Cu alloys with improved hardness (68.2HV) and yield strength (160 MPa) were achieved. These improvements are attributed to solid solution strengthening, segregation strengthening, and grain refinement. The Zn-Cu alloys also demonstrated favorable degradation behavior, with a rate of 0.16 mm/year. This degradation is primarily driven by micro-galvanic corrosion between the CuZn5 phase and Zn matrix, along with refined grains and increased grain boundary density. This work demonstrates a viable strategy for fabricating Zn-based implants with enhanced structural integrity and mechanical performance via LPBF.
